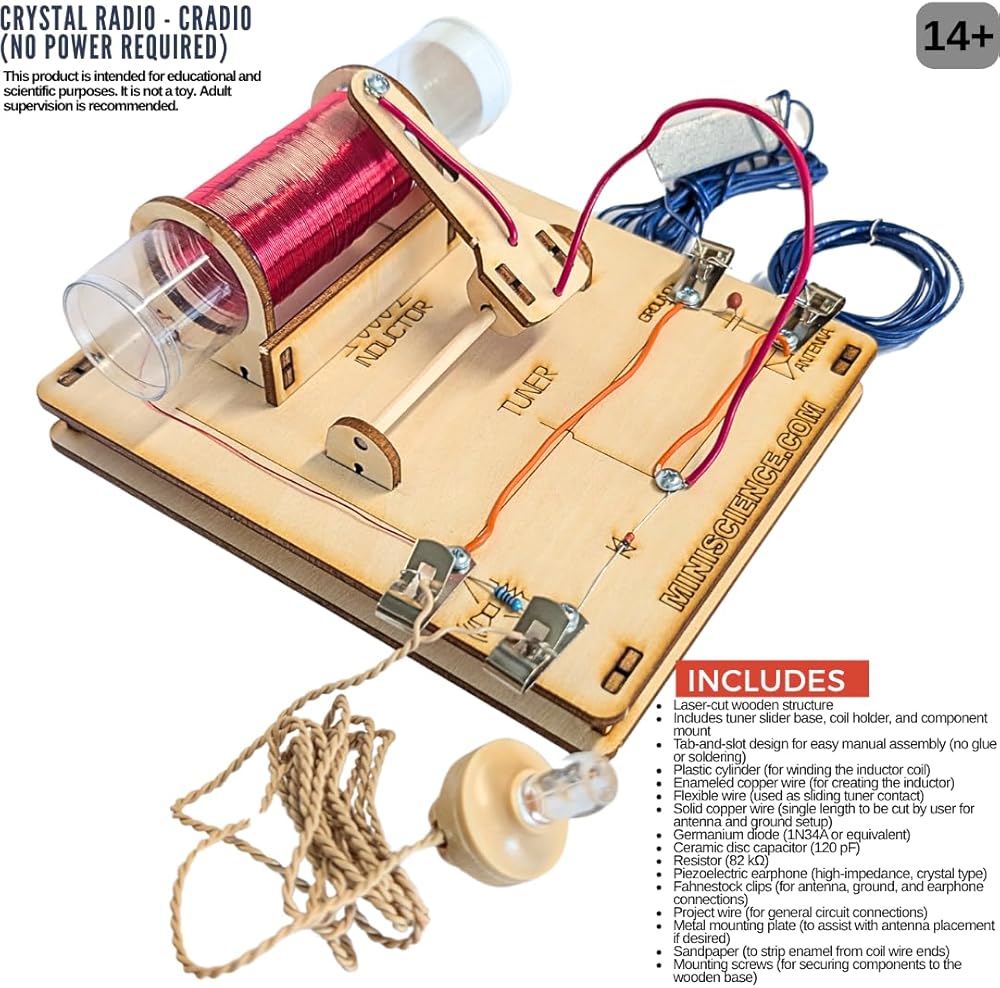

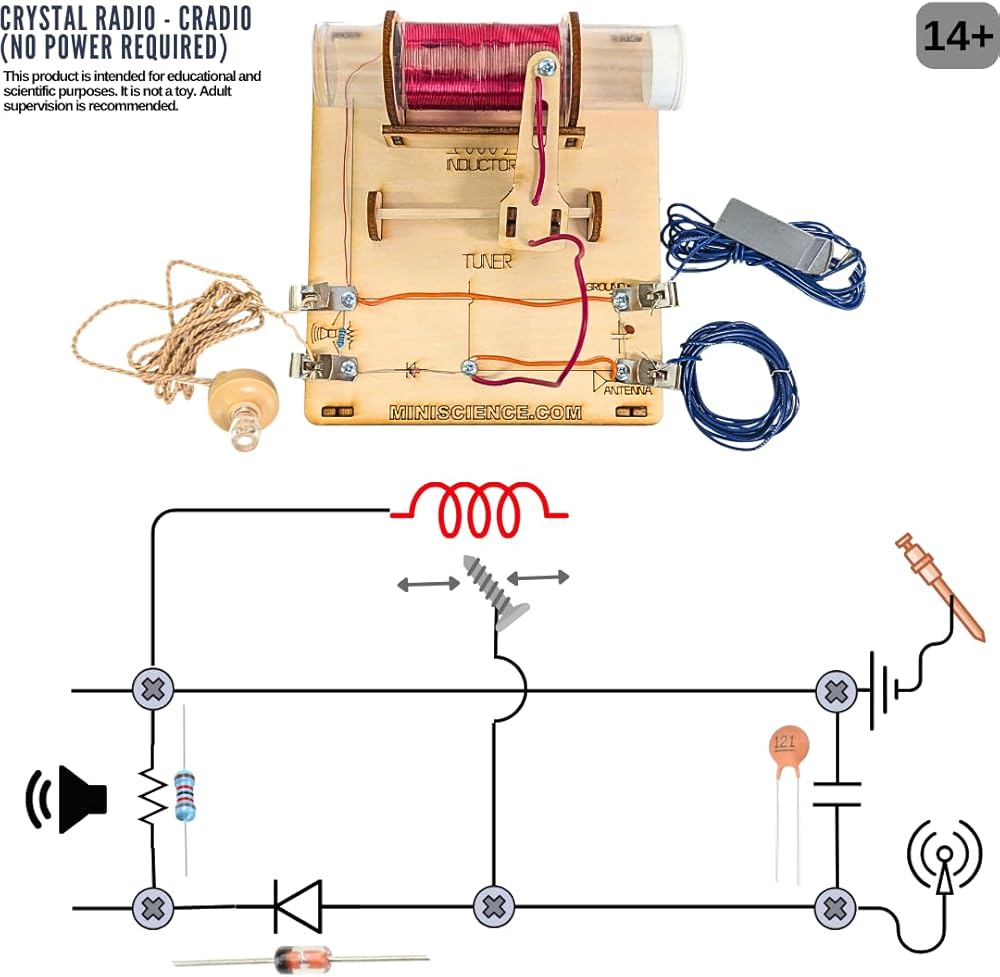

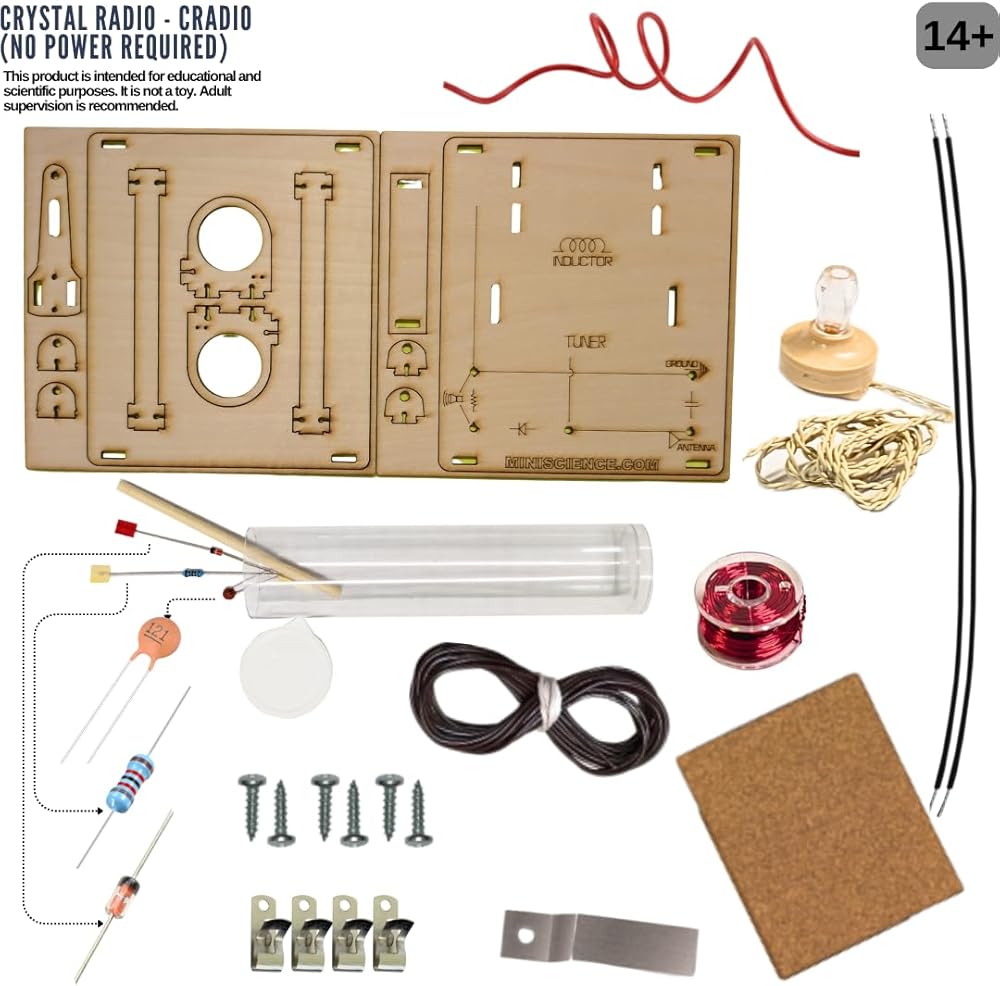

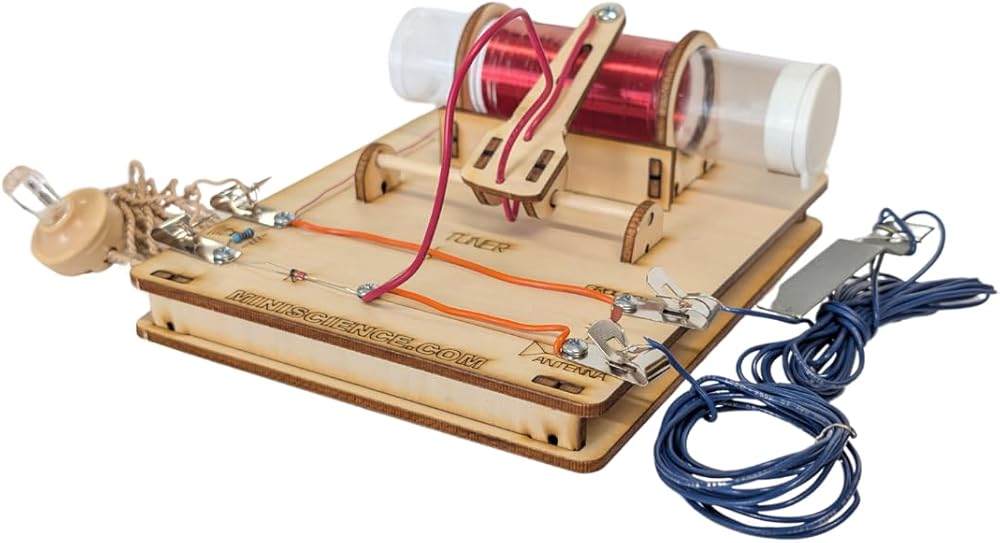

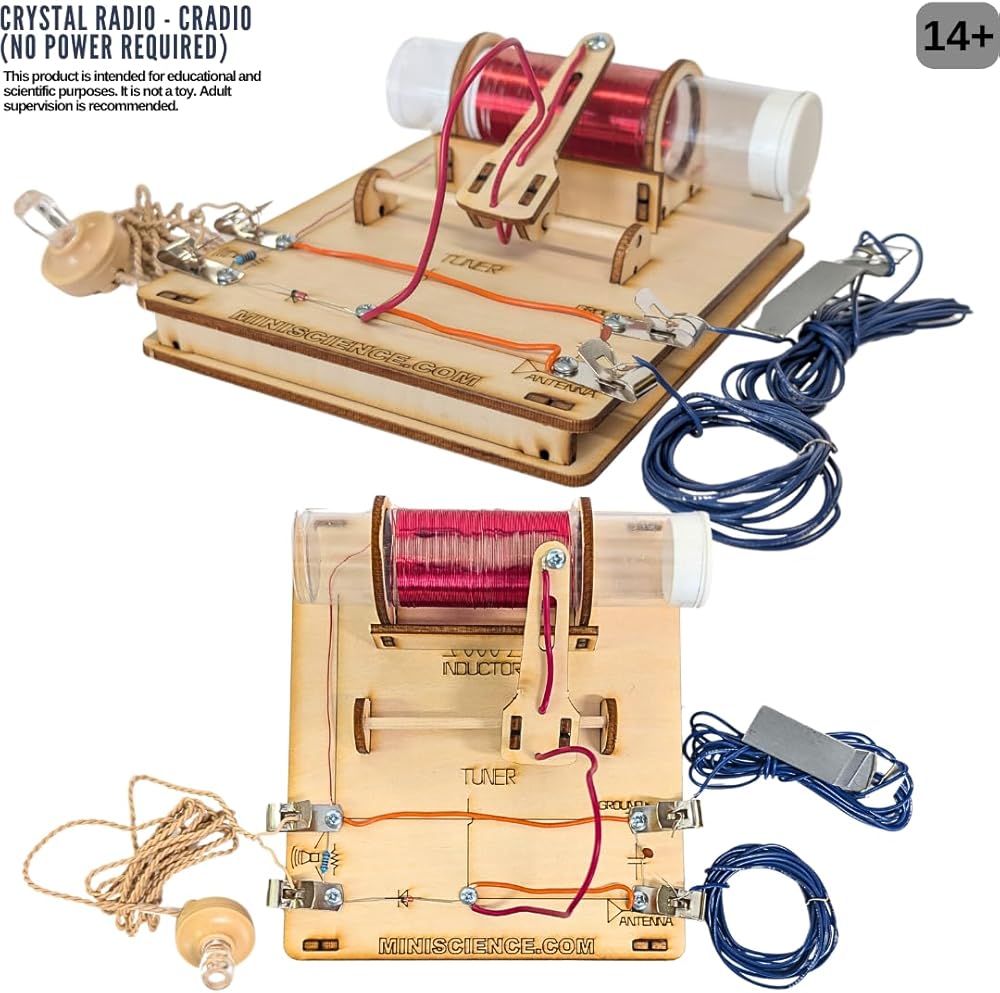

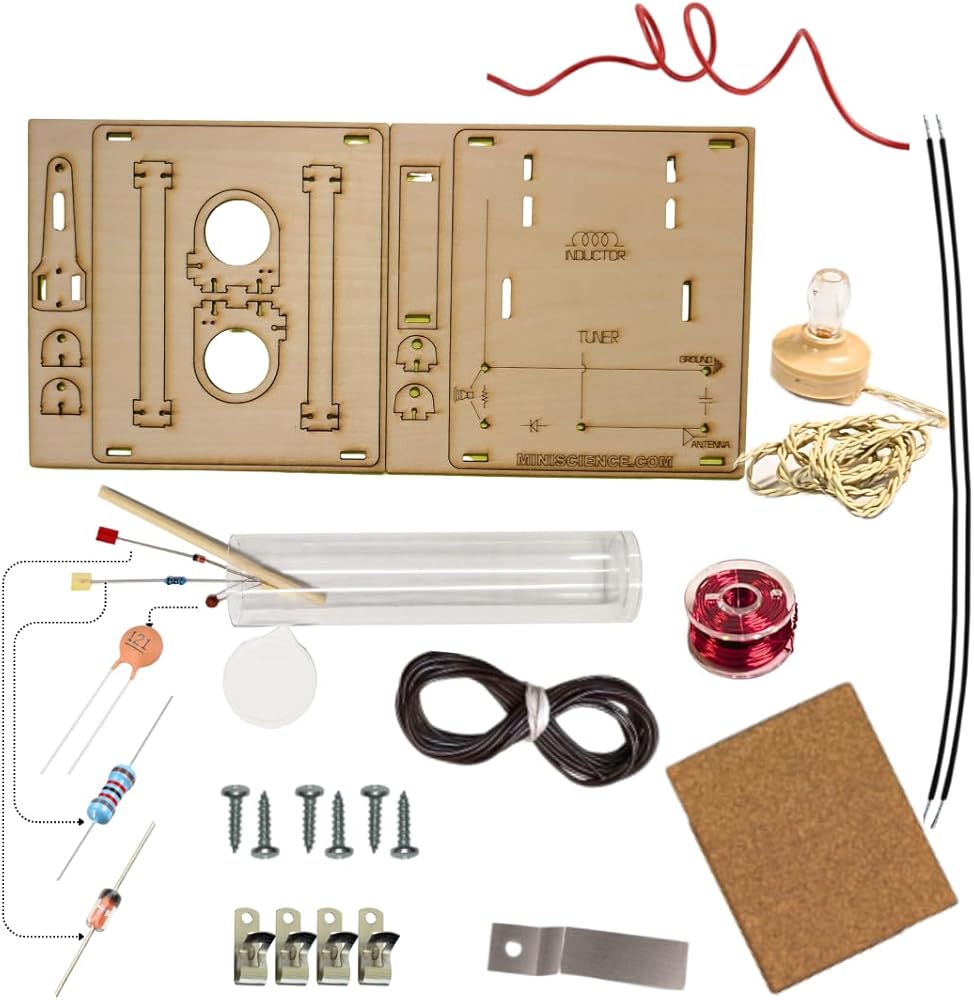

The Advanced Crystal Radio Assembly by MINISCIENCE.COM is a passive AM receiver configuration composed of discrete electronic components designed for crystal radio construction and experimentation. This assembly includes a 1N34A diode, ceramic capacitor, resistor, crystal earphone, and an adjustable tuning wire system used to select and optimize AM frequency reception and signal clarity. The system operates entirely without external power sources, batteries, or soldering, relying solely on ambient AM radio signals. Components are mounted on a laser cut wooden base that functions as a structural platform and layout reference for circuit configuration. A basic assembly reference is included to facilitate initial setup, but the configuration is intentionally open, allowing component substitution, tuning adjustments, and circuit modification for users interested in exploring performance variations, selectivity, and signal response in passive AM receivers. This product consists of electronic components and mechanical supports intended for manual assembly and experimentation. It is not a finished consumer radio device and is not classified as a toy. Recommended for users with basic familiarity with electronic components and radio frequency concepts. Suitable for ages 12 and up. Q: Can I use regular headphones or earbuds with the Advanced Crystal Radio Kit (CRADIO)? A: No. Standard headphones and earbuds have very low impedance and are not compatible with crystal radio circuits. The Advanced Crystal Radio Kit requires a high-impedance output device, such as a crystal earphone or piezoelectric earphone, to properly detect and reproduce audio from the passive AM signal. Using low-impedance headphones will significantly reduce or eliminate reception. Q: Does the Advanced Crystal Radio Kit (CRADIO) require batteries or external power? A: No. The Advanced Crystal Radio Kit is completely passive and does not require batteries or any external power source. It operates by harvesting energy directly from ambient AM radio waves through the antenna, using a diode to detect the audio signal. Q: Is a ground connection required for the Advanced Crystal Radio Kit? A: A ground connection is not strictly required for basic operation, but it greatly improves signal strength and audio clarity. Using a proper ground along with a long wire antenna allows the radio to capture more signal energy, resulting in better reception. Without a ground connection, performance may be limited depending on local signal strength. Q: Can the Advanced Crystal Radio Kit work without a long antenna? A: The kit can operate with a short antenna only if it is located very close to a strong AM transmitter. For most locations, a longer external antenna is recommended to achieve reliable reception. AM radio wavelengths are long, and longer antennas are more effective at capturing usable signal energy. Q: How does tuning work on the Advanced Crystal Radio Kit (CRADIO)? A: The Advanced Crystal Radio Kit uses an adjustable tuning system based on the interaction between the coil and capacitance in the circuit. By adjusting the tuner, the resonant frequency of the circuit changes, allowing selection of different AM broadcast stations within the standard AM band. Q: What frequency range can the Advanced Crystal Radio Kit receive? A: The kit is designed to receive standard AM broadcast frequencies, typically within the approximate range of 500 kHz to 1600 kHz. Actual reception depends on antenna length, grounding quality, and local broadcast availability. Q: Why does the kit use clips, screws, or modular connections instead of twisted wires? A: Modular connections improve reliability and ease of assembly, especially for beginners and educational use. Crystal radios operate with extremely weak signals, and poor connections can significantly reduce performance. Secure connectors help reduce troubleshooting issues and user frustration. Q: Can the reception or volume be improved on the Advanced Crystal Radio Kit? A: Yes. Reception can be improved by using a longer antenna, adding a proper ground connection, carefully adjusting the tuner, and minimizing nearby electrical interference. Since the radio is passive, audio volume is limited by the available signal energy and cannot be amplified without adding powered electronics. Q: Is the Advanced Crystal Radio Kit safe to use? A: Yes. The kit contains no internal power source and is safe when used as instructed. Normal precautions should be taken when installing antennas or ground wires, especially during thunderstorms. It is recommended to disconnect the antenna and ground during severe weather. Q: Who is the Advanced Crystal Radio Kit (CRADIO) intended for? A: The kit is suitable for students, beginners, educators, and electronics hobbyists. It is designed as a hands-on STEM project that demonstrates fundamental radio principles without requiring soldering or prior electronics experience.
