Total Magnification: 40X, 64X, 100X, 160X, 400X, 640X, 1000X and 1600X; Eyepieces: A pair of widefield WF10X/18 A pair of widefield P16X; Objectives: Achromatic DIN 4X/0.10 (160mm/0.17), 10X/0.25 (160mm/0.17), 40X/0.65 (160mm/0.17,spring), 100X/1.25 (160mm/0.17, spring, oil)
Total Magnification: 40X, 64X, 100X, 160X, 400X, 640X, 1000X and 1600X; Eyepieces: A pair of widefield WF10X/18 A pair of widefield P16X; Objectives: Achromatic DIN 4X/0.10 (160mm/0.17), 10X/0.25 (160mm/0.17), 40X/0.65 (160mm/0.17,spring), 100X/1.25 (160mm/0.17, spring, oil)
Total Magnification: 40X, 64X, 100X, 160X, 400X, 640X, 1000X and 1600X; Eyepieces: A pair of widefield WF10X/18 A pair of widefield P16X; Objectives: Achromatic DIN 4X/0.10 (160mm/0.17), 10X/0.25 (160mm/0.17), 40X/0.65 (160mm/0.17,spring), 100X/1.25 (160mm/0.17, spring, oil)
Viewing Head: Trinocular 45 degrees inclined, 360 degrees rotatable Diopter adjustable on both eyepiece tube Sliding interpupillary distance adjustment: 55 mm - 75 mm Photo tube adjustment range: 3/4inch (18 mm); Nosepiece: Revolving, quadruple; Stage: Double-layer mechanical stage Translation range 3inch x 2inch (75 mm x 50 mm) Dimension 5-1/2inch x 5-1/2inch (140 mm x 140 mm)
Condenser: Advanced Abbe NA1.25 w/ iris diaphragm and filter holder Rack and pinion adjustment; Aperture Diaphragm: Iris diaphragm, attached on the condenser; Focusing Mechanism: Coaxial coarse and fine focusing knobs on both side

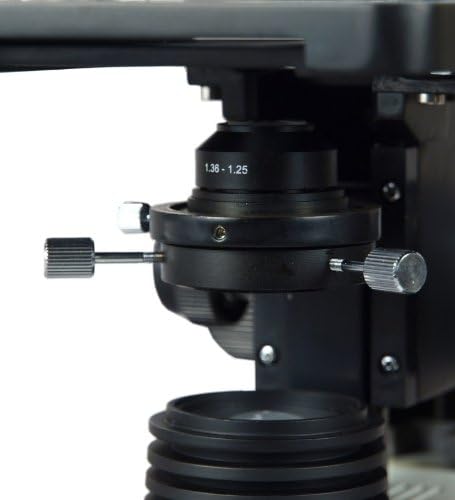

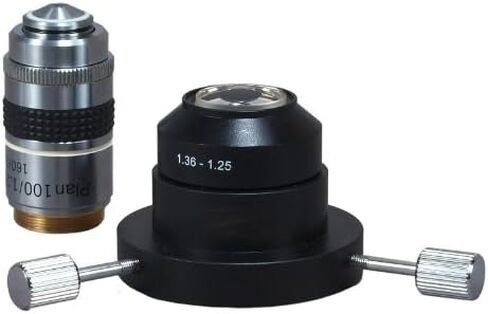

Focus lock on left side Tool-free tension adjustment; Darkfield Kit: Oil darkfield condener: NA1.36-1.25 Oil darkfield objective: Plan 100X/1.25-0.5 160/0.17, w/ built-in iris diaphragm, oil, spring loaded; Illumination: Transmitted, 6V/20W halogen light Light center adjustable Variable intensity; Power Supply: 100-240V, 50/60Hz, (US and Canada power plug)
5-year warranty against manufacturing defects
Description

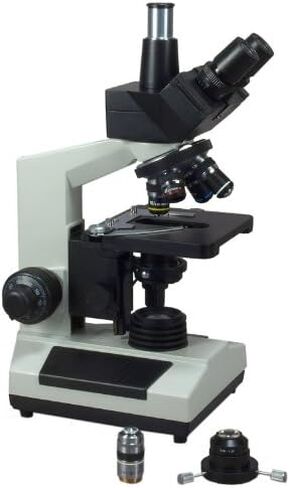

This professional trinocular compound microscope, which equipped with a darkfield condenser kit, is perfect for scientist, doctors, vets, farmers and university students. This product is made by manufacturer in business over 30 years, with high quality professional optical glass elements and metal mechanical components, and is GS and CE approved. The darkfield condenser is newly designed to provide you much brighter viewing field than the ordinary one. You can insert a USB camera (sold seperately) easily into the phototube to observe or demonstrate the specimen on a computer screen, and record and save the video and images.
