OMAX 40X-2000X LED Darkfield Trinocular Compound Microscope with 30 Degree Siedentopf Viewing Head and Extra Bright Oil Darkfield Condenser and 5.0MP USB Camera in Saudi Arabia OMAX 40X-2000X LED Darkfield Trinocular Compound Microscope with 30 Degree Siedentopf Viewing Head and Extra Bright Oil Darkfield Condenser and 5.0MP USB Camera in Saudi Arabia OMAX 40X-2000X LED Darkfield Trinocular Compound Microscope with 30 Degree Siedentopf Viewing Head and Extra Bright Oil Darkfield Condenser and 5.0MP USB Camera in Saudi Arabia OMAX 40X-2000X LED Darkfield Trinocular Compound Microscope with 30 Degree Siedentopf Viewing Head and Extra Bright Oil Darkfield Condenser and 5.0MP USB Camera in Saudi Arabia

OMAX 40X-2000X LED Darkfield Trinocular Compound Microscope with 30 Degree Siedentopf Viewing Head and Extra Bright Oil Darkfield Condenser and 5.0MP USB Camera

SAR 5,374
Brand
OMAX
Category
Microscopes
Weight
8.2 kg
– 1 +

Special Features

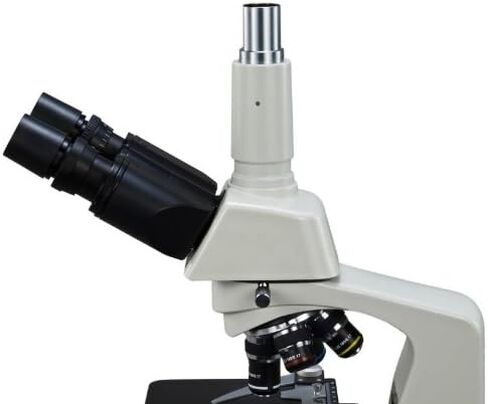

  • Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube
  • Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube
  • Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube
  • Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm; Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop

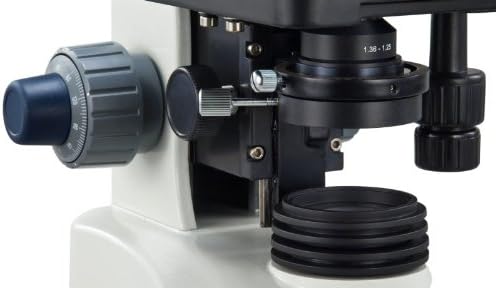

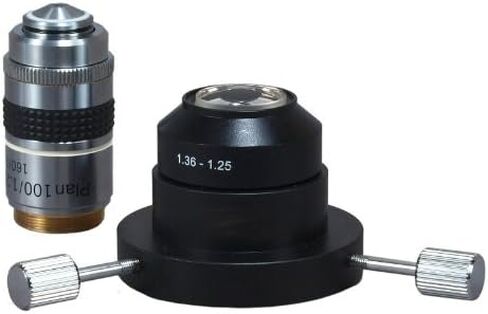

  • Illumination: transmitted replaceable 3W LED light, intensity adjustable; Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment; Extra darkfield condener: NA1.36-1.25; Extra oil darkfield objective: Plan 100X/1.25-0.5 160/0.17, w/ built-in iris diaphragm, oil, spring loaded; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)
  • Digital camera: - true color 2592x1944 pixels (5.0MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10, and Mac OS - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
  • 5-year warranty against manufacturing defects

Description

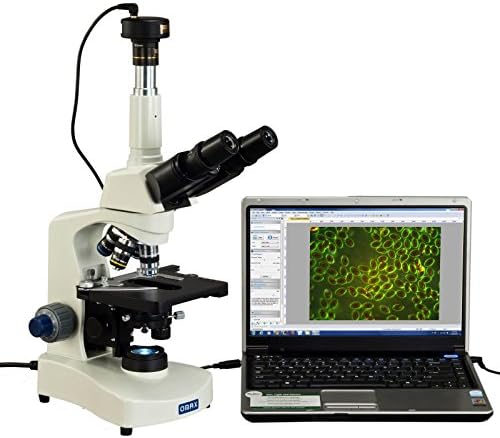

The trinocular compound LED siedentopf microscope 40X-2000X provides brightfield & darkfield microscope system and 5MP USB digital imaging system. The darkfield microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. The 2592x1944 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with windows, Mac OS and Linux operating system can also be used to make measurements. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This darkfield compound microscopy is ideal for professionals and also affordable for students.
