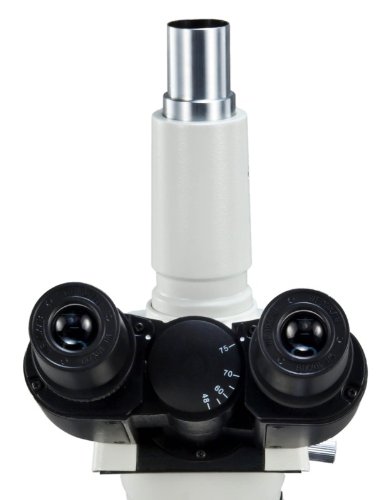

Eyepieces: wide field WF10X/18 and WF20X; Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Bright field objective: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Phase contrast objectives (in phase contrast kit)
Eyepieces: wide field WF10X/18 and WF20X; Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Bright field objective: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Phase contrast objectives (in phase contrast kit)
Eyepieces: wide field WF10X/18 and WF20X; Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Bright field objective: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Phase contrast objectives (in phase contrast kit)

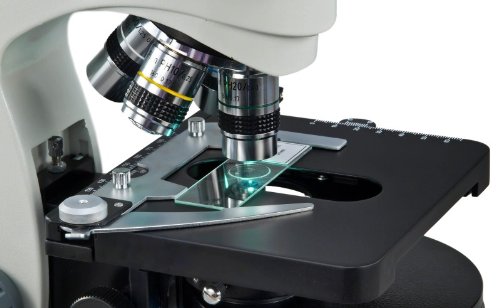

PLAN phase contrast objectives 10X, 20X, 40X(S), 100X(S, Oil); Total magnification for bright field: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm; Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop
Illumination: transmitted replaceable 3W LED light, intensity adjustable; Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment; Phase contrast condenser disk with 5 switchable positions: one bright field NA1.25 w/ iris diaphragm Abbe condenser and four phase contrast filters, 10X, 20X, 40X, 100X, each can be centered individually
Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)
5-year warranty against manufacturing defects
Description

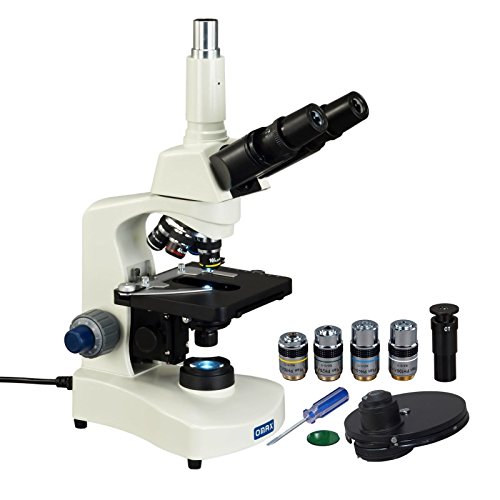

The 40X-2000X trinocular compound LED microscope provides both phase contrast and brightfield microscope system for viewing live cells depending on your applications. The phase contrast microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. It comes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm and a complete set of phase contrast kit. It offers eight levels of brightfield magnification from 40X to 2000X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four plan phase contrast objectives: PH10X, PH20X, PH40X (S), PH100X (S, Oil). It also offers magnification power: 100X-200X-400X-800X-1000X-2000X. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This phase contrast compound microscopy is widely used clinical, biological research and schools, specially for observing live cells.
