Eyepieces: wide field WF10X/18 and WF20X; Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Bright field objective: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Phase contrast objectives (in phase contrast kit)
Eyepieces: wide field WF10X/18 and WF20X; Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Bright field objective: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Phase contrast objectives (in phase contrast kit)
Eyepieces: wide field WF10X/18 and WF20X; Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Bright field objective: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Phase contrast objectives (in phase contrast kit)

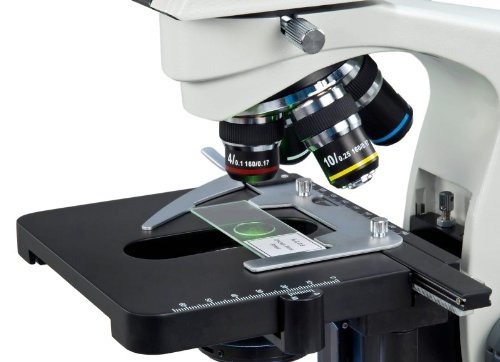

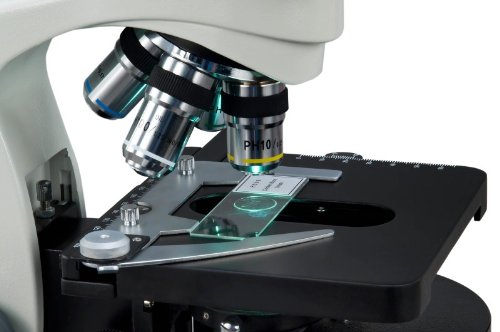

Phase contrast objectives 10X, 20X, 40X(S), 100X(S, Oil); Total magnification for bright field: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm; Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop
Illumination: transmitted replaceable 3W LED light, intensity adjustable; Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment; Phase contrast condenser disk with 5 switchable positions: one bright field NA1.25 w/ iris diaphragm Abbe condenser and four phase contrast filters, 10X, 20X, 40X, 100X, each can be centered individually; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)

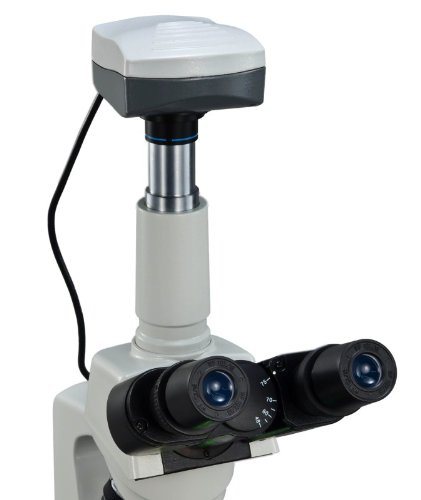

Digital camera: - true color 2592x1944 pixels (5.0MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10, and Mac OS - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
5-year warranty against manufacturing defects
Description

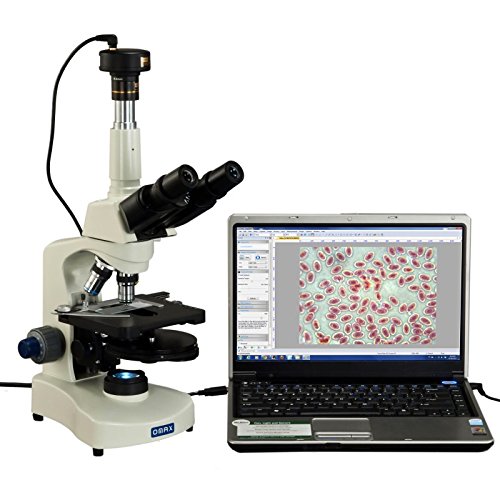

The 40X-2000X trinocular compound LED microscope provides phase contrast & brightfield microscope system and USB digital imaging system. The phase contrast microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. It comes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm, a complete set of phase contrast kit and 5MP USB camera. It offers eight levels of brightfield magnification from 40X to 2000X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four phase contrast objectives: PH10X, PH20X, PH40X (S), PH100X (S, Oil). It also offers magnification power: 100X-200X-400X-800X-1000X-2000X. The 2592x1944 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with windows Mac OS and Linux operating system can also be used to make measurements. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This phase contrast compound microscopy is widely used clinical, biological research and schools, specially for observing live cells.
