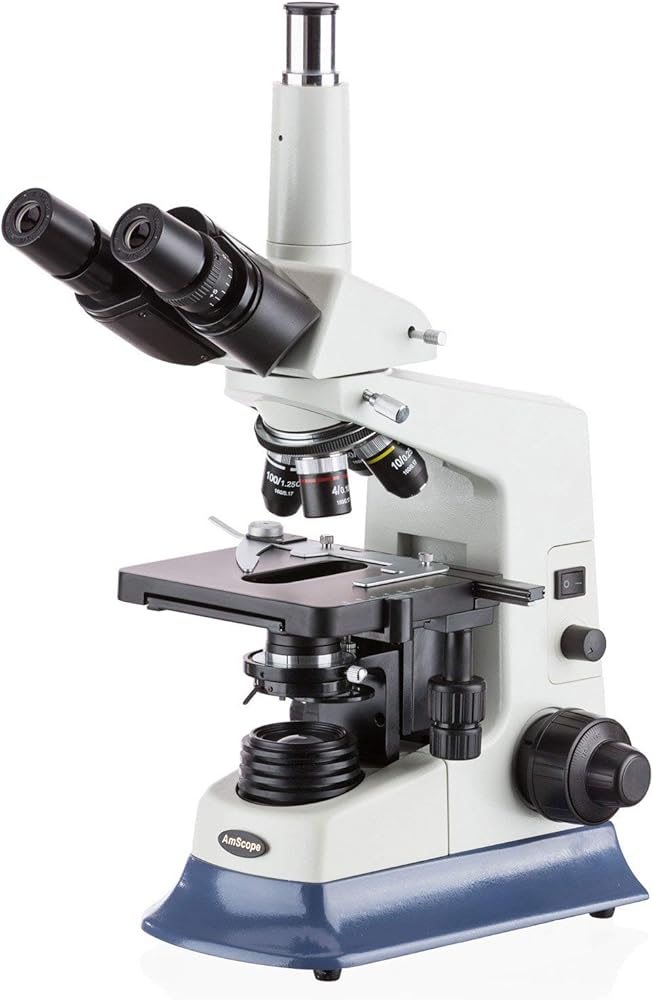

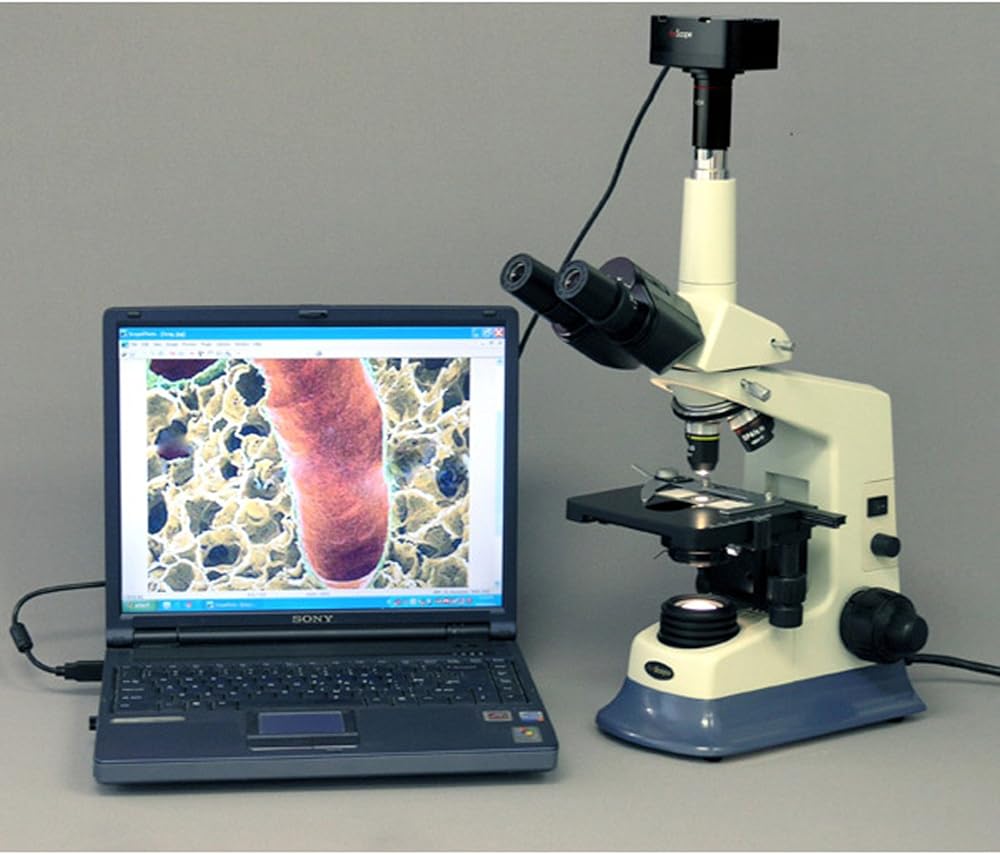

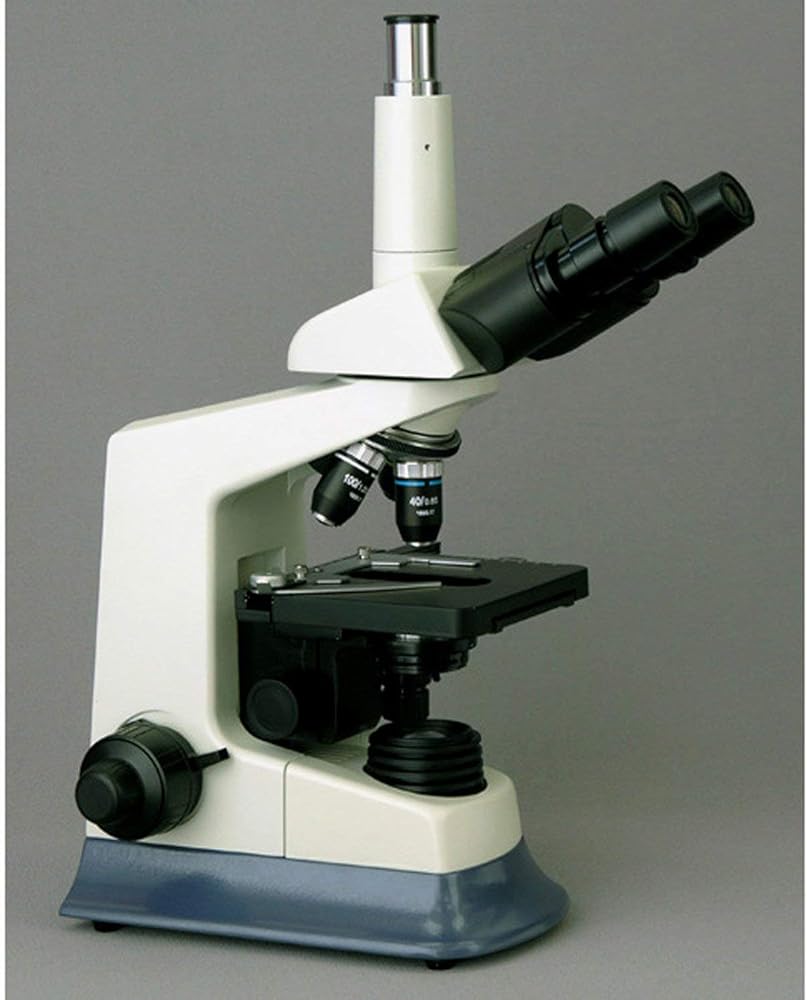

The AmScope T590A compound trinocular microscope has a Siedentopf binocular mount with interchangeable pairs of 10x widefield and 16x widefield eyepieces, a reverse-mounted nosepiece with four DIN achromatic high-contrast objectives, Brightfield halogen illumination, a double-layer mechanical stage with a stage stop to protect slides and objectives from damage, and anti-mold surfaces to preserve optics in high-humidity areas. The trinocular head has a vertical camera mount and a Siedentopf binocular mount with interchangeable pairs of WF10x and WF16x eyepieces with 55 to 75mm Siedentopf interpupillary adjustment, a fixed 30-degree vertical inclination to reduce eye and neck strain, and a 360-degree rotation capability to provide a more comprehensive view and enable sharing. Dioptric adjustment accommodates individual eye-strength differences. The vertical trinocular port accepts a camera with a 23mm or C-Mount adapter (camera sold separately). The reverse-mounted revolving nosepiece has 4x, 10x, and 40xS, and 100xS (oil) DIN achromatic high-contrast objectives that provide color correction of magnified images. High-contrast objectives provide sharp color distinction. The 40xS objective is spring loaded to prevent slide damage when focusing. The 100xS spring-loaded oil-immersion objective uses oil between the specimen and the objective lens to provide increased resolution over a standard objective. A compound microscope is used for inspection and dissection of specimens when two-dimensional images are desired.

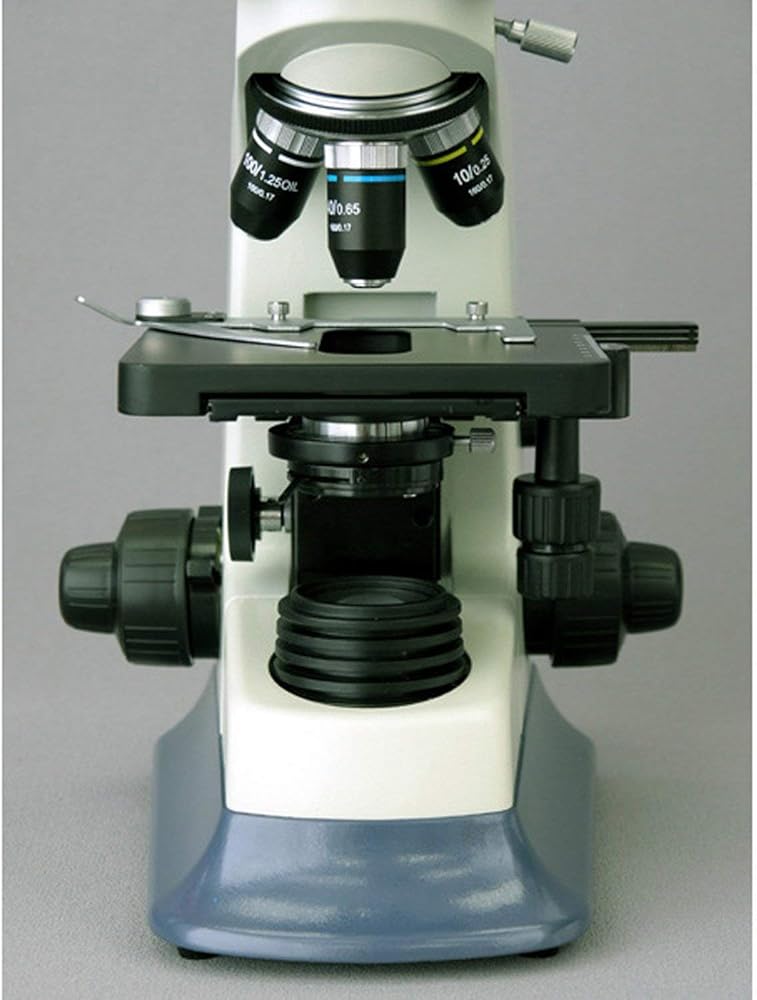

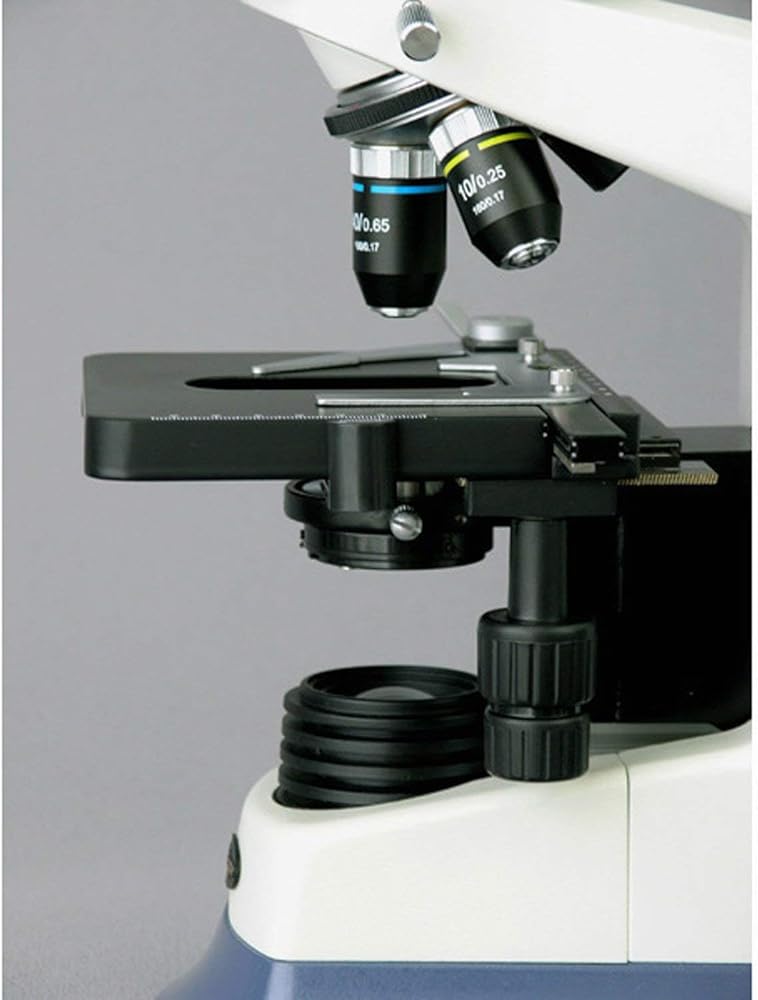

The microscope has lower (transmitted, diascopic) Brightfield illumination that transmits light up through the specimen for enhanced visibility of translucent and transparent objects. Brightfield (BF) illumination allows the specimen to absorb light, resulting in a dark image on a light background. Halogen illumination provides bright light in a concentrated path. The 1.25 NA Abbe condenser is mounted on a rack-and-pinion control system, can be adjusted to control the distance of the light from the stage, has a swing-out color filter holder, and has an iris diaphragm to optimize the amount of light illuminating the specimen. The double-layer mechanical stage, with 1mm stage divisions, locks the slide into place and provides precise slide manipulation along the X- and Y-axis to allow coordinates to be recorded, enabling the viewer to return to a specific location on the slide. A stage stop prevents the stage from coming into contact with the slide and objectives. The stage is 5-1/2 x 6-5/16 inches (140 x 160mm) and has a traveling range of 2-3/4 x 2 inches (70 x 50mm). Graduated coaxial coarse and fine focus has a focusing range of 1-3/16" (30mm) and fine-focus divisions of 0.002mm (0.0000787") that enable measurements to be taken. Focus knob tension control prevents the stage from drifting out of focus. The cast-alloy enamel-coated body is durable and resistant to stains and corrosion.
SpecificationsHeadCompound trinocularMagnification40X-1600XTrinocular port23mm or C-MountEyepieces (23mm)WF10x, WF16xObjectives (20mm)4X, 10x, 40xS, 100xS (oil) high-contrastStageDouble-layer mechanicalLighting configurationTransmitted (lower)Condenser1.25 NA AbbeDiaphragmIrisLight sourceHalogen with rheostat, 6V/20WIllumination typeBrightfieldPower110V, UL listed
Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.
United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA.
What's in the Box?AmScope T590A microscope with double-layer mechanical stage
WF10x eyepieces, 23mm, one pair
WF16x eyepieces, 23mm, one pair
4x DIN achromatic objective, 20mm
10x DIN achromatic objective, 20mm
40xS DIN achromatic objective, 20mm
100xS (oil) DIN achromatic objective, 20mm
Immersion oil, one bottle
(2) Color filters; blue and green
Spare halogen bulb
Spare fuse
Focus tension wrench
Allen wrench
Dust cover
Power cord
Instructions
