Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN 4X, 10X, 40X (spring), 100X (spring,oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube
Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN 4X, 10X, 40X (spring), 100X (spring,oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube
Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN 4X, 10X, 40X (spring), 100X (spring,oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube
Nosepiece: reversed revolving quadruple nosepiece; Stage: double layer X-Y mechanical stage with scales, size 5-1/2inch x 4-1/4inch (140mm x 110mm) translation range 3inch x 2inch (78mm x 52mm); A specially designed back slot on the microscope stand for easy hand holding and carrying
Focus: coaxial coarse and fine focus knobs on both side with tension control; Stage upward stopper protects objective and slides; Brightfield condenser: Abbe condenser NA1.25 with iris diaphragm and filter holder, rack and pinion adjustment; Dry darkfield condenser: NA 0.7-0.9
Illumination: transmitted, 6V/20W halogen lamp, variable intensity; All metal mechanical components; Digital camera: - true color 2592x1944 pixels (5.0MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10, and Mac OS - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
5-year warranty against manufacturing defects
Description

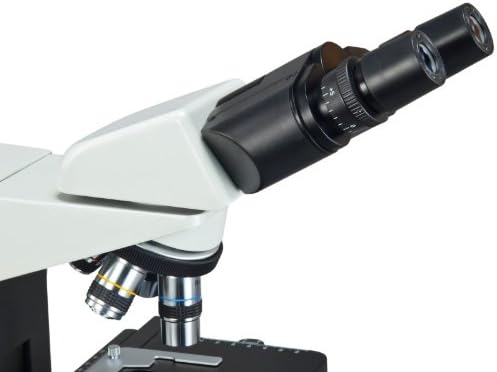

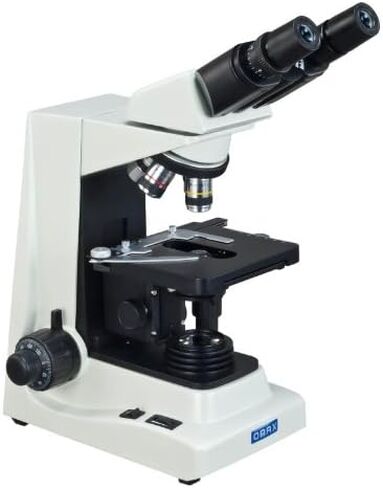

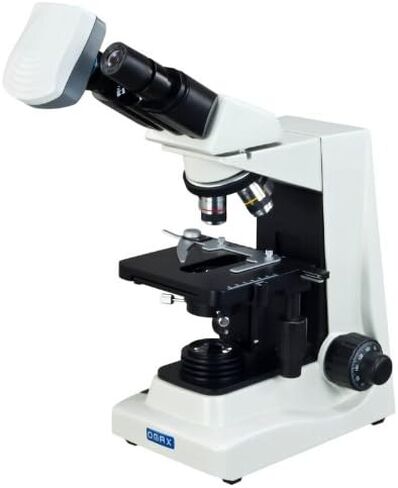

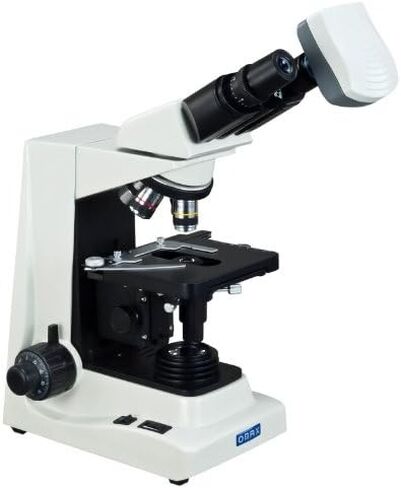

This is a digital darkfield and brightfield Siedentopf PALN binocular microscope includes both darkfield and brightfield systems. The biological microscope comes with 5.0MP (2592x1944 pixels) USB digital imaging system that captures still microscope images and live video on computer. The included advanced software compatible with Windows XP/Vista/7/8/10 can also be used to make measurements. This type of compound microscopy offers a 30° inclined 360° swiveling compensation free binocular viewing head, quintuple reversed nosepiece, four PLAN objectives, large 3-D double layer mechanical stage with scales, variable intensity halogen transmitted illumination system, darkfiled & brightfield condensers, eight level magnification from 40X to 1600X. The microscopy is used by life laboratories, institutes and universities. There is a wide range of accessories available including phase contrast condensers and carrying case.
