Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN 4X, 10X, 40X (spring),100X (spring,oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary distance: adjustment 2-3/16inch - 2-15/16inch ( 55mm - 75mm); Diopter: adjustable on left ocular-tube
Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN 4X, 10X, 40X (spring),100X (spring,oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary distance: adjustment 2-3/16inch - 2-15/16inch ( 55mm - 75mm); Diopter: adjustable on left ocular-tube
Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN 4X, 10X, 40X (spring),100X (spring,oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary distance: adjustment 2-3/16inch - 2-15/16inch ( 55mm - 75mm); Diopter: adjustable on left ocular-tube

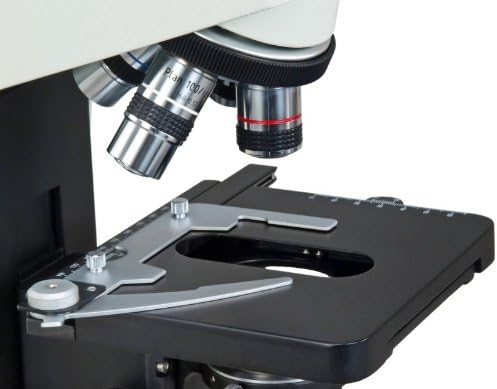

Nosepiece: reversed revolving quadruple nosepiece; Stage: double layer X-Y mechanical stage with scales, size 5-1/2inch x 4-1/4inch (140mm x 110mm) translation range 3inch x 2inch (78mm x 52mm); A specially designed back slot on the microscope stand for easy hand holding and carrying
Illumination: transmitted, 6V/20W halogen lamp, variable intensity; Focus: coaxial coarse and fine focus knobs on both side with tension control; Stage upward stopper protects objective and slides; Brightfield condenser: Abbe condenser NA1.25 with iris diaphragm and filter holder, rack and pinion adjustment
Oil darkfield condenser: NA 1.36-1.25 plus plan 100X/1.25-0.5 160/0.17 objective (oil, spring) with built-in iris diaphragm; All metal mechanical components
5-year warranty against manufacturing defects
Description

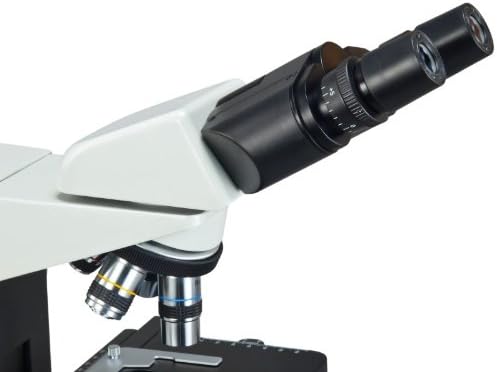

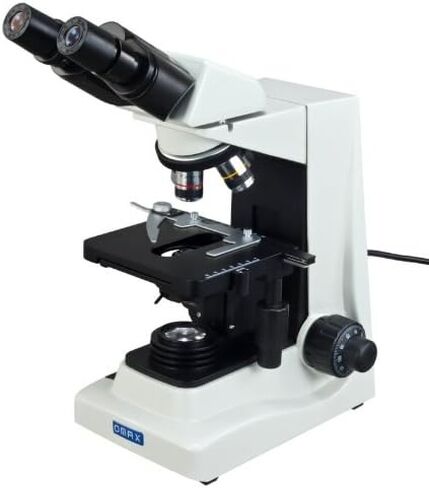

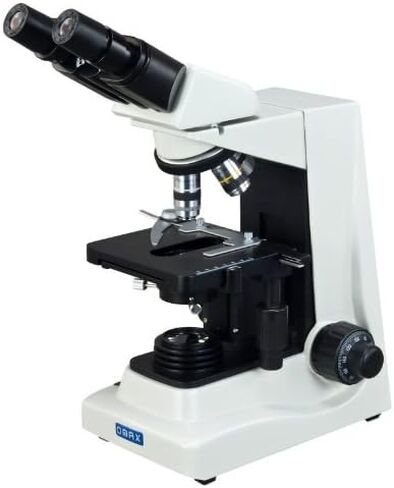

This is a biological Siedentopf PALN binocular microscope provides both darkfield and brightfield systems. The darkfield and brightfield compound microscope includes a Abbe NA 1.25 brightfield condenser and a NA: 1.36-1.25 darkfield condenser with a 100X plan oil objective lens with built-in iris diaphragm. It comes with a 30° inclined 360° swiveling compensation free binocular viewing head, quintuple reversed nosepiece, four PLAN objectives, large 3-D double layer mechanical stage with scales, variable intensity halogen transmitted illumination system, brightfield condenser & darkfiled condenser, and eight level magnification from 40X to 1600X. There is a wide range of accessories available including phase contrast condensers, USB cameras and carrying case. The microscopy is used by life laboratories, institutes and universities.
