Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN 4X, 10X, 40X(spring),100X(spring,oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube; Nosepiece: reversed revolving quadruple nosepiece
Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN 4X, 10X, 40X(spring),100X(spring,oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube; Nosepiece: reversed revolving quadruple nosepiece
Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN 4X, 10X, 40X(spring),100X(spring,oil); Viewing head: binocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left ocular-tube; Nosepiece: reversed revolving quadruple nosepiece
Stage: double layer X-Y mechanical stage with scales, size 5-1/2inch x 4-1/4inch (140mm x 110mm) translation range 3inch x 2inch (78mm x 52mm); A specially designed back slot on the microscope stand for easy hand holding and carrying
Focus: coaxial coarse and fine focus knobs on both side with tension control; Stage upward stopper protects objective and slides; Condenser: Abbe condenser NA1.25 with iris diaphragm and filter holder, rack and pinion adjustment

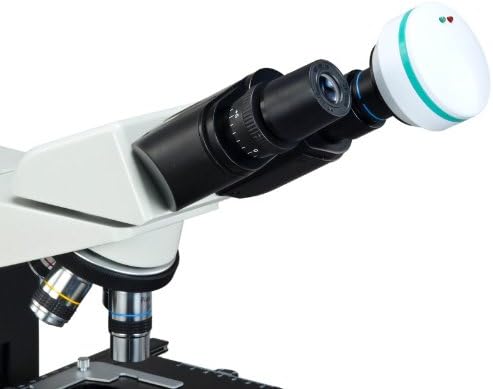

Illumination: transmitted, 6V/20W halogen lamp, variable intensity; All metal mechanical components; Digital camera: - true color 2048 x 1536 pixels (3.0MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10, and Mac OS - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
5-year warranty against manufacturing defects
Description

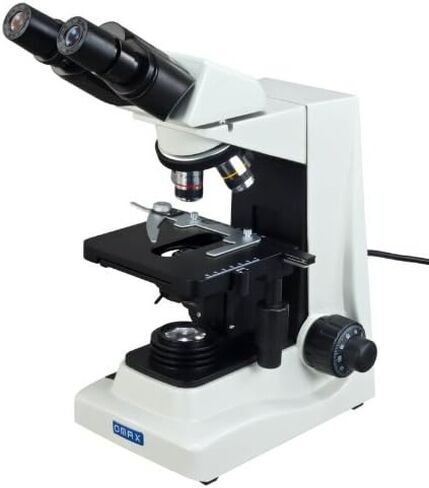

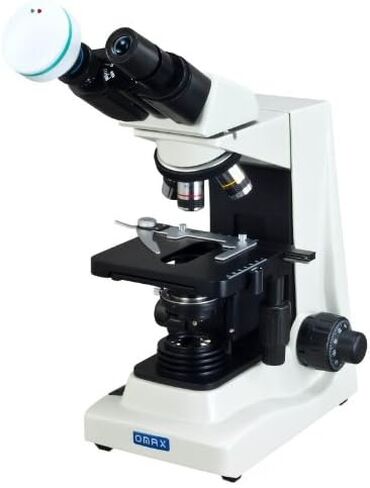

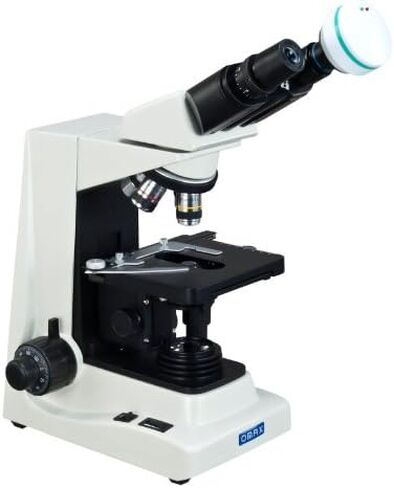

This is a 3.0MP (2048x1536 pixels) digital binocular Siedentopf PLAN biological microscope. It comes with a 30° inclined 360° swiveling compensation free binocular viewing head, Siedentopf nosepiece, 3-D mechanical stage with scales, four PLAN objectives for flatter field of view and larger working distance, variable intensity halogen transmitted illumination system, eight level magnification: 40X-1600X and 3.0MP USB digital imaging system that captures still microscope images and live video on computer. The included advanced software compatible with Windows XP/Vista/7/8/10 can also be used to make measurements. This type of microscopy is perfect for research laboratories and advanced applications in clinical offices. It's also capable to add different accessories, e.g. darkfield condenser, phase contrast condenser and carrying case.
