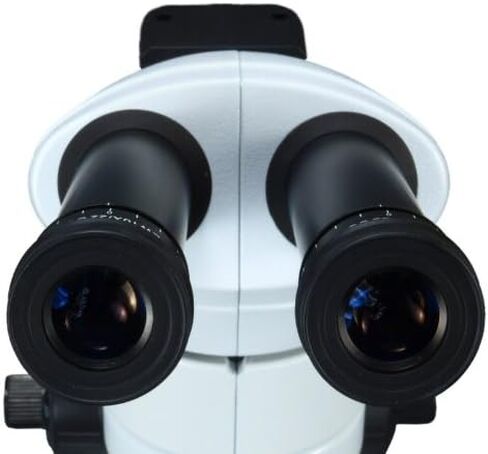

Magnification: Zoom 8X - 80X, Zoom ratio 1:10; Viewing Head: 20degrees; inclined, 360anddeg; swiveling binocular head; Interpupillary distance: 50mm-75mm (2inch - 3inch); Eyepiece: A pair of 10X high eyepoint eyepiece EW10X/22 Wide field 22mm Dioptor adjustable on both eyepiece +/-5dp; Zoom Body: 0.8X-8X, Zoom ratio 1:10
Magnification: Zoom 8X - 80X, Zoom ratio 1:10; Viewing Head: 20degrees; inclined, 360anddeg; swiveling binocular head; Interpupillary distance: 50mm-75mm (2inch - 3inch); Eyepiece: A pair of 10X high eyepoint eyepiece EW10X/22 Wide field 22mm Dioptor adjustable on both eyepiece +/-5dp; Zoom Body: 0.8X-8X, Zoom ratio 1:10
Magnification: Zoom 8X - 80X, Zoom ratio 1:10; Viewing Head: 20degrees; inclined, 360anddeg; swiveling binocular head; Interpupillary distance: 50mm-75mm (2inch - 3inch); Eyepiece: A pair of 10X high eyepoint eyepiece EW10X/22 Wide field 22mm Dioptor adjustable on both eyepiece +/-5dp; Zoom Body: 0.8X-8X, Zoom ratio 1:10

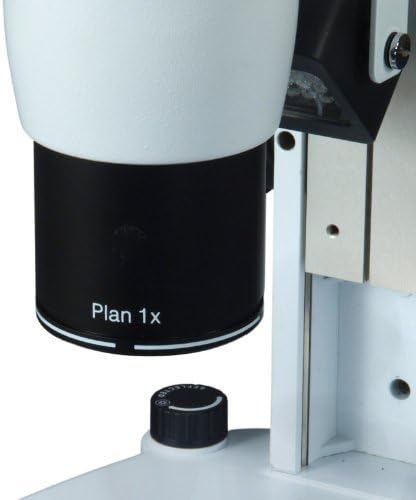

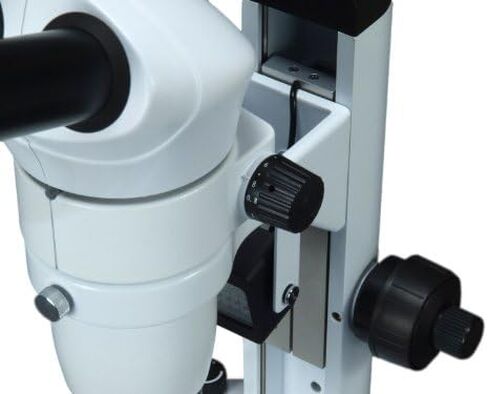

Objective: Common main objective 1X Plan achromatic objective; Focus Mechanism: Sturdy metal framework Fine and Coarse focus knobs on both side tension adjustable, focus range: 105 mm; Stage Plate: Clear glass stage plate, phi100 mm White/Black plastic stage plate, phi100 mm
Working Distance: 78 mm; Field of View: phi26 mm with 0.8X10 magnification phi2.5 mm with 8X10 magnification; Depth of field: Up to 17 mm
Illumination: Dual LED illuminators, 6000 hours life Upper: 5X6 matrix LED light, intensity adjustable, variable inclination Bottom: LED light, intensity adjustable Optional fluorescent and LED ring light availabe in stock; Power Supply: 100 - 240V AC, 50/60 Hz, main power switch, US and Canada Plug
5-year warranty against manufacturing defects
Description

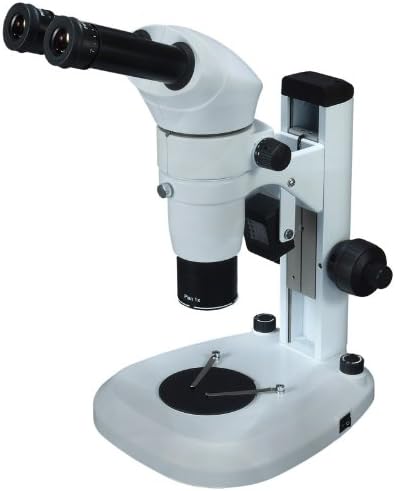

The MP4A is a common main objective (CMO)/parallel optics stereomicroscope. It features large depth of field value, large zoom ration, and large field of view. It equiped a pair of wide field, high eyepoint eyepieces which are especially useful for microscopists who wear eyeglasses. The design of seperated microscope head and body makes it easier to add accessories, such as beamsplitters, coaxial episcopic illuminator, and variable aperture diaphragms inbetween them. This CMO stereo microscope is suitable for utilizing in research and development laboratories, and industry production lines as well.
