Diopter: adjustable on both ocular eyetubes; Nosepiece: revolving quadruple; Stage: double layer X-Y mechanical stage with scales, size: 4-1/2inchx 4-15/16inch (115mm x 125mm), translation range: 2-13/16inch x 1-3/16inch (70mm x 30mm); Stage upward moving lock protects objectives and slides; Condenser: NA1.25 Abbe condenser with iris diaphragm
Illumination: transmitted (lower) LED light, intensity adjustable; Focus: Coaxial coarse and fine knobs on both sides; Full solid metal frame construction with stain resistant enamel finish; Power supply: AC/DC adapter, 7.5V/7.5W (UL approved) - Input: 100-240V

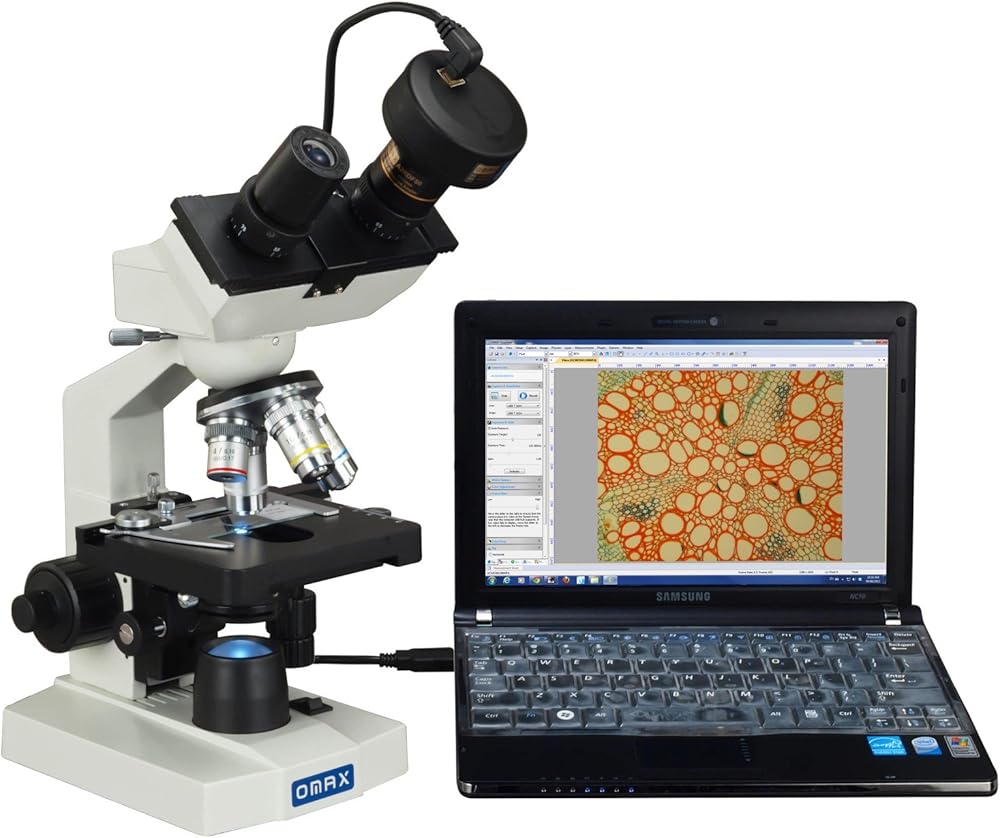

Digital camera: - true color 1280x1024 pixels (1.3MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10, and Mac OS - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
5-year warranty against manufacturing defects
Description

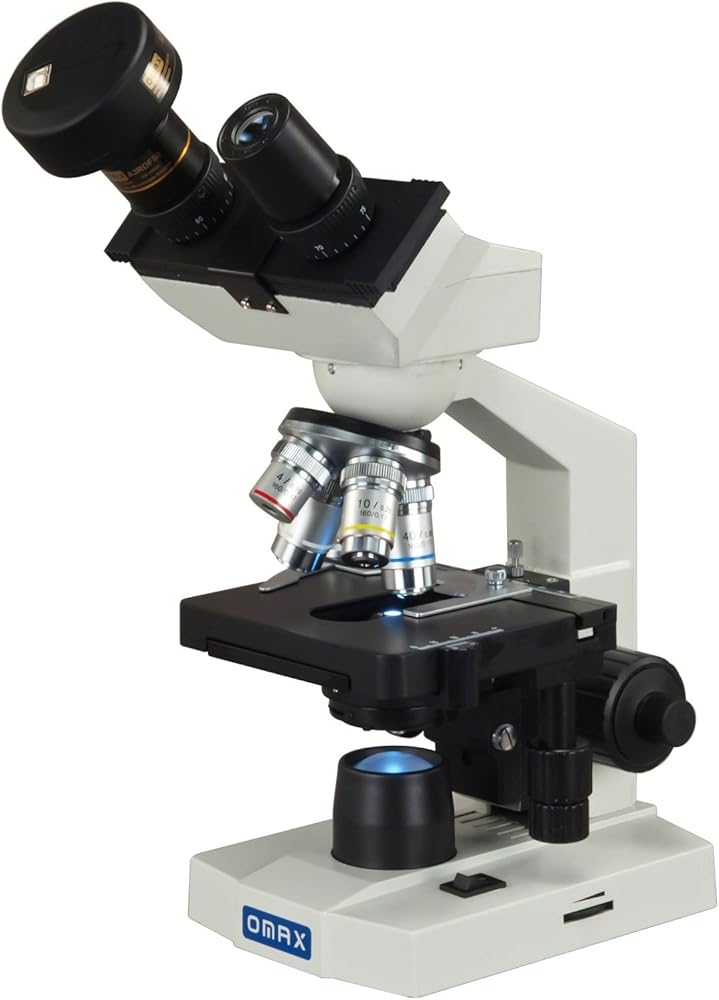

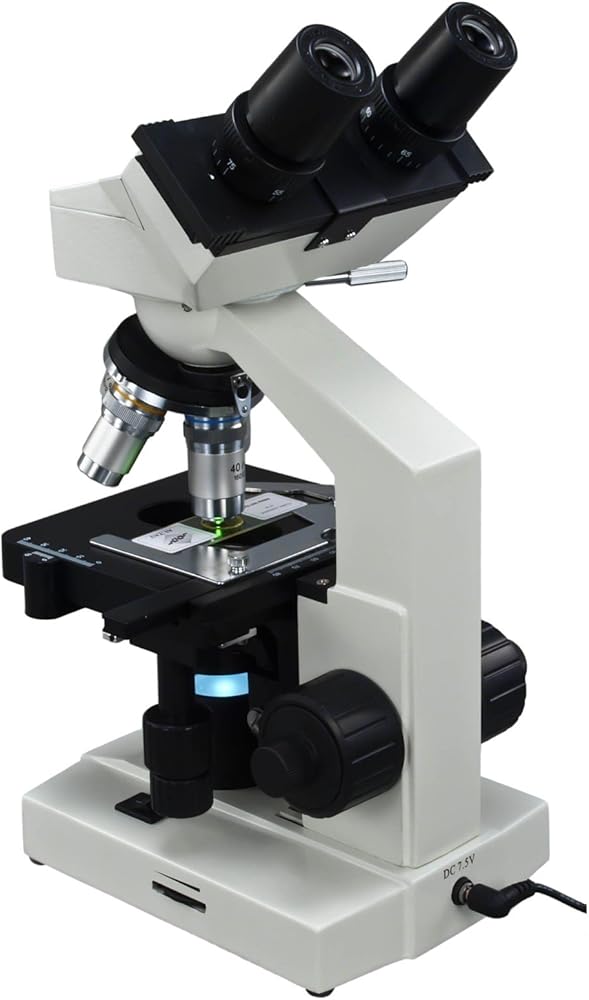

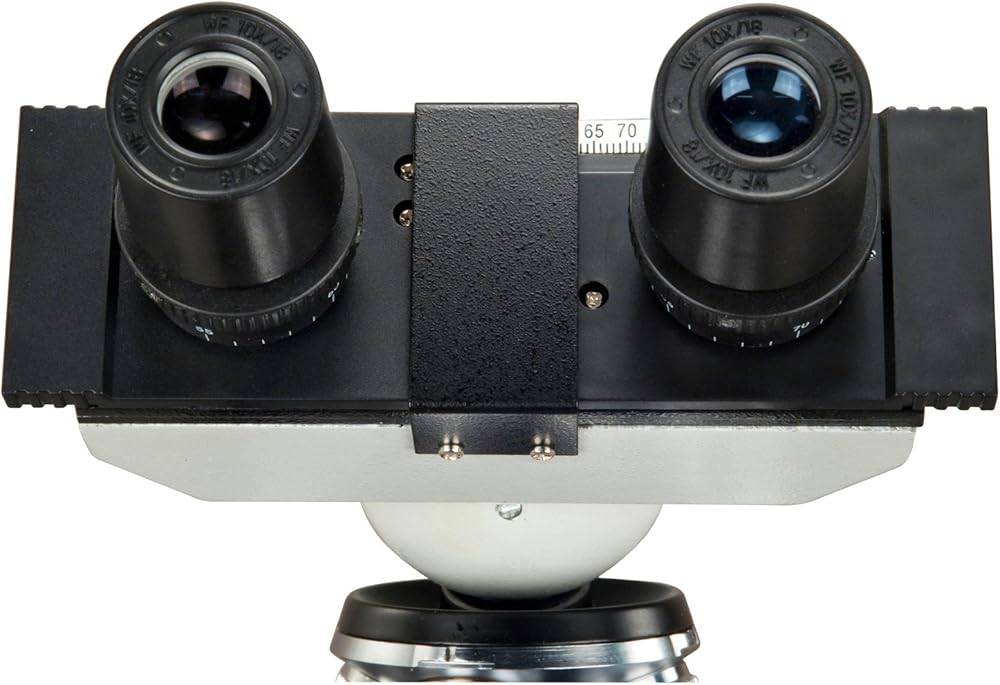

This is a digital biological binocular compound microscope that includes a digital imaging system. The digital microscopy comes with a 45° inclined 360° swiveling binocular sliding viewing head, two pairs of widefield eyepieces, four achromatic objectives, stain-resistant double layer mechanical stage with scales, coarse & fine focusing, NA 1.25 Abbe condenser and variable intensity LED transmitted illumination system. It offers eight levels of magnification power: 40X-1600X. The 1.3MP (1280x1024 pixels) USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with windows, Mac OS and Linux operating system can also be used to make measurements. It is easy to mount a darkfield condenser to switch a brightfield microscope to a darkfield microscope. This type of digital compound microscopy is perfect for teaching demonstration and clinical examination, laboratories and advanced applications.
