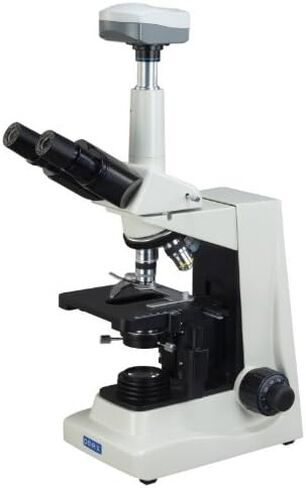

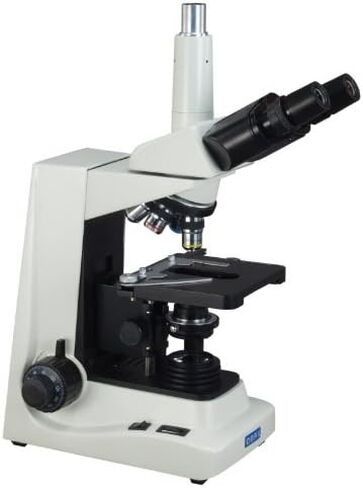

OMAX 40X-1600X Advanced Digital Darkfield Trinocular Compound Microscope with 9.0MP USB Camera and Extra Bright Darkfield Condenser

SAR 6,769
Brand
OMAX
Category
Microscopes
Weight
10.9 kg
– 1 +

Special Features

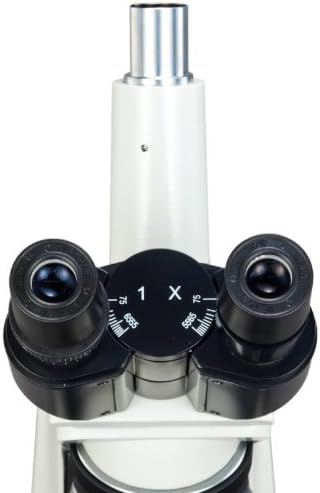

  • Total magnifications: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: achromatic 4X (0.10), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring, oil); Viewing head: trinocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: reversed revolving quadruple nosepiece
  • Total magnifications: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: achromatic 4X (0.10), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring, oil); Viewing head: trinocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: reversed revolving quadruple nosepiece
  • Total magnifications: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: achromatic 4X (0.10), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring, oil); Viewing head: trinocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: reversed revolving quadruple nosepiece

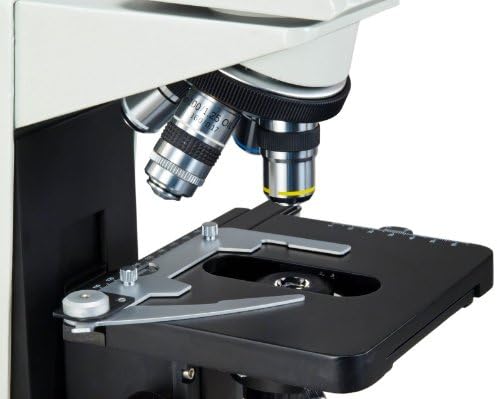

  • A lever to switch between beam spilt for photo part and 100% to eyepieces when camera is not in use; Stage: double layer X-Y mechanical stage with long clips holding two parallel slides, size 5-1/2inch x 4-1/4inch (140mm x 110mm), translation range 3inch x 2inch (78mm x 52mm); A specially designed back slot on the microscope stand for easy hand holding and carryingOil darkfield condenser: NA 1.36-1.25 plus plan 100X/1.25-0.5 160/0.17 objective (oil, spring) with built-in iris diaphragm
  • Illumination: transmitted, 6V/20W halogen lamp, variable brightness intensity; Focus: coaxial coarse and fine focus knobs on both side with tension control; Stage upward stopper for protecting objective and slides; Condenser: Abbe condenser NA1.25 with iris diaphragm and filter holder, rack and pinion adjustment; All metal mechanical components; Power supply: 110-115V, 50/60Hz (US and Canada) (220V version available, contact seller)
  • Digital camera: - true color 3488 x 2616 pixels (9.0MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10 - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
  • 5-year warranty against manufacturing defects

Description

The professional trinocular Siedentopf compound microscope provides darkfield & brightfield microscope system and 9.0MP USB digital imaging system. The darkfield biological microscope comes with trinocular viewing head, body frame, quintuple reversed nosepiece, four DIN achromatic objectives, large double layer mechanical stage, variable intensity halogen transmitted illumination system and brightfield Abbe NA1.25 condenser & oil darkfiled NA1.36-1.25 condenser plus 100X objective with iris diphragm. It offers eight level magnifications from 40X to 1600X. The 3488x2616 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with Windows XP/Vista/7/8/10 can also be used to make measurements. This advanced microscopy is designed for research laboratories and advanced applications in clinical offices.
