OMAX 40X-1600X Advanced Darkfield Trinocular Compound Microscope with Reversed Nosepiece and Dry Darkfield Condenser in Saudi Arabia OMAX 40X-1600X Advanced Darkfield Trinocular Compound Microscope with Reversed Nosepiece and Dry Darkfield Condenser in Saudi Arabia OMAX 40X-1600X Advanced Darkfield Trinocular Compound Microscope with Reversed Nosepiece and Dry Darkfield Condenser in Saudi Arabia OMAX 40X-1600X Advanced Darkfield Trinocular Compound Microscope with Reversed Nosepiece and Dry Darkfield Condenser in Saudi Arabia

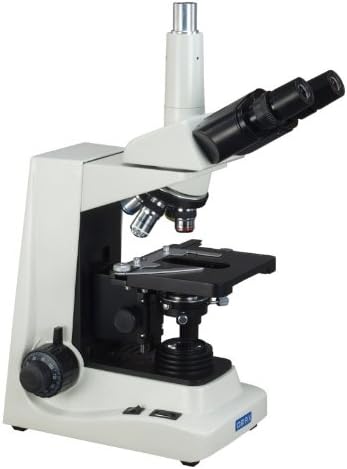

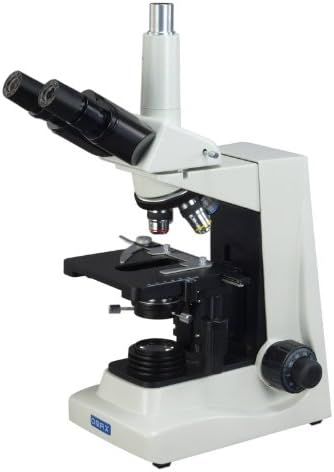

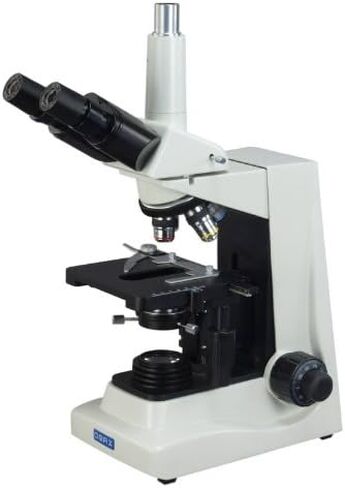

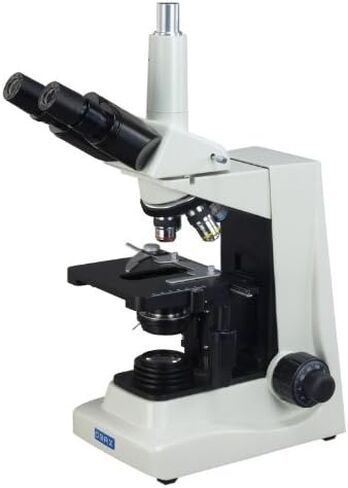

OMAX 40X-1600X Advanced Darkfield Trinocular Compound Microscope with Reversed Nosepiece and Dry Darkfield Condenser

SAR 4,318
Brand
OMAX
Category
Microscopes
Weight
10.9 kg
– 1 +

Special Features

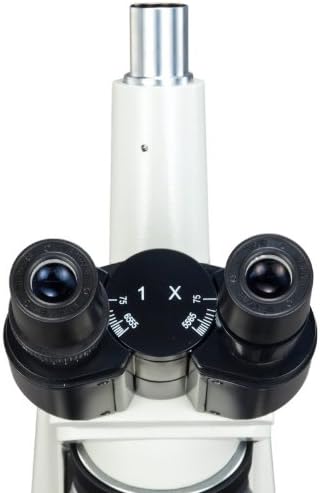

  • Total magnifications: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: achromatic 4X (0.10), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring, oil); Viewing head: trinocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left eyepiece tube
  • Total magnifications: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: achromatic 4X (0.10), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring, oil); Viewing head: trinocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left eyepiece tube
  • Total magnifications: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: achromatic 4X (0.10), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring, oil); Viewing head: trinocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left eyepiece tube
  • Nosepiece: reversed revolving quadruple nosepiece; A lever to switch between beam spilt for photo part and 100% to eyepieces when camera is not in use; Stage: double layer X-Y mechanical stage with long clips holding two parallel slides, size 5-1/2inch x 4-1/4inch (140mm x 110mm), translation range 3inch x 2inch (78mm x 52mm); A specially designed back slot on the microscope stand for easy hand holding and carrying; Dry darkfield condenser: NA0.7-0.9
  • Illumination: transmitted, 6V/20W halogen lamp, variable brightness intensity; Focus: coaxial coarse and fine focus knobs on both side with tension control; Stage upward stopper for protecting objective and slides; Condenser: Abbe condenser NA1.25 with iris diaphragm and filter holder, rack and pinion adjustment
  • All metal mechanical components; Power supply: 110-115V, 50/60Hz (US and Canada) (220V version available, contact seller)
  • 5-year warranty against manufacturing defects

Description

The advanced trinocular Siedentopf compound microscope provides both darkfield and brightfield microscope system. The darkfield biological microscope comes with trinocular viewing head, body frame, quintuple reversed nosepiece, four DIN achromatic objectives, large double layer mechanical stage with scales, variable intensity halogen transmitted illumination system and darkfiled NA0.7-0.9 & brightfield Abbe NA1.25 condensers. It offers eight level magnifications from 40X to 1600X. The trinocular port is easy to mount photo or video capability. This top level lab microscopy is designed for research laboratories and advanced applications in clinical offices.
