Fully coated optical system which provides a sharp and clear imaging with extreme flatness and contrast. This stereo microscope offers ergonomic features such as synchronized bi-lateral inter-pupillary distance adjustments.
Specifications
Trinocular head, (30/70 split ratio, with 0.5x C-mount included), 45° inclined and 360° rotatable
Interpupillary distance adjustable from 52mm—75mm
10x wide-field (Field of view number, FN22), high eyepoint
Two diopter adjustment of -8/+5 on both eyepieces
Paired 10x/22mm (Optional eyepieces WF16x/13mm, WF20x/12mm, Various reticle eyepieces WF10x/22mm available, not included)
Total magnification: 8x—50x, the magnification range can be changed to 4x—100x with the auxiliary lens and optional eyepieces
Standard objective zooming magnification range: 0.8x—5x, Zoom ratio: 1:6.3, Parfocal working distance: 115mm
Auxiliary lens: 0.5x/211mm (working distance), 2x/43.5mm (working distance)
Standard working distance of 115mm, working distance range can be enlarged to 43.5—211mm with auxiliary lens
5 focus adjustable C-mount (included)
5.0 megapixel (2048 x 1536 max resolution)
Frame Rate: 40 fps (640 x 480) / 25 fps (1024 x 768) / 10 fps (2048 x 1536)
JPEG, BMP image format; Windows XP, Vista, 7, 8, 10 compatible; USB 2.0 interface
Packing List

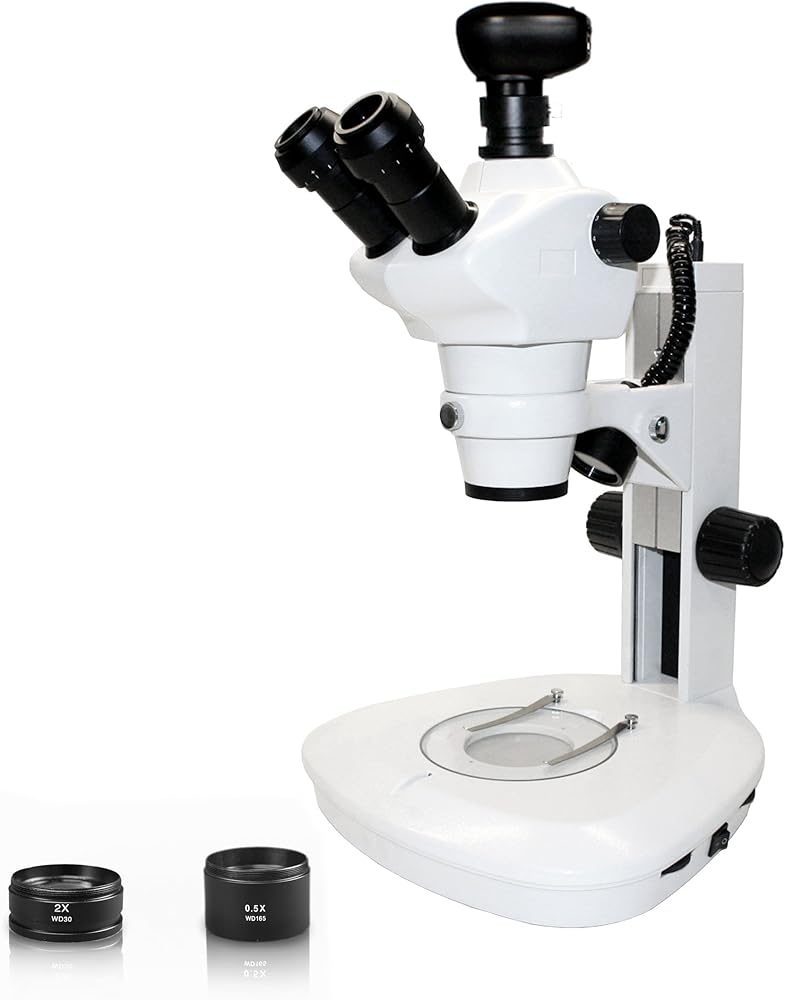

Trinocular zoom stereo microscope head
Pair of 10x WF eyepieces
Track stand
Pair of rubber eye guards
Black & white reversible stage plate/Glass stage plate
One dust cover
User manual

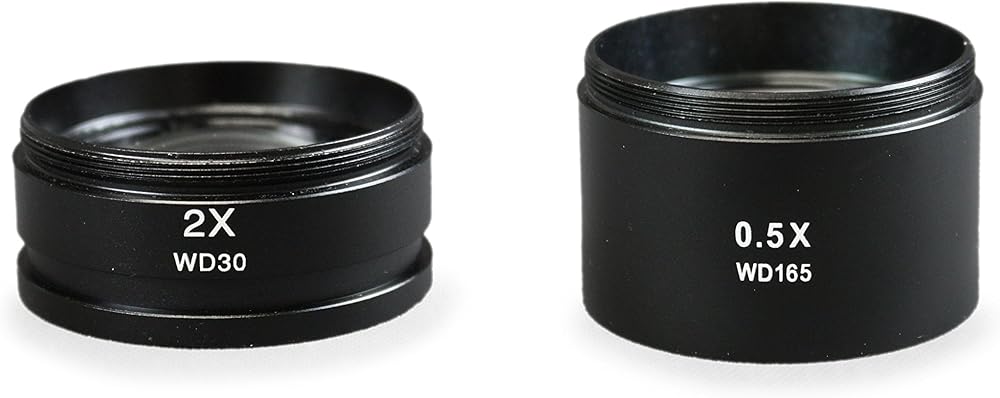

0.5x and 2x auxiliary lens

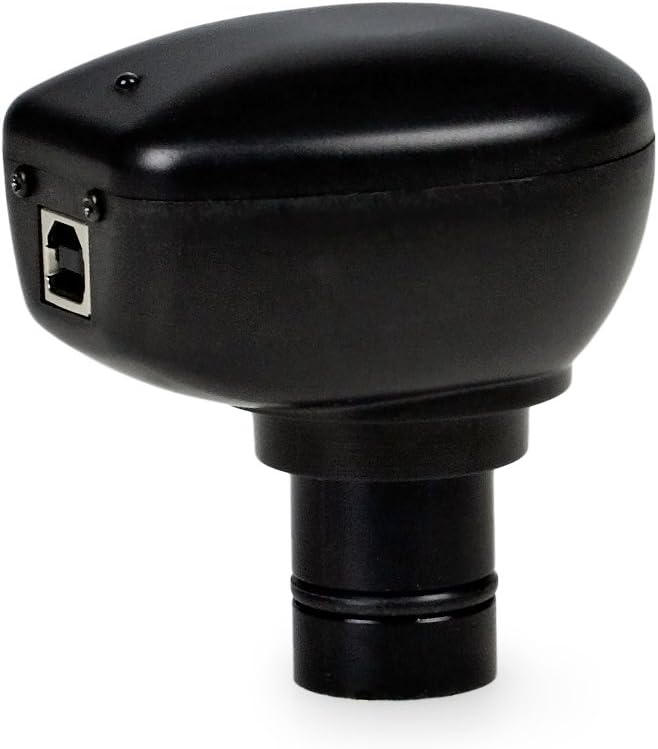

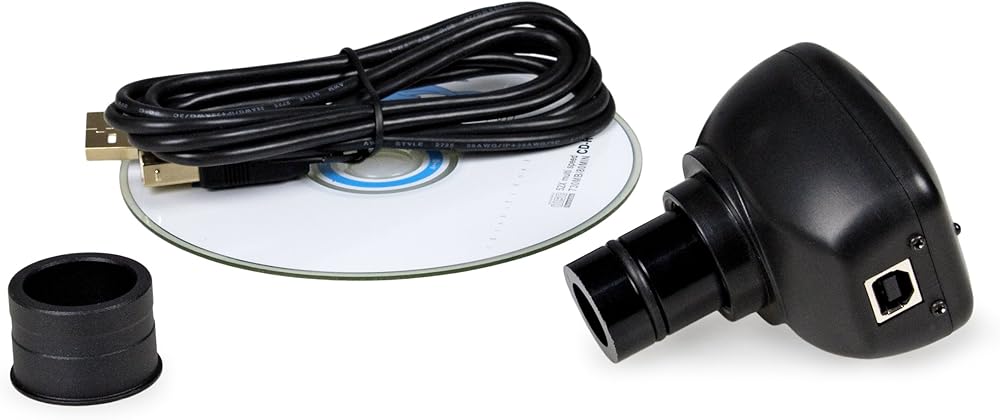

5.0 MP digital eyepiece camera
USB 2.0 cable
Imaging software CD
