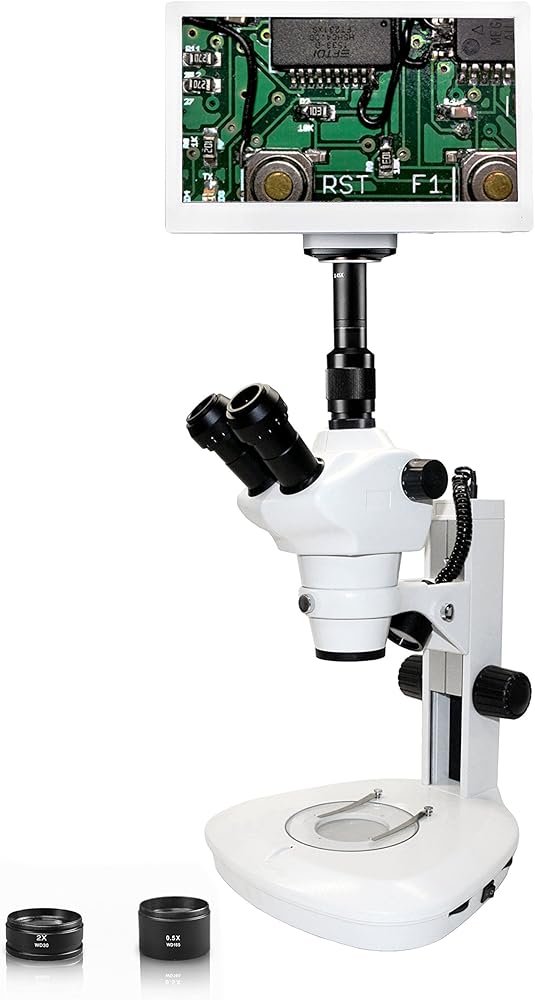

Vision Scientific VMS0007-TZ-RET11.6 Trinocular Zoom Stereo Microscope, 10x WF Eyepiece, 0.8X—5X Zoom, 4X—100x Magnification, 0.5X & 2X Aux Lens, LED Light,11.6" Retina HD Display with 6MP Camera

SAR 4,367
Category
Microscopes
Weight
8.2 kg
– 1 +

Special Features

  • 45° inclined trinocular head that rotates 360°. The trinocular port allows you to connect a digital camera or an HD touch screen. It features a 52-75mm interpupillary adjustment, while both ocular tubes are equipped with a (+/-5) dioptre adjustable, to compensate for eye-strength difference when needed
  • 8x—50x standard magnification range, that when used with the included 0.5x & 2x auxiliary lens, expands to a 4x—100x magnification range
  • Latest technology in LED lighting with intensity control, provides a long life and cool temperature, using a light cluster of mini LED light panels for optical illumination
  • Built-in 3-way illumination—incident (top), transmitted (bottom), and dual lighting. The top light is diagonally adjustable so that the amount of light shining onto the stage plate can be varied. Light intensity controls are available for both top and bottom lights
  • 11.6 inch retina HD display with a 6 megapixel camera, offers simultaneous HDMI and USB 2.0 plug-and-play computability, to broadcast images of the specimen being observed. It is C-mount ready and comes with a built-in SD card, a measurement software, and HDMI and USB 2.0 cables

Description

Fully coated optical system which provides a sharp and clear imaging with extreme flatness and contrast. This stereo microscope offers ergonomic features such as synchronized bi-lateral inter-pupillary distance adjustments.
Specifications
Trinocular head, (30/70 split ratio, with 0.5x C-mount included), 45° inclined and 360° rotatable
Interpupillary distance adjustable from 52mm—75mm
10x wide-field (Field of view number, FN22), high eyepoint
Two diopter adjustment of -8/+5 on both eyepieces
Paired 10x/22mm (Optional eyepieces WF16x/13mm, WF20x/12mm, Various reticle eyepieces WF10x/22mm available, not included)
Total magnification: 8x—50x, the magnification range can be changed to 4x—100x with the auxiliary lens and optional eyepieces
Standard objective zooming magnification range: 0.8x—5x, Zoom ratio: 1:6.3, Parfocal working distance: 115mm

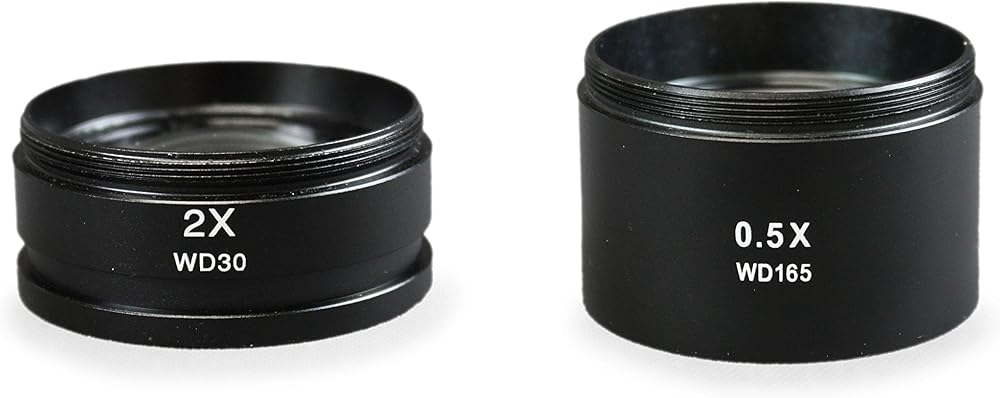

Auxiliary lens: 0.5x/211mm (working distance), 2x/43.5mm (working distance)
Working distance range can be enlarged to 43.5—211mm with auxiliary lens
5 focus adjustable C-mount (included)
1920 x 1080 full HD resolution (60 frames per second real-time); 190 pixels per inch
High resolution 6MP images (3264 x 1836 resolution)
Built-in SD card for image & video capture; HDMI and USB 2.0 simultaneous outputs
Packing List
Trinocular zoom stereo microscope head
Pair of 10x WF eyepieces
Track stand
Pair of rubber eye guards
Black & white reversible stage plate/Glass stage plate
One dust cover
User manual
0.5x and 2x auxiliary lens

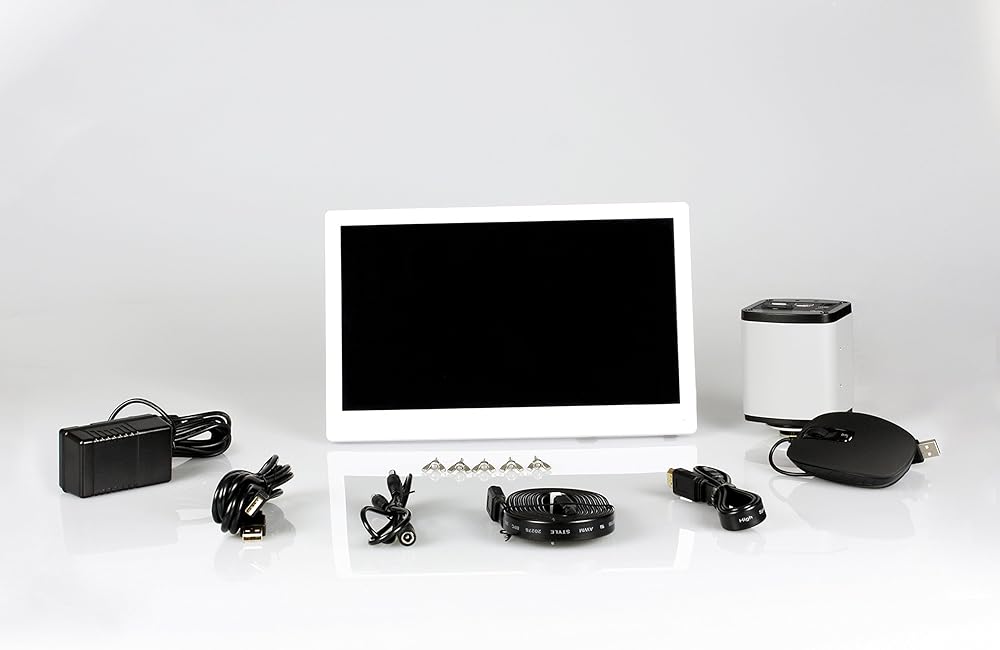

6” retina HD display with 6MP HD camera
HDMI & USB 2.0 cables
Measurement software CD
Power adaptor
