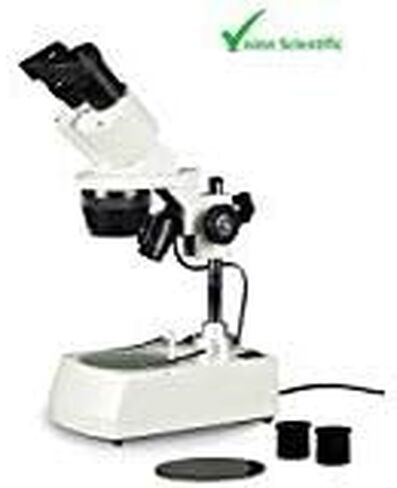

For use in the examination and actual dissection of specimens in life science and for the study of surface characteristics of minerals and rocks. This microscope delivers a three-dimensional, un-reversed image with great resolution, brightness and clarity. This model is a real workhorse for education and industry. Choose lower or higher magnification by turning objective turret.
This 45° inclined, binocular stereo microscope with diopter adjustment on one ocular tube, promises top viewing comfort. The adjustable interpupillary distance ranges from 51mm to 75mm. The 1x and 2x objectives are parfocaled and parcentered, providing 10x, 20x, 15x and 30x magnifications.
Specification:
Head:45° inclined binocular head
Eyepiece: 10x WF and 15x WF, diopter adjustment in one ocular table
Objectives: 1x, 2x
Magnification: 10x, 20x, 15x and 30x
Working distance: (1X/2X) 73MM
Focusing: Rack and pinion focusing with safety stop and tension adjustment
Stage: Frosted glass plate and reversible black & white stage plate (w/ pair of stage clips)
(Both 95mm in diameter)
Power: 110V rechargeable battery
Packing List:
One binocular stereo microscope with top and bottom LED illumination
One pair of 10X wide-field eyepieces
One pair of 15X wide-field eyepieces
Two eye guards
Black/white stage plate, 95mm
Frosted stage plate, 95mm
Two Stage clips
Pillar Post stand
3 rechargeable batteries
Dust cover
Power adaptor
User manual
