wo magnification levels: 20X, 40X: Eyepieces: high eye-point, wide field WF10X/20: Objectives: rotational 2X and 4X: 45 degrees inclined 360 degrees rotatable trinocular head; Sharp stereo erect images over a super wide field view: Left ocular-tube diopter adjustment +/-5dp
wo magnification levels: 20X, 40X: Eyepieces: high eye-point, wide field WF10X/20: Objectives: rotational 2X and 4X: 45 degrees inclined 360 degrees rotatable trinocular head; Sharp stereo erect images over a super wide field view: Left ocular-tube diopter adjustment +/-5dp
wo magnification levels: 20X, 40X: Eyepieces: high eye-point, wide field WF10X/20: Objectives: rotational 2X and 4X: 45 degrees inclined 360 degrees rotatable trinocular head; Sharp stereo erect images over a super wide field view: Left ocular-tube diopter adjustment +/-5dp
Interpupillary distance: 2-3/16inch ~ 2-15/16inch(55~75mm): Auxiliary lens or ring light adapter mount: 48mm female thread: Long working distance: 4inch (100mm): Field of view: up to 3/8inch (10mm): Illumination: 144-LED ring light: Voltage: 100-240V worldwide voltage
Focus adjustment: metal rack and pinion, range 2inch (50mm), tool-free tension adjustment
Boom stand length: 22-7/8inch (58cm): Height of boom stand: 16-3/4inch (42.5 cm): Boom horizontal travel stroke: 9-1/4inch (23.4cm): Boom vertical travel stroke: 7-1/2inch (19cm): Base dimensions: 9inch x 9inch (23 cm x 23 cm)
5-year warranty against manufacturing defects
وصف

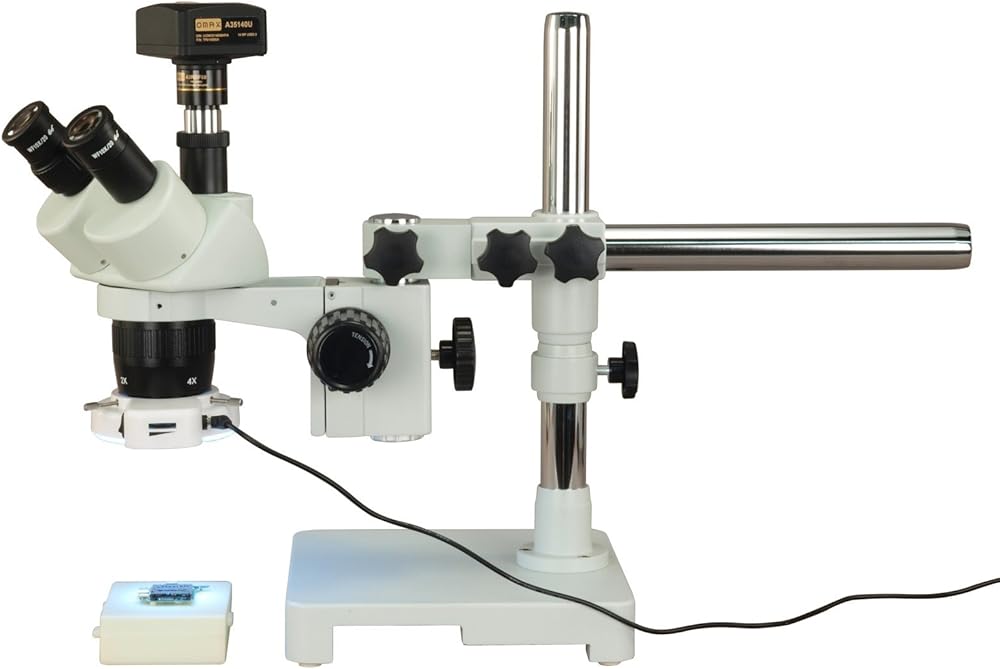

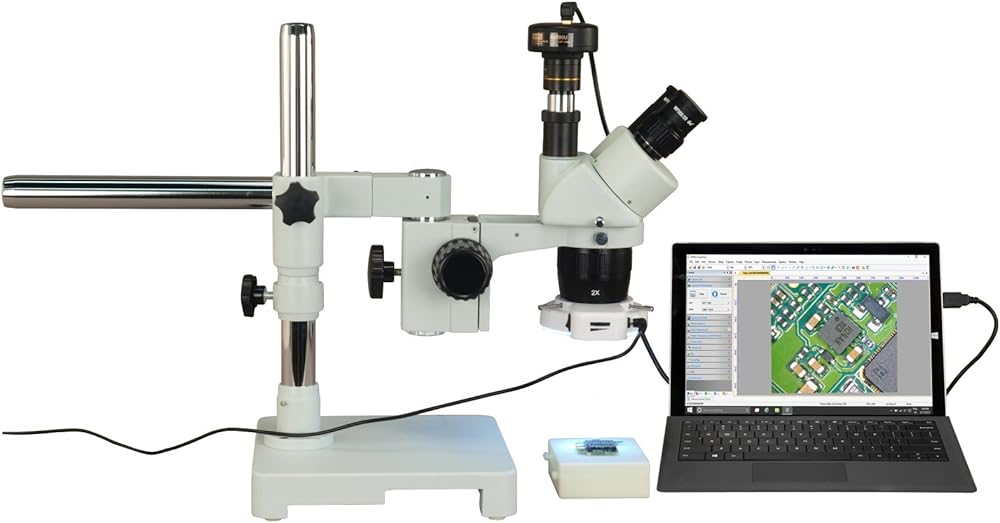

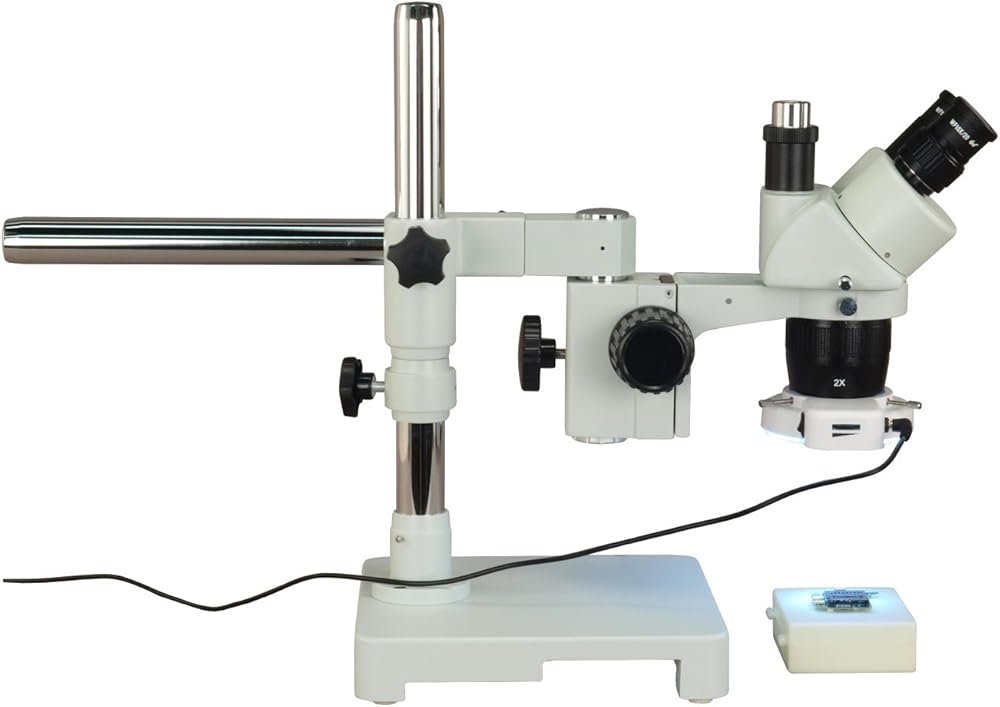

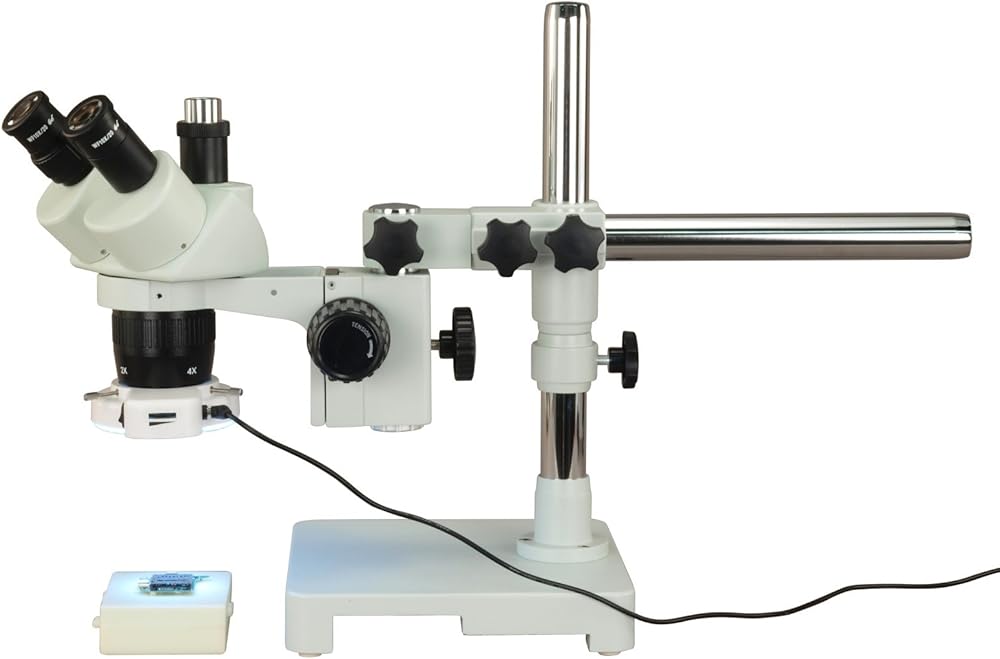

This trinocular 20X-40X stereo microscope on a single-arm boom stand utilizes a fully coated optical system. It comes with a trinocular head with super widefield optics, a bright 144-LED ring light, and a sturdy single-arm boom stand. The trinocular port makes it easy to add photographic or video capability to the microscope. Its 45 degree inclined trinocular oculars and high-eyepoint optical design ensures a comfortable observation for all kinds of users including eyeglass wearers. The 144-LED ring light provides bright, shadowless illumination across the field of view and has a light intensity control dial located on the ring light. The single-arm boom stand allows to turn the microscope head around two different axes, letting you point microscope head in various directions. The microscope provides high resolution clear images, super widefield of view and large working distance.
