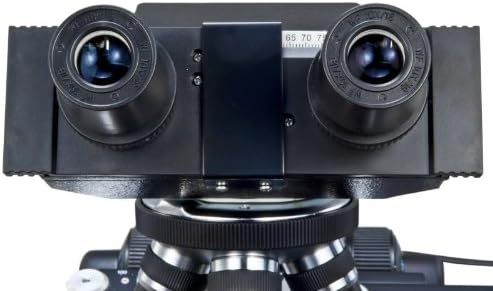

Total magnification for brightfield: 40X-100X-400X-1000X; Total magnification for phase contrast: 100X-200X-400X-1000X; Eyepieces: widefield WF10X/18; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Plan phase contrast objectives: 10X, 20X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch-2-15/16inch (55-75mm); Diopter: adjustable on both eyepiece tubes
Total magnification for brightfield: 40X-100X-400X-1000X; Total magnification for phase contrast: 100X-200X-400X-1000X; Eyepieces: widefield WF10X/18; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Plan phase contrast objectives: 10X, 20X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch-2-15/16inch (55-75mm); Diopter: adjustable on both eyepiece tubes
Total magnification for brightfield: 40X-100X-400X-1000X; Total magnification for phase contrast: 100X-200X-400X-1000X; Eyepieces: widefield WF10X/18; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Plan phase contrast objectives: 10X, 20X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch-2-15/16inch (55-75mm); Diopter: adjustable on both eyepiece tubes

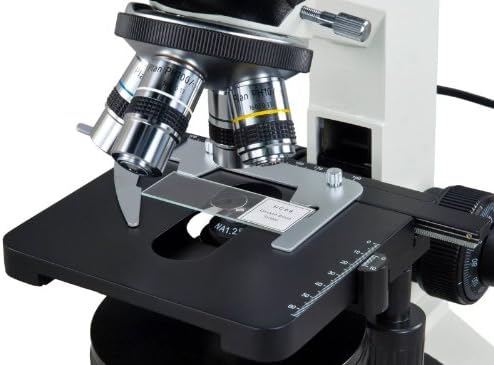

Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer size 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation; Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment
Phase contrast condenser disk with five switchable positions: one bright field NA1.25 w/ iris diaphragm Abbe condenser and four phase contrast filters, PLAN 10X, 20X, 40X, 100X objectives, each can be centered individually; Black palm rest on the base; Illumination: transmitted (lower), 6V 20W halogen light, variable intensity; Metal framework; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)

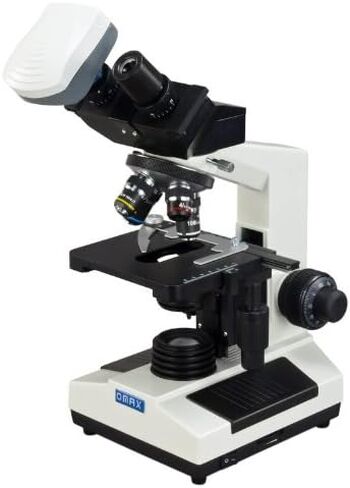

Digital camera: - true color 3488 x 2616 pixels (9.0MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10 - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
5-year warranty against manufacturing defects
وصف

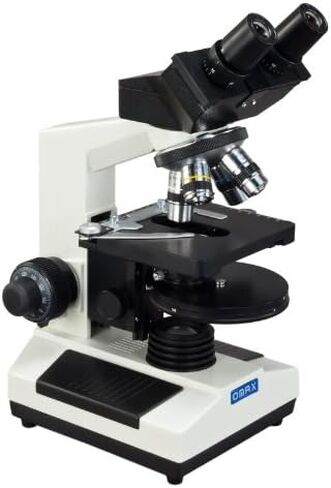

The phase contrast compound microscope provides phase contrast & brightfield microscope system and 9.0MP USB digital imaging system. It offers four levels of brightfield magnification power 40X-100X-400X-1000X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four plan phase contrast objectives:10X, 20X, 40X, 100X. It also offers four levels of magnification power: 100X-200X-400X-1000X. The 3488x2616 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with Windows XP/Vista/7/8/10 can be used to make measurements. This phase contrast compound microscopy is good for advanced applications in clinical offices and research purpose.
