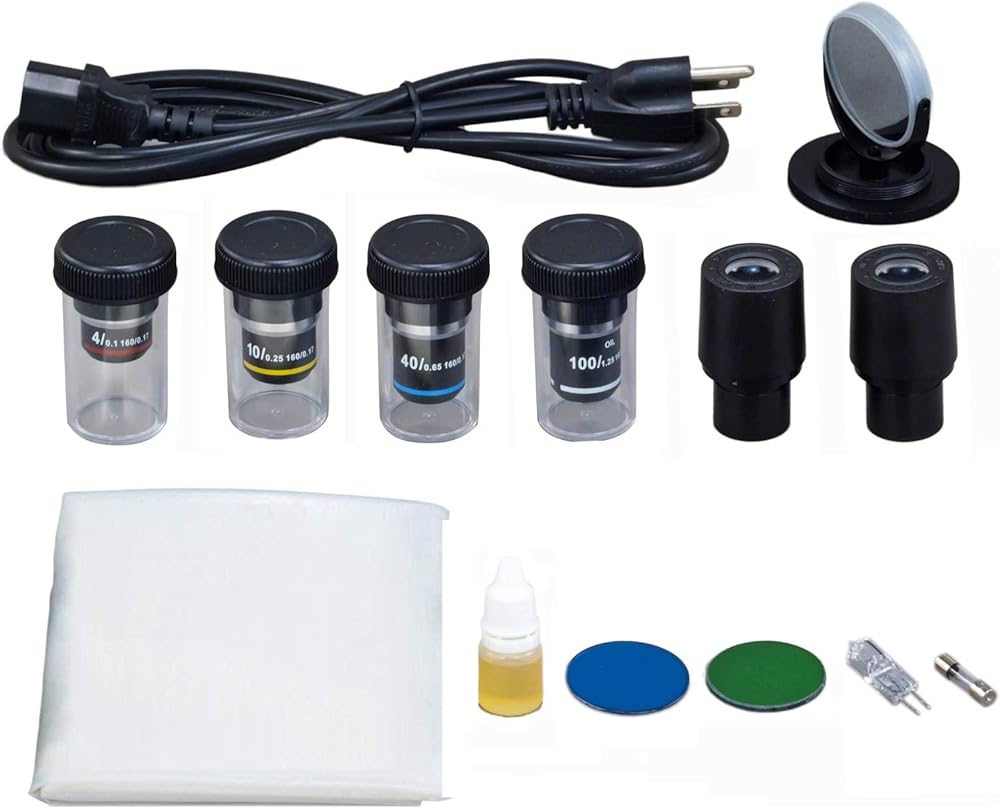

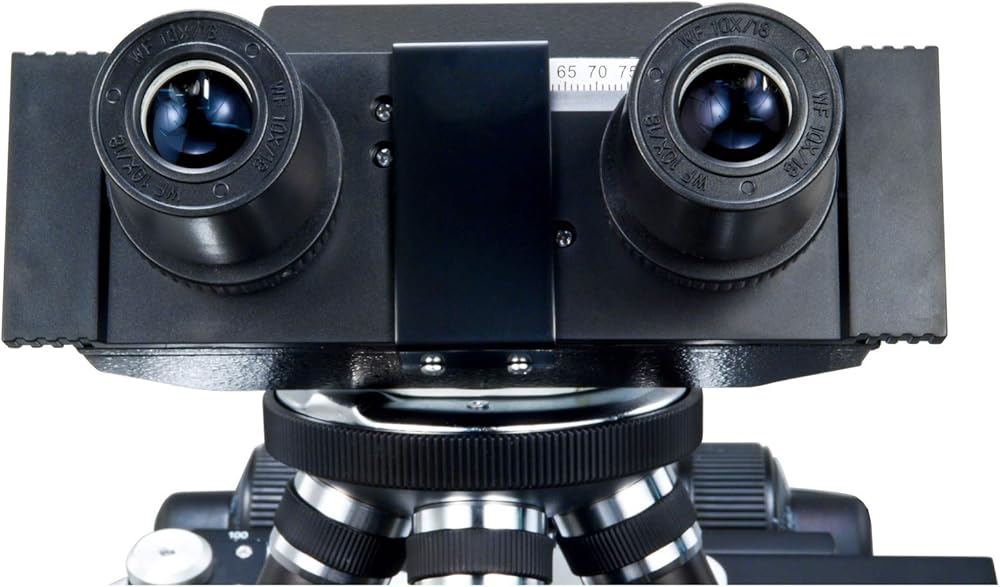

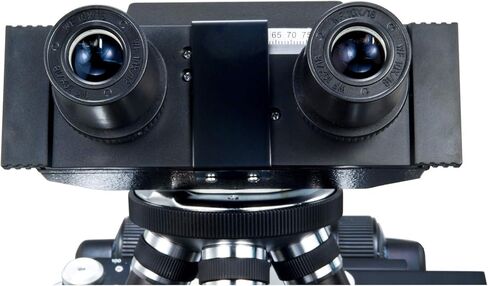

Model: M827S-A191BD; Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55~75mm); Diopter: adjustable on both eyepiece tubes
Model: M827S-A191BD; Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55~75mm); Diopter: adjustable on both eyepiece tubes
Model: M827S-A191BD; Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55~75mm); Diopter: adjustable on both eyepiece tubes

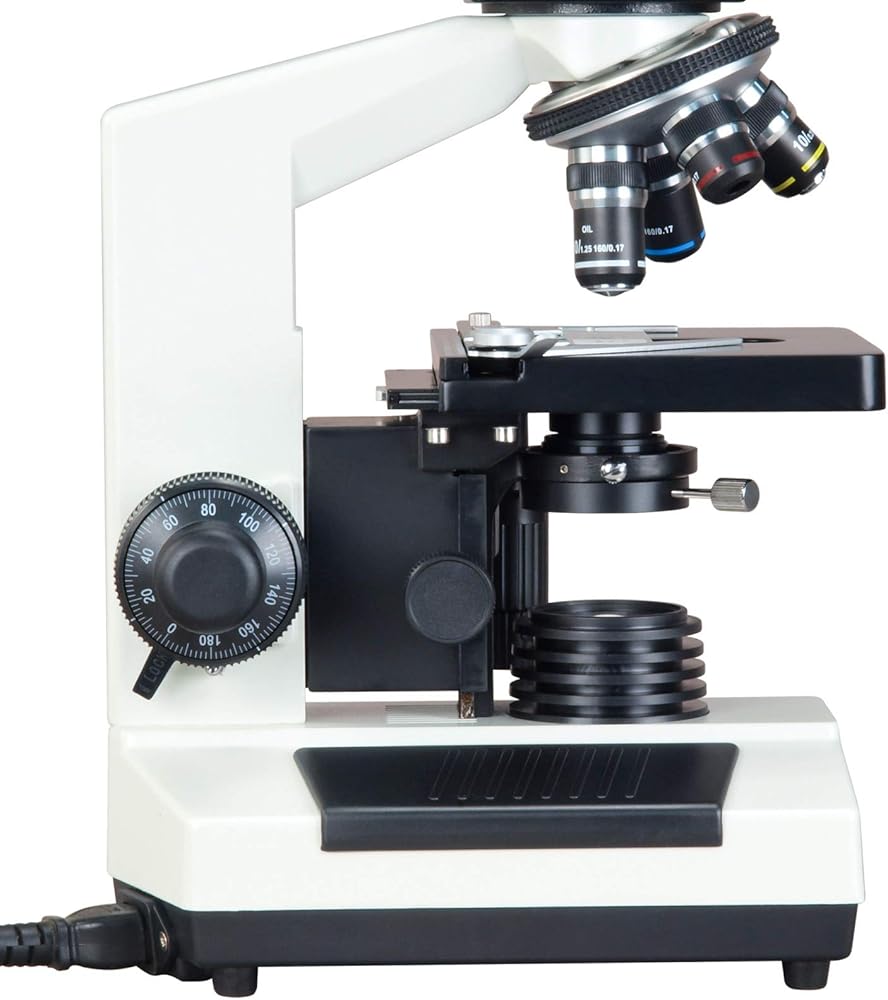

Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer size 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control

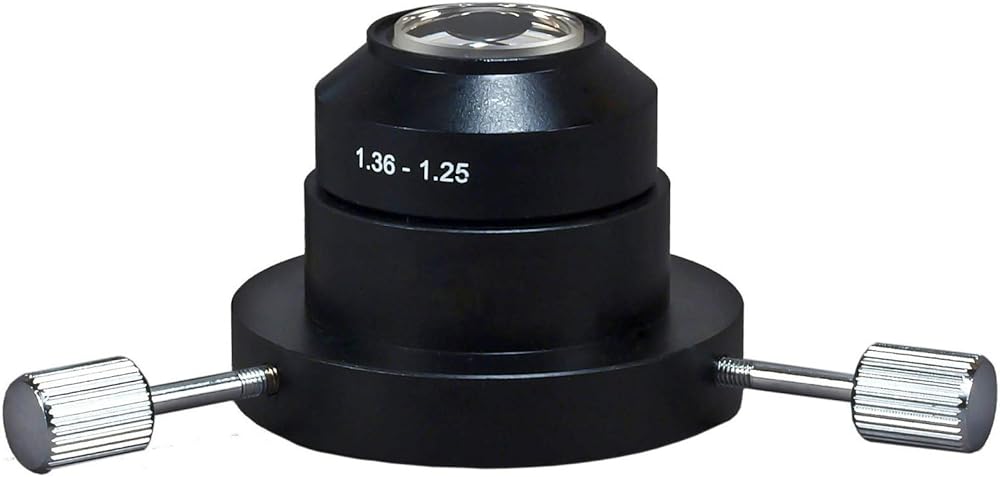

Focusing knob can be locked for observation and transportation; Brightfield condenser: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment; Oil darkfield condenser: NA 1.36-1.25 condenser; Illumination: transmitted (lower), 6V 20W halogen light, variable intensity; Black palm rest on the base; Metal framework; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)

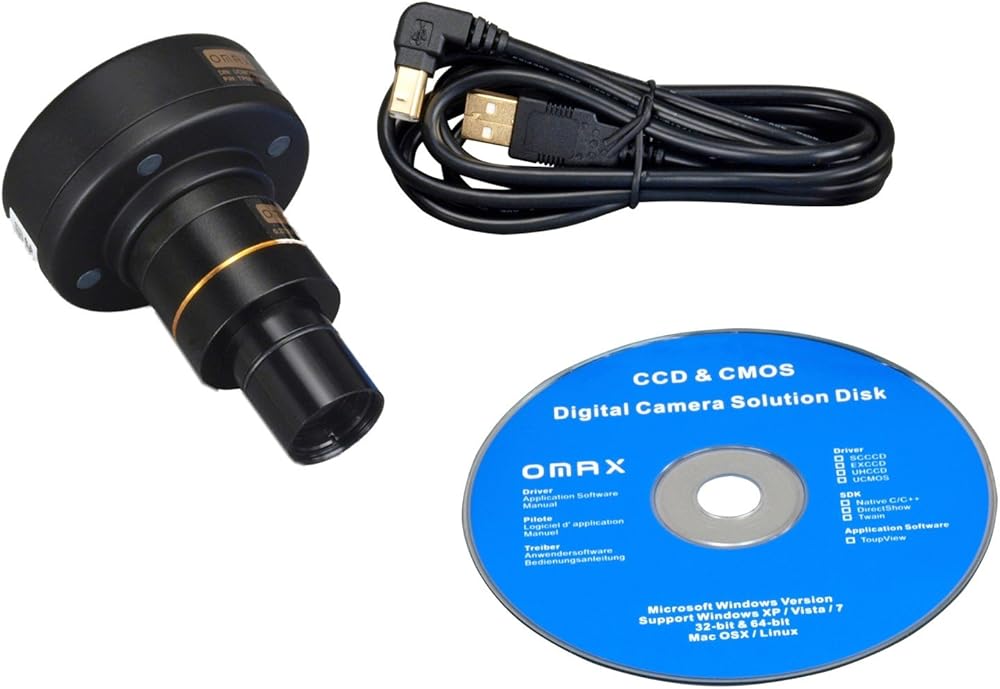

Digital camera: - true color 2048x1536 pixels (3.0M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 8fps at 2048x1536, 22fps at 1024x768, 43fps at 680x510 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
5-year warranty against manufacturing defects
Description

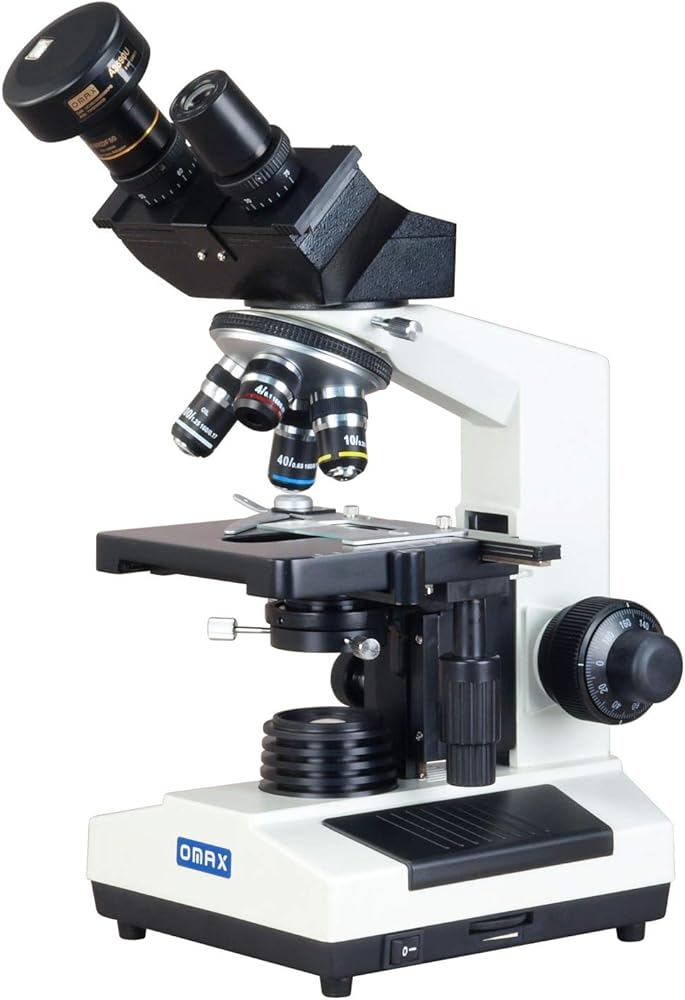

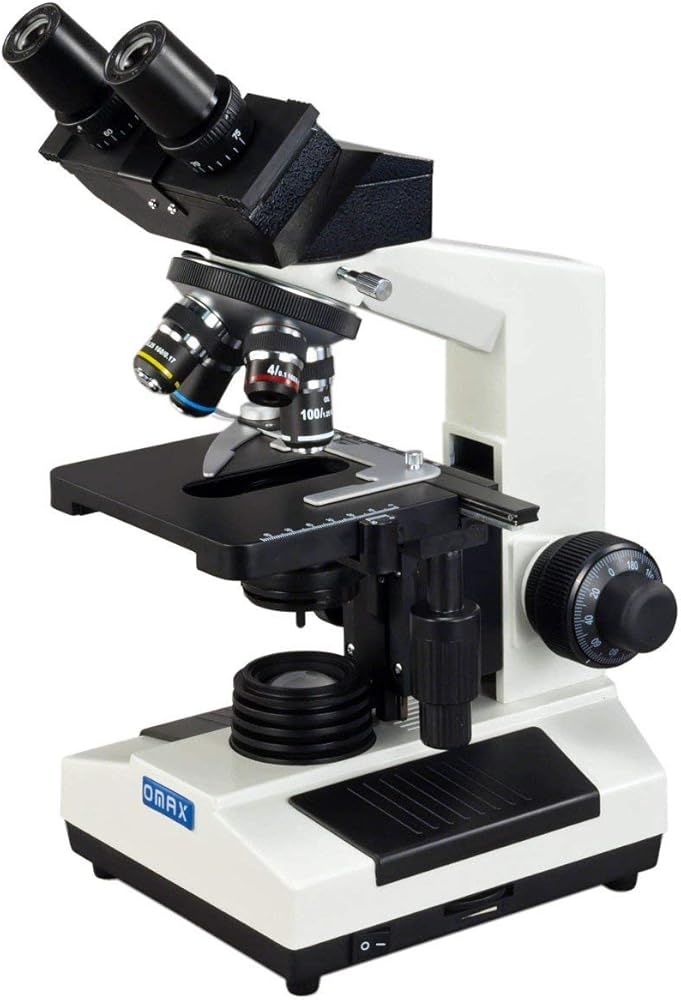

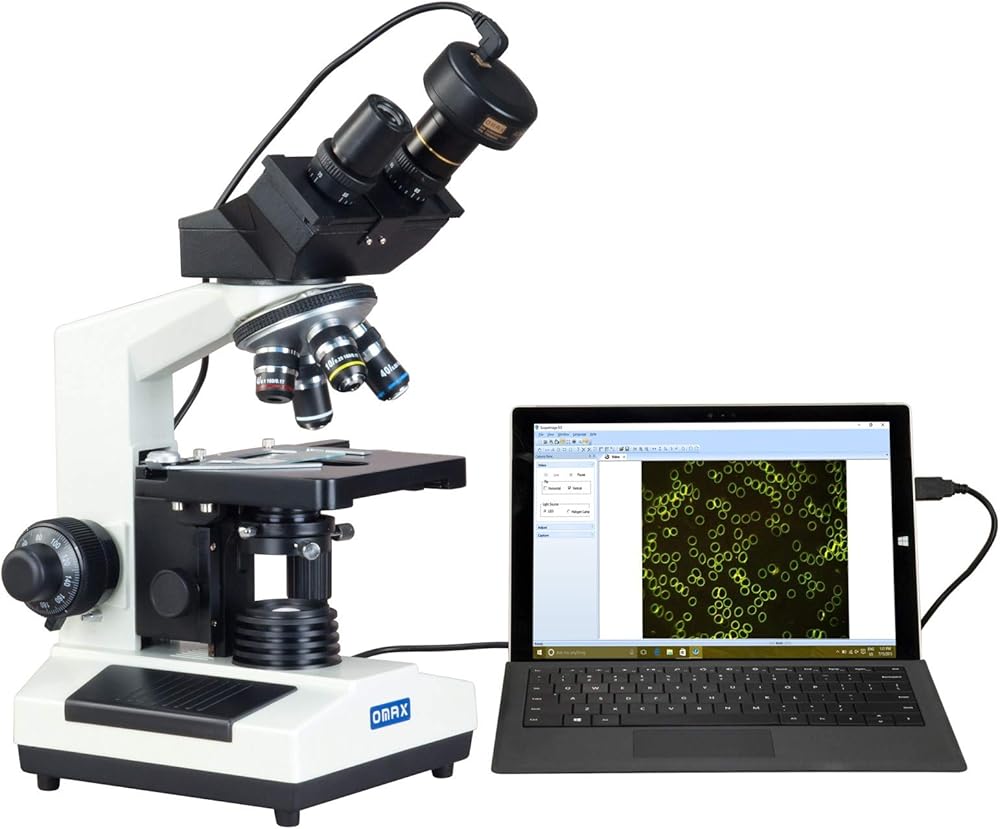

The 40X-2000X compound binocular microscope provides a darkfield & brightfield microscope system and an USB digital imaging system. The darkfield compound microscope comes with a 45 degree inclined 360 degree sliding binocular head, revolving quadruple nosepiece, two pairs of widefield eyepieces, four DIN achromatic objectives, large double layer mechanical stage, halogen illumination system, brightfield Abbe NA1.25 condenser & oil darkfield NA1.36-1.25 condenser and 3.0MP digital camera. The 2048x1536 pixels USB digital imaging system captures still microscope images and live video on computer. The included software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system can also be used to make measurements. This binocular microscopy is good for teaching, demonstration, clinical examination and research purpose.
