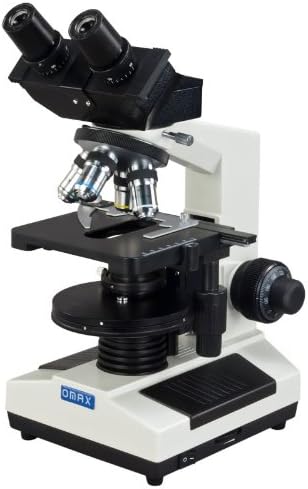

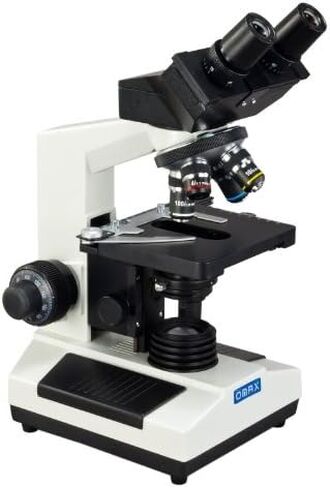

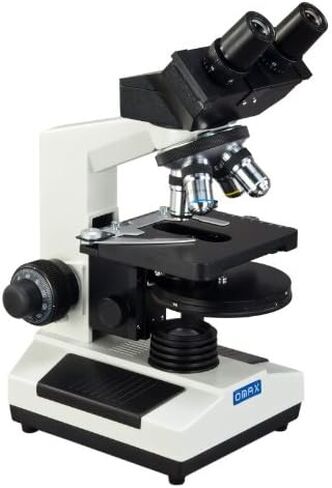

OMAX 40X-1000X Compound Binocular Biological Microscope with Phase Contrast Kit

SAR 4,788
Brand
OMAX
Category
Microscopes
Weight
8.2 kg
– 1 +

Special Features

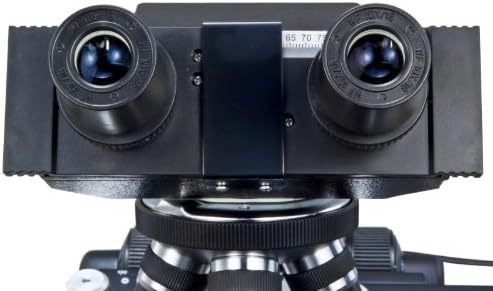

  • Total magnification for brightfield: 40X-100X-400X-1000X; Total magnification for phase contrast: 100X-200X-400X-1000X; Eyepieces: widefield WF10X/18; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives: 10X, 20X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch-2-15/16inch (55-75mm); Diopter: adjustable on both eyepiece tubes
  • Total magnification for brightfield: 40X-100X-400X-1000X; Total magnification for phase contrast: 100X-200X-400X-1000X; Eyepieces: widefield WF10X/18; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives: 10X, 20X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch-2-15/16inch (55-75mm); Diopter: adjustable on both eyepiece tubes
  • Total magnification for brightfield: 40X-100X-400X-1000X; Total magnification for phase contrast: 100X-200X-400X-1000X; Eyepieces: widefield WF10X/18; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives: 10X, 20X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch-2-15/16inch (55-75mm); Diopter: adjustable on both eyepiece tubes
  • Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer size 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation; Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment
  • Phase contrast condenser disk with five switchable positions: one bright field NA1.25 w/ iris diaphragm Abbe condenser and four phase contrast filters, 10X, 20X, 40X, 100X objectives, each can be centered individually
  • Black palm rest on the base; Illumination: transmitted (lower), 6V 20W halogen light, variable intensity; Metal framework; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
  • 5-year warranty against manufacturing defects

Description

This is a phase contrast and brightfield laboratory microscope system that provides options for viewing live cells depending on your applications. The compound microscope comes with a 45 degree inclined 360 degree sliding binocular head, body frame, revolving quadruple nosepiece, a pair of widefield eyepieces WF10X/18, four DIN achromatic objectives, large double layer mechanical stage, Abbe NA1.25 condenser with iris diaphragm, a halogen illumination system and a complete set of phase contrast kit. It offers four levels of brightfield magnification from 40X to 1000X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four achromatic phase contrast objectives: PH10X, PH20X, PH40X (spring), PH100X(spring, oil). It also offers four levels of magnification power: 100X-200X-400X-1000X. This phase contrast binocular microscopy is good for advanced applications in clinical offices and research purpose.
