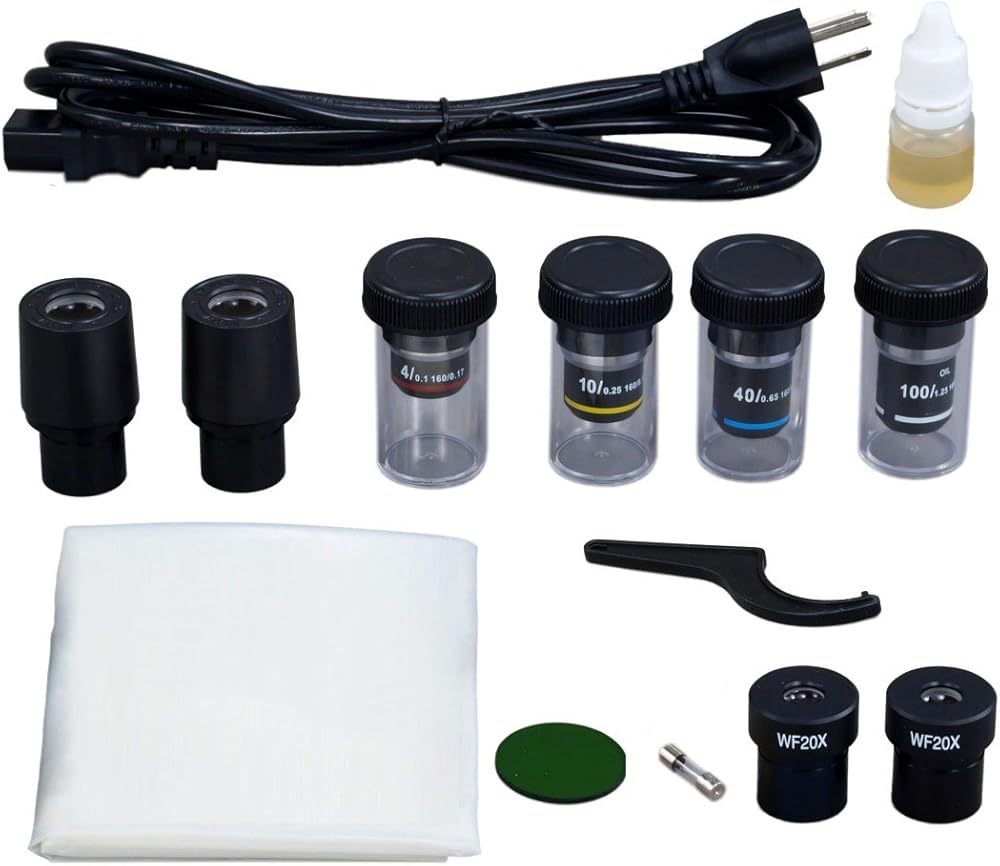

Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube
Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube
Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degreesrotatable trinocular Siedentopf; Interpupillary: hinge adjustment 48mm - 75mm; Diopter: adjustable on left eyepiece tube
Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm; Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop
Illumination: transmitted replaceable 3W LED light, intensity adjustable; Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment

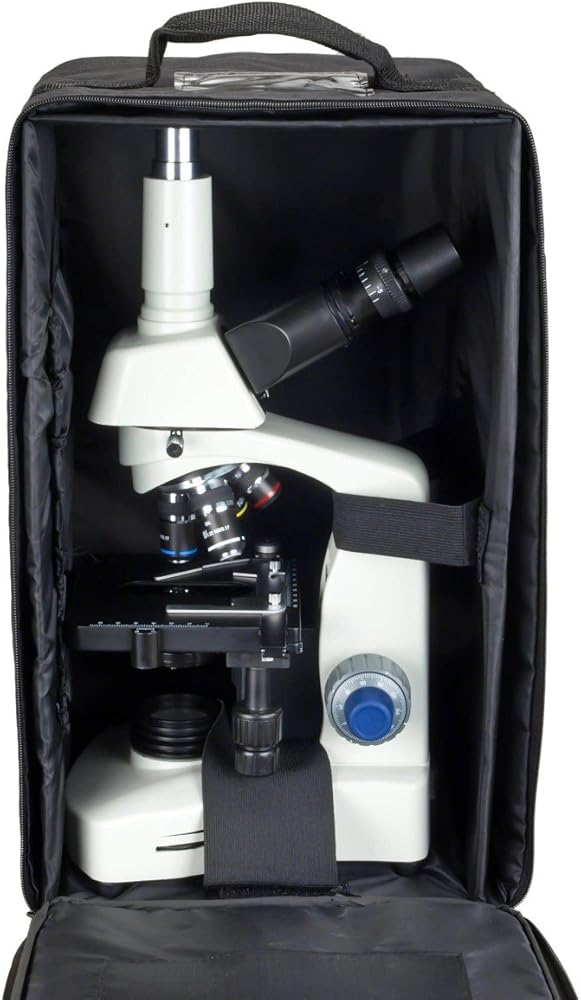

Power supply: AC 100V ~240V 50/60Hz (US and Canada plug); Inner dimension of vinyl carrying case: 9inch x 10-1/4inch x 17inch (23cm x 26cm x 43cm); Outer dimension of vinyl carrying case: 9-7/8inch x 11inch x 18-1/2inch (25cm x 28cm x 47cm)
5-year warranty against manufacturing defects
Description

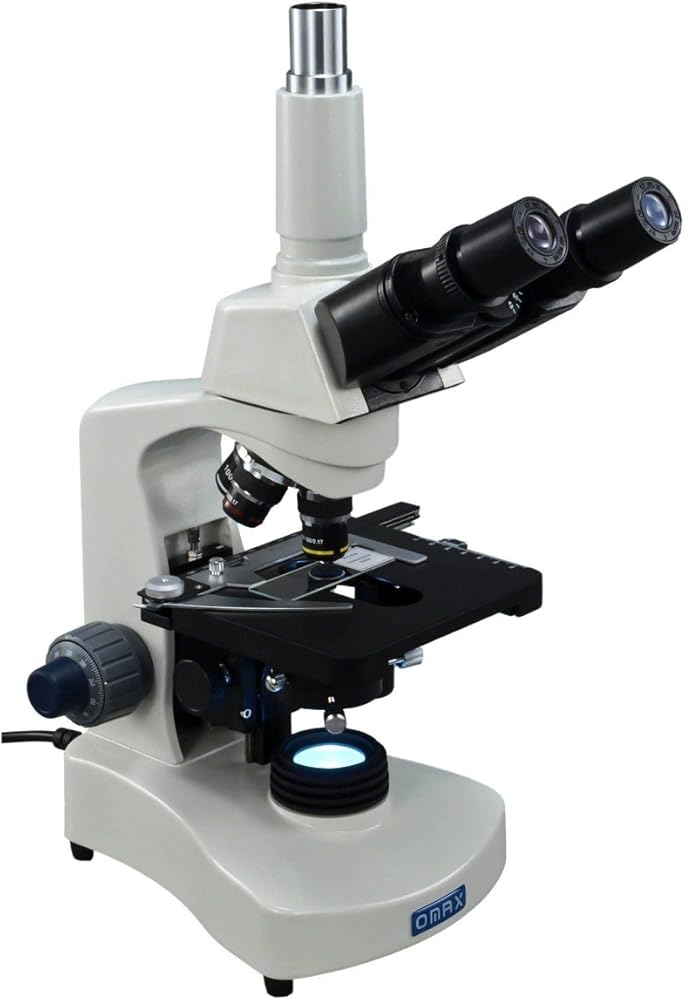

This is an OMAX trinocular compound microscope with magnifications from 40X-2000X. It comes with a trinocular viewing head with interpupillary distance adjustment, body frame, quintuple reversed nosepiece, two pairs of widefield eyepieces, four DIN achromatic objectives, large double layer mechanical stage with scales, variable intensity LED transmitted illumination system and vinyl carrying case. The trinocular port is easy to mount photo or video capability. The compound siedentopf microscope is perfect for labs, clinics, universities, and high schools.
