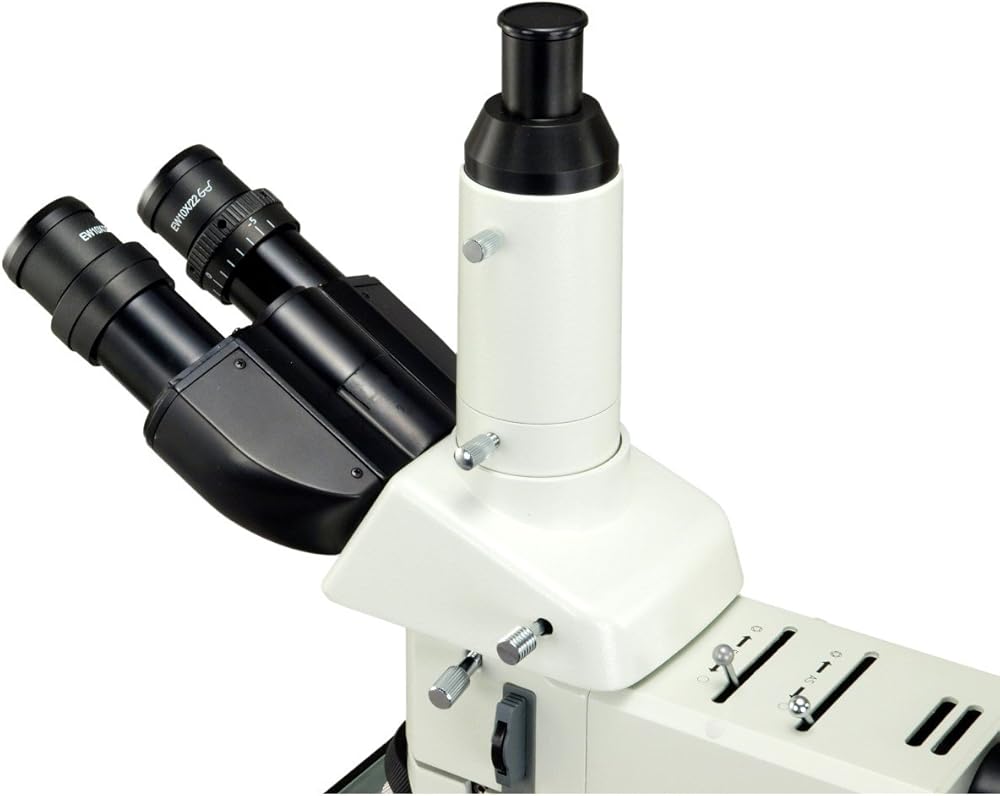

Total magnification: 40X-100X-200X-400X; Viewing head: 30 degrees inclined 360degrees;rotatable Seidentopf trinocular; Eyepiece: super widefield EW10X/22; Interpupillary distance: 48mm-75mm; Nosepiece: quintuple; Objective: DIN plan infinity field achromatic - 4X, WD 25.4mm, FV 6mm - 10X, WD 11mm, FV 2mm - 20X, WD 6mm, FV 1.06mm - 40X, WD 3.7mm, FV 0.53mm, Spring
Total magnification: 40X-100X-200X-400X; Viewing head: 30 degrees inclined 360degrees;rotatable Seidentopf trinocular; Eyepiece: super widefield EW10X/22; Interpupillary distance: 48mm-75mm; Nosepiece: quintuple; Objective: DIN plan infinity field achromatic - 4X, WD 25.4mm, FV 6mm - 10X, WD 11mm, FV 2mm - 20X, WD 6mm, FV 1.06mm - 40X, WD 3.7mm, FV 0.53mm, Spring
Total magnification: 40X-100X-200X-400X; Viewing head: 30 degrees inclined 360degrees;rotatable Seidentopf trinocular; Eyepiece: super widefield EW10X/22; Interpupillary distance: 48mm-75mm; Nosepiece: quintuple; Objective: DIN plan infinity field achromatic - 4X, WD 25.4mm, FV 6mm - 10X, WD 11mm, FV 2mm - 20X, WD 6mm, FV 1.06mm - 40X, WD 3.7mm, FV 0.53mm, Spring

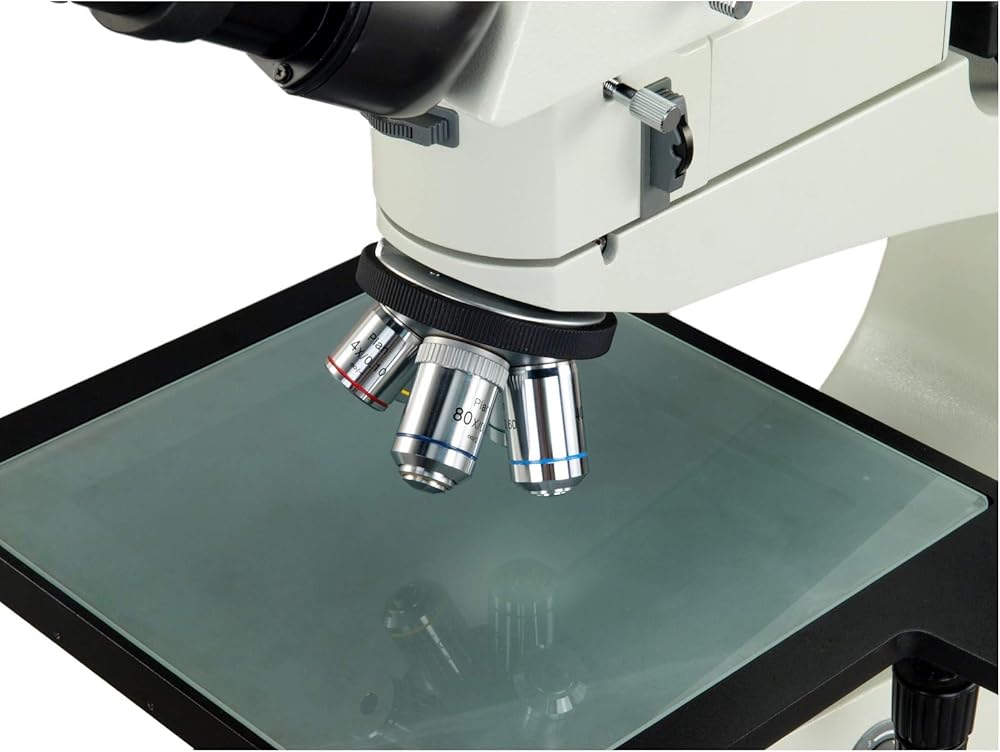

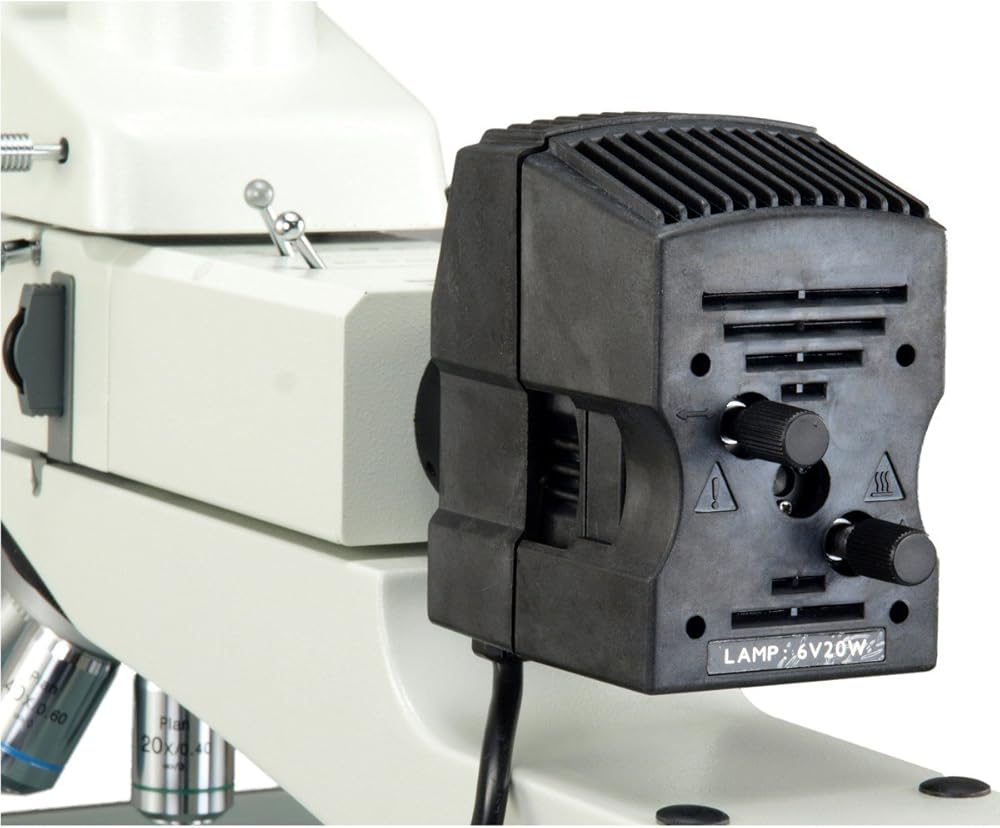

Illuminator - EPI reflected - 6V/20W halogen bulb - Intensity adjustable; Stage: mechanical with glass plate - Dimension: 11-3/4inch x 10-1/2inch(300mm x 268mm) - Translational range: 10inch x 10inch (254mm x 254mm)

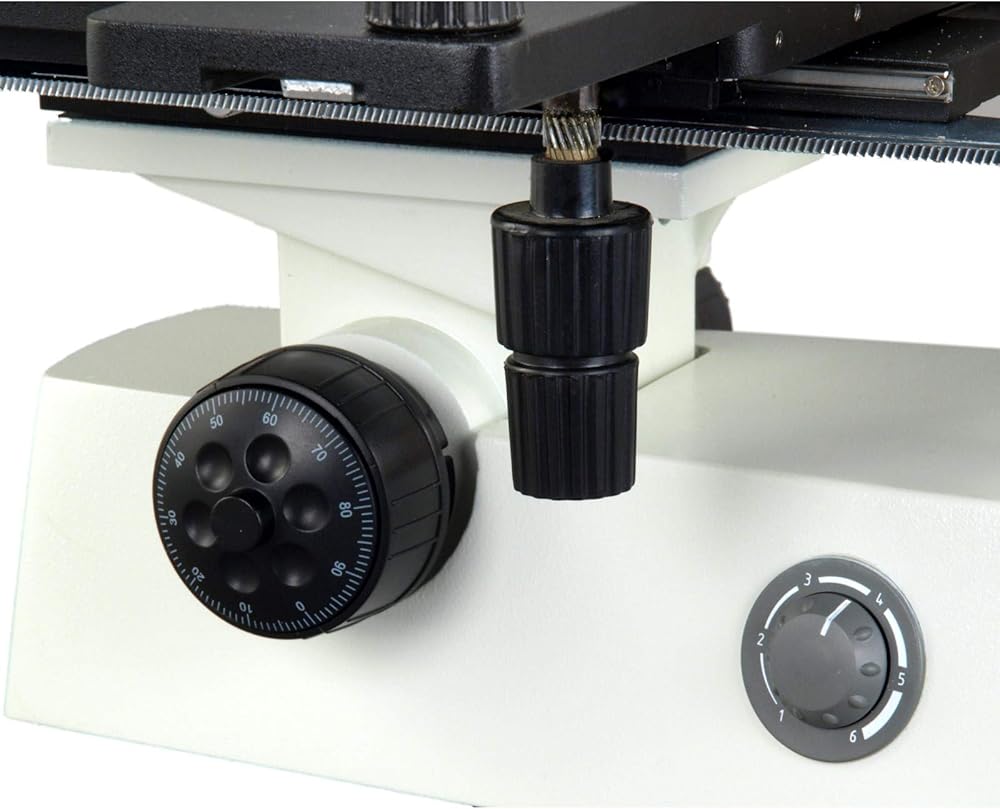

Focus - Stroke 1inch (25mm) - Coaxial fine and corse knobs; Polarizing Elements: rotatable polarizer and analyzer

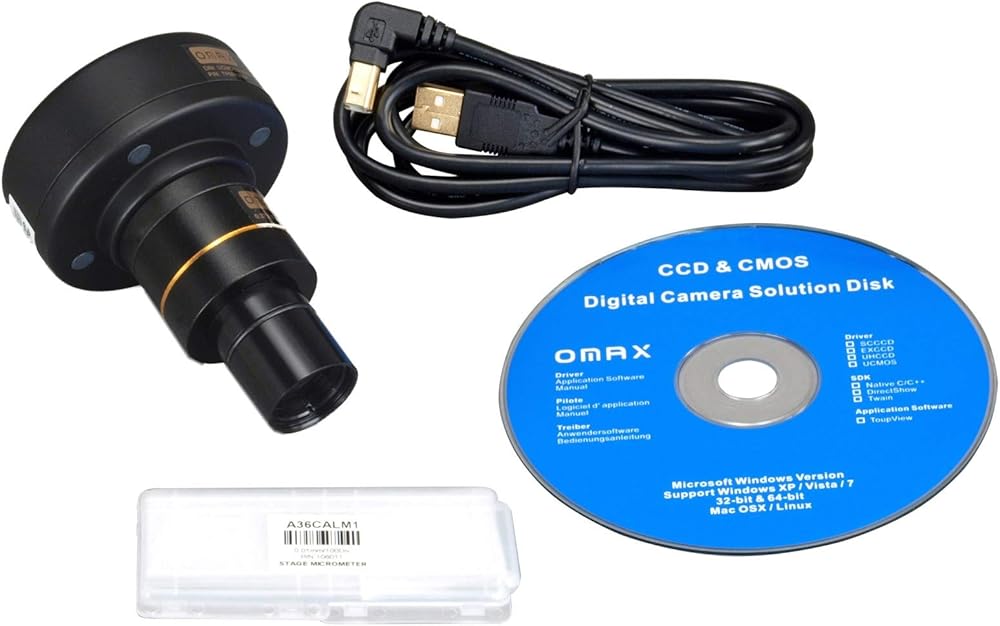

Digital camera: - Resolution 3584x2748 pixels (10MP) - 0.5X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing images, recording live video, measuring and processing - USB cable included; Power supply: 110V/60Hz (US and Canada plug)
5-year warranty against manufacturing defects
وصف

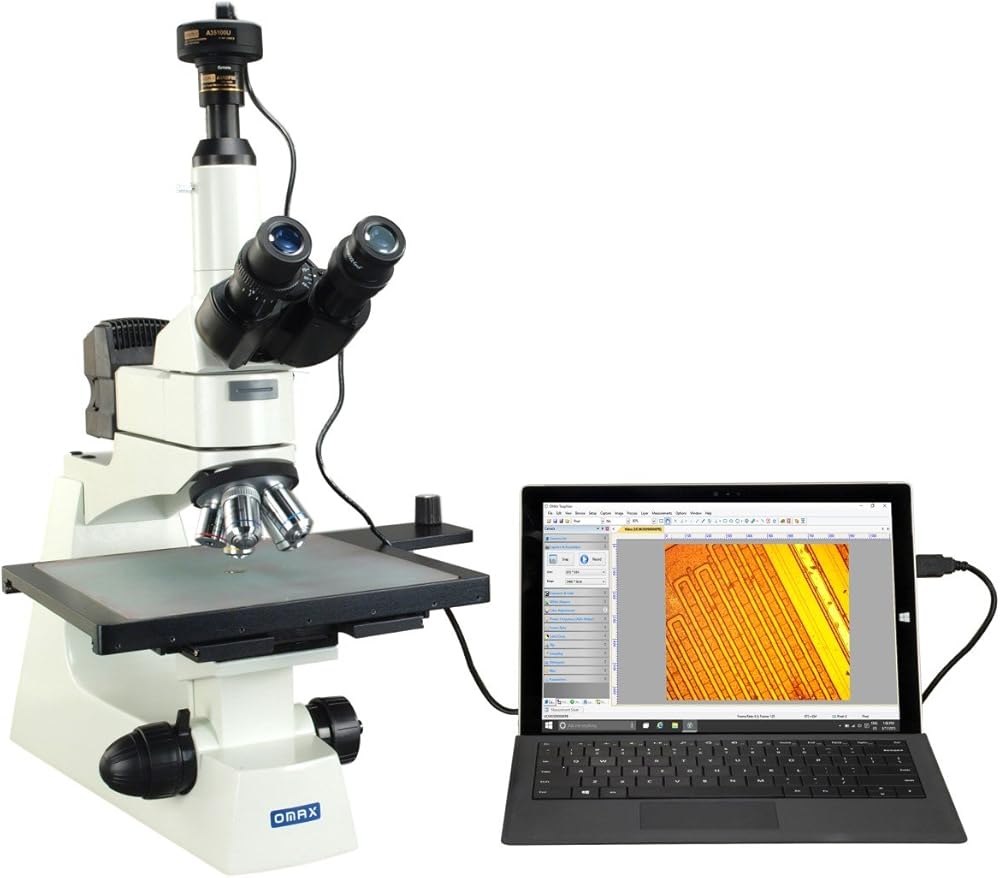

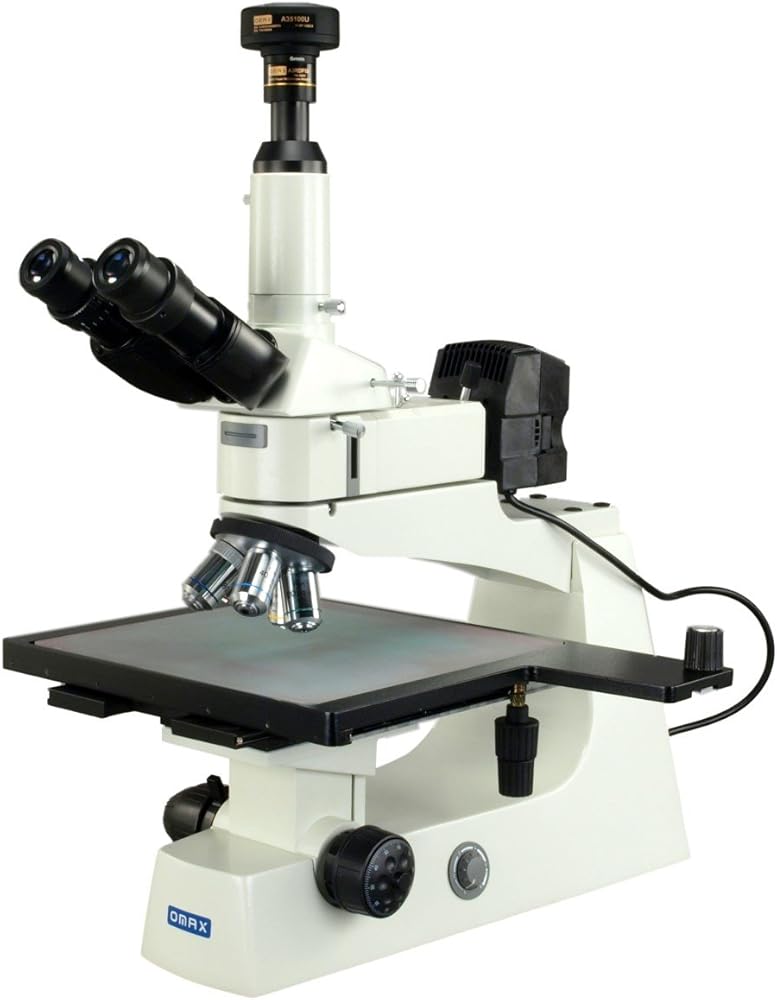

This microscope is designed for large area inspection. It has a reflected lighting system which is different from regular low power stereo microscopes. It also has large working distance objectives (3.7mm for 40X objective) which is absence in regular high power compound microscopes. The PLAN infinity achromatic objectives assure high image quality from center to edge. The stage has large translational range (10"x10") with coarse and fine coaxial knobs and a unique hand-push fast movement mechanism. It also can work as a polarizing microscope with the included polarizer/analyzer inserts. A high resolution (10 MP) digital camera included in the package helps you record your observation and share the images with your customers or managers. Warranty: 5 (five) years Retail value: $8500
