OMAX 40X-1600X Trinocular Compound Replaceable LED Microscope with Aluminum Carrying Case in Saudi Arabia OMAX 40X-1600X Trinocular Compound Replaceable LED Microscope with Aluminum Carrying Case in Saudi Arabia OMAX 40X-1600X Trinocular Compound Replaceable LED Microscope with Aluminum Carrying Case in Saudi Arabia OMAX 40X-1600X Trinocular Compound Replaceable LED Microscope with Aluminum Carrying Case in Saudi Arabia OMAX 40X-1600X Trinocular Compound Replaceable LED Microscope with Aluminum Carrying Case in Saudi Arabia

OMAX 40X-1600X Trinocular Compound Replaceable LED Microscope with Aluminum Carrying Case

SAR 2,599
Brand
OMAX
Category
Microscopes
Weight
10 kg
– 1 +

Special Features

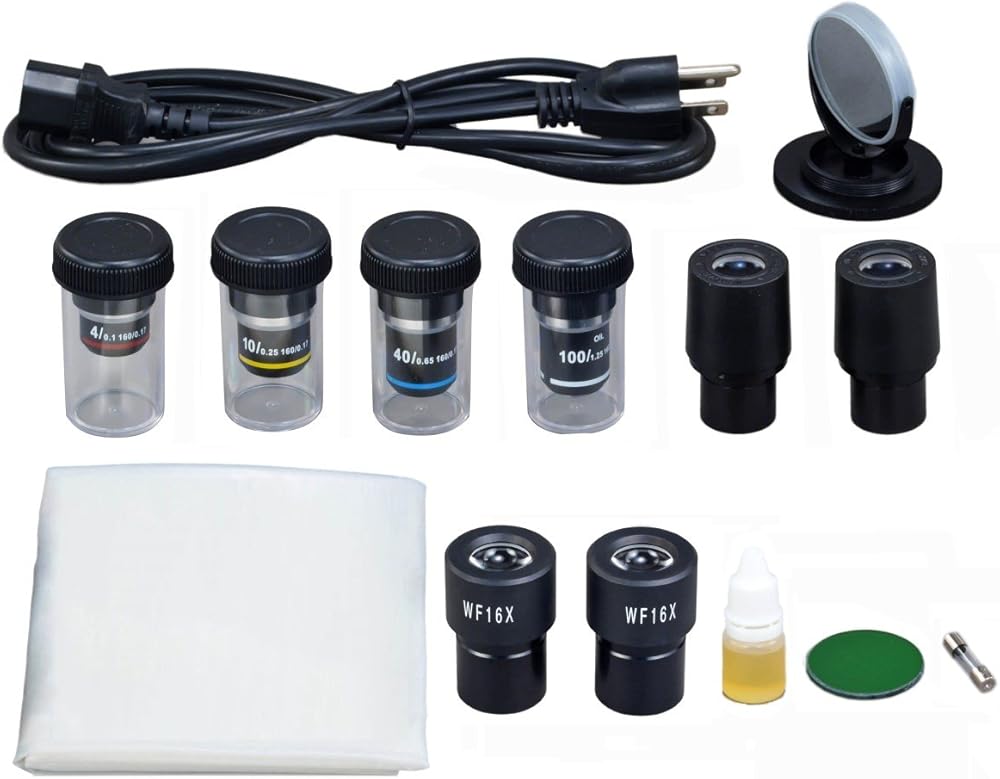

  • Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and WF16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm)
  • Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and WF16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm)
  • Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and WF16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm)
  • Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Photo tube adjustment range: 5/8inch (15mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control
  • Focusing knob can be locked for observation and transportation; Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal mechanical components

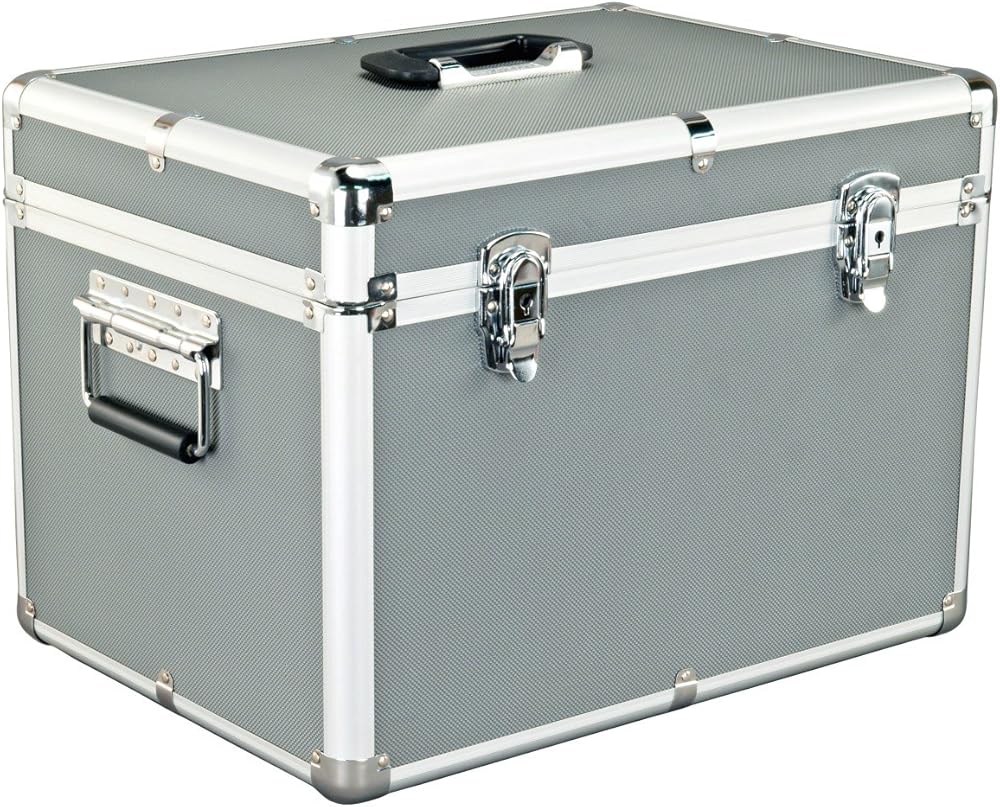

  • Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug); Carrying case: aluminum; Dimension of aluminum case: 18-1/8inch x 13inch x 13-3/8inch (46 x 33 x 34cm)
  • 5-year warranty against manufacturing defects

Description

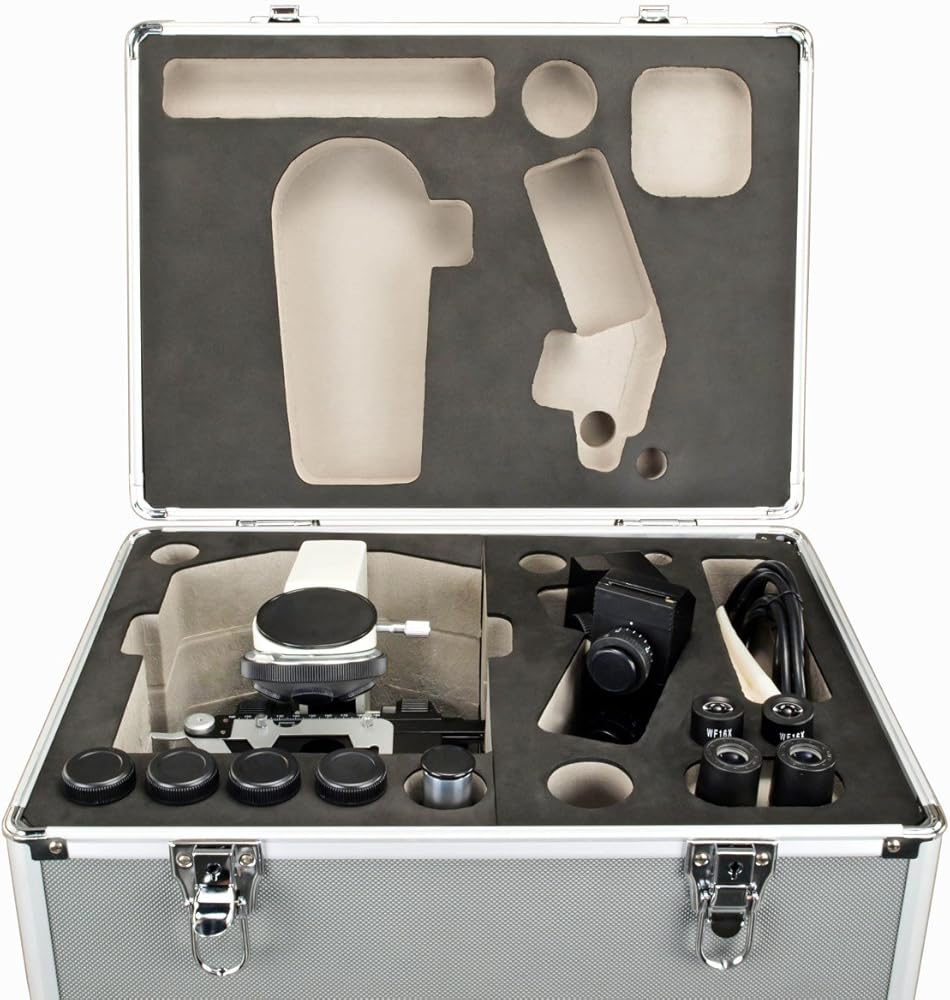

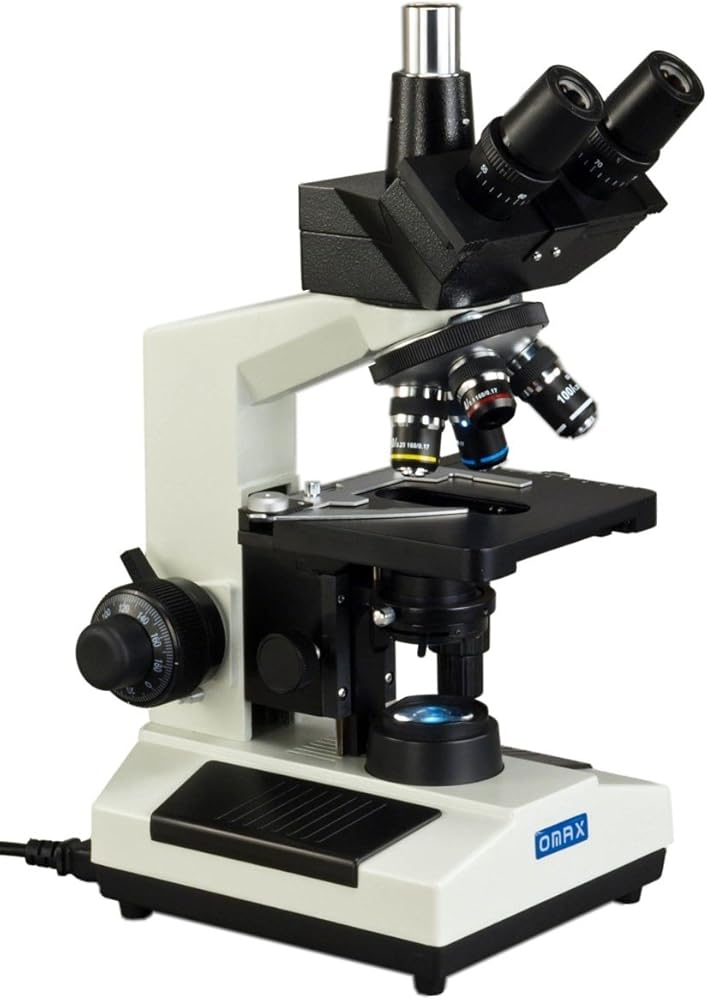

This is a package of trinocular compound LED microscope 40X-1600X with an aluminum carrying case. The compound microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. The trinocular port is easy to mount photo or video capability. You can add advanced accessories including darkfield condenser and phase contrast kit to upgrade your microscope. The aluminum case can be carried your microscope and accessories including darkfield, phase contrast, camera kits around.
