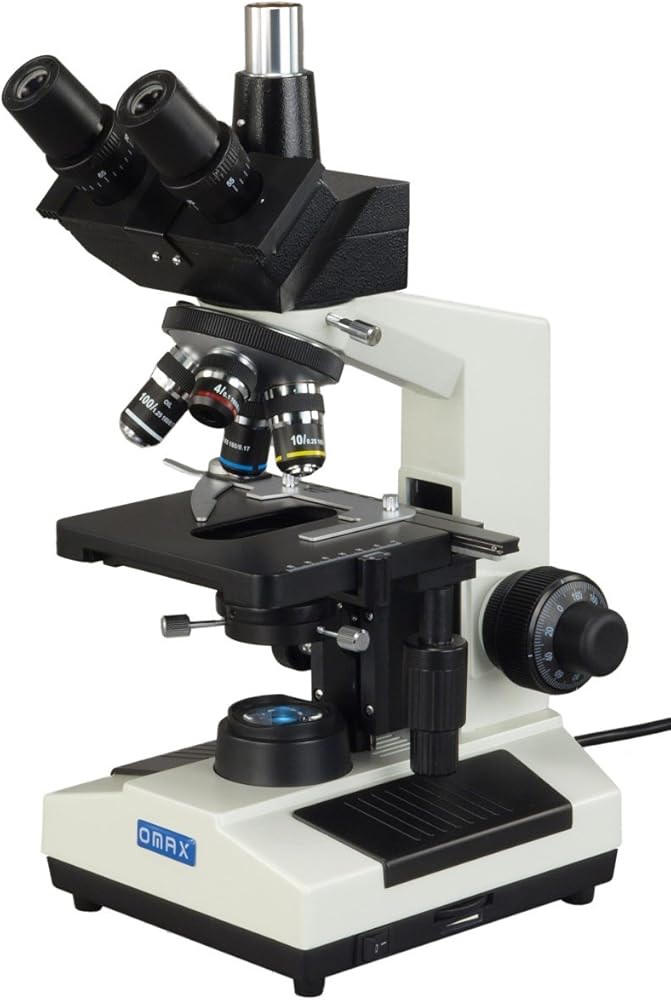

OMAX 40X-1600X Darkfield Trinocular Compound Biological Microscope with Replaceable LED Light

SAR 2,689

Brand
OMAX
Category
Microscopes
Weight
6.4 kg
1 +

Special Features

  • Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and WF16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes
  • Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and WF16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes
  • Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and WF16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes
  • Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Photo tube adjustment range: 5/8inch (15mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation

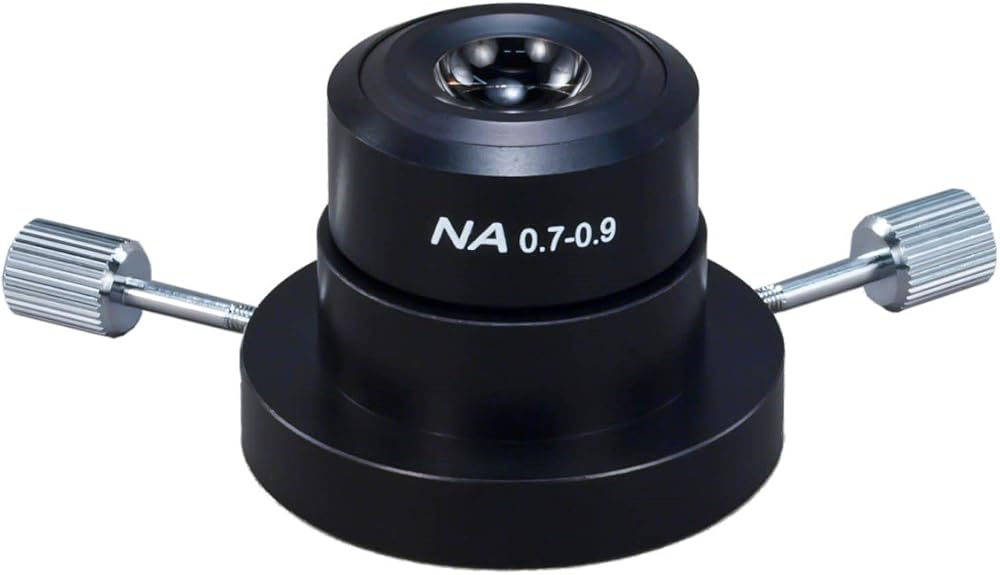

  • Brightfield condenser: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment; Dry darkfield condenser: NA0.7-0.9; Black palm rest on the base
  • Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal mechanical components; Power supply: 100V-240V 50/60Hz worldwide range (US and Canada power plug)
  • 5-year warranty against manufacturing defects

Description

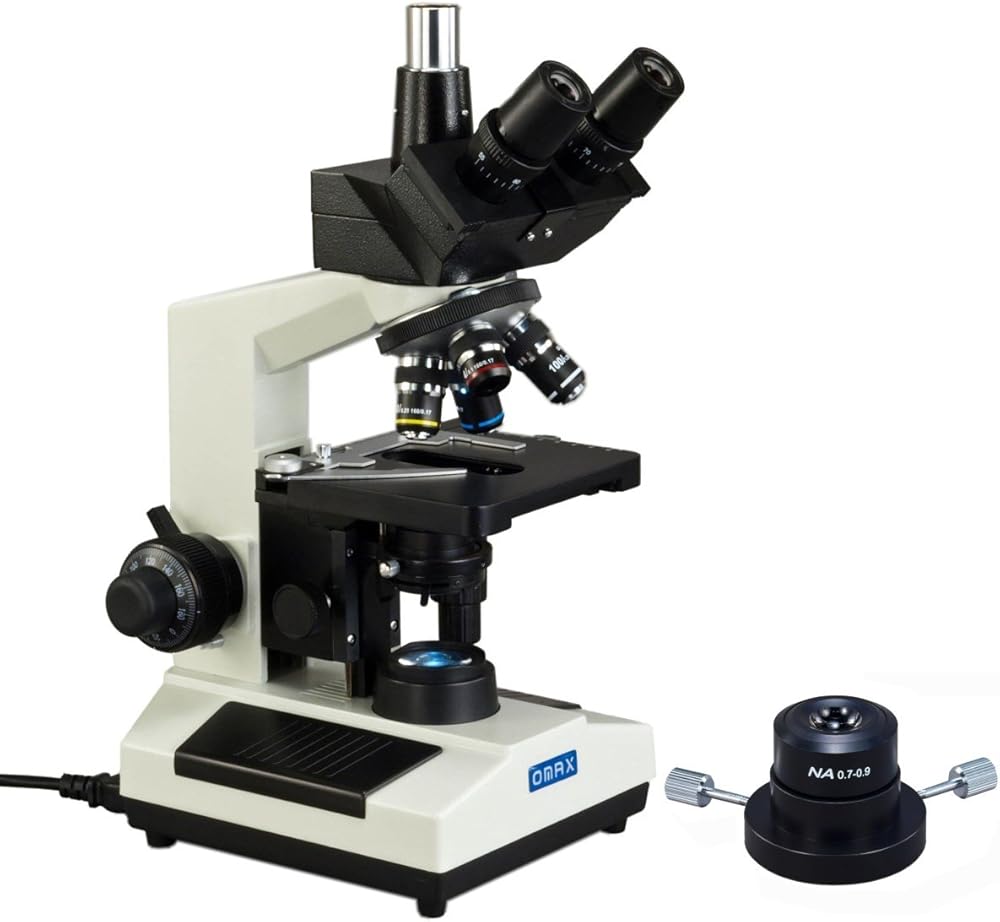

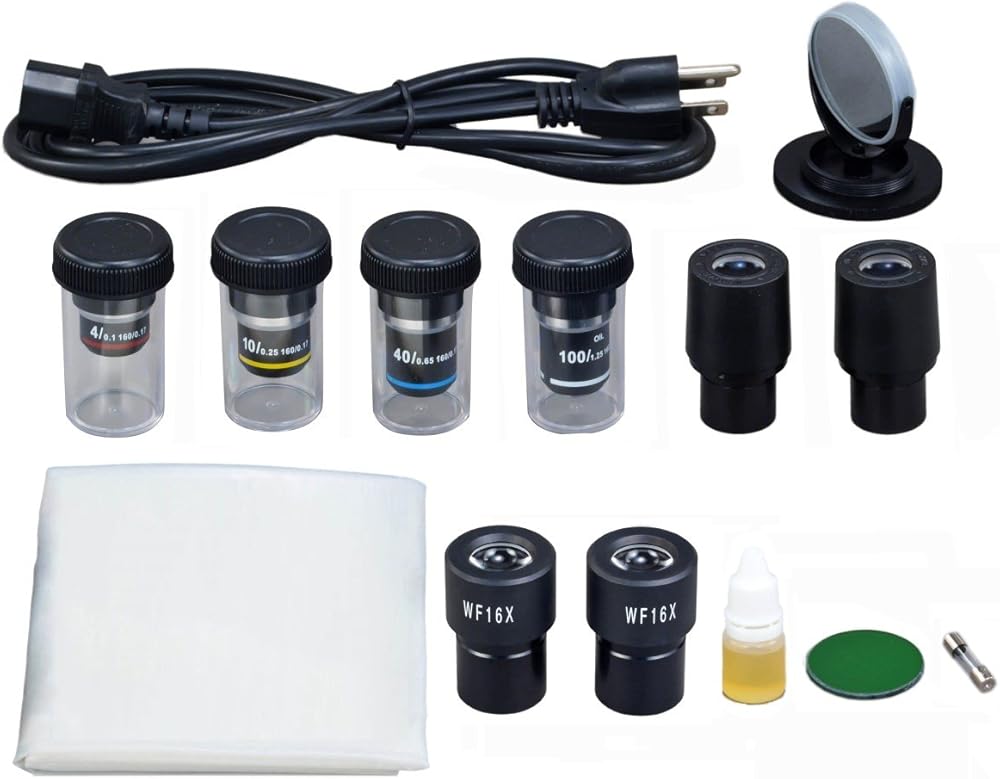

The trinocular compound LED microscope provides both brightfield and darkfield microscope system. It offers eight level magnifications from 40X to 1600X. The darkfield compound microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. The compound microscopy includes a 45 degree inclined 360 degree swiveling trinocular head, body frame, revolving quadruple nosepiece, two pairs of widefield eyepieces WF10X/18 and WF16X, four DIN achromatic objectives: 4X, 10X, 40X (S), 100X (S,Oil), large double layer mechanical stage, LED illumination system and darkfield NA0.7-0.9 & brightfield Abbe NA1.25 condensers. The LED lamp can be replaced by yourself. The trinocular port is easy to mount photo or video capability. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This trinocular microscopy is good for teaching, demonstration, clinical examination and research purpose.
