OMAX 40X-2000X المرحلة التباين المدمج في 3.0MP كاميرا رقمية مجمع LED مجهر مجهر in Saudi Arabia OMAX 40X-2000X المرحلة التباين المدمج في 3.0MP كاميرا رقمية مجمع LED مجهر مجهر in Saudi Arabia OMAX 40X-2000X المرحلة التباين المدمج في 3.0MP كاميرا رقمية مجمع LED مجهر مجهر in Saudi Arabia OMAX 40X-2000X المرحلة التباين المدمج في 3.0MP كاميرا رقمية مجمع LED مجهر مجهر in Saudi Arabia

OMAX 40X-2000X المرحلة التباين المدمج في 3.0MP كاميرا رقمية مجمع LED مجهر مجهر

SAR 5,713

ماركة
OMAX
وزن
1 g
1 +

مميزات خاصة

  • Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): PH10X, PH20X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling digital binocular head
  • Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): PH10X, PH20X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling digital binocular head
  • Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): PH10X, PH20X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling digital binocular head
  • Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer size 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation
  • Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Phase contrast condenser disk with five switchable positions: one bright field NA1.25 w/ iris diaphragm Abbe condenser and four phase contrast filters, 10X, 20X, 40X, 100X, each can be centered individually; Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal framework; Power supply: AC 100V-240V (US and Canada plug)
  • Built-in digital camera: - Imaging device: 3.0 mega pixels, 1/2.5inch CMOS - Effective pixels: 2048x1536 - Maximum still image resolution: 2048x1536 pixels - Frame rate: 4 frames per second at 2048x1536, 10 frames per second at 1024x768 - Interface: USB2.0 ( 480MB/second) - SNR: >40dB - Software compatible with Windows XP/Vista/7/8/10, and Mac OS
  • 5-year warranty against manufacturing defects

وصف

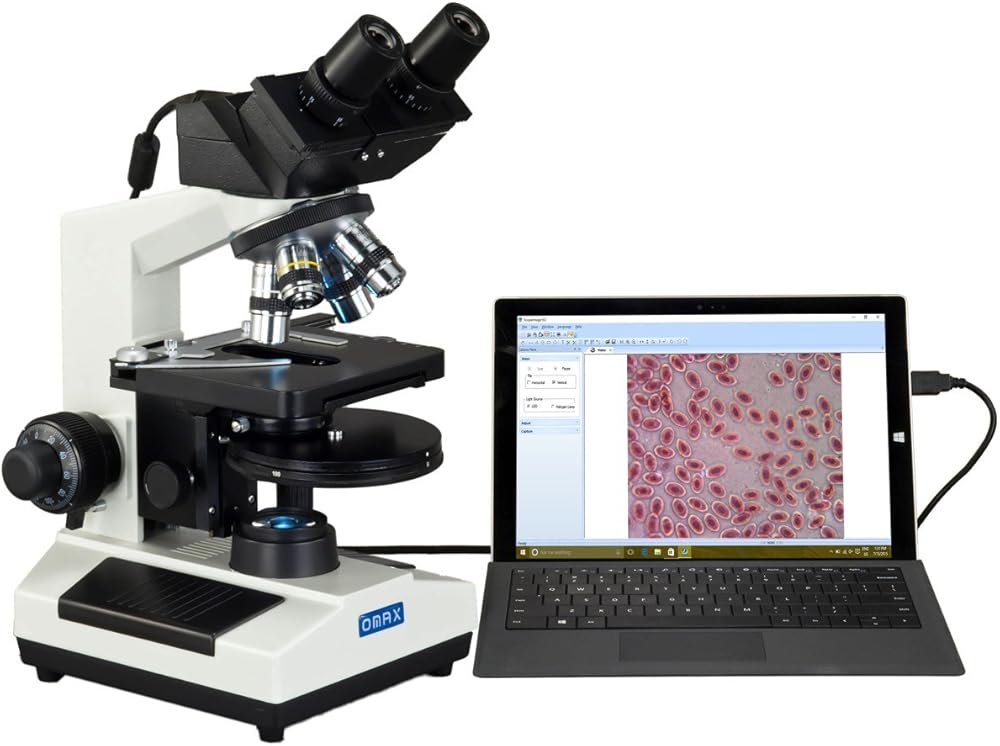

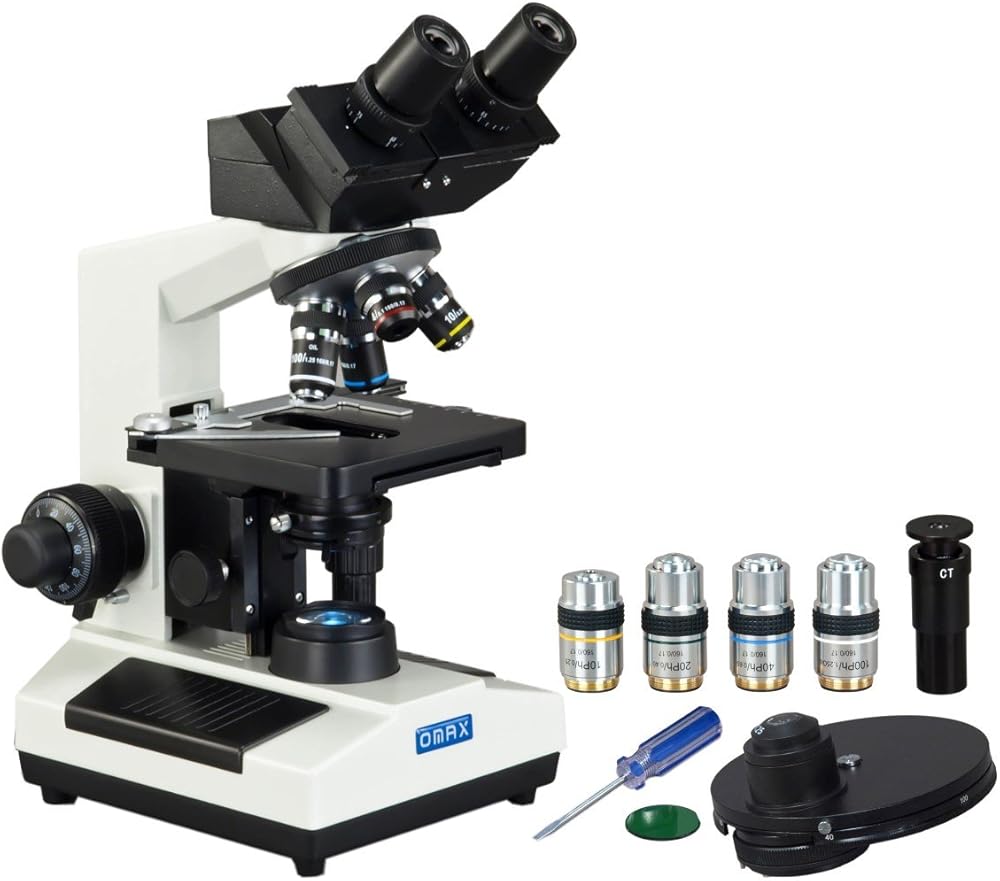

The phase contrast digital compound LED microscope provides two systems (phase contrast microscope system and brightfield microscope system) for observing live cells depending on your applications. It comes with a built-in 3.0MP USB digital imaging system, a LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm and a complete set of phase contrast kit. It offers eight levels of brightfield magnification from 40X to 2000X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four phase contrast objectives: PH10X, PH20X, PH40X (S), PH100X(S, Oil). It also offers magnification power: 100X-200X-400X-800X-1000X-2000X. The USB digital imaging system captures still microscope images and live video on computer without the hassle of setting up the digital camera. The included software compatible with Windows XP/Vista/7/8/10 can also be used to make measurements. You can also view and capture the images on iMac or Macbook with Mac OS. It's easy to replace the LED lamp by your own. This phase contrast compound microscopy is widely used clinical, biological research and schools, specially for viewing live cells.
