OMAX Inverted Phase Contrast Compound Microscope 40X-400X with 10MP Digital Camera in Saudi Arabia OMAX Inverted Phase Contrast Compound Microscope 40X-400X with 10MP Digital Camera in Saudi Arabia OMAX Inverted Phase Contrast Compound Microscope 40X-400X with 10MP Digital Camera in Saudi Arabia OMAX Inverted Phase Contrast Compound Microscope 40X-400X with 10MP Digital Camera in Saudi Arabia

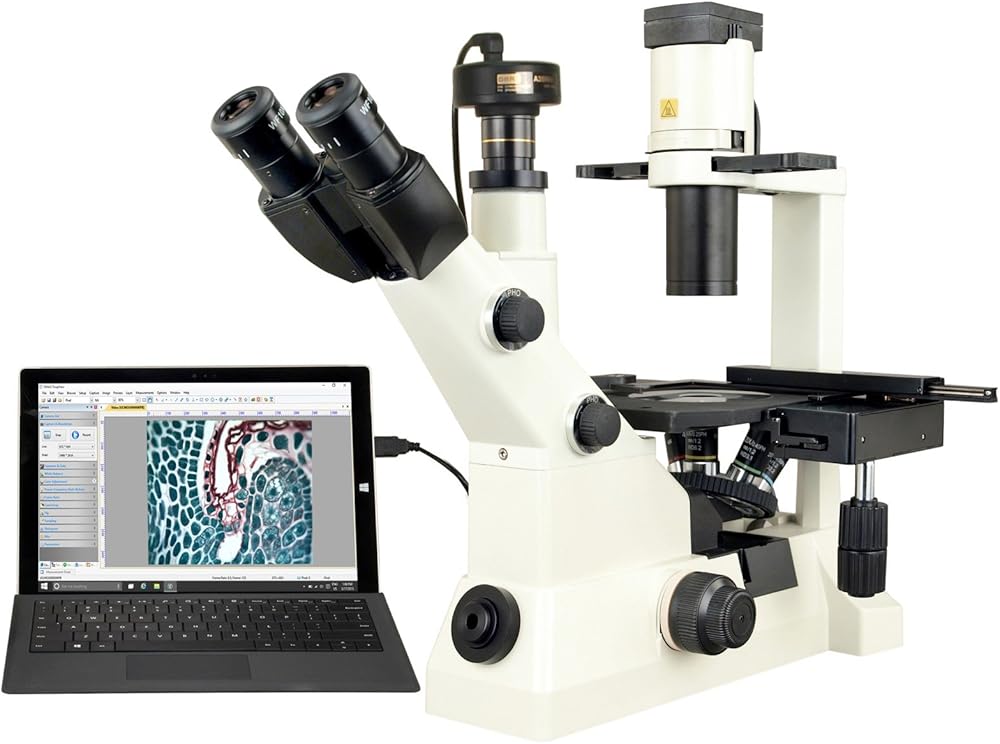

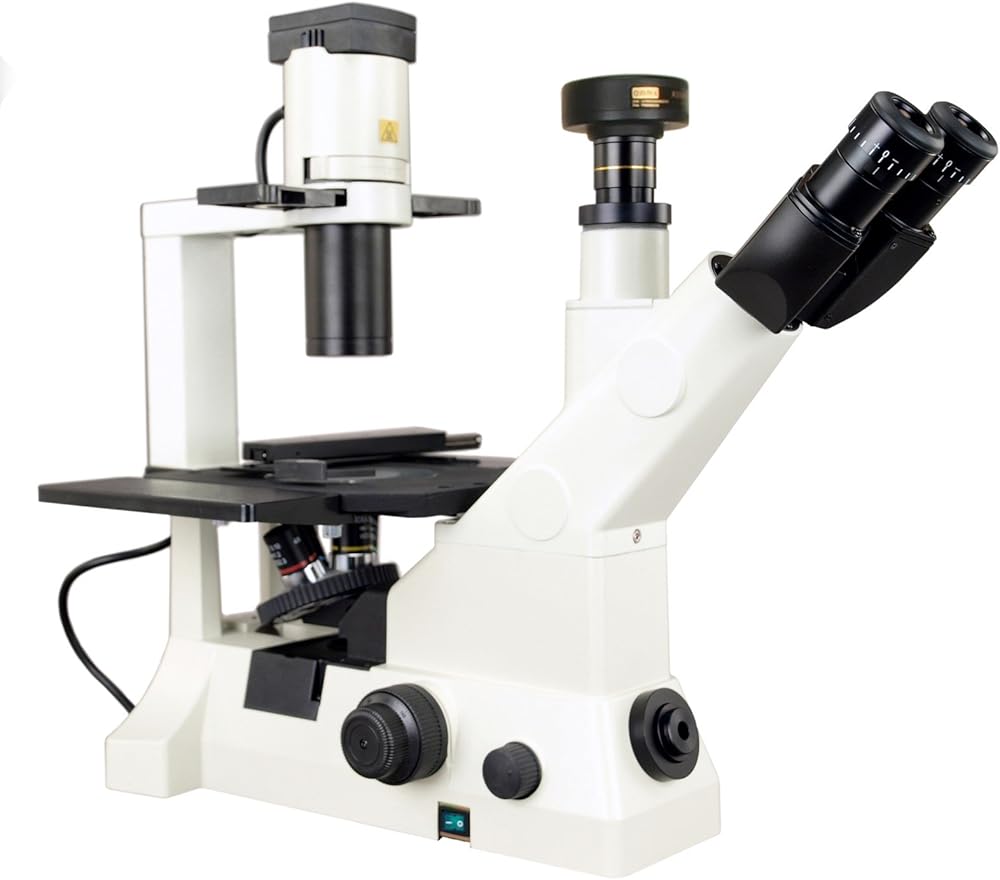

OMAX Inverted Phase Contrast Compound Microscope 40X-400X with 10MP Digital Camera

SAR 20,391
Brand
OMAX
Category
Microscopes
Weight
22.7 kg
– 1 +

Special Features

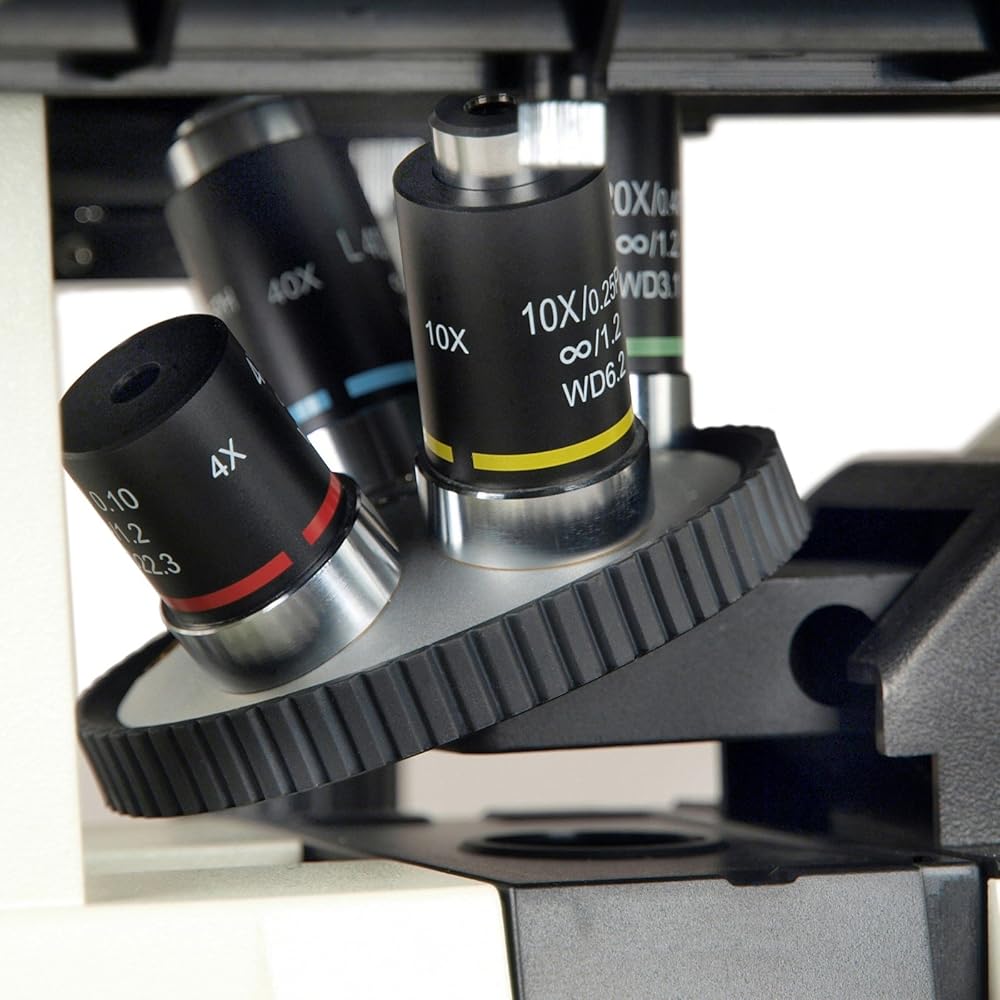

  • Total Magnification: 40X, 100X, 200X, 400X: Eyepiece - A pair of 10X eyepieces with 20mm wide field of view: Objective - Infinity plan achromatic 4X/0.10, ∞/1.2mm, WD 22.3mm - Infinity plan phase contrast 10X/0.25, ∞/1.2mm, WD 6.2mm - Infinity plan phase contrast 20X/0.40, ∞/1.2mm, WD 3.1mm - Infinity plan phase contrast 40X/0.55, ∞/1.2mm, WD 2.2mm: Viewing Head - Siedentopf binocular, 45degrees; inclined viewing head
  • Total Magnification: 40X, 100X, 200X, 400X: Eyepiece - A pair of 10X eyepieces with 20mm wide field of view: Objective - Infinity plan achromatic 4X/0.10, ∞/1.2mm, WD 22.3mm - Infinity plan phase contrast 10X/0.25, ∞/1.2mm, WD 6.2mm - Infinity plan phase contrast 20X/0.40, ∞/1.2mm, WD 3.1mm - Infinity plan phase contrast 40X/0.55, ∞/1.2mm, WD 2.2mm: Viewing Head - Siedentopf binocular, 45degrees; inclined viewing head
  • Total Magnification: 40X, 100X, 200X, 400X: Eyepiece - A pair of 10X eyepieces with 20mm wide field of view: Objective - Infinity plan achromatic 4X/0.10, ∞/1.2mm, WD 22.3mm - Infinity plan phase contrast 10X/0.25, ∞/1.2mm, WD 6.2mm - Infinity plan phase contrast 20X/0.40, ∞/1.2mm, WD 3.1mm - Infinity plan phase contrast 40X/0.55, ∞/1.2mm, WD 2.2mm: Viewing Head - Siedentopf binocular, 45degrees; inclined viewing head

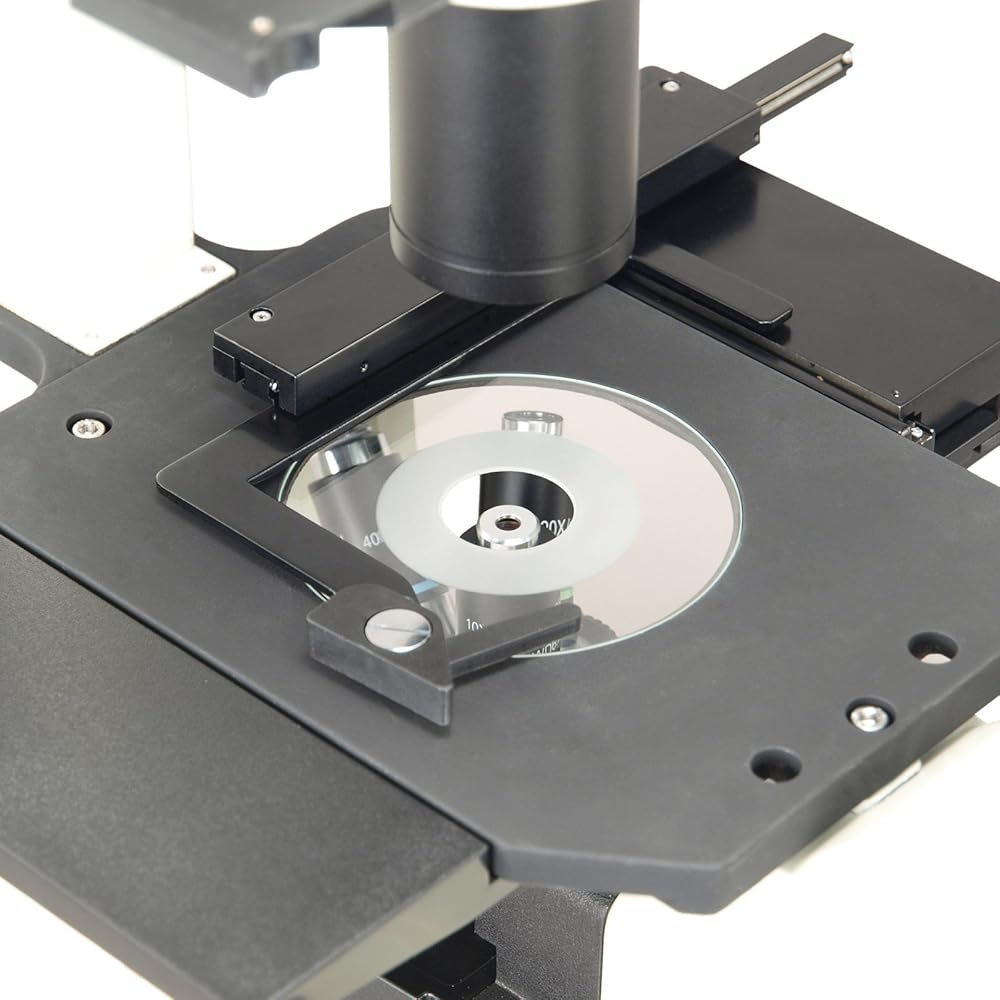

  • Interpupillary distance adjustable: 50mm ~ 70mm ( 2inch ~ 2-3/4inch ); Inner diameter of ocular tube: 30mm: Nosepiece - Revolving, quintuple: Stage - Plain stage, dimension 230mm x 170mm - Mechanical stage attachment: X-Y stroke 120mm x 80mm - Stage extension plate: working surface 189mm x 70mm - Stage insert plate: glass, phi108mm - Slide holder plate: metal, 128mm x 86mm, slot for slide 76mm x 26mm, opening for petri dish phi54mm
  • Illumination - Transmitted illumination - 6V/30W halogen bulb - Light intensity is adjustable - Aperture iris diaphragm - Condenser: working distance 72mm, NA 0.3, removable for large working room: Photo port - Upper port: light split 20/80 (eyepiece / photo) - Lower port: light split 0/100 (eyepiece / photo) - Camera adapter with C-mount - Camera adapter with standard 23.2mm port; Focusing - Coaxial fine and coarse knobs on both side - Tension adjustable
  • Color filter - Diameter phi45mm - LBD light balancing filter - IF550 interference filter (green) - SIF800 Inrared-eliminating filter (yellow); Phase contrast accessory - Phase contrast slider plate, center adjustable - Centering telescope: Power - AC110V; Terasaki holder plate: metal, 138mm x 86mm, slot for Terasaki plate 81mm x 56mm, opening for petri dish phi65mm; etri dish holder plate: metal, 81mm x 56mm, opening for petri dish phi35mm
  • Digital Camera - Resolution 3584x2748 pixels ( 10 MP ) - 0.5X reduction lens to get larger field of view - Driver and software included in a CD - 0.01 mm stage micrometer included - USB cable included - Software included; 5-year warranty against manufacturing defects
