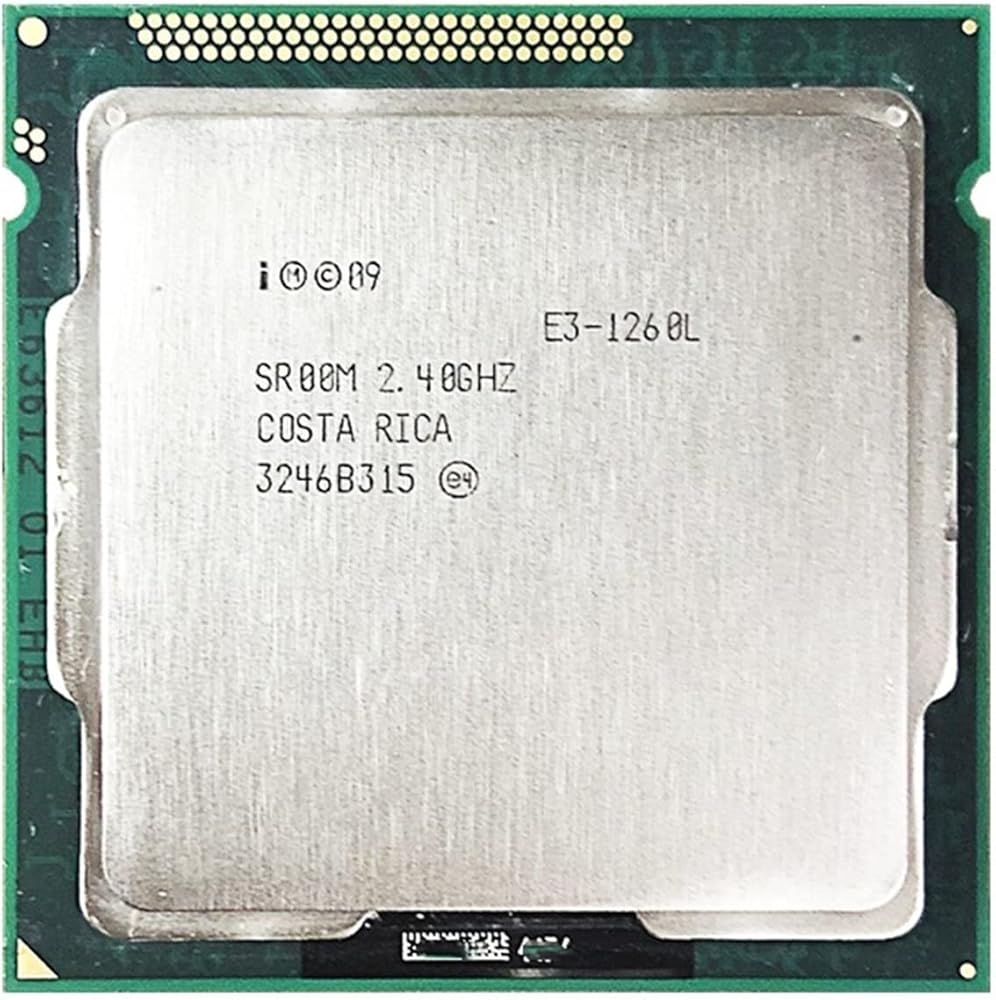

E3-1260L specifications
General information
Type
CPU / Microprocessor
Market segment
Server
Family
Model number?
E3-1260L
CPU part number
CM8062301061800is an OEM/tray microprocessor
Frequency?
2400 MHz
Maximum turbo frequency
3300 MHz (1 c)
3200 MHz (2 cores)
2800 MHz (3 cores)
2500 MHz (4 cores)
Bus speed?
5 GT/sDMI
Clock multiplier?
24
Package
1155-land Flip-Chip Land Grid Array (FCLGA 1155)
Socket
Socket 1155 / H2 / LGA1155
Architecture / Microarchitecture
Microarchitecture
Sandy Bridge
Platform
Bromolow
Processor c?
Sandy Bridge
c stepping?
D2 (Q1HV, SR00M)
CPUID
206A7 (Q1HV, SR00M)
Manufacturing process
0.032 micron High-K metal gate process
Data width
64 bit
The number of CPU cores
4
The number of threads
8
Floating Point Unit
Integrated
Level 1 cache size?
4 x 32 KB 8-way set associative instruction caches
4 x 32 KB 8-way set associative data caches
Level 2 cache size?
4 x 256 KB 8-way set associative caches
Level 3 cache size
8 MB 16-way set associative shared cache
Physical memory
32 GB
Multiprocessing
Uniprocessor
Extensions and Technologies
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
EM64T / Extended Memory 64 technology / I 64?
NX / XD / Execute disable bit?
HT / Hyper-Threading technology?
VT-x / Virtualization technology?
VT-d / Virtualization for directed I/O
TBT 2.0 / Turbo Boost technology 2.0?
TXT / Trusted Execution technology
Low power features
C1, C3 and C6 thread states
C1/C1E, C3 and C6 c states
C1/C1E, C3 and C6 package states
Enhanced / technology?
Integrated peripherals / components
Integrated graphics
GPU Type: HD 2000
Microarchitecture: Gen 6
Execution units: 6
Base frequency (MHz): 650
Maximum frequency (MHz): 1250
The number of supported displays: 2
Memory controller
The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1066, DDR3-1333
Maximum memory bandwidth (GB/s): 21.3
ECC supported: Yes
Other peripherals
Direct Media Interface 2.0
PCI Express 2.0 interface
Electrical / Thermal parameters
Minimum/Maximum operating temperature?
5°C - 58.6°C
Minimum power dissipation
5.5 Watt (C6 state)
Thermal Design Power?
45 Watt
