OMAX 40X-2000X مجهر LED مركب ثنائي العينين مع كاميرا مدمجة 3 ميجابكسل + خطة PH الأهداف in Saudi Arabia OMAX 40X-2000X مجهر LED مركب ثنائي العينين مع كاميرا مدمجة 3 ميجابكسل + خطة PH الأهداف in Saudi Arabia OMAX 40X-2000X مجهر LED مركب ثنائي العينين مع كاميرا مدمجة 3 ميجابكسل + خطة PH الأهداف in Saudi Arabia OMAX 40X-2000X مجهر LED مركب ثنائي العينين مع كاميرا مدمجة 3 ميجابكسل + خطة PH الأهداف in Saudi Arabia OMAX 40X-2000X مجهر LED مركب ثنائي العينين مع كاميرا مدمجة 3 ميجابكسل + خطة PH الأهداف in Saudi Arabia

OMAX 40X-2000X مجهر LED مركب ثنائي العينين مع كاميرا مدمجة 3 ميجابكسل + خطة PH الأهداف

SAR 6,394

ماركة
OMAX
وزن
10 kg
1 +

مميزات خاصة

  • Total magnification for bright field: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing head: 30 degrees inclined 360 degrees rotatable digital binocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm)
  • Total magnification for bright field: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing head: 30 degrees inclined 360 degrees rotatable digital binocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm)
  • Total magnification for bright field: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing head: 30 degrees inclined 360 degrees rotatable digital binocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm)
  • Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with measurement, size 5-1/2inch x 4-1/4inch (140mm x 110mm), translation range 3inch x 1-9/16inch (78mm x 40mm); Focus: coaxial coarse and fine focus knobs on both side, rack and pinion adjustment, with tension control and stop; Illumination: transmitted replaceable 3W LED light, intensity adjustable
  • Condenser: Abbe NA1.25 with iris aperture diaphragm and swing-out filter holder, rack and pinion adjustment; Phase contrast kit: - Substage phase contrast condenser disk with five switchable positions - One bright field NA1.25 with iris diaphragm Abbe condenser - Four phase contrast condensers: 10X, 20X, 40X, 100X - Each phase contrast condenser can be centered individually; Four PLAN PH objectives: 10X, 20X, 40X (S), 100X (S, Oil); 37mm mounting size in diameter
  • Centering telescope: 23.2mm; Solid metal base and stand; Power supply: AC 100V~240V 50/60Hz (US and Canada plug); Built-in digital camera: - Imaging device: 3.0 mega pixels, 1/2.5inch CMOS - Effective pixels: 2048x1536 - Maximum still image resolution: 2048x1536 pixels - Frame rate: 4 frames per second at 2048x1536, 10 frames per second at 1024x768 - Interface: USB2.0 ( 480MB/ second) - SNR: >40dB - Software compatible with Windows XP/Vista/7/8/10, and Mac OS
  • 5-year warranty against manufacturing defects

وصف

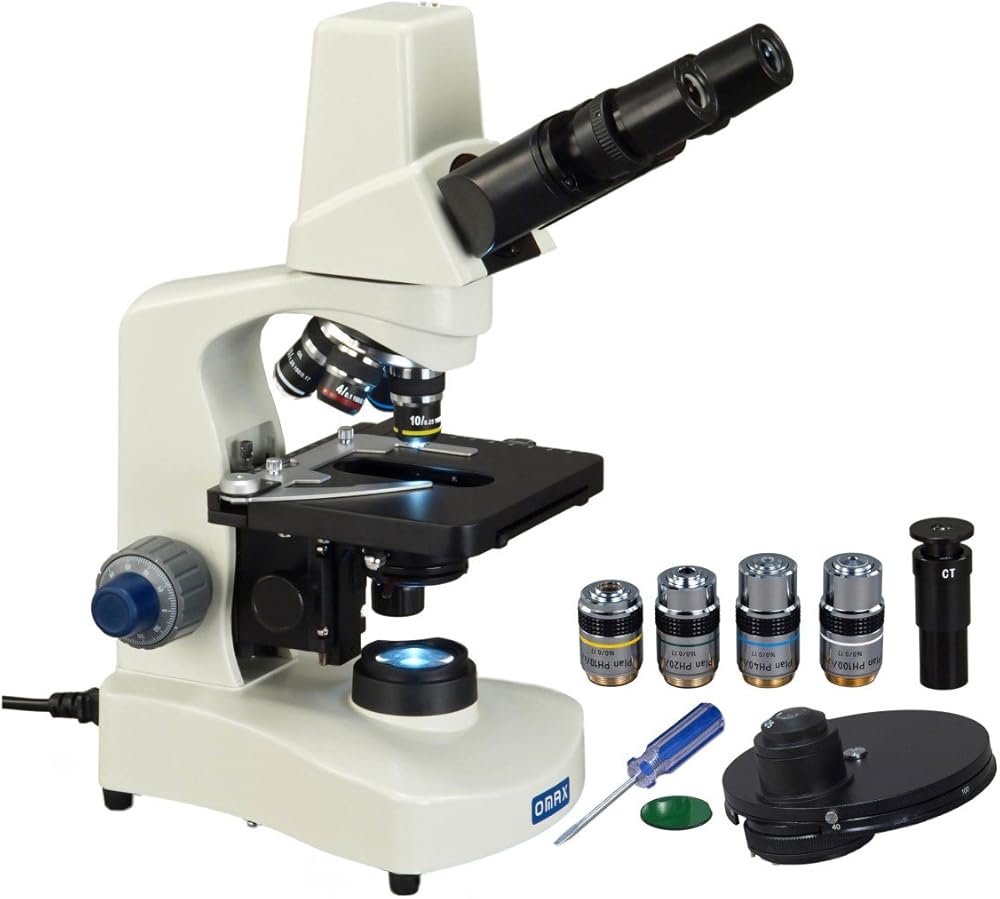

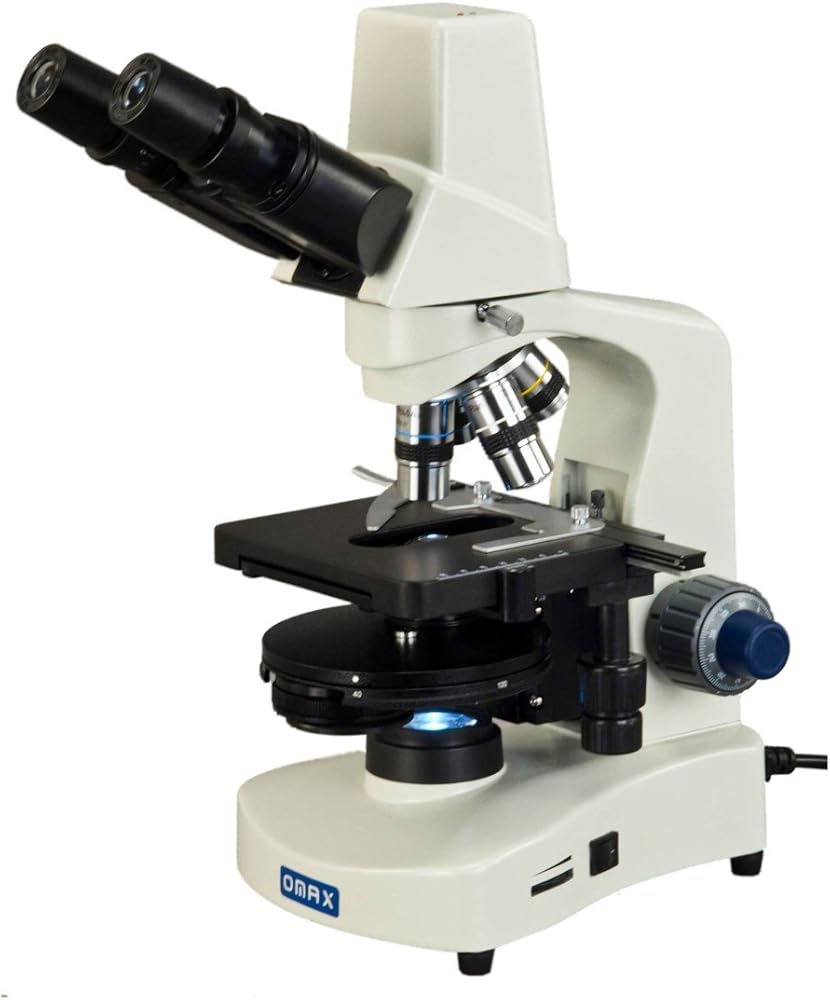

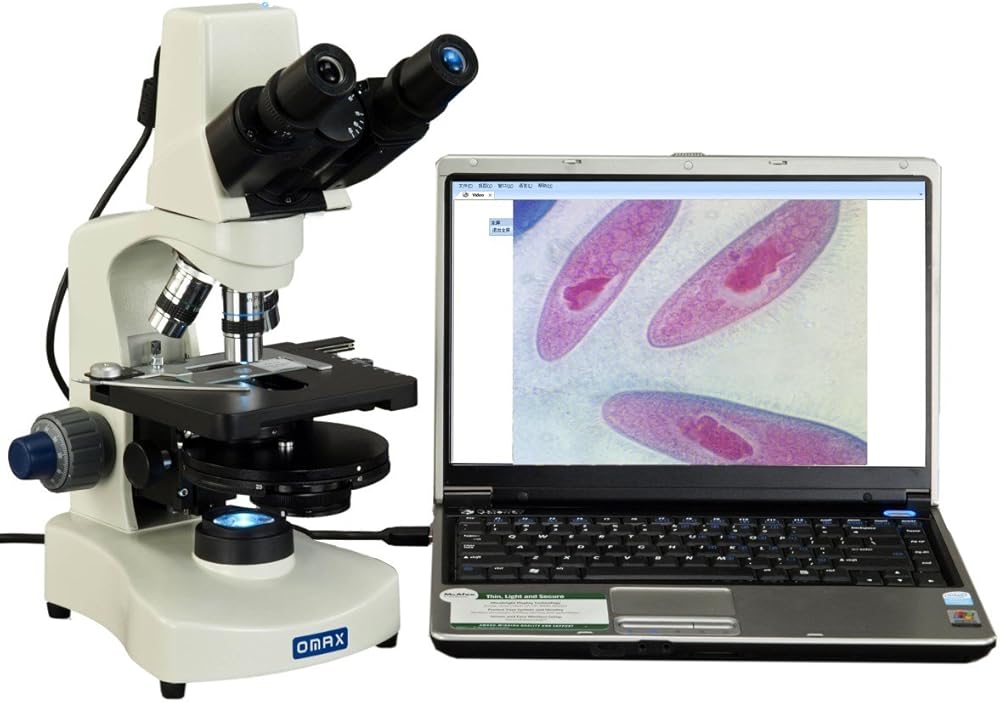

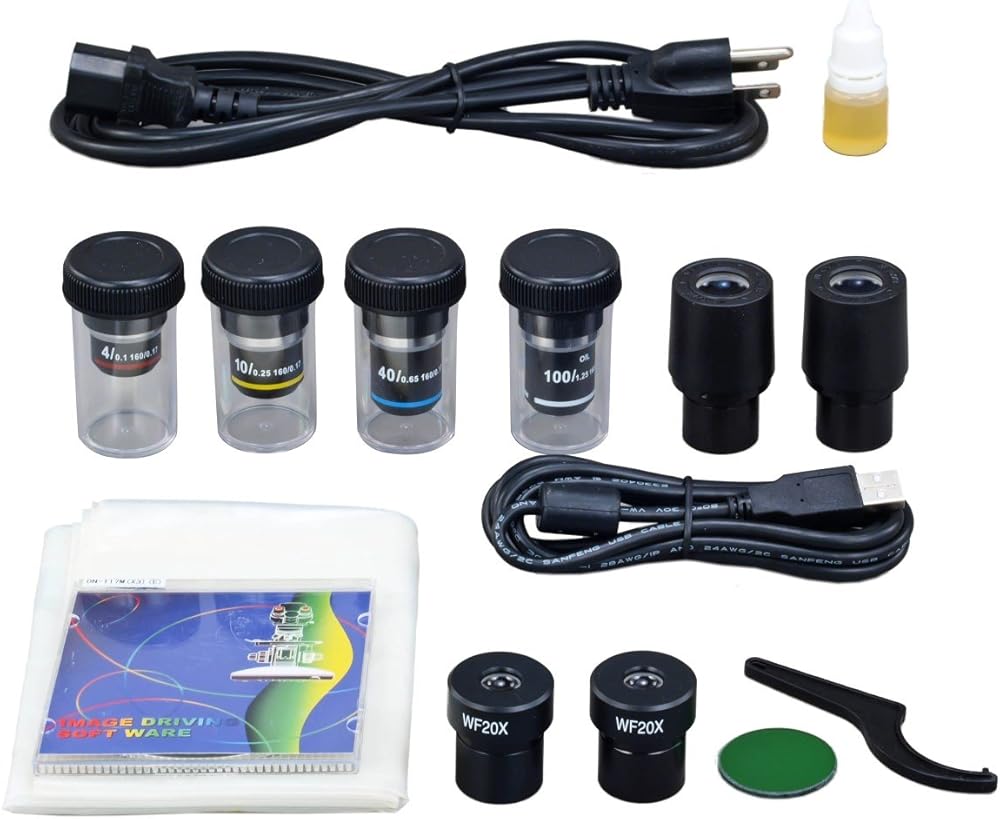

The digital binocular compound LED microscope provides both phase contrast and brightfield microscope system for viewing live cells depending on your applications. It comes with a built-in 3MP digital imaging system, a LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm and a complete set of phase contrast kit. It offers eight levels of brightfield magnification from 40X to 2000X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four PLAN phase contrast objectives: PH10X, PH20X, PH40X (S), PH100X (S, Oil). It also offers magnification power: 100X-200X-400X-800X-1000X-2000X. The digital imaging system captures still microscope images and live video on computer without the hassle of setting up the digital camera. The included software compatible with Windows XP/Vista/7/8/10 can also be used to make measurements. You can also view and capture the images on iMac or Macbook with Mac OS. It's easy to replace the LED lamp by your own. All lenses are made of high quality optical glass. This microscopy is good for teaching, demonstration, clinical examination and research purpose.
