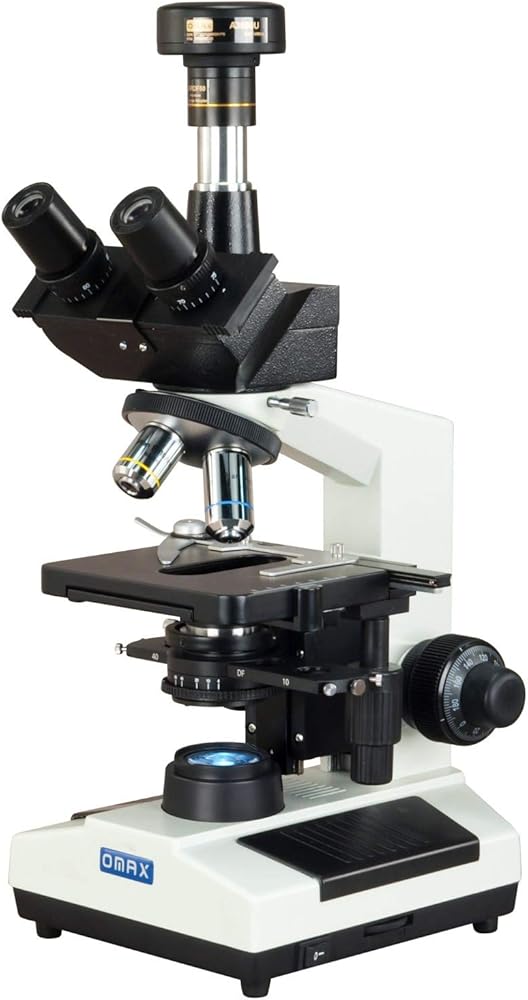

مجهر OMAX 40X-2000X ذو التباين الطوري ثلاثي العينيات LED + كاميرا رقمية بدقة 9 ميجابكسل

SAR 5,997

ماركة
OMAX
وزن
8.2 kg
1 +

مميزات خاصة

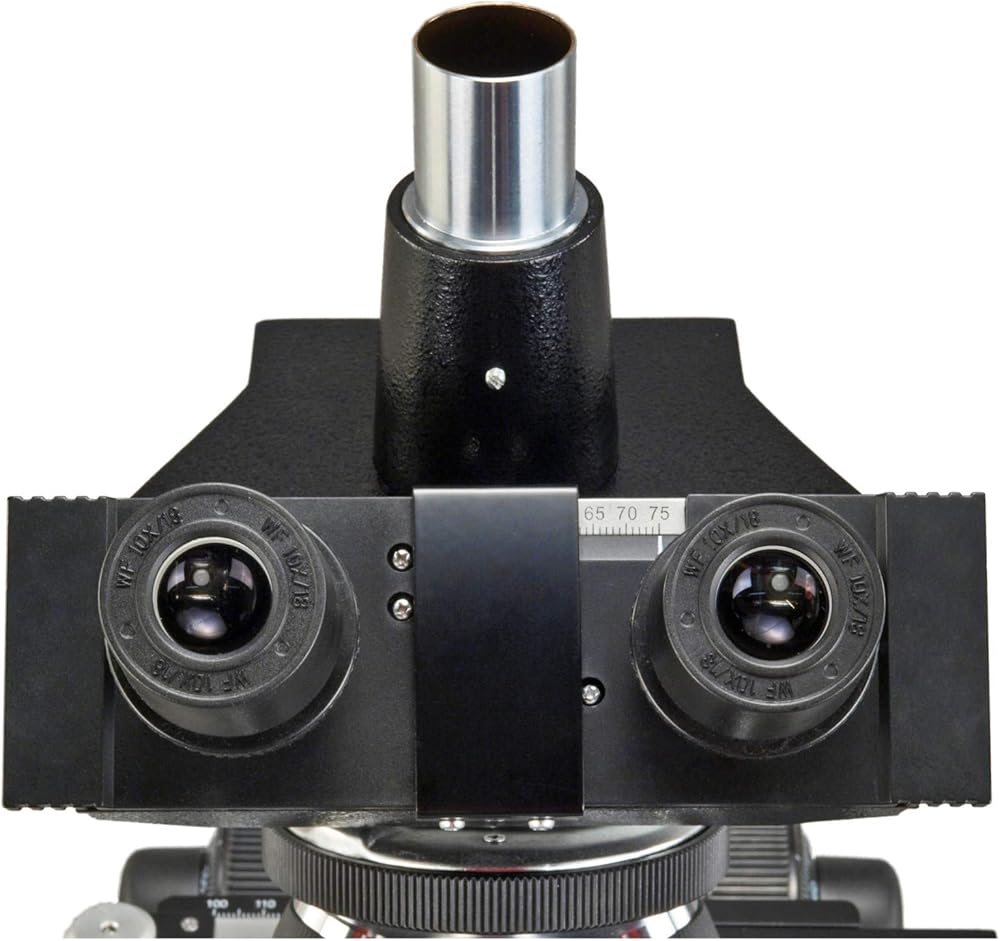

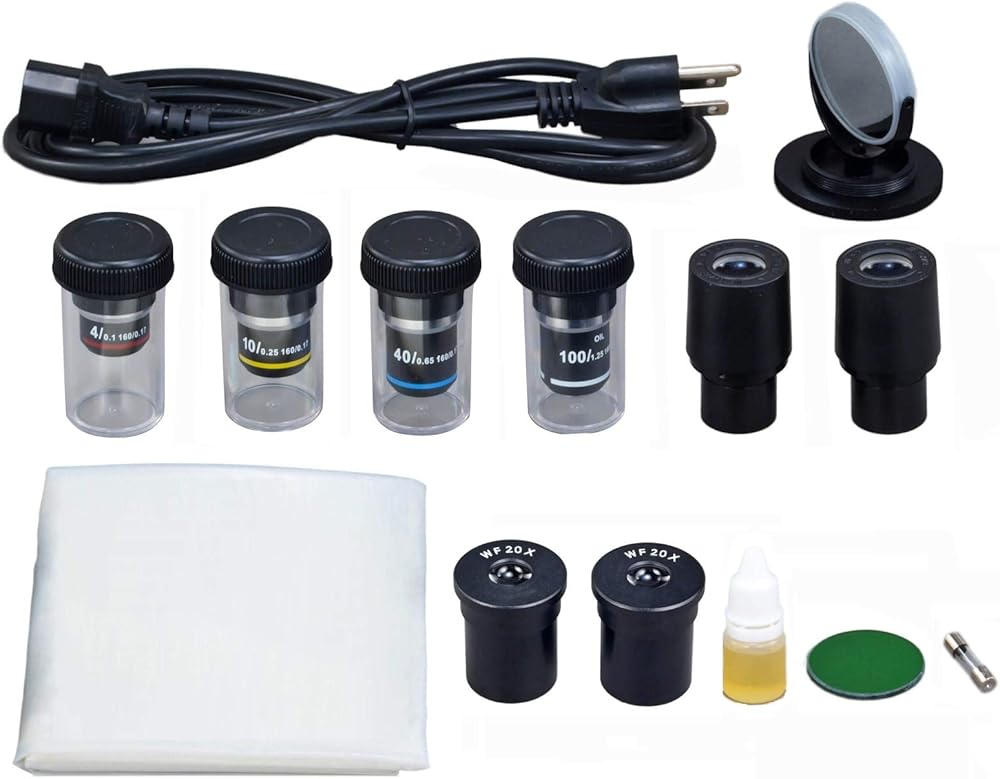

  • Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives (in phase contrast kit): PH10X, PH40X (S); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm)
  • Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives (in phase contrast kit): PH10X, PH40X (S); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm)
  • Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives (in phase contrast kit): PH10X, PH40X (S); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm)

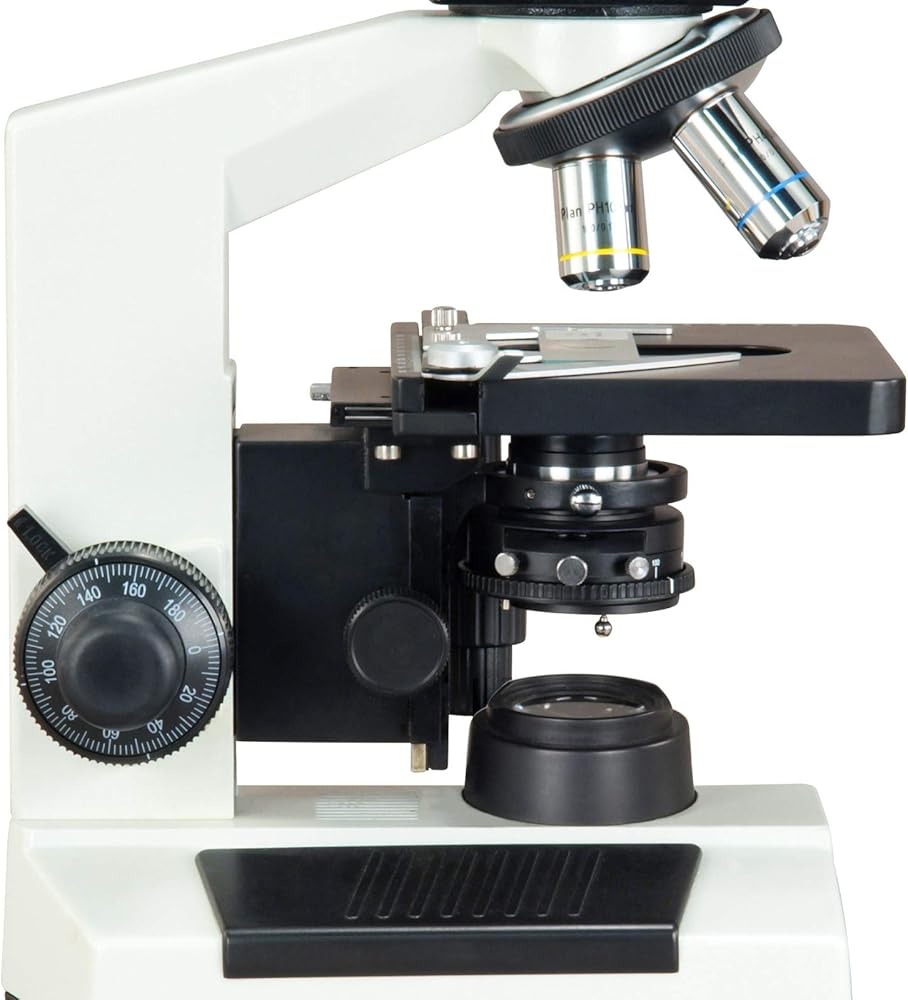

  • Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Photo tube adjustment range: 5/8inch (15mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation

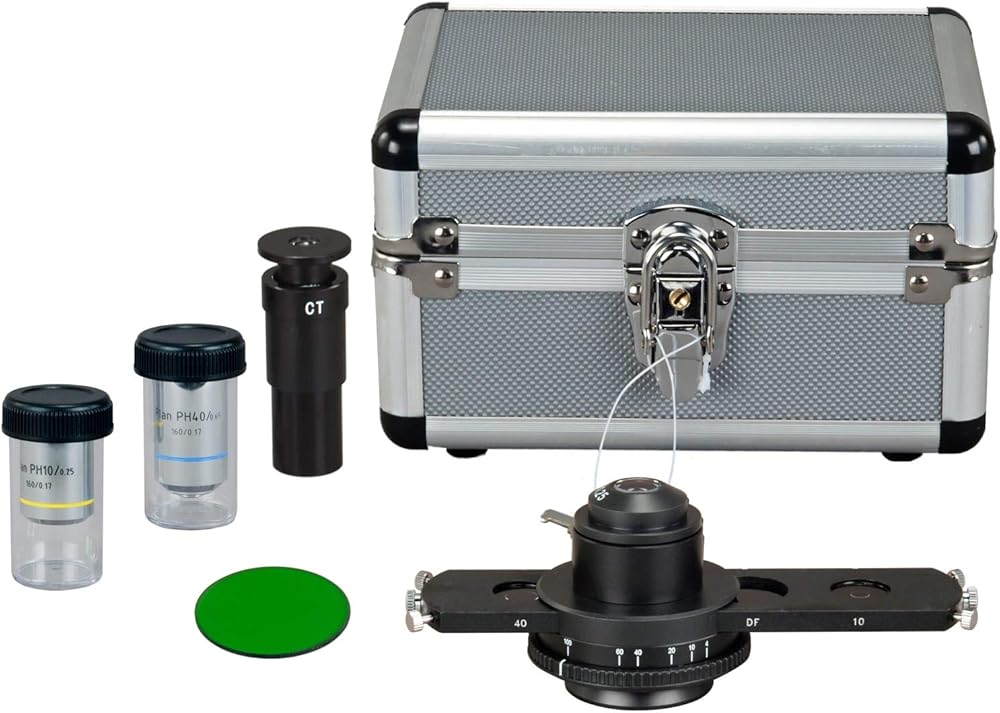

  • Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Phase contrast kit: - NA1.25 condenser with iris diaphragm and filter holder - 37mm mounting size in diameter - Sliding switch - Four positions: darkfield (DF), brightfield (BF), PH10/20, PH40 - Each phase contrast condenser can be centered individually - Centering telescope: 23.2mm; Black palm rest on the base

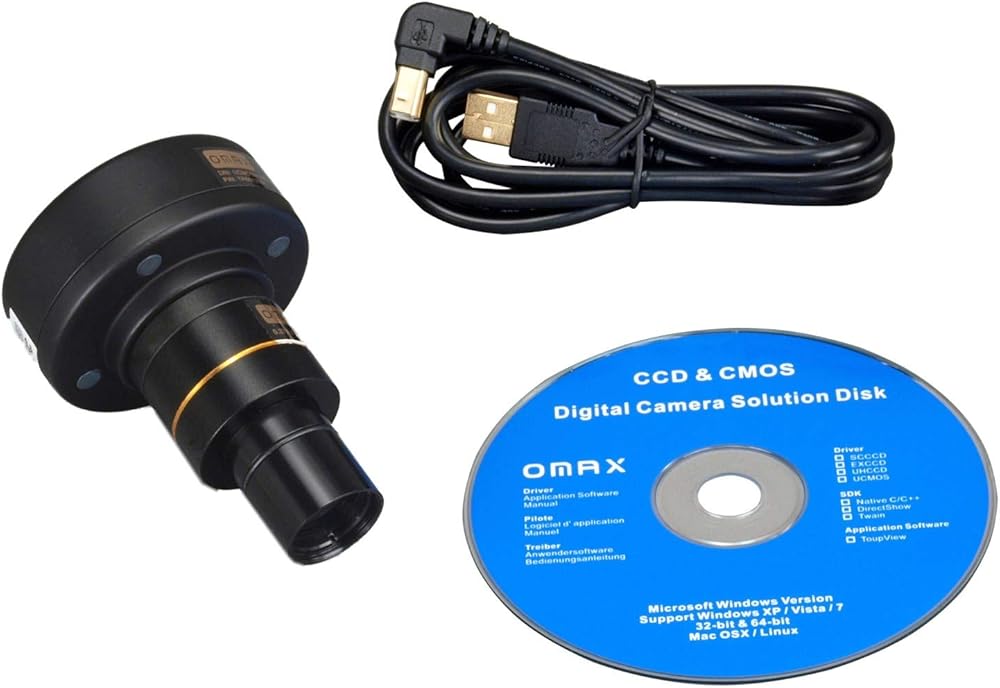

  • Digital camera: - true color 3488x2616 pixels (9M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame rate: 1.9fps at 3488x2616, 8fps at 1744x1308, 27fps at 872x654 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
  • Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal mechanical components; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug); 5-year warranty against manufacturing defects

وصف

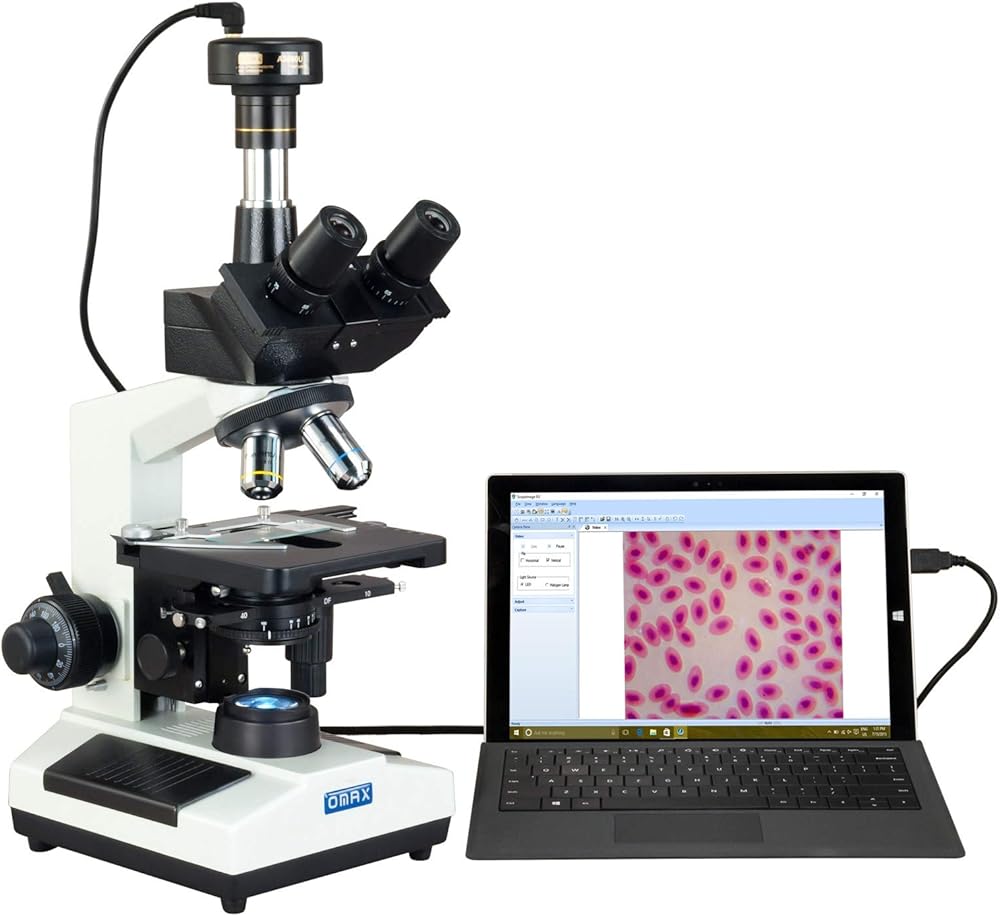

This item is presently sold out in Canada. This item can only be shipped to the United States. The trinocular compound microscope provides phase contrast / brightfield microscope system and USB imaging digital system. The compound microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. It comes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm, a complete set of phase contrast kit and 9MP USB camera. It offers eight levels of brightfield magnification from 40X to 2000X. The phase contrast kit includes a phase contrast NA1.25 condenser with four positions (DF, BF, PH10/20, PH40), a centering telescope, two plan phase contrast objectives: PH10X, PH40X (S). The optional oil darkfield objective AJ100PR (sold separately) will work with the darkfield condenser. The 3488x2616 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with windows, Mac OS and Linux operating system can also be used to make measurements. This phase contrast compound microscopy is widely used clinical, biological research and schools, specially for observing live cells.
