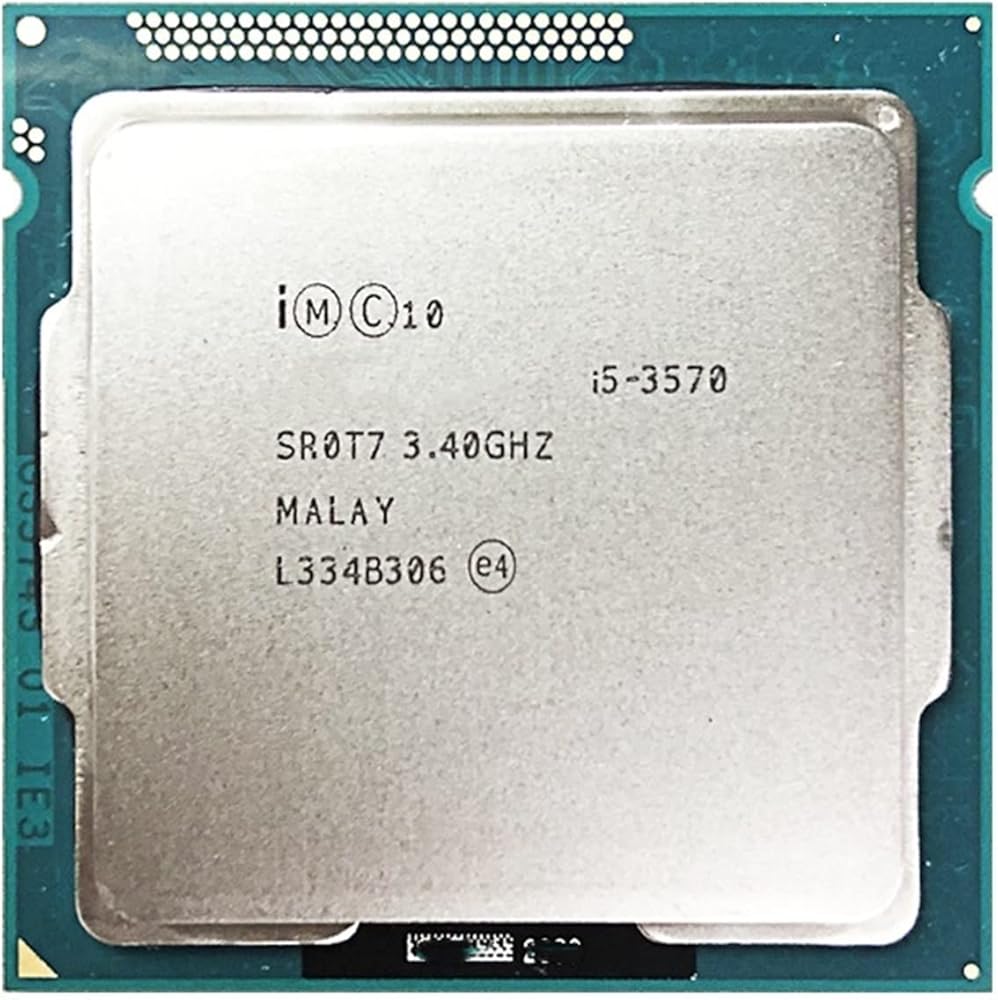

I5-3570 specifications
General information
Type
CPU / Microprocessor
Market segment
Desktop
Family
I c i5
Model number?
i5-3570
CPU part numbers
CM8063701093103is an OEM/tray microprocessor
BX80637I53570is a boxed processor with fan and heatsink (English version)
BXC80637I53570is a boxed processor with fan and heatsink (Chinese version)
Frequency?
3400 MHz
Maximum turbo frequency
3800 MHz (1 or 2 cores)
3700 MHz (3 cores)
3600 MHz (4 cores)
Low power frequency
1600 MHz
Bus speed?
5 GT/sDMI
Clock multiplier?
34
Package
1155-land Flip-Chip Land Grid Array
Socket
Socket 1155 / H2 / LGA1155
Architecture / Microarchitecture
Microarchitecture
Ivy Bridge
Processor c?
Ivy Bridge
c stepping?
N0 (QCBT, SR0T7)
Manufacturing process
0.022 micron
Data width
64 bit
The number of CPU cores
4
The number of threads
4
Floating Point Unit
Integrated
Level 1 cache size?
4 x 32 KB 8-way set associative instruction caches
4 x 32 KB 8-way set associative data caches
Level 2 cache size?
4 x 256 KB 8-way set associative caches
Level 3 cache size
6 MB 12-way set associative shared cache
Physical memory
32 GB
Multiprocessing
Uniprocessor
Features
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
F16C / 16-bit Floating-Point conversion instructions
EM64T / Extended Memory 64 technology / I 64?
NX / XD / Execute disable bit?
TBT 2.0 / Turbo Boost technology 2.0?
VT-x / Virtualization technology?
VT-d / Virtualization for directed I/O
TXT / Trusted Execution technology
Low power features
Enhanced / technology?
Integrated peripherals / components
Integrated graphics
GPU Type: HD 2500
Microarchitecture: Gen 7
Execution units: 6
Base frequency (MHz): 650
Maximum frequency (MHz): 1150
The number of supported displays: 3
Memory controller
The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1333, DDR3-1600
Maximum memory bandwidth (GB/s): 25.6
Other peripherals
Direct Media Interface 2.0
PCI Express 3.0 interface
Electrical / Thermal parameters
Maximum operating temperature?
67.4°C (case)
105°C (junction)
Thermal Design Power?
77 Watt
