Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm
Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm
Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm

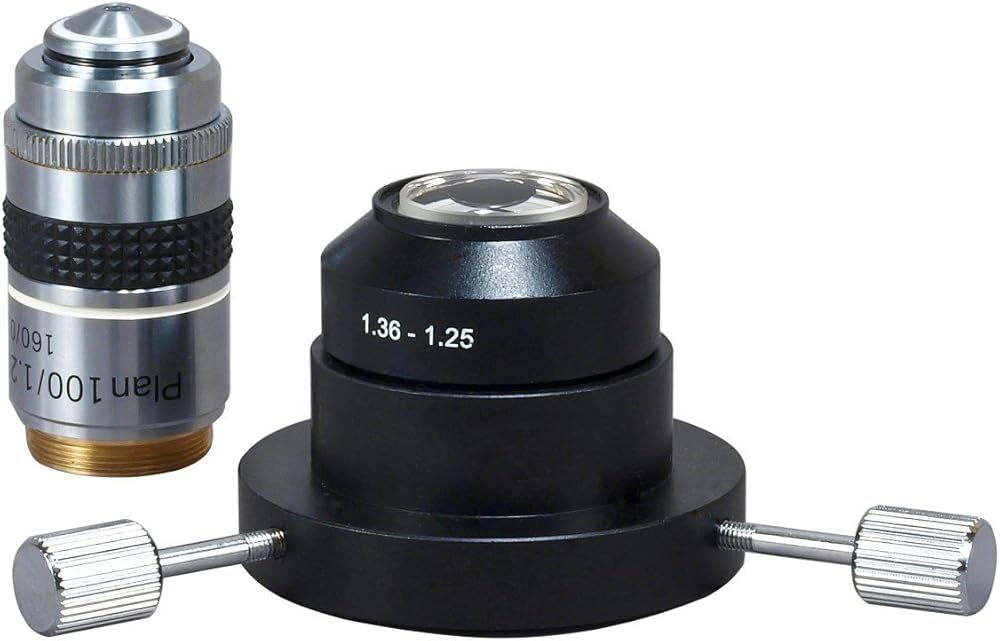

Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop; Illumination: transmitted replaceable 3W LED light, intensity adjustable; Brightfield condenser: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment; Oil darkfield condenser: NA1.36-1.25 condenser plus plan 100X/1.25-0.5 160/0.17 objective (oil, spring) with built-in iris diaphragm; Solid metal base and stand
Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)
Digital camera: - true color 3584x2748 pixels (10M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 1.9fps at 3584x2748, 8fps at 1792x1374, 27fps at 896x684 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
5-year warranty against manufacturing defects
Description

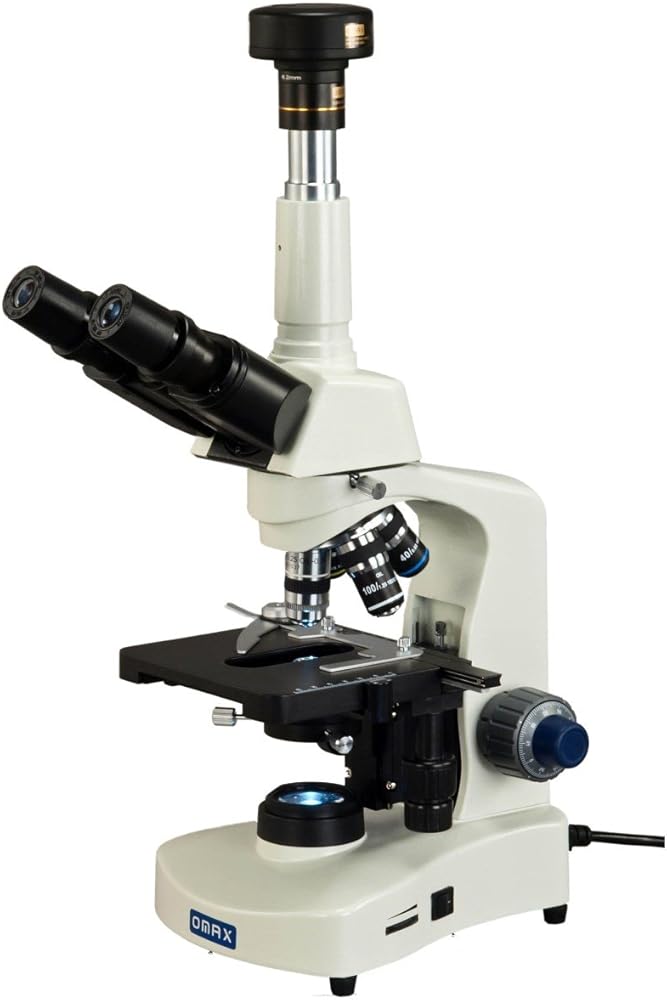

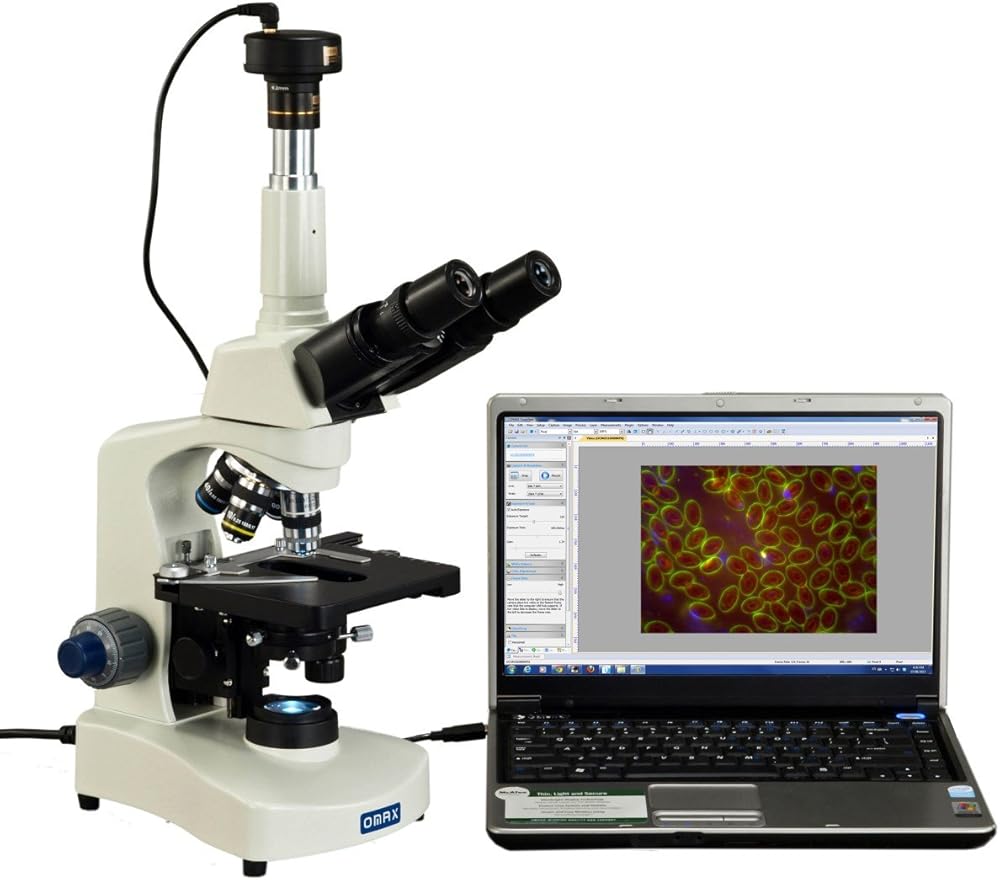

The trinocular compound LED siedentopf microscope 40X-2000X provides brightfield & darkfield microscope system and 10MP USB digital imaging system. The darkfield microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. The 3584x2748 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with windows, Mac OS and Linux operating system can also be used to make measurements. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This darkfield compound microscopy is ideal for professionals and also affordable for students.
