OMAX 40X-2000X Phase Contrast Binocular Compound LED Microscope + 5MP Camera

SAR 4,930
Brand
OMAX
Category
Microscopes
Weight
8.2 kg
– 1 +

Special Features

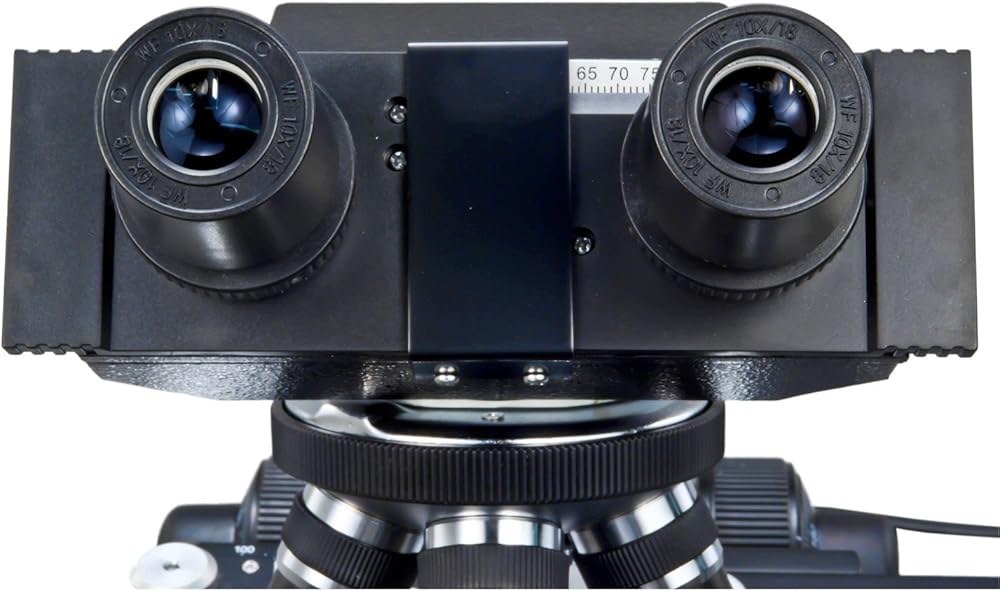

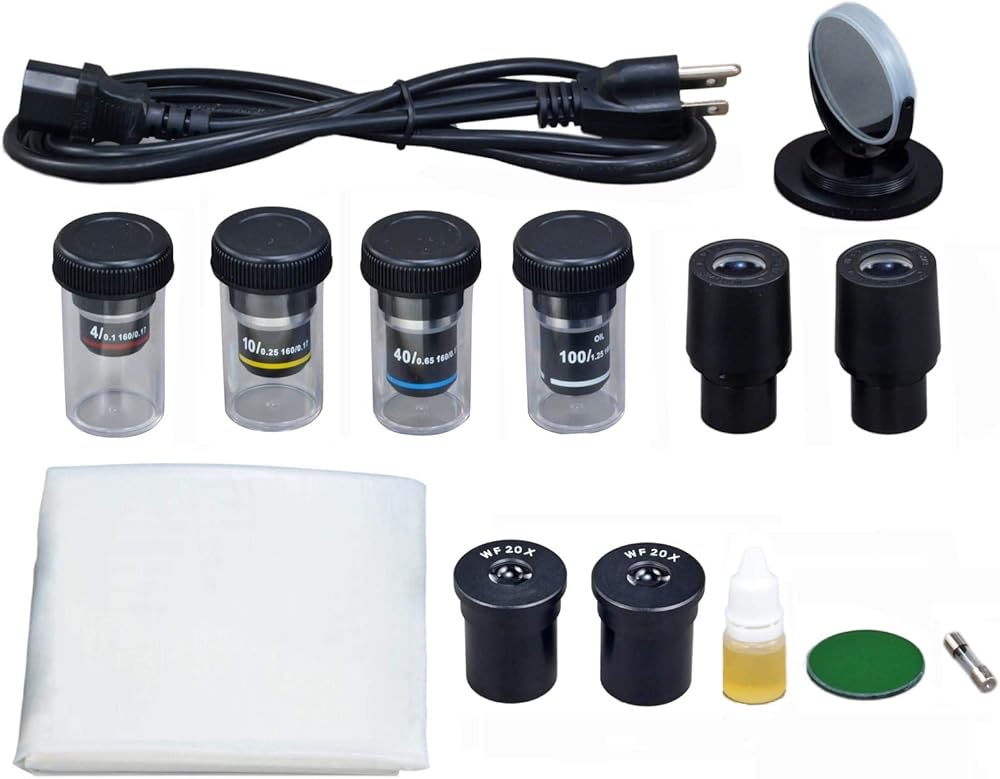

  • Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular
  • Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular
  • Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular
  • Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation

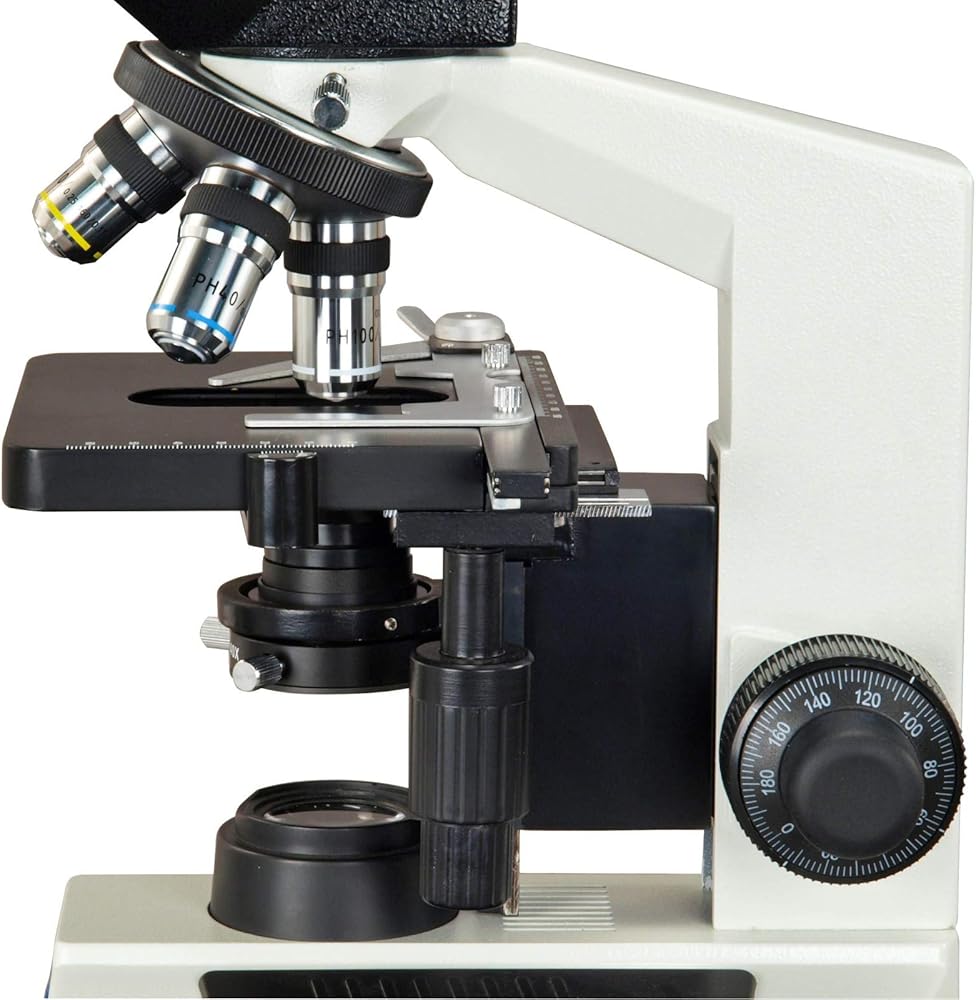

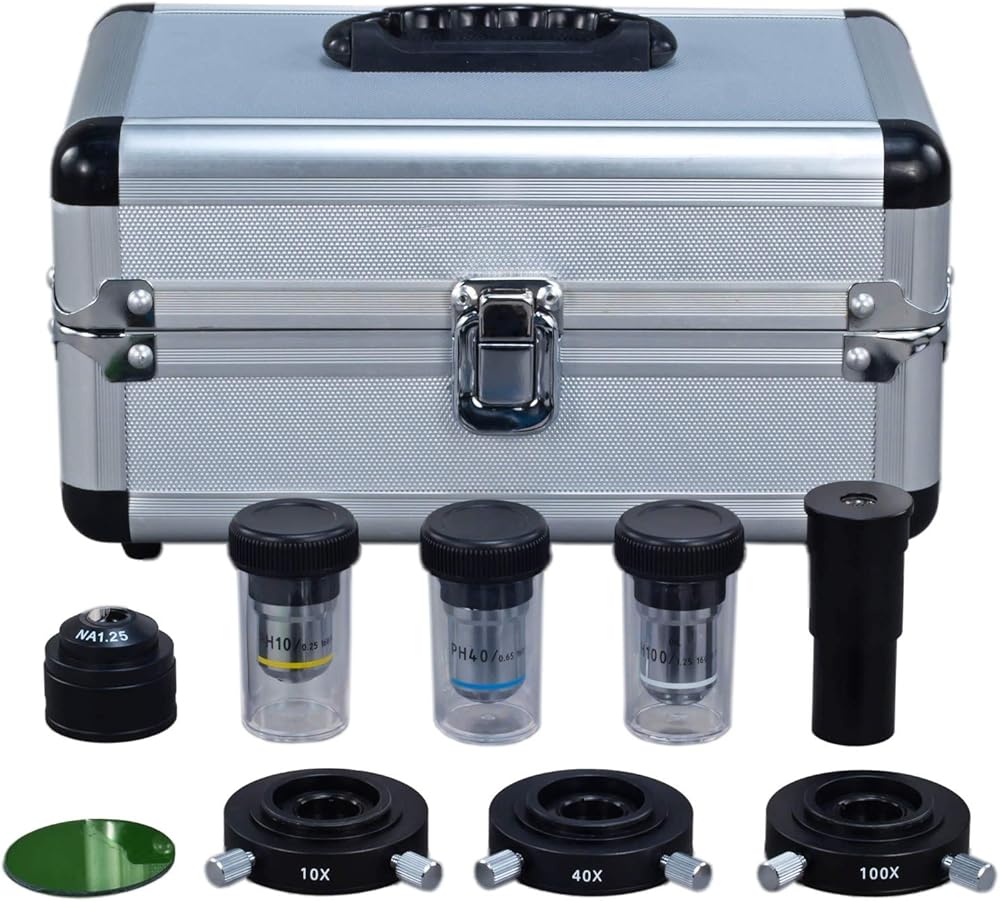

  • Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Phase contrast kit: - NA1.25 condenser - Three separated condenser annular plates: 10X, 40X, 100X - Three phase contrast objectives: 10X, 40X, 100X - Each phase contrast condenser can be centered individually - 37mm mounting size in diameter - Centering telescope: 23.2mm; Black palm rest on the base

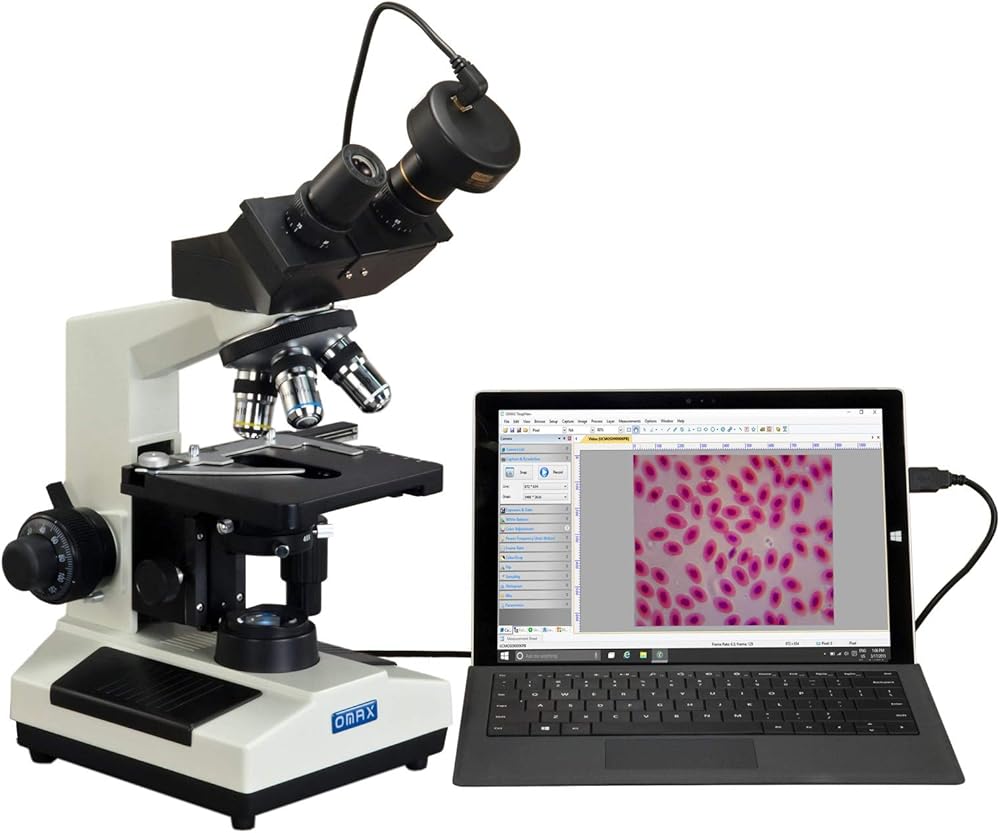

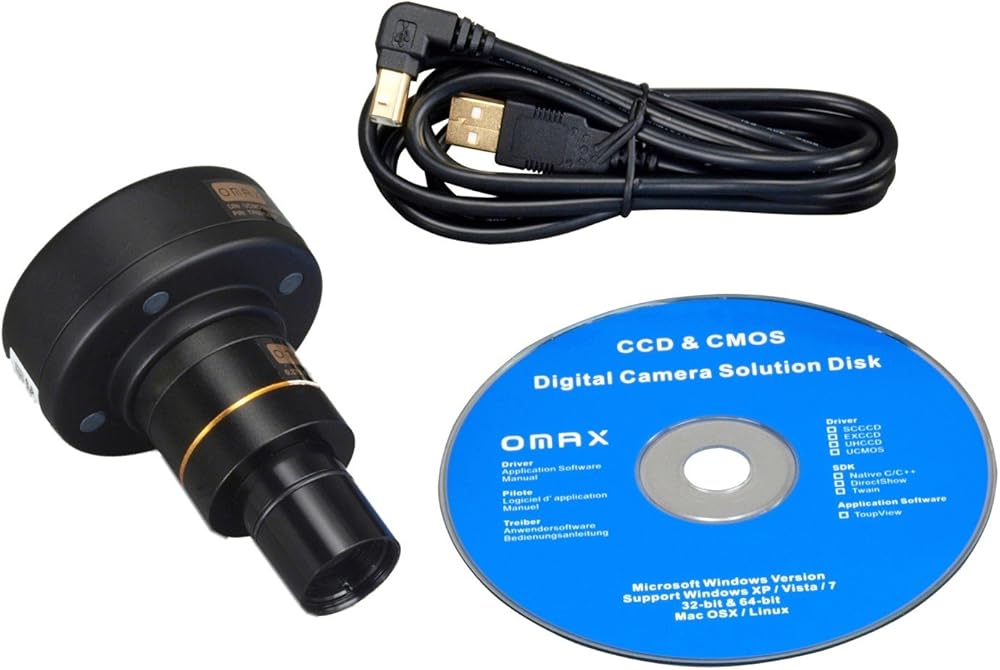

  • Digital camera: - true color 2592x1944 pixels (5M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 5fps at 2592x1944, 18fps at 1280x960, 60fps at 640x480 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
  • Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal mechanical components; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug); 5-year warranty against manufacturing defects

Description

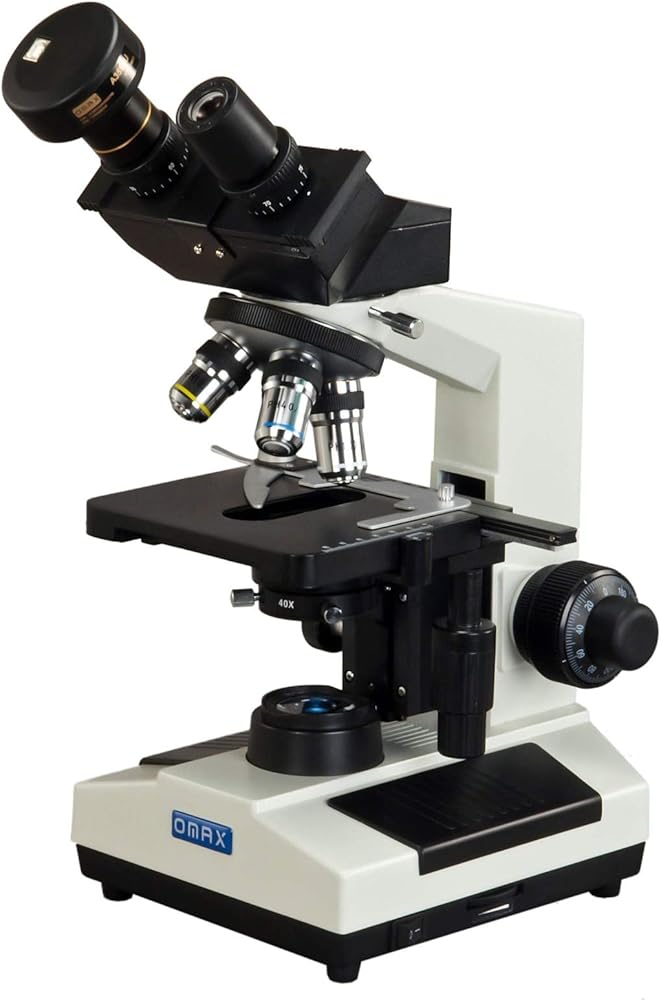

The binocular compound microscope provides phase contrast microscope system & brightfield microscope system and USB imaging digital system. The laboratory microscope comes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm, 5MP USB camera and a complete set of phase contrast kit. It offers eight levels of brightfield magnification from 40X to 2000X, and six levels of phase contrast magnification frm 100x to 2000x. The phase contrast microscope can improve the images of transparent and colorless objects, which are difficult to see or invisible in an ordinary microscope. The 2592x1944 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software is compatible with windows, Mac OS and Linux operating systems. This phase contrast compound microscope can be used for clinical, biological research and educational applications, especially for observing live cells.
