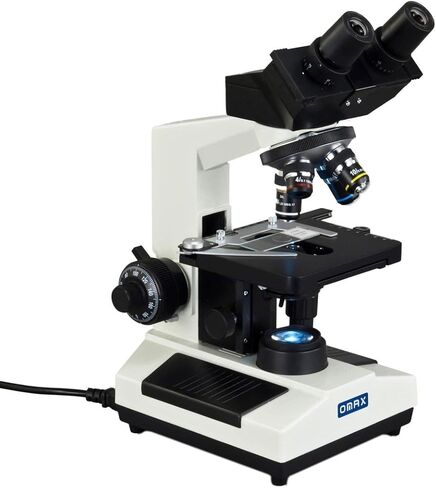

OMAX 40X-1600X Compound Binocular Biological Microscope with Replaceable LED Light in Saudi Arabia OMAX 40X-1600X Compound Binocular Biological Microscope with Replaceable LED Light in Saudi Arabia OMAX 40X-1600X Compound Binocular Biological Microscope with Replaceable LED Light in Saudi Arabia OMAX 40X-1600X Compound Binocular Biological Microscope with Replaceable LED Light in Saudi Arabia

OMAX 40X-1600X Compound Binocular Biological Microscope with Replaceable LED Light

SAR 1,839

Brand
OMAX
Category
Microscopes
Weight
6.4 kg
1 +

Special Features

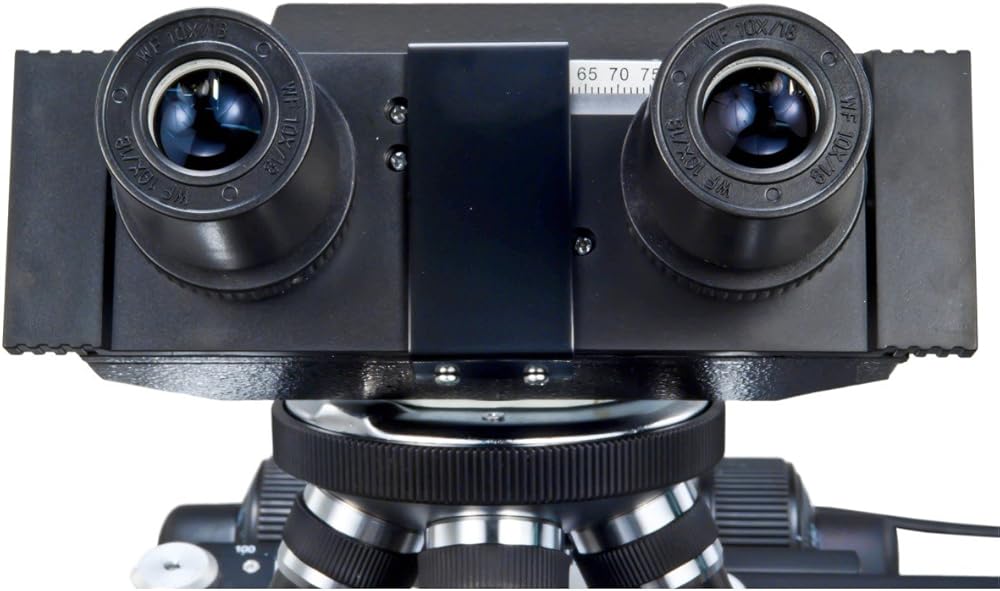

  • Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and WF16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm~75mm)
  • Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and WF16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm~75mm)
  • Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and WF16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm~75mm)
  • Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer size 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control
  • Focusing knob can be locked for observation and transportation; Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Black palm rest on the base
  • Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal framework; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
  • 5-year warranty against manufacturing defects

Description

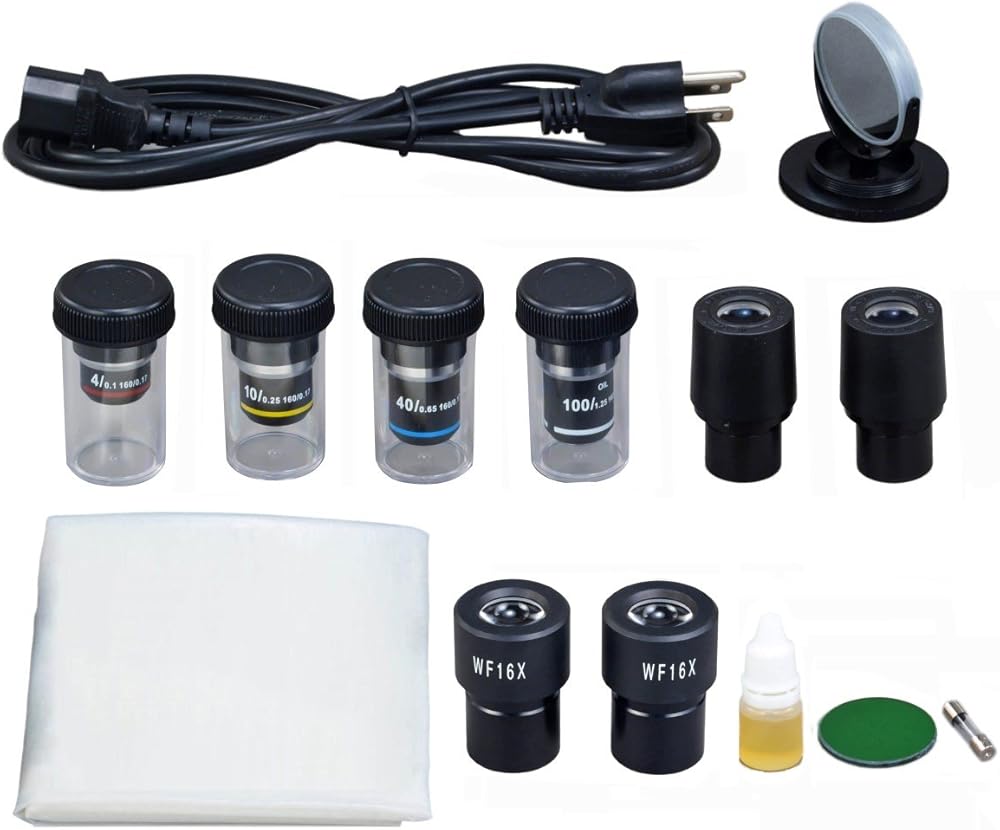

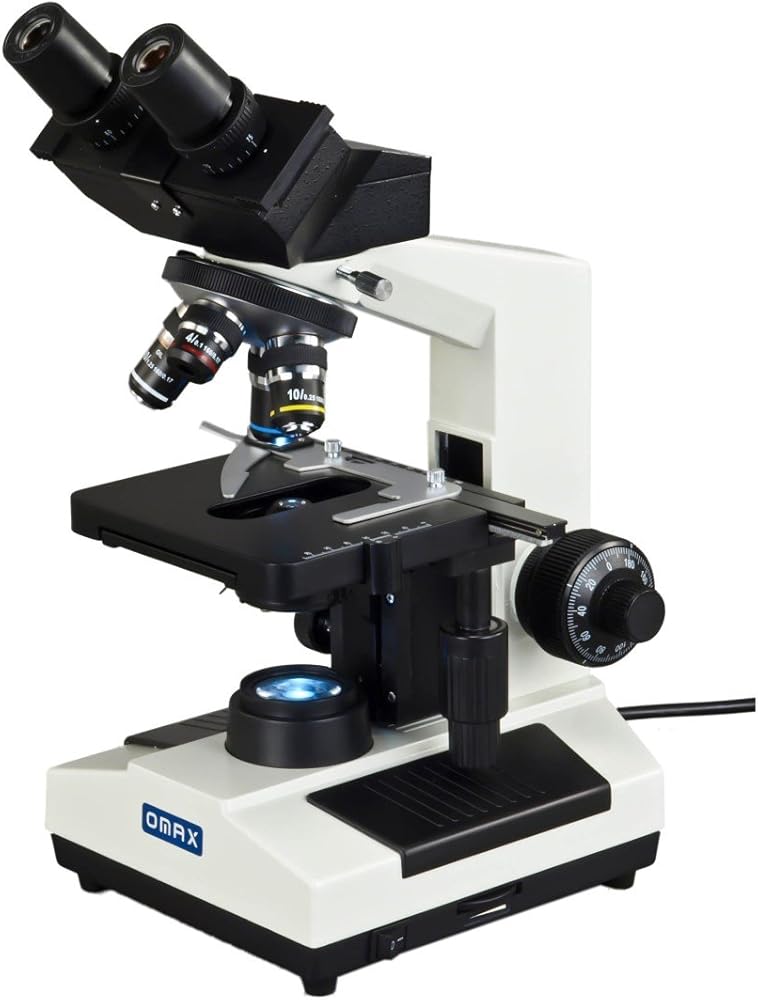

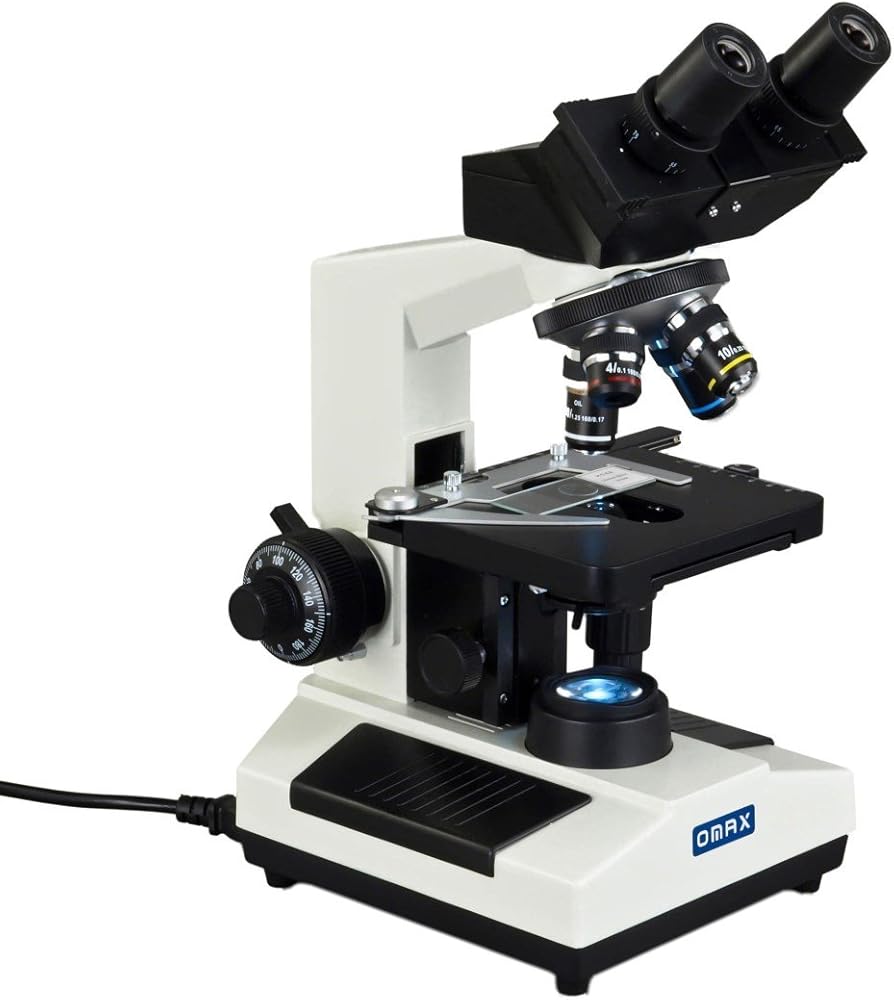

This is a binocular compound LED microscope with the power range from 40X to1600X. The compound LED microscope comes with a 45 degree inclined 360 degree swiveling binocular head, body frame, revolving quadruple nosepiece, two pairs of widefield eyepieces ( WF10X/18 and WF16X), four DIN achromatic objectives: 4X, 10X, 40X (spring), 100X (spring,oil), large double layer mechanical stage, Abbe NA1.25 condenser with iris diaphragm and a LED illumination system. The LED lamp can be replaced by yourself. It's capable to add USB camera, darkfield condenser or phase contrast condenser, e.g. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This binocular microscopy is good for teaching, demonstration, clinical examination and research purpose.
