Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed
Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed
Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed
Stage: X-Y mechanical stage with scales, range 3inch x 1-9/16inch (78mm x 40mm), dimension 5-1/2inch x 4-1/4inch (140mm x 110mm); Solid metal base and stand; Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop; Illumination: transmitted replaceable 3W LED light, intensity adjustable
Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment; Extra NA: 0.7-0.9 dry darkfield condenser; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)

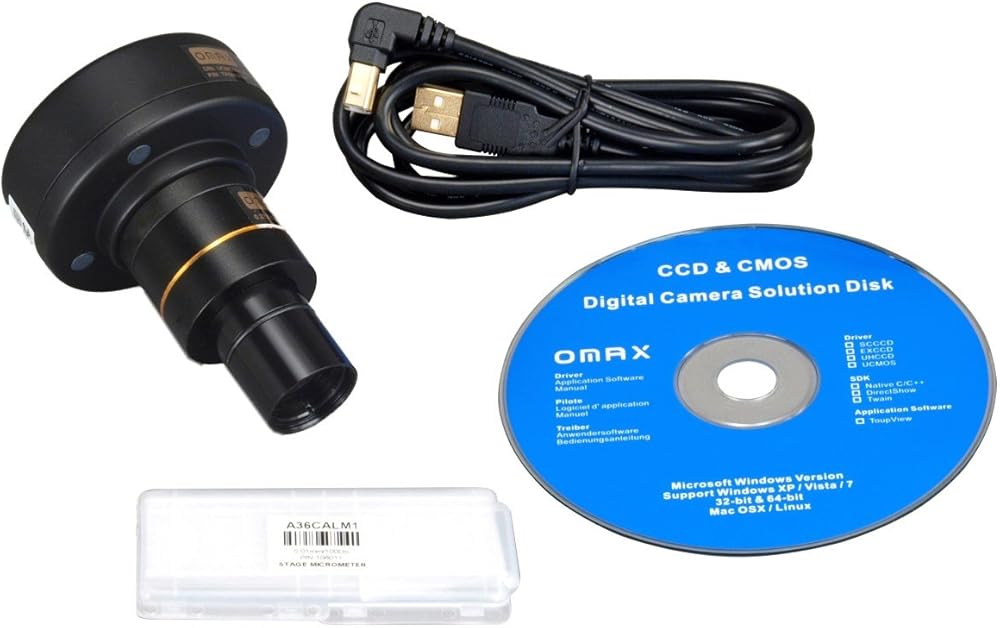

Digital camera: - true color 1280x1024 pixels (1.3MP) - 0.37X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 15fps at 1280x1024, 26fps at 640x512, 50fps at 320x256 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
5-year warranty against manufacturing defects
Description

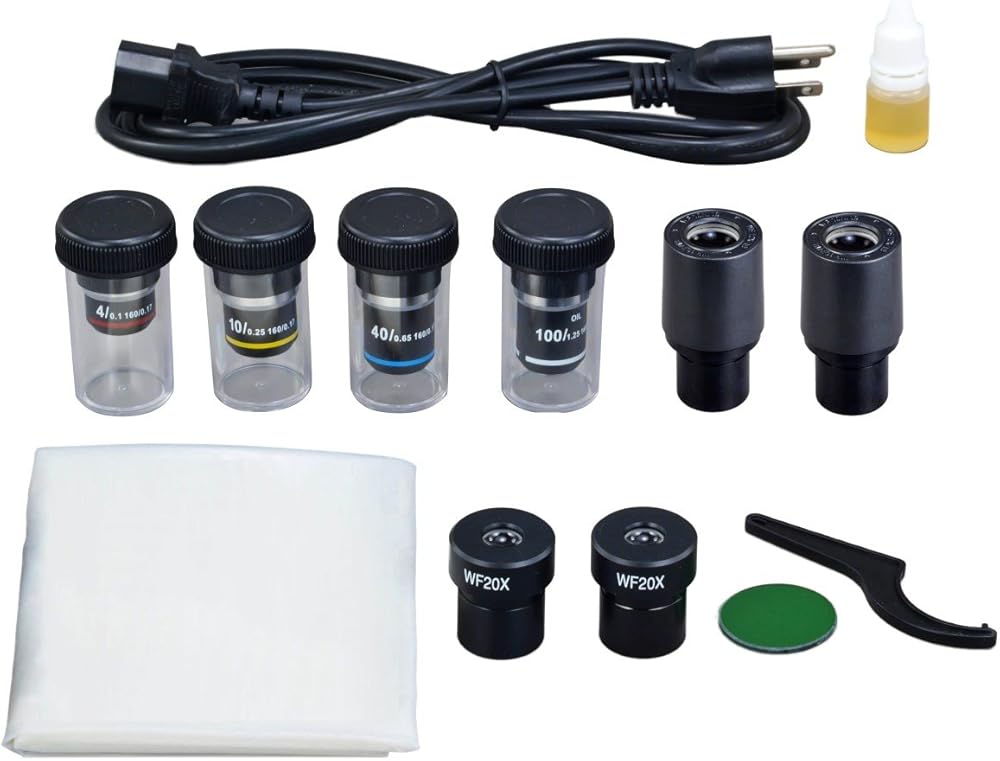

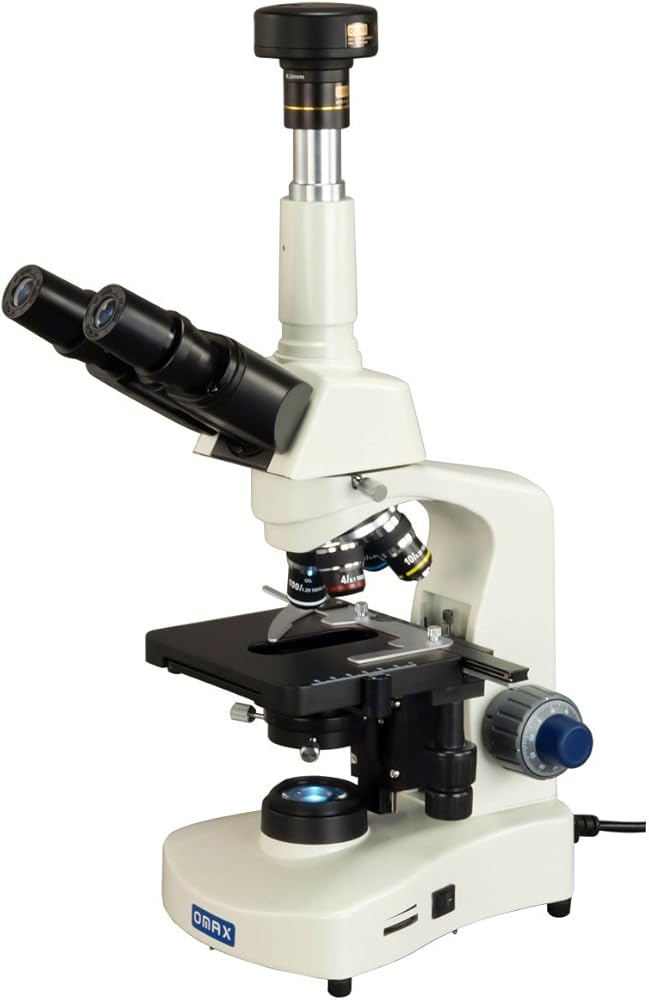

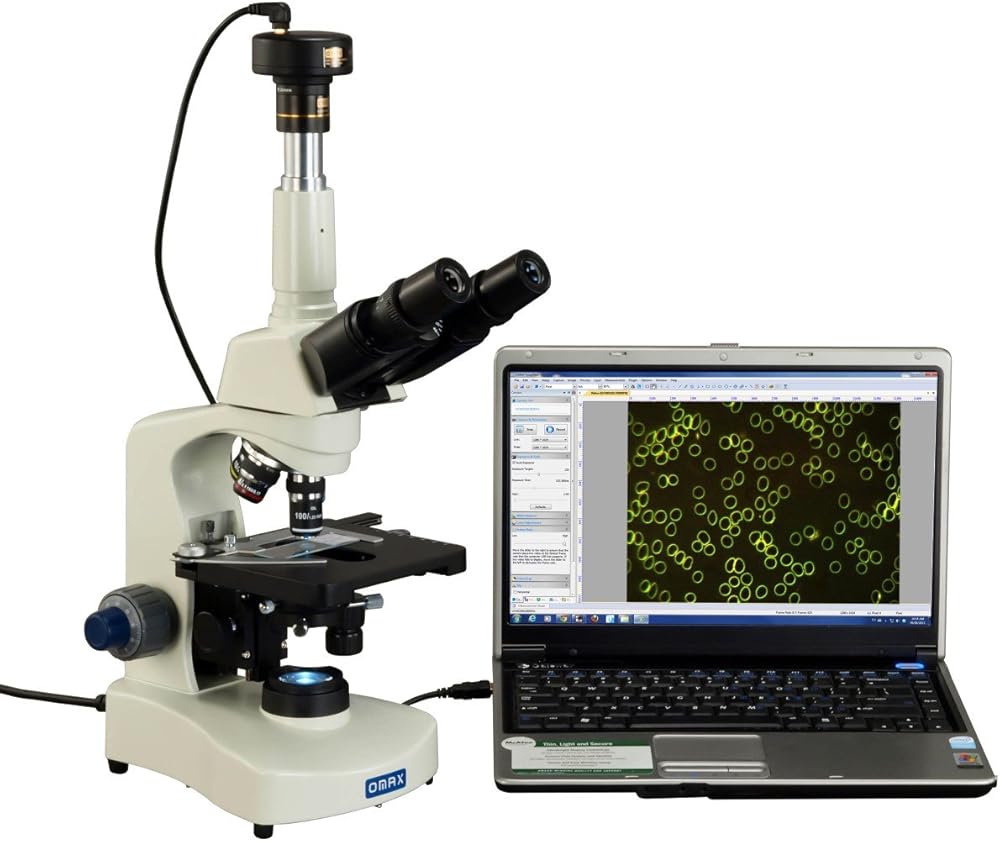

The trinocular compound LED microscope 40X-2000X provides darkfield & brightfield microscope system and 1.3MP USB digital imaging system. The darkfield microscope comes with trinocular head, body frame, reversed nosepiece, two pairs of widefield eyepieces, four DIN achromatic objectives, large double layer mechanical stage, 3W LED bright variable illumination, USB camera and darkfield NA0.7-0.9 & brightfield Abbe NA1.25 condensers.It has the par-focal (also called simul-focal) function which means the image is focused through both eyepieces and the photo tube and no view switching is needed.The 1280x1024 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with windows, Mac OS and Linux operating system can also be used to make measurements. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This trinocular compound microscopy is ideal for professionals and also affordable for students.
