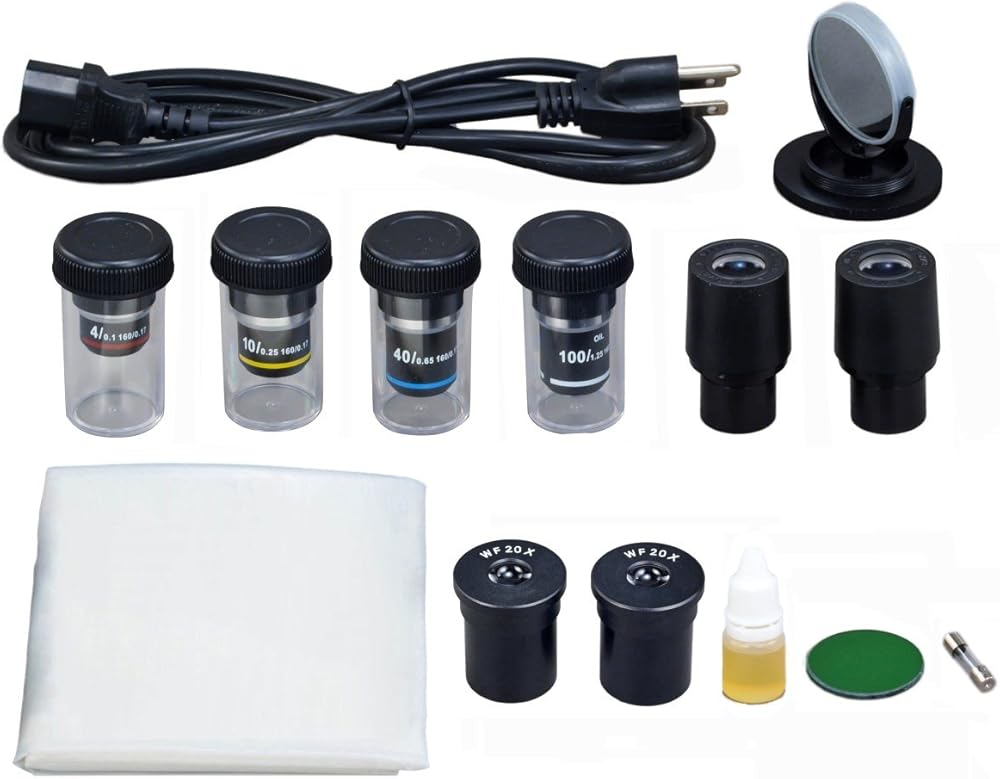

Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives (in phase contrast kit): PH10X, PH40X (S); 100X PLAN oil darkfield objective with iris diaphragm included
Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives (in phase contrast kit): PH10X, PH40X (S); 100X PLAN oil darkfield objective with iris diaphragm included
Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives (in phase contrast kit): PH10X, PH40X (S); 100X PLAN oil darkfield objective with iris diaphragm included
View head: 30degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 3inch x 1-9/16inch (78mm x 40mm), dimension 5-1/2inch x 4-1/4inch (140mm x 110mm)
Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop; Illumination: transmitted replaceable 3W LED light, intensity adjustable; Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment

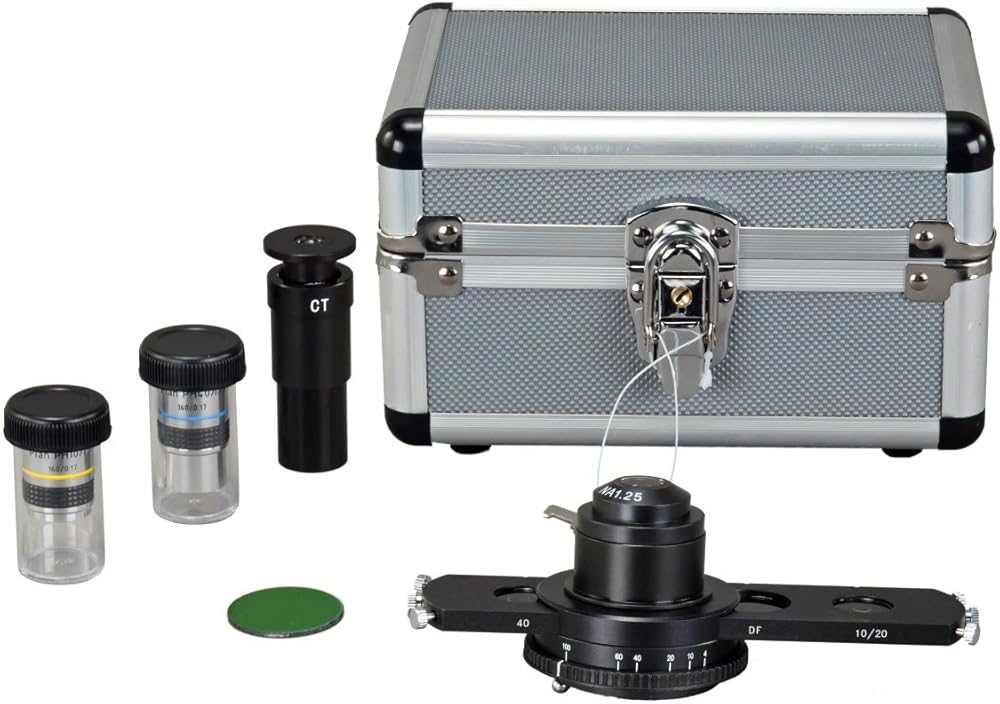

Phase contrast kit: - NA1.25 condenser with iris diaphragm and filter holder - 37mm mounting size in diameter - Sliding switch - Four positions: darkfield (DF), brightfield (BF), PH10/20, PH40 - Each phase contrast condenser can be centered individually - Centering telescope: 23.2mm; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug); Solid metal base and stand
5-year warranty against manufacturing defects
وصف

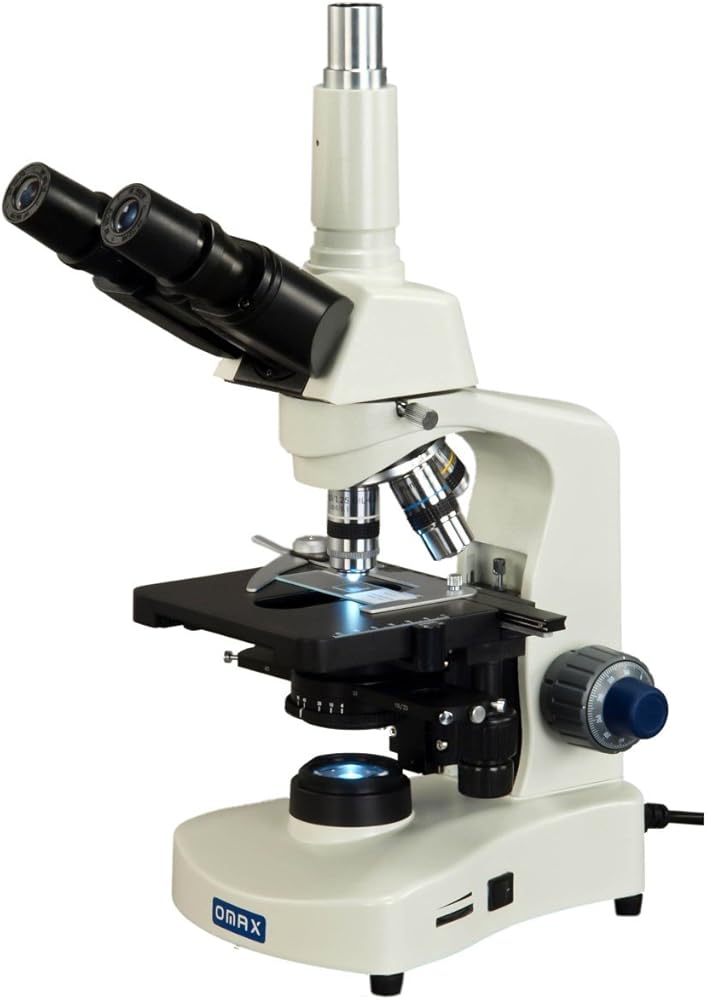

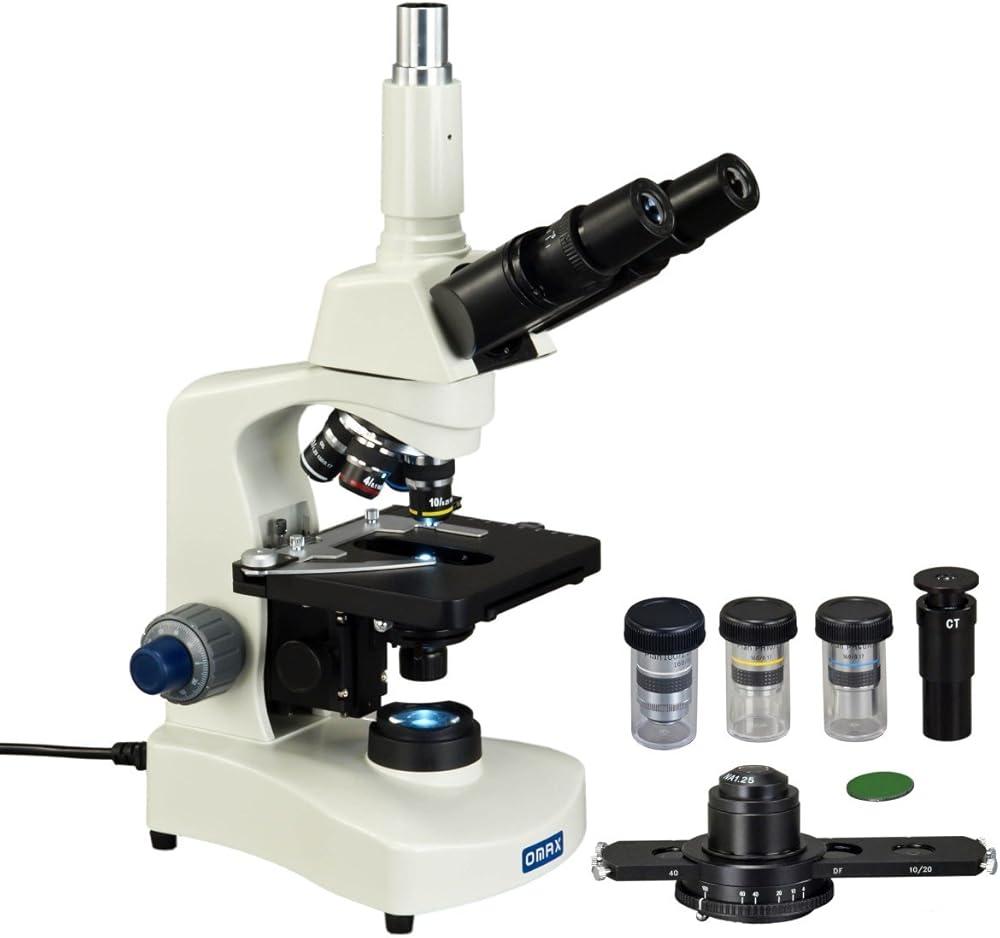

The trinocular compound siedentopf LED microscope provides phase contrast microscope system and brightfield microscope system. The phase contrast microscope comes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm and a complete set of phase contrast kit plus 100X (AJ100PR) oil darkfield objective with iris diaphragm. The compound microscope features an optical system for observing images through eyepieces and an adjustable trinocular port. It offers eight levels of brightfield magnification from 40X to 2000X. The phase contrast kit includes a phase contrast NA1.25 condenser with four positions (DF, BF, PH10/20, PH40), a centering telescope, two plan phase contrast objectives: PH10X, PH40X (S). The included oil darkfield objective AJ100PR will work with the darkfield condenser. This phase contrast compound microscopy is widely used clinical, biological, research and schools, specially for observing live cells.
