مجهر OMAX 40X-2000X ذو التباين الطوري ثلاثي العينيات Siedentopf LED + كاميرا USB 3 ميجابكسل in Saudi Arabia مجهر OMAX 40X-2000X ذو التباين الطوري ثلاثي العينيات Siedentopf LED + كاميرا USB 3 ميجابكسل in Saudi Arabia مجهر OMAX 40X-2000X ذو التباين الطوري ثلاثي العينيات Siedentopf LED + كاميرا USB 3 ميجابكسل in Saudi Arabia مجهر OMAX 40X-2000X ذو التباين الطوري ثلاثي العينيات Siedentopf LED + كاميرا USB 3 ميجابكسل in Saudi Arabia

مجهر OMAX 40X-2000X ذو التباين الطوري ثلاثي العينيات Siedentopf LED + كاميرا USB 3 ميجابكسل

SAR 5,862

ماركة
OMAX
وزن
10 kg
1 +

مميزات خاصة

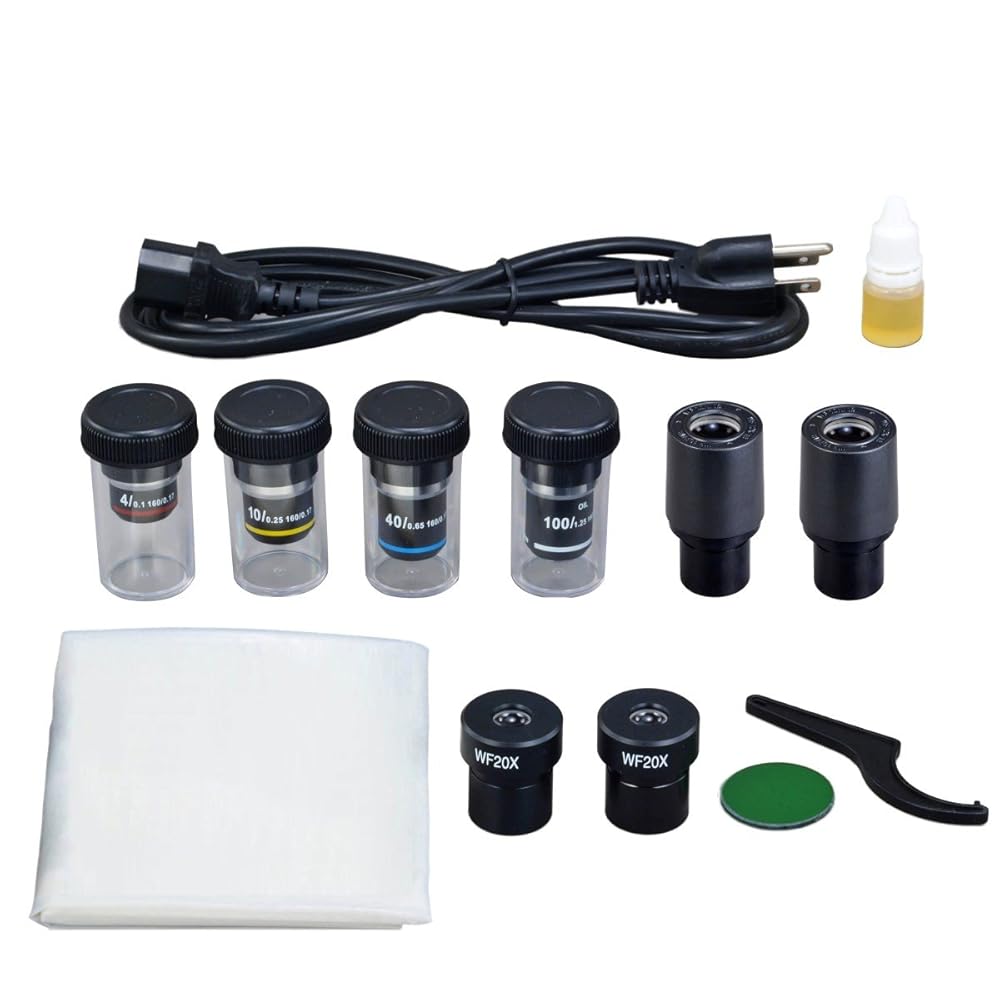

  • Total magnification for bright field: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing head: 30degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
  • Total magnification for bright field: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing head: 30degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
  • Total magnification for bright field: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing head: 30degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
  • Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 3inch x 1-9/16inch (78mm x 40mm), dimension 5-1/2inch x 4-1/4inch (140mm x 110mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop; Illumination: transmitted replaceable 3W LED light, intensity adjustable; Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment

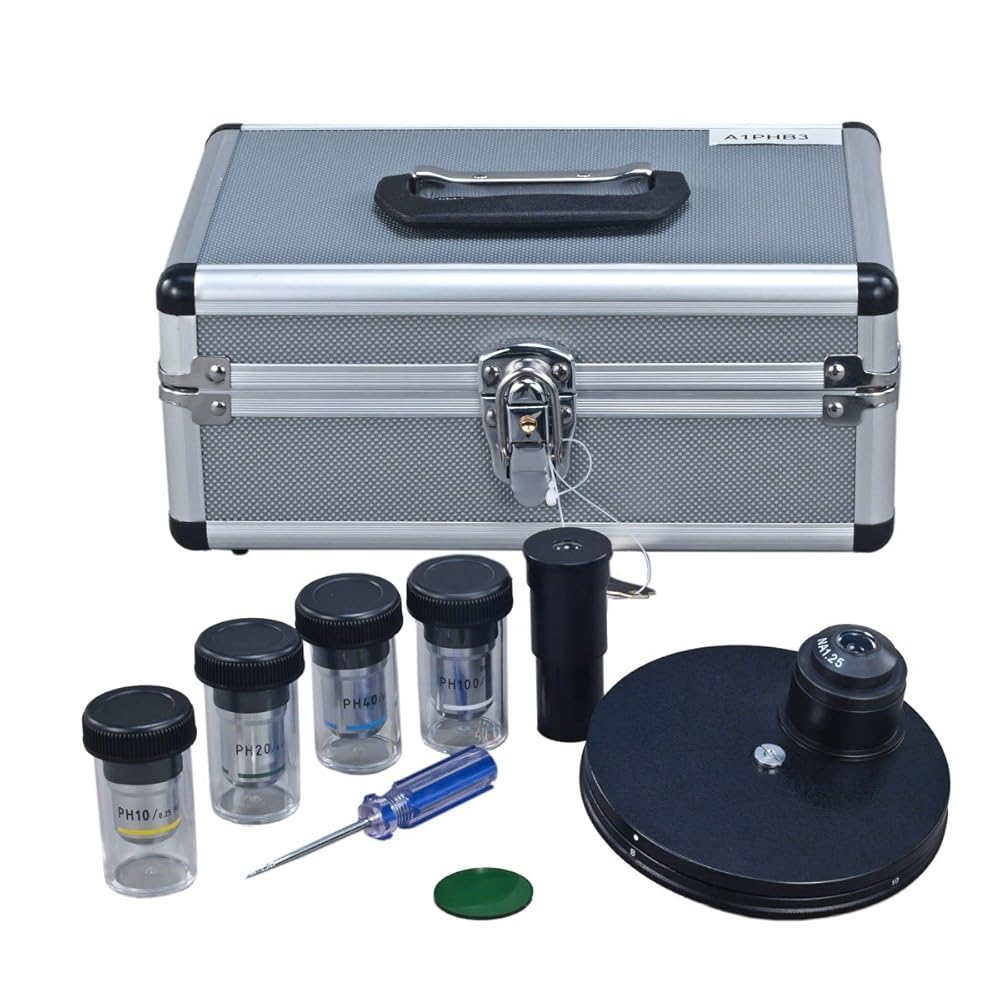

  • Phase contrast kit: - Substage phase contrast condenser disk with five switchable positions - One bright field NA1.25 with iris diaphragm Abbe condenser - Four phase contrast condensers: 10X, 20X, 40X, 100X - Each phase contrast condenser can be centered individually - Four PH objectives: 10X, 20X, 40X (S), 100X (S, Oil) - 37mm mounting size in diameter - Centering telescope: 23.2mm; Solid metal base and stand; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)
  • Digital camera: - true color 2048x1536 pixels (3.2M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 8fps at 2048x1536, 22fps at 1024x768, 43fps at 680x510 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
  • 5-year warranty against manufacturing defects

وصف

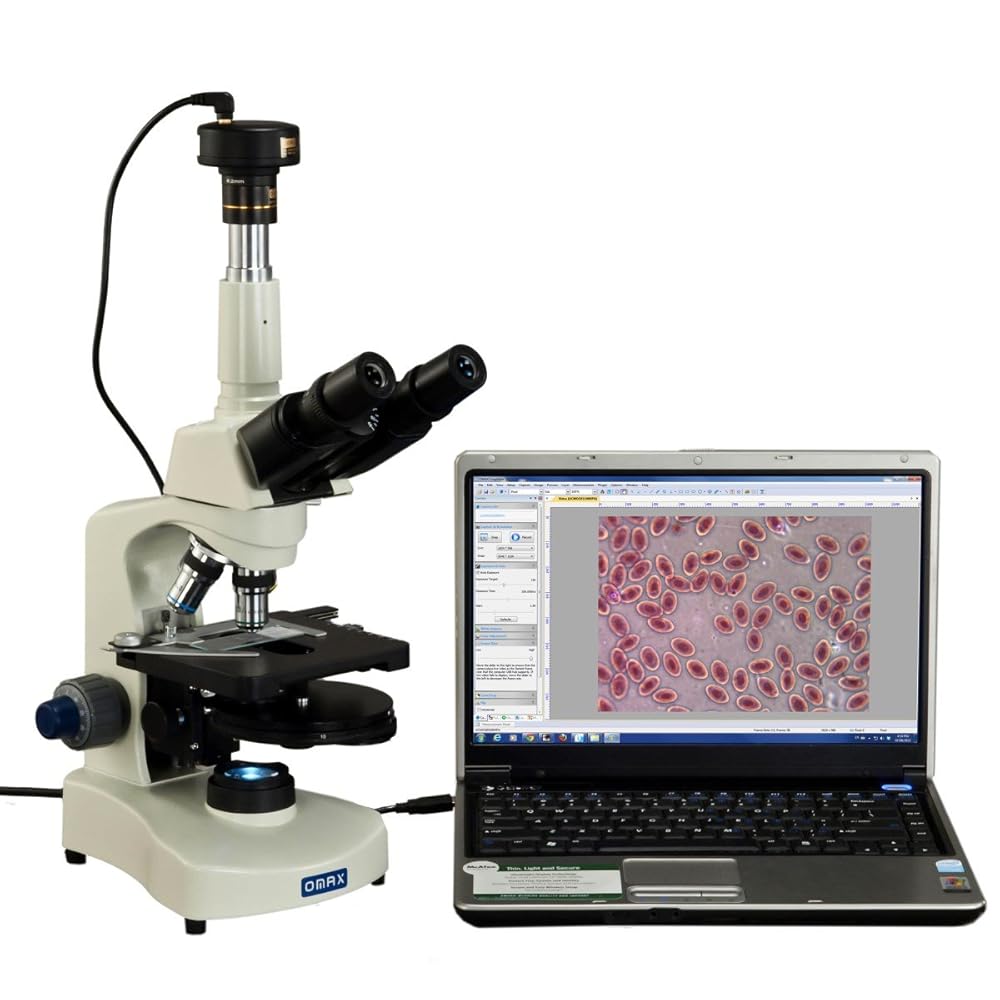

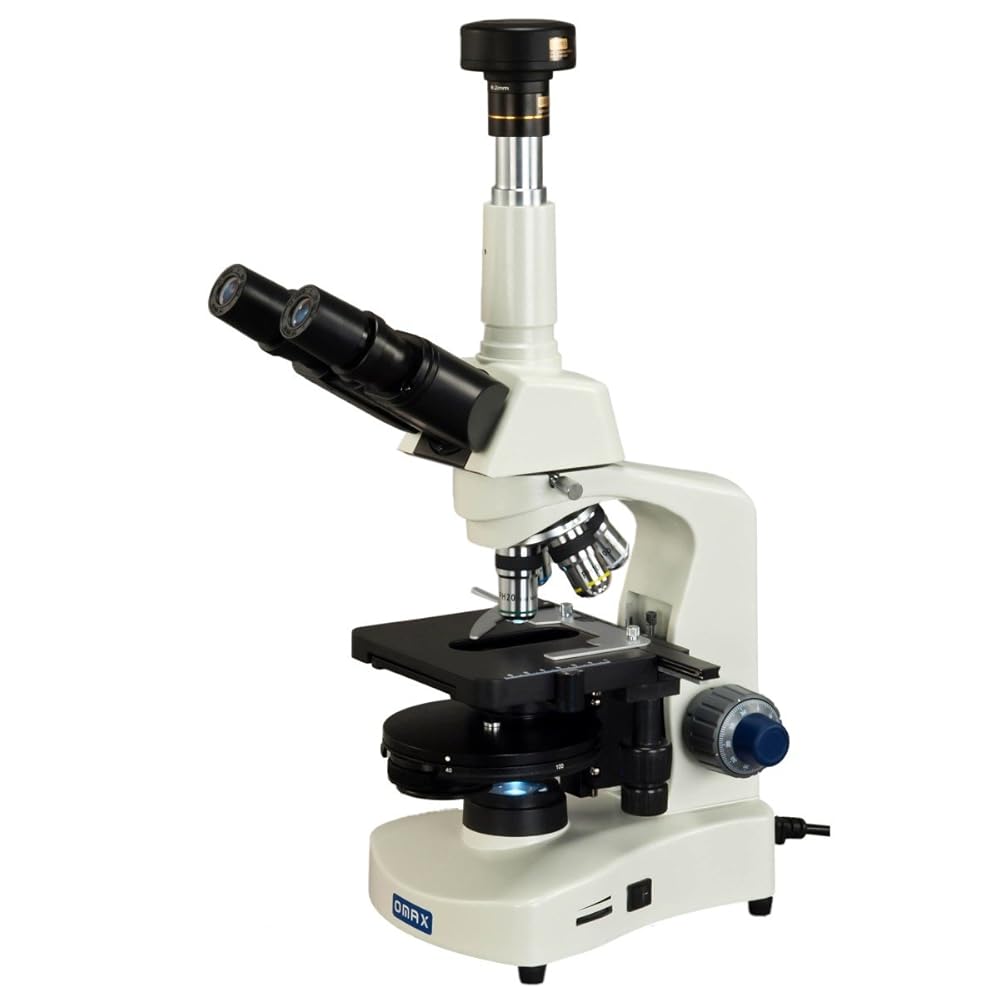

The 40X-2000X trinocular compound LED microscope provides phase contrast & brightfield microscope system and USB digital imaging system. The phase contrast microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. It comes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm, a complete set of phase contrast kit and 3MP USB camera. It offers eight levels of brightfield magnification from 40X to 2000X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four phase contrast objectives: PH10X, PH20X, PH40X (S), PH100X (S, Oil). It also offers magnification power: 100X-200X-400X-800X-1000X-2000X. The 2048x1536 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with windows Mac OS and Linux operating system can also be used to make measurements. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This phase contrast compound microscopy is widely used clinical, biological research and schools, specially for observing live cells.
