Home / OMAX / Microscopes
OMAX 40X-2000X Digital Lab Trinocular Compound LED Microscope with USB Digital Camera and Double Layer Mechanical Stage in Saudi Arabia OMAX 40X-2000X Digital Lab Trinocular Compound LED Microscope with USB Digital Camera and Double Layer Mechanical Stage in Saudi Arabia OMAX 40X-2000X Digital Lab Trinocular Compound LED Microscope with USB Digital Camera and Double Layer Mechanical Stage in Saudi Arabia OMAX 40X-2000X Digital Lab Trinocular Compound LED Microscope with USB Digital Camera and Double Layer Mechanical Stage in Saudi Arabia OMAX 40X-2000X Digital Lab Trinocular Compound LED Microscope with USB Digital Camera and Double Layer Mechanical Stage in Saudi Arabia

OMAX 40X-2000X Digital Lab Trinocular Compound LED Microscope with USB Digital Camera and Double Layer Mechanical Stage

SAR 1,550
Brand
OMAX
Category
Microscopes
Weight
3.6 kg
– 1 +

Special Features

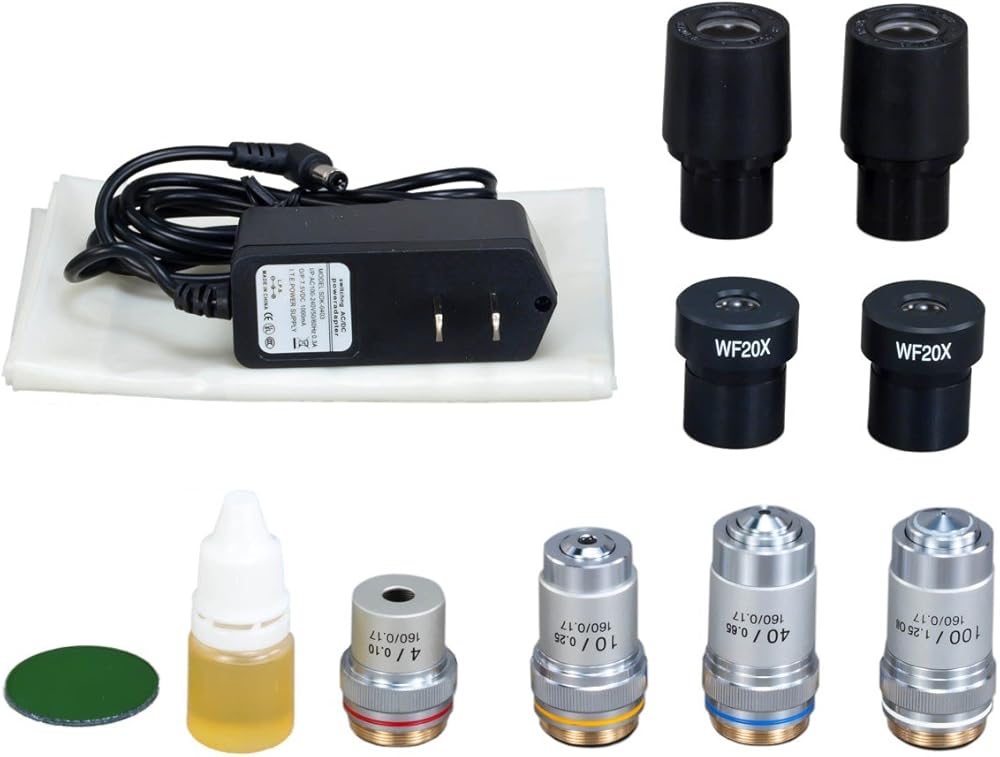

  • Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X and WF20X; Objective: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular; Sliding adjustable interpupillary distance: 2-3/16inch ~ 2-15/16inch(55mm ~ 75mm); Ocular diopter adjustable on both eyetubes; Nosepiece: revolving quadruple
  • Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X and WF20X; Objective: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular; Sliding adjustable interpupillary distance: 2-3/16inch ~ 2-15/16inch(55mm ~ 75mm); Ocular diopter adjustable on both eyetubes; Nosepiece: revolving quadruple
  • Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X and WF20X; Objective: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular; Sliding adjustable interpupillary distance: 2-3/16inch ~ 2-15/16inch(55mm ~ 75mm); Ocular diopter adjustable on both eyetubes; Nosepiece: revolving quadruple
  • Stage: mechanical double layer size: 4-1/2inchx 4-15/16inch (115mm x 125mm); Stage x-y stroke (travel range): 2-13/16inch x 1-3/16inch (70mm x 30mm); Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm; Transmitted (lower) illuminator: LED light, intensity adjustable; Focus adjustment: Coaxial coarse and fine knobs on both sides
  • All metal mechanical components; Power supply: AC/DC adapter, 7.5V/7.5W (UL approved) - Input: 100-240VAC, 50/60Hz, 0.5A Max - Output: DC7.5V, 1000mA

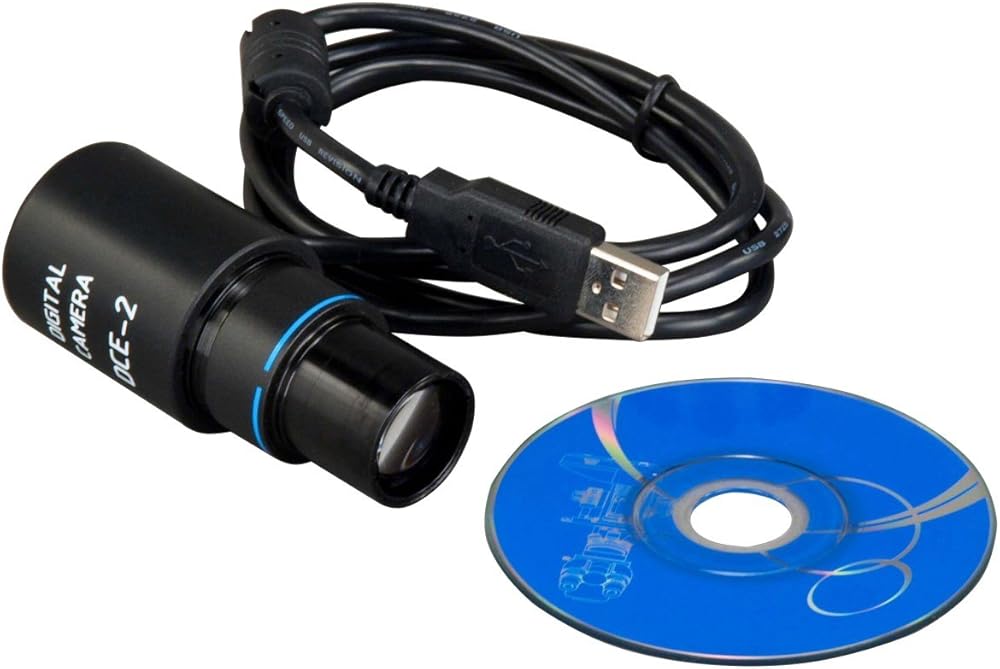

  • Digital camera: - true color 640 x 480 pixels - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10, and Mac OS - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images
  • 5-year warranty against manufacturing defects

Description

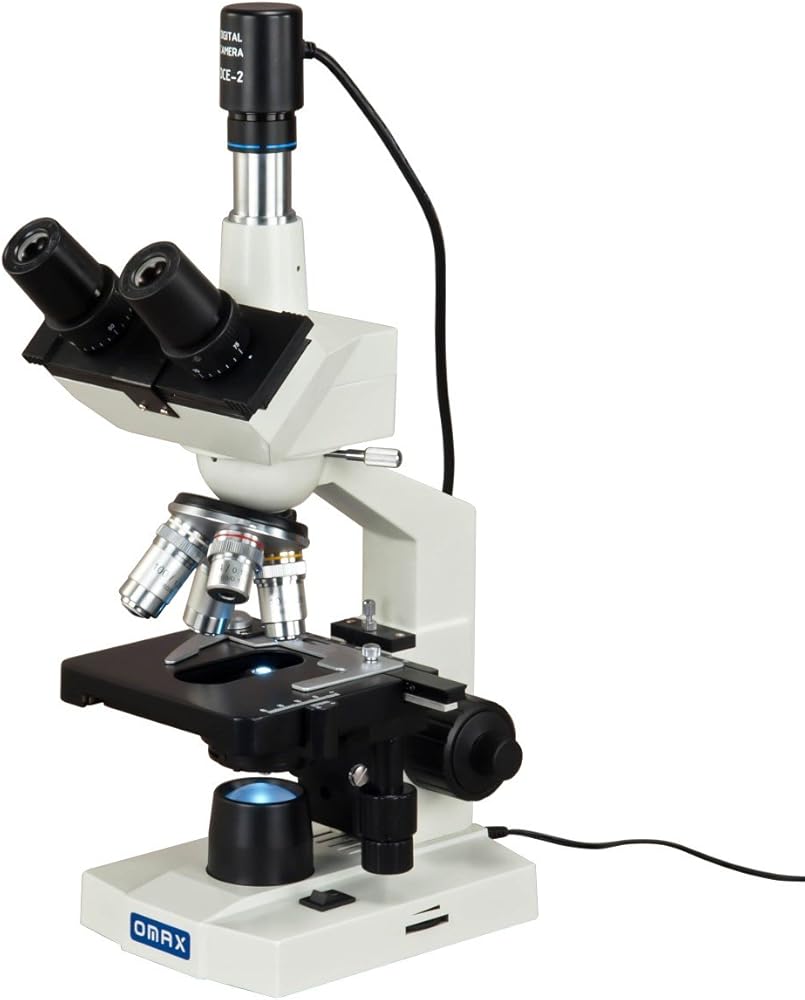

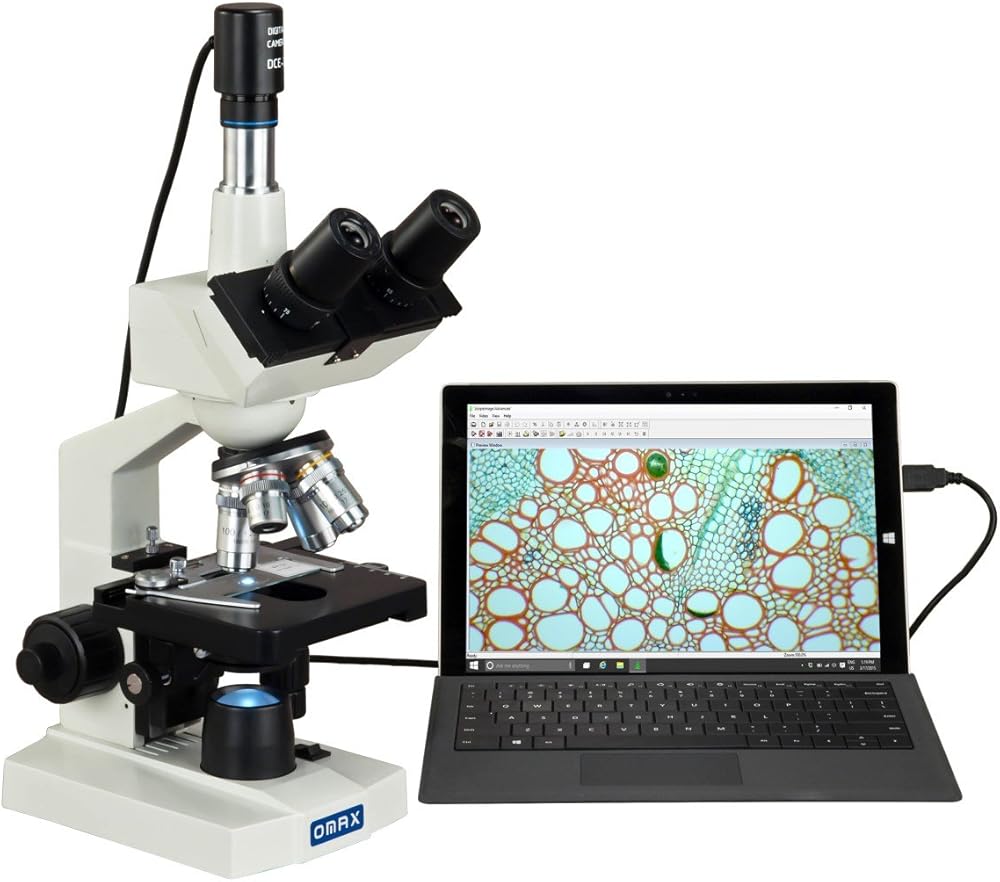

This is a digital biological trinocular compound microscope that includes a digital imaging system. The digital microscopy comes with a 45° inclined 360° swiveling trinocular sliding viewing head, two pairs of widefield eyepieces, four achromatic objectives, stain-resistant double layer mechanical stage with scales, coarse & fine focusing, NA 1.25 Abbe condenser and variable intensity LED transmitted illumination system. It offers eight levels of magnification power: 40X-80X-100X-200X-400X-800X-1000X-2000X. The USB digital imaging system that captures microscope images and live video on computer. The included software compatible with Windows XP/Vista/7/8/10 can be used to make measurements, You can view and capture the images on iMac or Macbook with Mac OS too. It is easy to mount a darkfield condenser to switch a brightfield microscope to a darkfield microscope. This type of digital compound microscopy is perfect for teaching demonstration and clinical examination, laboratories and advanced applications.
