الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠.قد تحتاج إلى محول كهرباء
مميزات خاصة
4x PoE Ports: Provides four PoE ports for powering devices like IP cameras, wireless access points (WAPs), and other PoE-enabled devices.
2x Non-PoE Ports: Provides two additional Ethernet ports for connecting devices that do not require PoE.
Industrial-grade design: Rugged metal housing, wide operating temperature range (-10°C to 60°C), and DIN-rail mounting capability make it suitable for demanding industrial applications.
Plug-and-play simplicity: No configuration is required, making it easy to install and use.
12/24/48 VDC power input: Supports various power supply options for flexibility in deployment.
PoE Functionality: Simplifies installation by providing power to PoE-enabled devices over the Ethernet cable, eliminating the need for separate power supplies.
Reliable Operation: Designed to withstand harsh industrial environments with its rugged construction and wide temperature range.
Easy Installation and Maintenance: Plug-and-play operation eliminates the need for complex configuration.
Enhanced Performance: Broadcast storm protection helps maintain network stability. Cost-effective: Provides a budget-friendly solution for building industrial Ethernet networks with PoE devices.
وصف

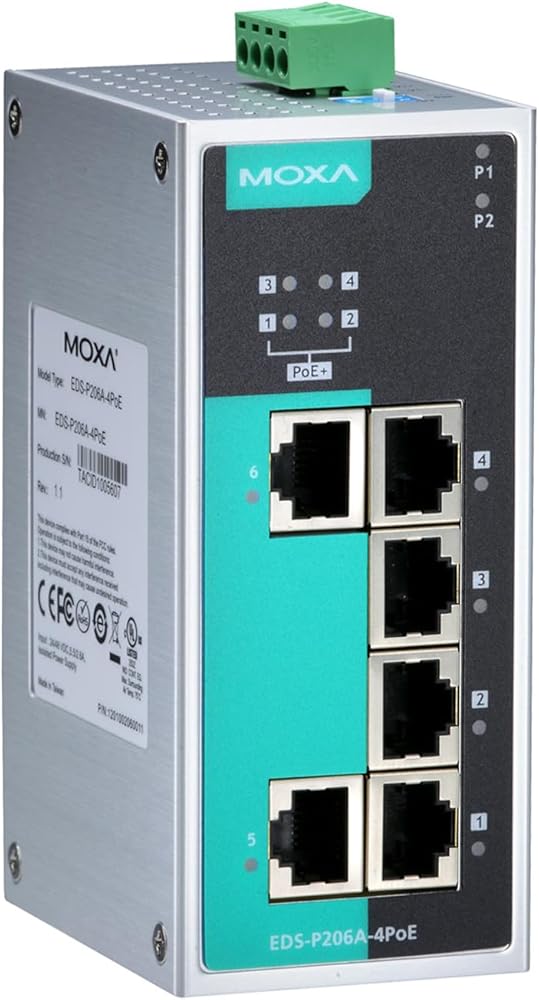

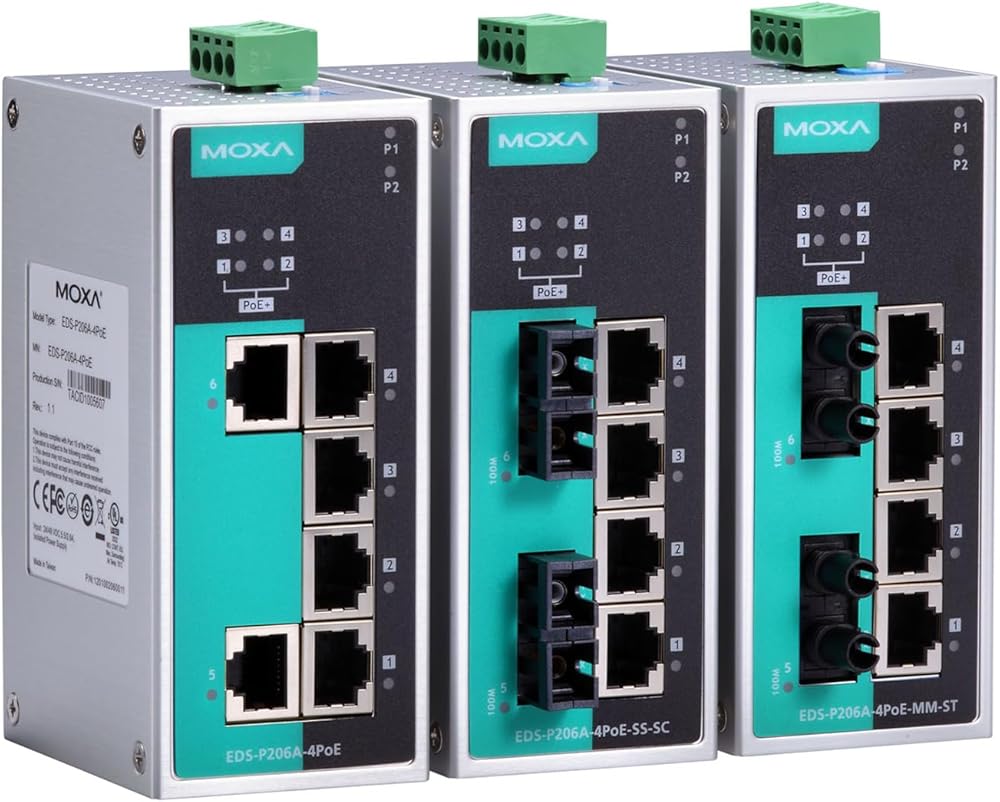

The Moxa EDS-P206A-4POE is a 6-port unmanaged industrial Ethernet switch with four Power over Ethernet (PoE) ports. The EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port. The switches can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network. You can also find the EDS-P206A-4PoE-M-SC, EDS-P206A-4PoE-MM-ST, EDS-P206A-4PoE-S-SC, EDS-P206A-4PoE-T models in the EDS-P206A SERIES. Applications: Surveillance: Powering and connecting IP cameras and PTZ cameras in industrial and commercial settings. Wireless Networking: Deploying and powering wireless access points in industrial environments. Building Automation: Connecting and powering PoE-enabled devices in building control systems. Factory Automation: Connecting and powering various industrial devices that support PoE. The EDS-P206A-4POE is a versatile and cost-effective solution for building industrial Ethernet networks that include PoE-enabled devices.
