c i7-2630QM specifications
General information
Type
CPU / Microprocessor
Market segment
Mobile
Family
c i7 Mobile
Model number ?
i7-2630QM
CPU part number
FF8062700837005 is an OEM/tray microprocessor
Frequency ?
2000 MHz
Maximum turbo frequency
2900 MHz (1 c)
2800 MHz (2 cores)
2600 MHz (3 or 4 cores)
Clock multiplier ?
20
Package
988-pin micro-PGA (rPGA988B)
Socket
Socket G2 / rPGA988B
Size
1.48" x 1.48" / 3.75cm x 3.75cm
Weight
0.2oz / 6.7g
S-spec numbers
Part number
ES/QS processors
Architecture / Microarchitecture
Microarchitecture
Sandy Bridge
Processor c ?
Sandy Bridge
c stepping ?
D2 (Q1NS, SR02Y)
CPUID

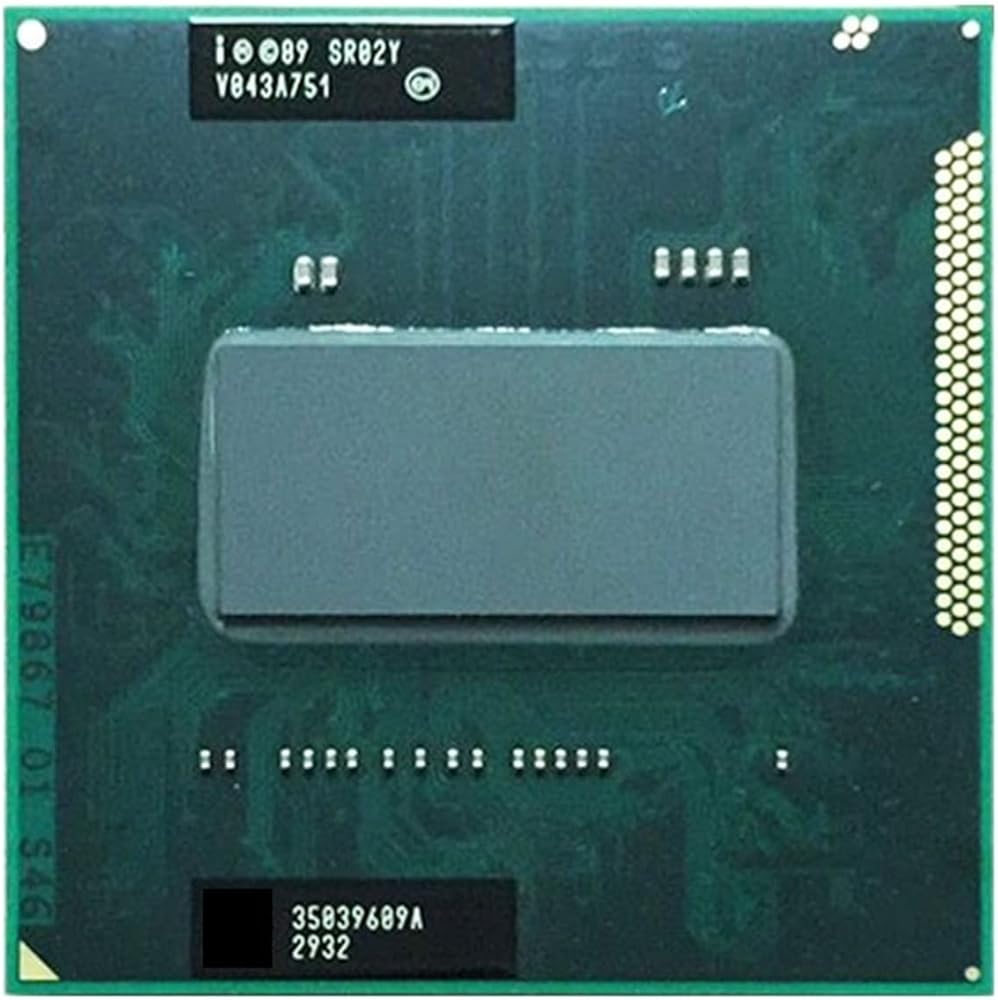

206A7 (SR02Y)
Manufacturing process
0.032 micron High-K metal gate process
Data width
64 bit
The number of CPU cores
4
The number of threads
8
Floating Point Unit
Integrated
Level 1 cache size ?
4 x 32 KB 8-way set associative instruction caches
4 x 32 KB 8-way set associative data caches
Level 2 cache size ?
4 x 256 KB 8-way set associative caches
Level 3 cache size
6 MB 12-way set associative shared cache
Physical memory
16 GB
Multiprocessing
Not supported
Extensions and Technologies
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
EM64T / Extended Memory 64 technology / I 64 ?
NX / XD / Execute disable bit ?
HT / Hyper-Threading technology ?
TBT 2.0 / Turbo Boost technology 2.0 ?
VT-x / Virtualization technology ?
Low power features
Enhanced / technology ?
Integrated peripherals / components
Integrated graphics
GPU Type: HD 3000
Microarchitecture: Gen 6
Execution units: 12
Base frequency (MHz): 650
Maximum frequency (MHz): 1100
The number of supported displays: 2
Memory controller
The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1066, DDR3-1333
Maximum memory bandwidth (GB/s): 21.3
Other peripherals
Direct Media Interface 2.0
PCI Express 2.0 interface
Electrical / Thermal parameters
Maximum operating temperature ?
100°C
Thermal Design Power ?
45 Watt
