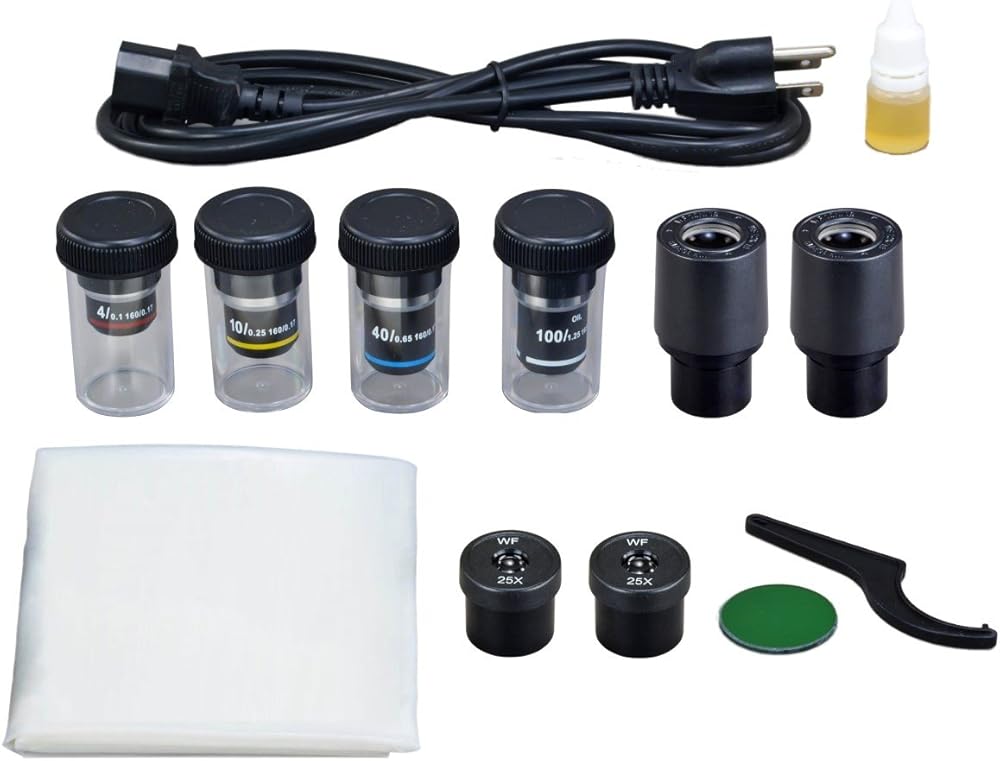

Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Objectives: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm)
Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Objectives: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm)
Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Objectives: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm)
Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 3inch x 1-9/16inch (78mm x 40mm), dimension 5-1/2inch x 4-1/4inch (140mm x 110mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop
Illumination: transmitted replaceable 3W LED light, intensity adjustable; Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment; Solid metal base and stand; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)

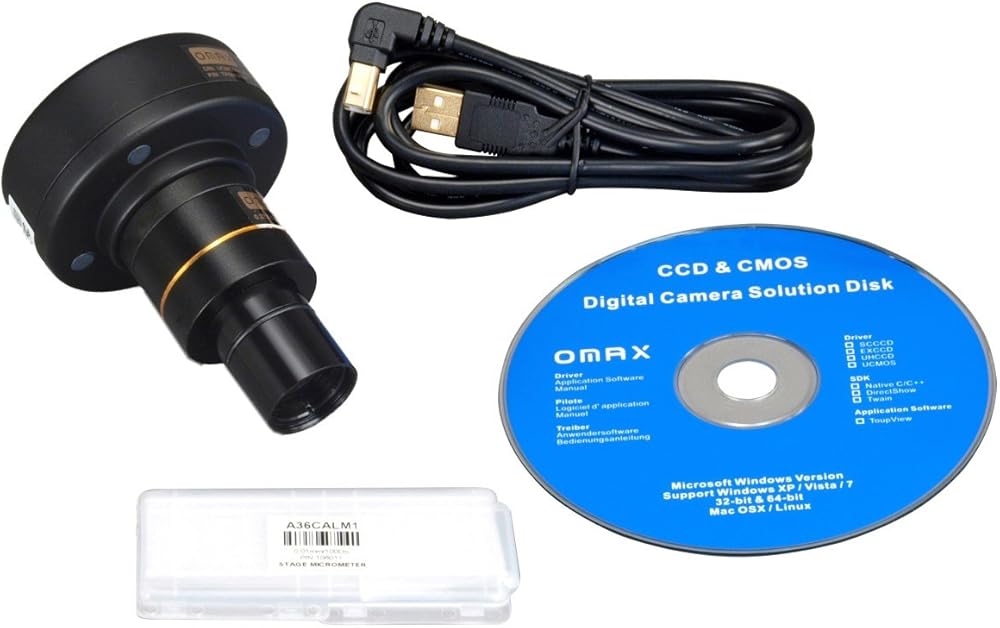

Digital camera: - true color 3488x2616 pixels (9M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame rate: 1.9fps at 3488x2616, 8fps at 1744x1308, 27fps at 872x654 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
5-year warranty against manufacturing defects
Description

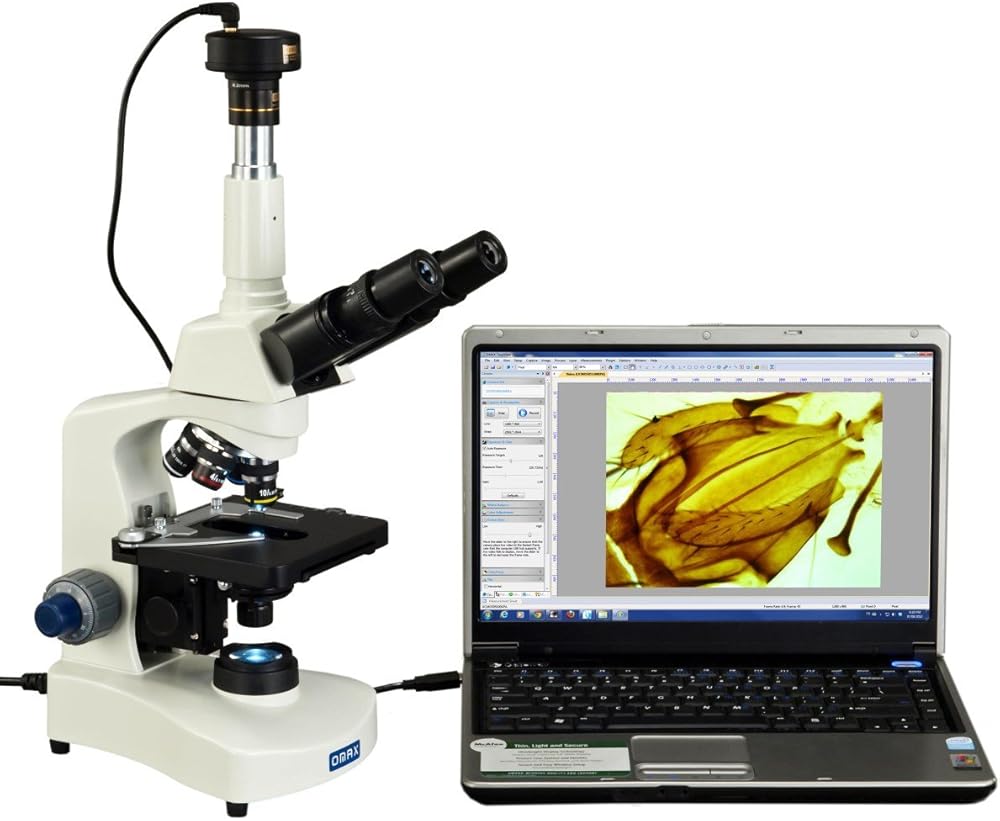

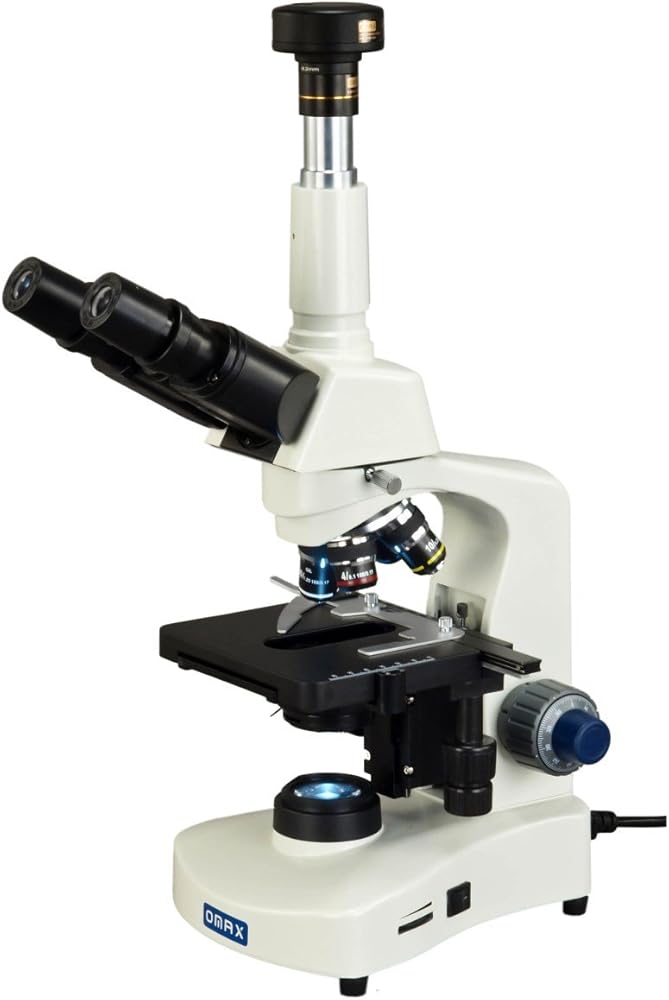

This is a professional grade trinocular microscope with 9MP high quality digital camera. It features reversed nosepiece, 3W LED bright illumination (brighter than 30W halogen light) and everything an advanced microscope have. It has the par-focal (also called simul-focal) function which means the image is focused through both eyepieces and the photo tube and no view switching is needed. The camera comes with advanced software that can make measurement of the samples and color, brightness, white balance and other settings are available. It can also take video clips for live samples through the fast USB2.0 port to share with others. This digital compound microscope is ideal for professionals and also affordable for students.
