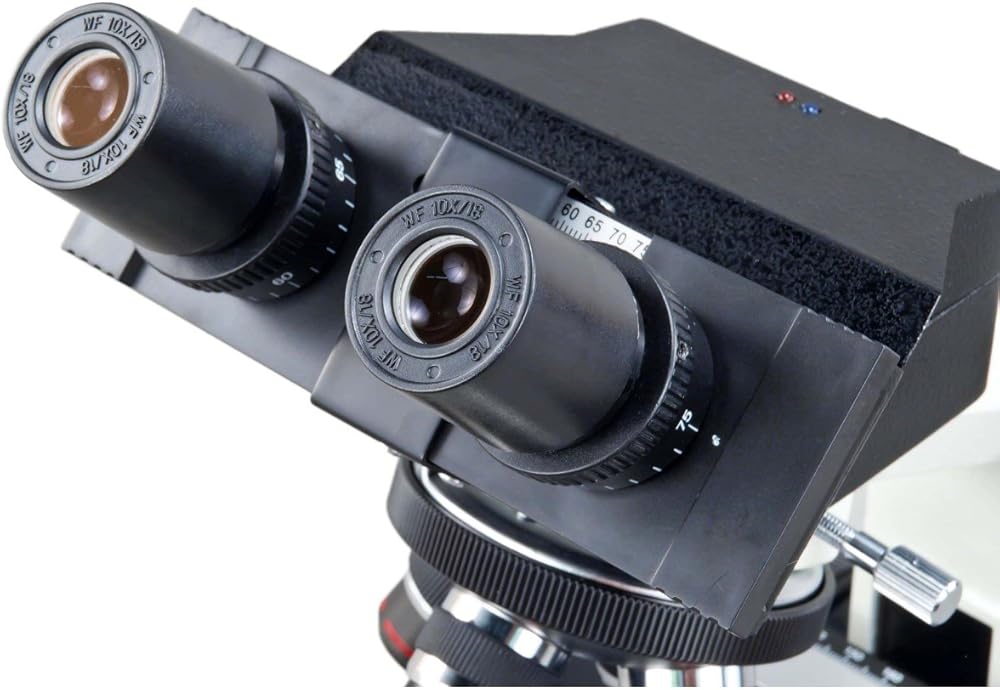

Total magnification for brightfield: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-200X-250X-400X-500X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives (in phase contrast kit): PH10X, PH20X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling digital binocular head
Total magnification for brightfield: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-200X-250X-400X-500X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives (in phase contrast kit): PH10X, PH20X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling digital binocular head
Total magnification for brightfield: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-200X-250X-400X-500X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives (in phase contrast kit): PH10X, PH20X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling digital binocular head
Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer size 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation
Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Phase contrast condenser disk with five switchable positions: one bright field NA1.25 w/ iris diaphragm Abbe condenser and four phase contrast filters, 10X, 20X, 40X, 100X, each can be centered individually; Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal framework; Power supply: AC 100V~240V (US and Canada plug)
Carrying case: aluminum; Built-in digital camera: - Imaging device: 3.0 mega pixels, 1/2.5inch CMOS - Effective pixels: 2048x1536 - Maximum still image resolution: 2048x1536 pixels - Frame rate: 4 frames per second at 2048x1536, 10 frames per second at 1024x768 - Interface: USB2.0 ( 480MB/second) - SNR: >40dB - Software compatible with Windows and Mac OS X (Photo Booth)
5-year warranty against manufacturing defects
Description

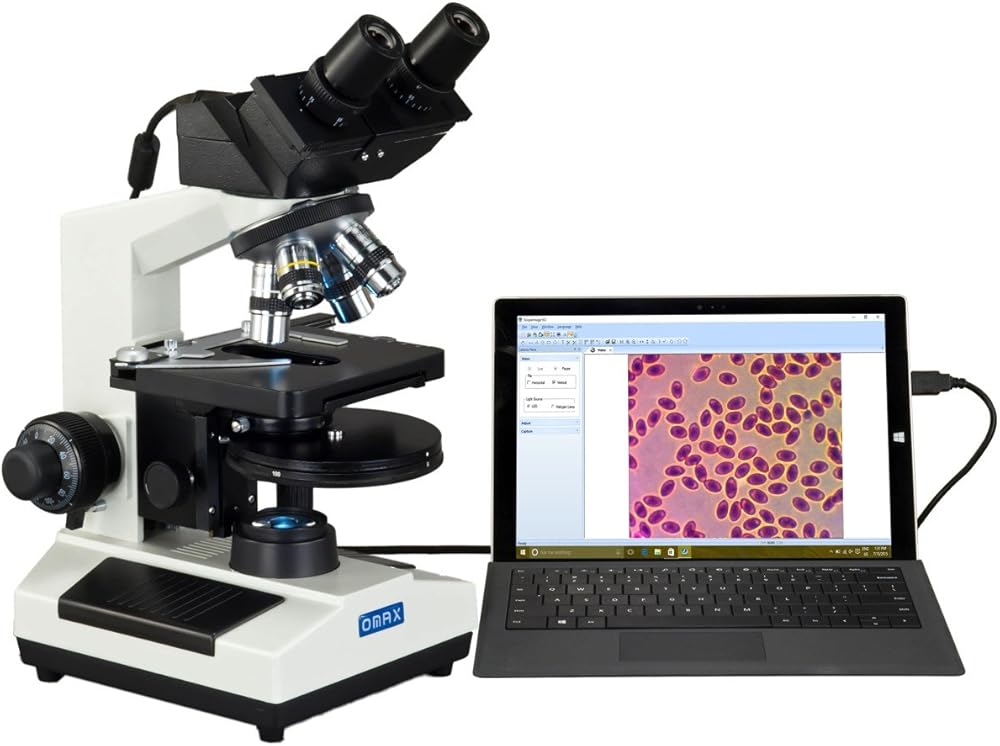

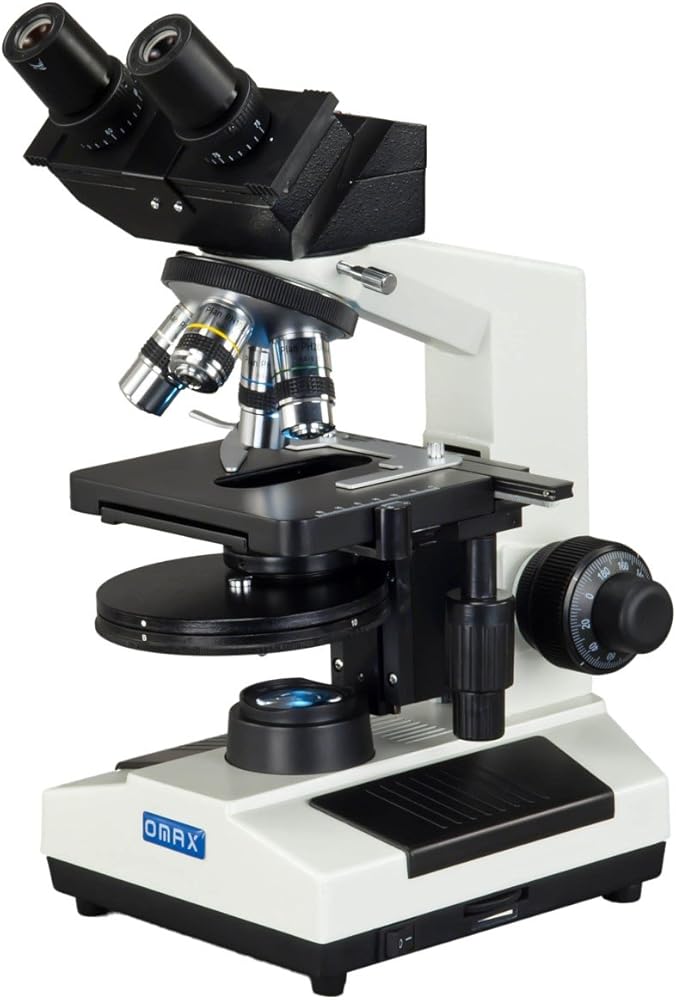

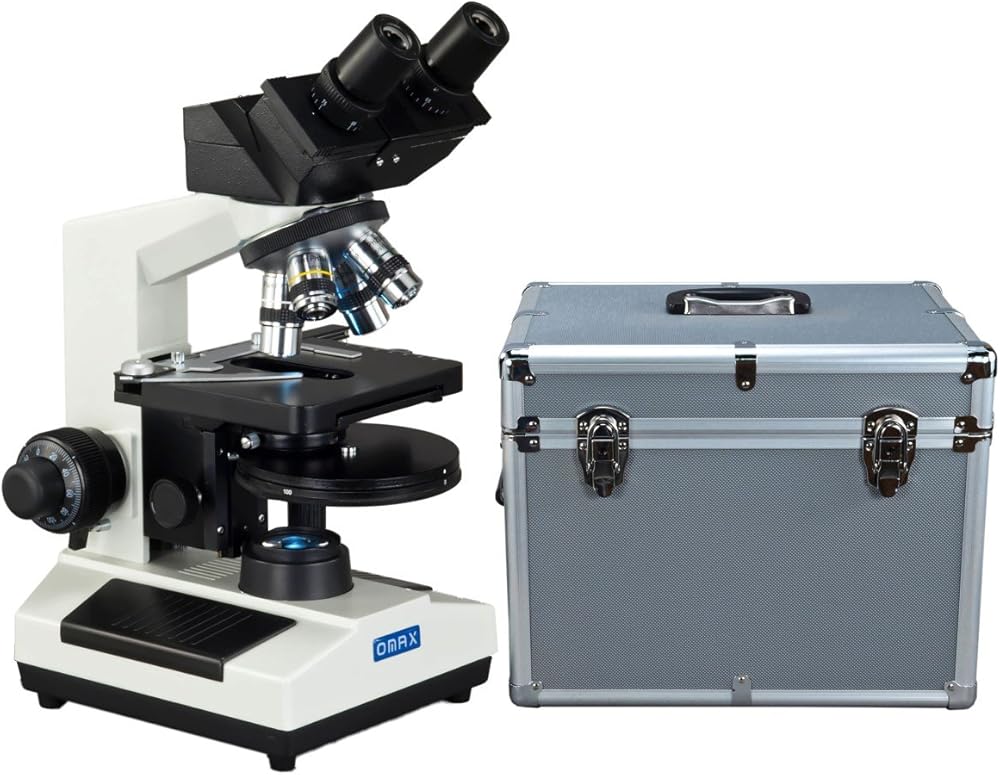

The phase contrast digital compound LED microscope provides phase contrast microscope system and brightfield microscope system for viewing live cells depending on your applications. This package also includes a sturdy aluminum carrying case to provide additional protection for the microscope and common accessories while transporting the microscope from location to location. The microscope features a built-in 3.0MP USB digital imaging system, a LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm and a complete set of phase contrast kit. It offers eight levels of brightfield magnification from 40X to 2500X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four plan phase contrast objectives: PH10X, PH20X, PH40X (S), PH100X(S, Oil). It offers phase contrast magnification power: 100X-200X-250X-400X-500X-1000X-2500X. The USB digital imaging system captures still microscope images and live video on computer without the hassle of setting up the digital camera. The included software compatible with Windows can also be used to make measurements. You can also view and capture the images on iMac or Macbook with Mac OS. It's easy to replace the LED lamp by your own. This phase contrast compound microscopy is widely used clinical, biological research and schools, specially for observing live cells.
