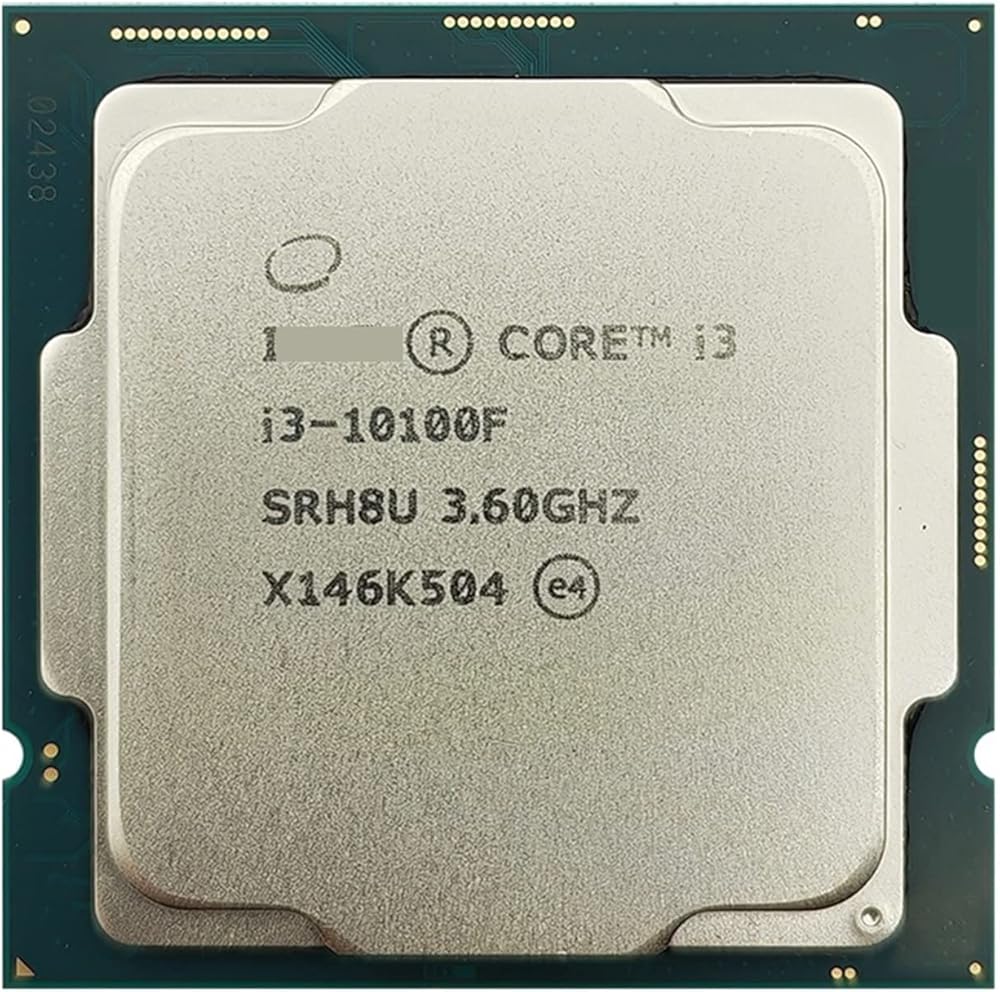

c i3-10100F specifications
General information
Type
CPU / Microprocessor
Market segment
Desktop
Family
CPU part numbers
CM8070104291318 is an OEM/tray microprocessor
BX8070110100F is a boxed processor (English version)
BXC8070110100F is a boxed processor (Chinese version)
Frequency ?
3600 MHz
Maximum turbo frequency
4300 MHz (1 c)
Low power frequency
800 MHz
Clock multiplier ?
36
Socket 1200
S-spec numbers
Architecture / Microarchitecture
Microarchitecture
Comet Lake
Processor c ?
Comet Lake-S
c stepping ?
G1 (SRH8U)
CPUID
A0653 (SRH8U)
Manufacturing process
0.014 micron
Data width
64 bit
The number of CPU cores
4
The number of threads
8
Floating Point Unit
Integrated
Level 1 cache size ?
4 x 32 KB 8-way set associative instruction caches
4 x 32 KB 8-way set associative data caches
Level 2 cache size ?
4 x 256 KB 4-way set associative caches
Level 3 cache size
6 MB shared cache
Physical memory
128 GB
Multiprocessing
Uniprocessor
Extensions and Technologies
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
AVX2 / Advanced Vector Extensions 2.0
BMI / BMI1 + BMI2 / Bit Manipulation instructions
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
HT / Hyper-Threading technology ?
VT-x / Virtualization technology ?
VT-d / Virtualization for directed I/O
TBT 2.0 / Turbo Boost technology 2.0 ?
Security Features
NX / XD / Execute disable bit ?
SGX / Software Guard Extensions
Low power features
c C1/C1E, C3, C6, C7, C8, C9 and C10 states
Package C3, C6, C7, C8, C9 and C10 states
Enhanced / technology ?
Integrated peripherals / components
Integrated graphics
None
Memory controller
The number of controllers: 1
Memory channels: 2
Supported memory: DDR4-2666
Maximum memory bandwidth (GB/s): 42.7
Other peripherals
Direct Media Interface 3.0 (4 lanes)
PCI Express 3.0 interface (16 lanes)
Electrical / Thermal parameters
Maximum operating temperature ?
100°C (junction)
Thermal Design Power ?
65 Watt
Notes on c i3-10100F
Optane memory is supported
The processor has the following security, data protection and/or software features: Boot Guard, Identity Protection technology, OS Guard and Secure Key.
