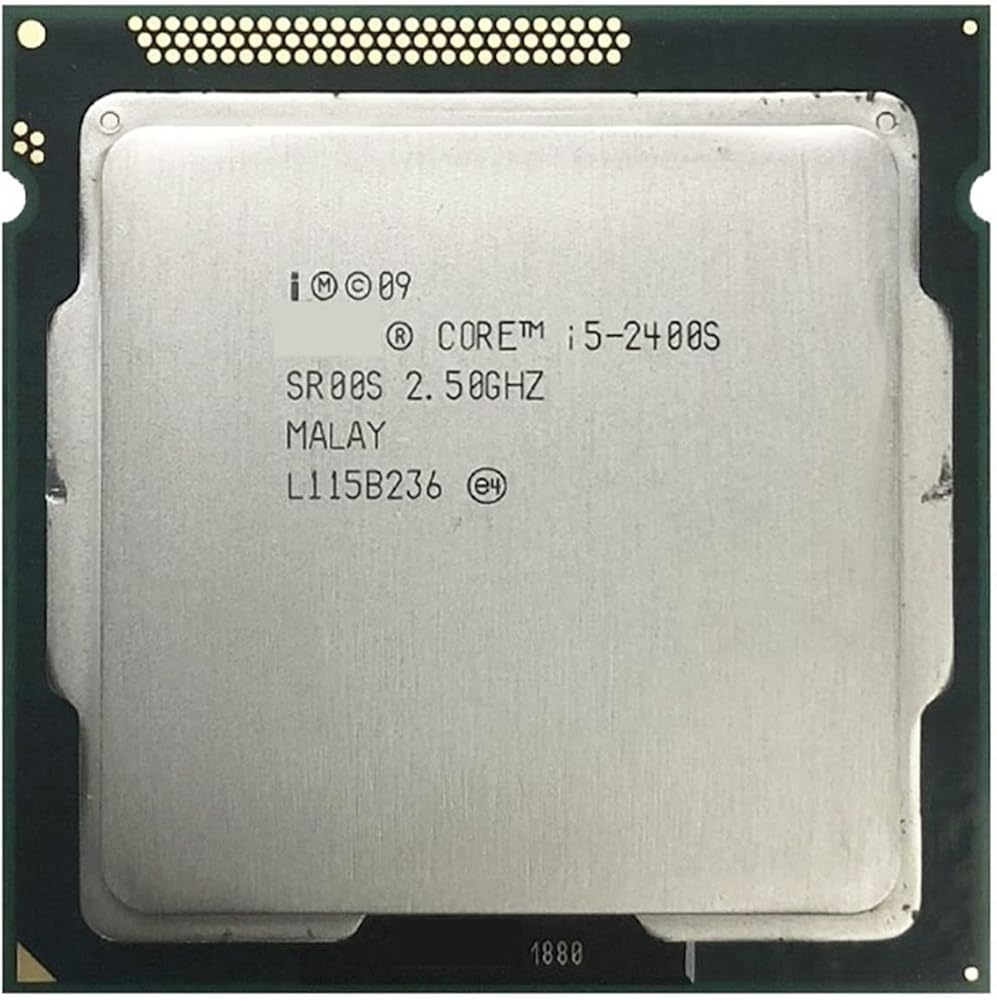

c i5-2400S specifications
General information
Type
CPU / Microprocessor
Market segment
Desktop
Family
CPU part numbers
CM8062300835404 is an OEM/tray microprocessor
BX80623I52400S is a boxed processor with fan and heatsink (English version)
BXC80623I52400S is a boxed processor with fan and heatsink (Chinese version)
Frequency ?
2500 MHz
Maximum turbo frequency
3300 MHz (1 c)
3200 MHz (2 cores)
2800 MHz (3 cores)
2600 MHz (4 cores)
Clock multiplier ?
25
Socket 1155 / H2 / LGA1155
Weight
0.9oz / 25.4g (CPU)
Fan/heatsink
E97379-001
S-spec numbers
Architecture / Microarchitecture
Microarchitecture
Sandy Bridge
Processor c ?
Sandy Bridge
c stepping ?
D2 (Q1HZ, SR00S)
Manufacturing process
0.032 micron High-K metal gate process
Data width
64 bit
The number of CPU cores
4
The number of threads
4
Floating Point Unit
Integrated
Level 1 cache size ?
4 x 32 KB 8-way set associative instruction caches
4 x 32 KB 8-way set associative data caches
Level 2 cache size ?
4 x 256 KB 8-way set associative caches
Level 3 cache size
6 MB 12-way set associative shared cache
Cache latency
3 (L1 cache)
9 (L2 cache)
23 (L3 cache)
Physical memory
32 GB
Multiprocessing
Uniprocessor
Features
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
NX / XD / Execute disable bit ?
TBT 2.0 / Turbo Boost technology 2.0 ?
VT-x / Virtualization technology ?
VT-d / Virtualization for directed I/O
TXT / Trusted Execution technology
Low power features
Enhanced / technology ?
Integrated peripherals / components
Integrated graphics
GPU Type: HD 2000
Microarchitecture: Gen 6
Execution units: 6
Base frequency (MHz): 850
Maximum frequency (MHz): 1100
The number of supported displays: 2
Memory controller
The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1066, DDR3-1333
Maximum memory bandwidth (GB/s): 21.3
Other peripherals
Direct Media Interface 2.0
PCI Express 2.0 interface
Electrical / Thermal parameters
Maximum operating temperature ?
69.1°C
Thermal Design Power ?
65 Watt
