Note: pulled from working machine , cpu will be final double tested before.The parameters are automatically generated by the system for reference only.
Specifications:
Processor Speed: 3.6GHz
Processor Socket: 1200
stepping: SRH3N
The number of CPU cores: 4
L3 cache size (MB): 6 MB
Wattage: 65 Watt

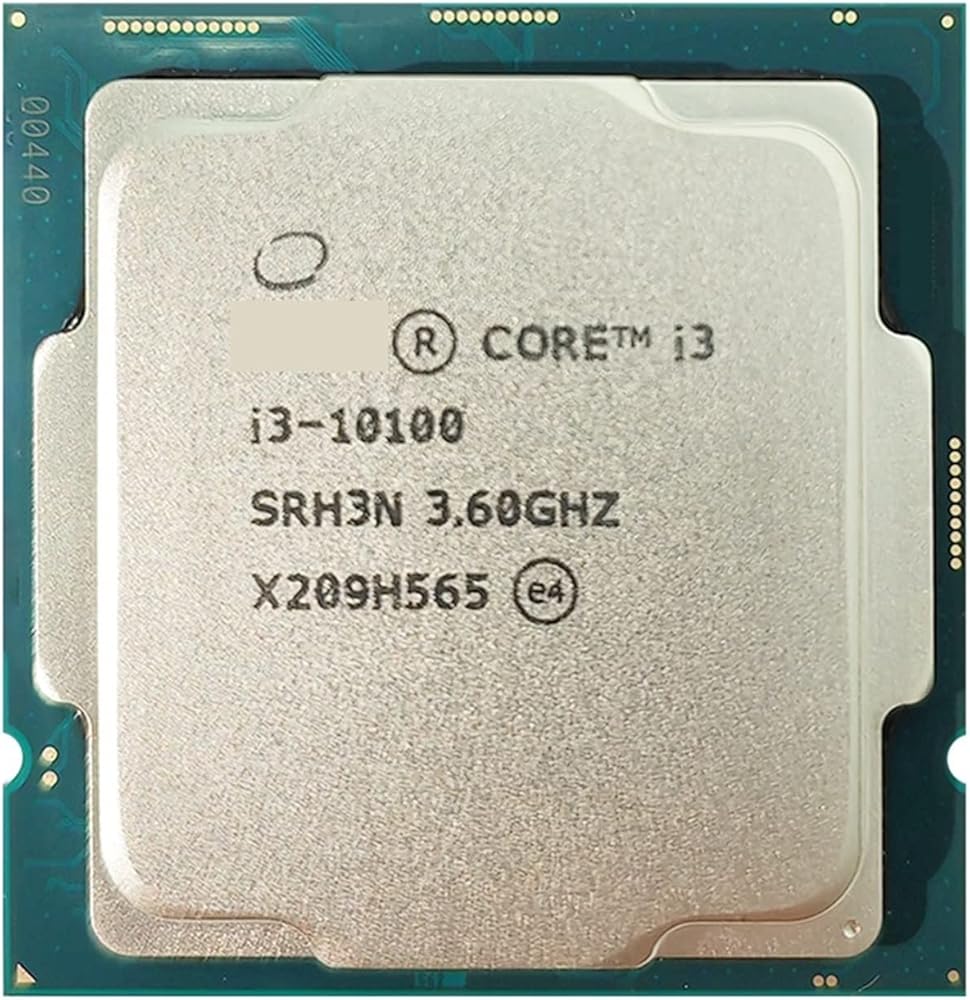

c i3-10100 specifications
General information
Type
CPU / Microprocessor
Market segment
Desktop
Family
CPU part numbers
CM8070104291317 is an OEM/tray microprocessor
BX8070110100 is a boxed processor (English version)
BXC8070110100 is a boxed processor (Chinese version)
Frequency ?
3600 MHz
Maximum turbo frequency
4300 MHz (1 c)
4100 MHz (all cores)
Low power frequency
800 MHz
Clock multiplier ?
36
Socket 1200
S-spec numbers
Architecture / Microarchitecture
Microarchitecture
Comet Lake
Processor c ?
Comet Lake-S
c stepping ?
G1 (SRH3N)
Manufacturing process
0.014 micron
Data width
64 bit
The number of CPU cores
4
The number of threads
8
Floating Point Unit
Integrated
Level 1 cache size ?
4 x 32 KB 8-way set associative instruction caches
4 x 32 KB 8-way set associative data caches
Level 2 cache size ?
4 x 256 KB 4-way set associative caches
Level 3 cache size
6 MB shared cache
Physical memory
128 GB
Multiprocessing
Uniprocessor
Extensions and Technologies
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
AVX2 / Advanced Vector Extensions 2.0
BMI / BMI1 + BMI2 / Bit Manipulation instructions
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
HT / Hyper-Threading technology ?
VT-x / Virtualization technology ?
VT-d / Virtualization for directed I/O
TBT 2.0 / Turbo Boost technology 2.0 ?
Security Features
NX / XD / Execute disable bit ?
SGX / Software Guard Extensions
SMAP / Supervisor Mode Access
SMEP / Secure Mode Execution
Low power features
c C1/C1E, C3, C6, C7, C8, C9 and C10 states
Package C3, C6, C7, C8, C9 and C10 states
Enhanced / technology ?
Integrated peripherals / components
Display controller
3 displays
DVI / DisplayPort 1.2 / Embedded DisplayPort 1.4 / HDMI 1.4
Integrated graphics
Graphics tier: GT2
Microarchitecture: Gen 9 LP
Base frequency (MHz): 350
Maximum frequency (MHz): 1100
Memory controller
The number of controllers: 1
Memory channels: 2
Channel width (bits): 64
Supported memory: DDR4-2666
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 42.7
Other peripherals
Direct Media Interface 3.0 (4 lanes)
PCI Express 3.0 interface (16 lanes)
Electrical / Thermal parameters
Minimum/Maximum operating temperature ?
0°C (case) - 71.3°C (case)
100°C (junction)
Thermal Design Power ?
65 Watt
Notes on c i3-10100
Optane memory is supported
The processor has the following security, data protection and/or software features: Boot Guard, Identity Protection technology, OS Guard and Secure Key.
The CPU is compatible with DirectX 12, OpenGL 4.5, OpenCL 1.2, OpenCL 2.0 and OpenCL 2.1 APIs.
The graphics unit has the following software features enabled: Quick Sync Video, Clear Video technology, Clear Video HD technology and InTru 3D technology.
