الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠.قد تحتاج إلى محول كهرباء
مميزات خاصة

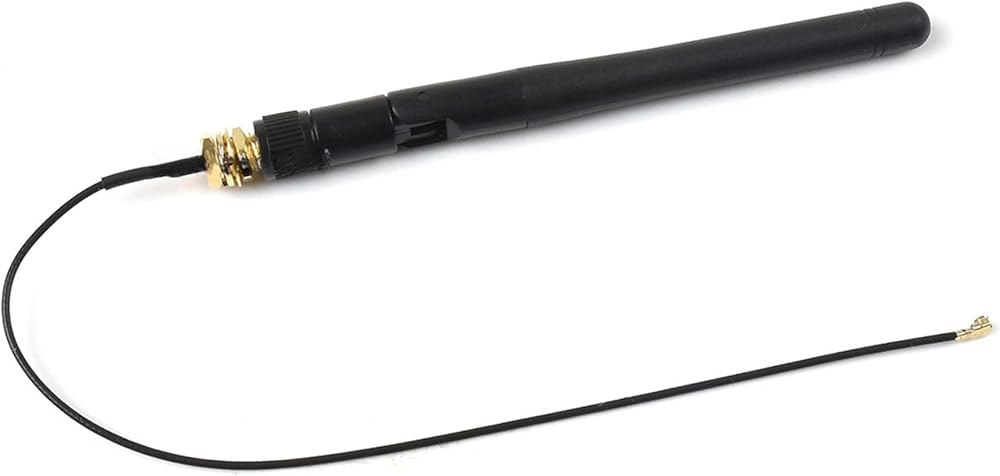

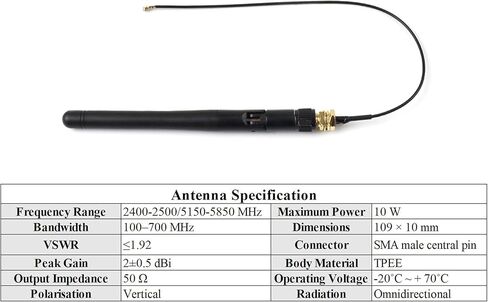

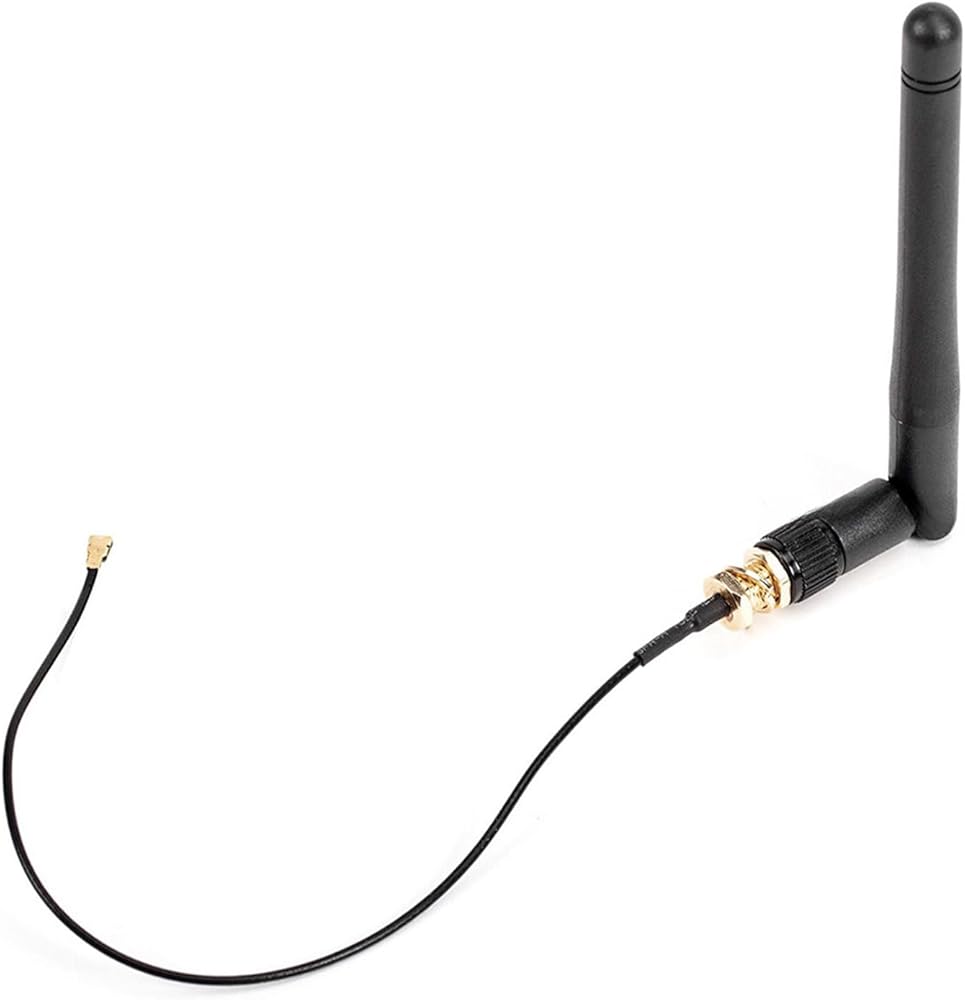

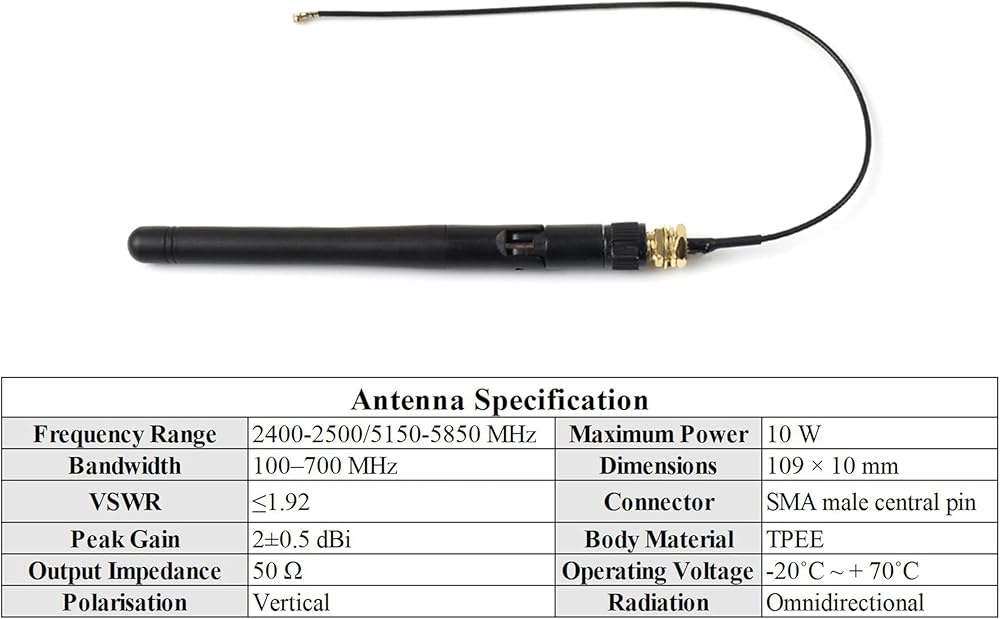

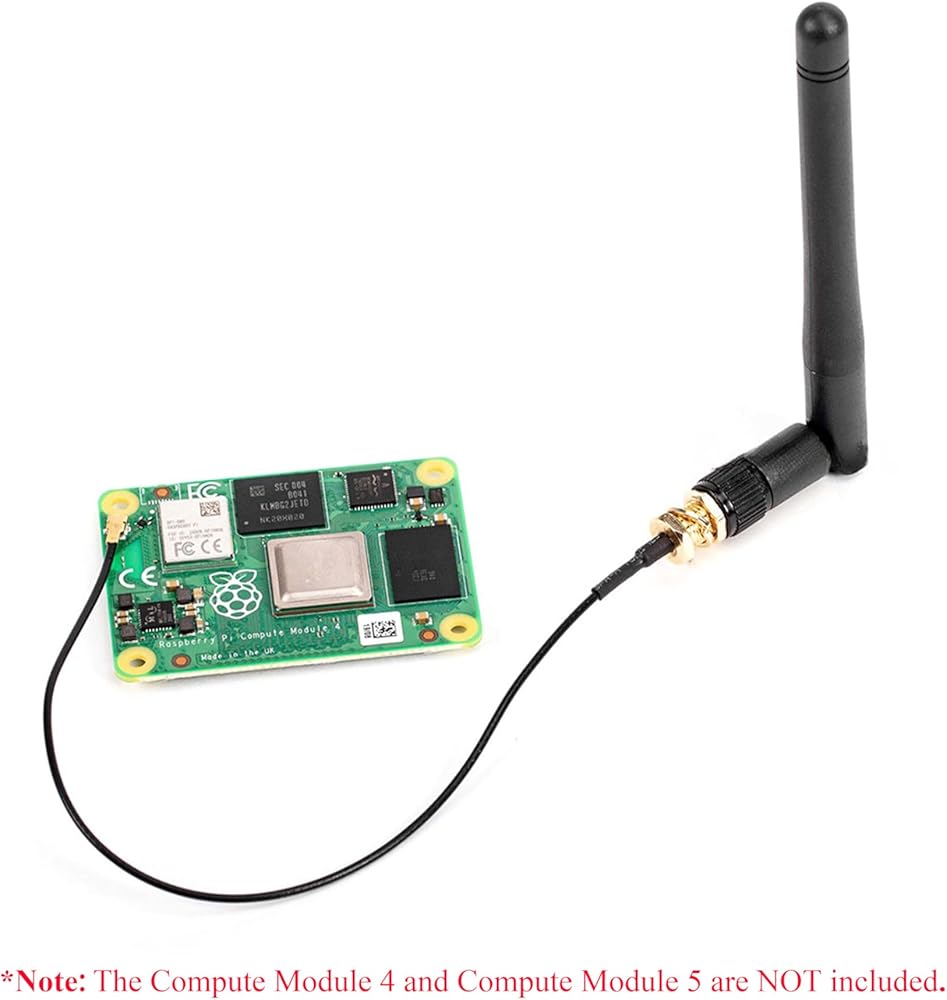

Antenna Compatible with Raspberry Pi Compute Module 5 / Compute Module 4, Supports 2.4G/5G WiFi Frequency Band
Frequency range: 2400-2500/5150-5850 MHz. Maximum power: 10 W.
Bandwidth: 100–700 MHz. VSWR: ≤1.92. Connector: SMA male central pin. Peak Gain: 2±0.5 dBi.
Body Material : TPEE. Output Impedance: 50 Ω. Operating Voltage: -20˚C ~ + 70˚C.
Polarisation: Vertical. Radiation : Omnidirectional. Dimensions: 109 x 10 mm.
وصف
Antenna Compatible with Raspberry Pi Compute Module 5 / Compute Module 4, Supports 2.4G/5G WiFi Frequency Band

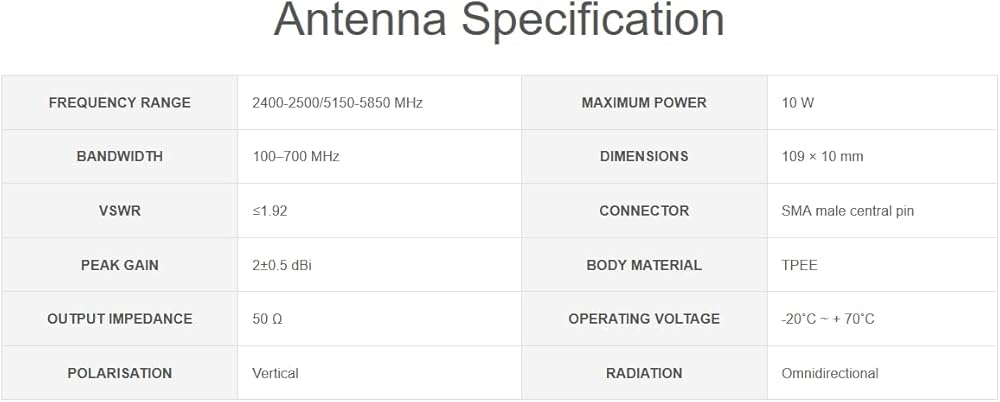

Specification Frequency range: 2400-2500/5150-5850 MHz.
Maximum power: 10 W.
Bandwidth: 100–700 MHz.
VSWR: ≤1.92.
Connector: SMA male central pin.
Peak Gain: 2±0.5 dBi.
Body Material : TPEE.
Output Impedance: 50 Ω.
Operating Voltage: -20˚C ~ + 70˚C.
Polarisation: Vertical.
Radiation : Omnidirectional.

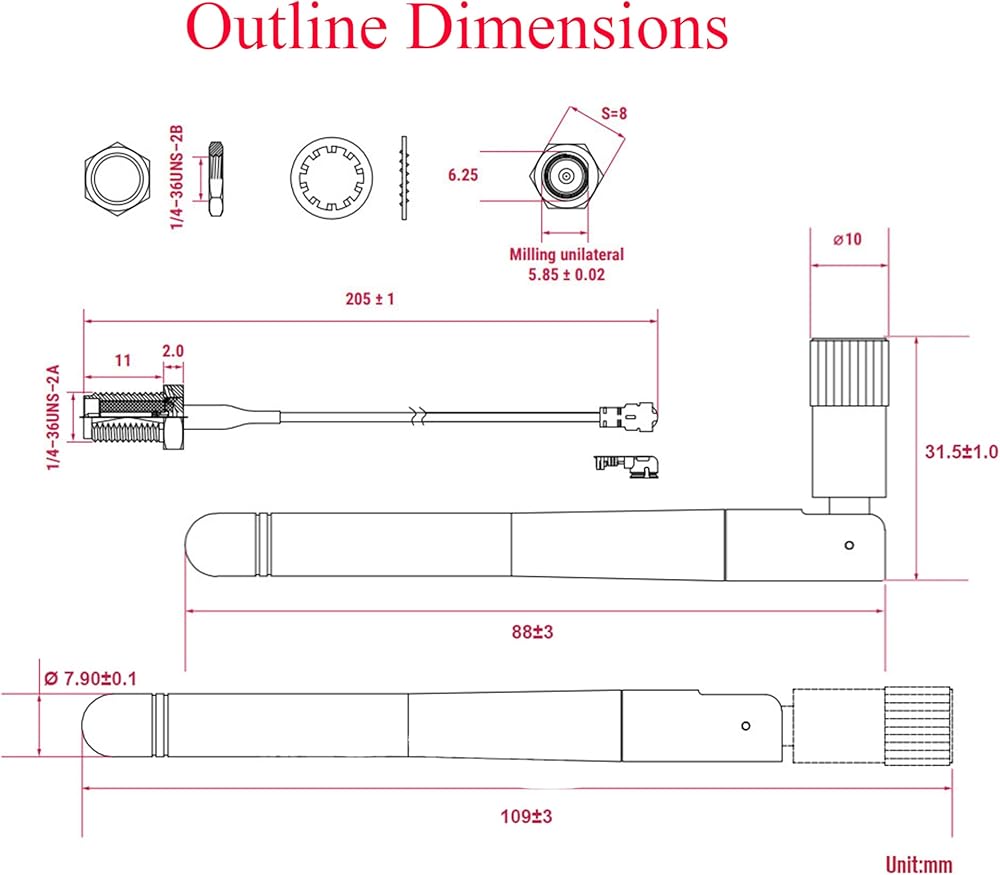

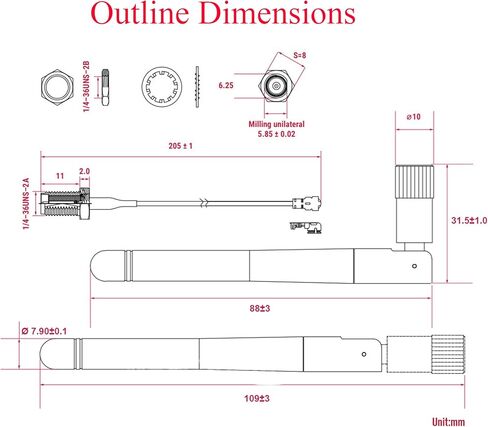

Dimensions: 109 x 10 mm.
