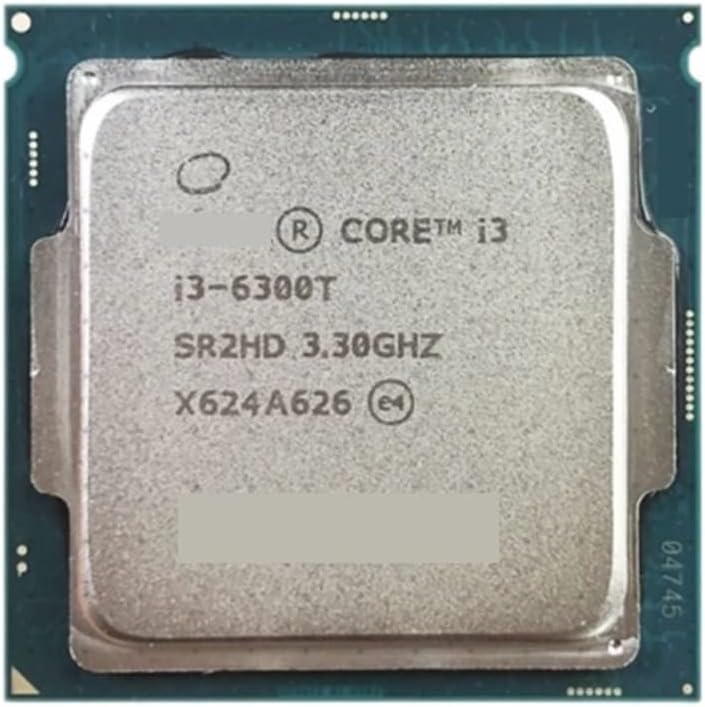

c i3-6300T specifications
General information
Type
CPU / Microprocessor
Market segment
Desktop
Family
CPU part numbers
CM8066201927004 is an OEM/tray microprocessor
BX80662I36300T is a boxed processor (English version)
BXC80662I36300T is a boxed processor (Chinese version)
Frequency ?
3300 MHz
Clock multiplier ?
33
Socket 1151 / H4 / LGA1151
Part number
ES/QS processors
Architecture / Microarchitecture
Microarchitecture
Skylake
Processor c ?
Skylake-S
c stepping ?
S0 (QJZC, SR2HD)
Manufacturing process
0.014 micron
Data width
64 bit
The number of CPU cores
2
The number of threads
4
Floating Point Unit
Integrated
Level 1 cache size ?
2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size ?
2 x 256 KB 4-way set associative caches
Level 3 cache size
4 MB 16-way set associative shared cache
Physical memory
64 GB
Multiprocessing
Uniprocessor
Extensions and Technologies
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
AVX2 / Advanced Vector Extensions 2.0
BMI / BMI1 + BMI2 / Bit Manipulation instructions
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
EM64T / Extended Memory 64 technology / I 64 ?
NX / XD / Execute disable bit ?
HT / Hyper-Threading technology ?
VT-x / Virtualization technology ?
VT-d / Virtualization for directed I/O
MPX / Memory Protection Extensions
SGX / Software Guard Extensions
SMAP / Supervisor Mode Access
SMEP / Secure Mode Execution
Low power features
Enhanced / technology ?
Integrated peripherals / components
Display controller
3 displays
Integrated graphics
GPU Type: HD 530
Graphics tier: GT2
Microarchitecture: Gen 9
Execution units: 24
Base frequency (MHz): 350
Maximum frequency (MHz): 950
Memory controller
The number of controllers: 1
Memory channels: 2
Supported memory: DDR3L-1333, DDR3L-1600, DDR4-1866, DDR4-2133
Maximum memory bandwidth (GB/s): 34.1
ECC supported: Yes
Other peripherals
Direct Media Interface 3.0
PCI Express 3.0 interface (16 lanes)
Electrical / Thermal parameters
Maximum operating temperature ?
100°C
Thermal Design Power ?
35 Watt
Notes
ECC memory mode is supported only on workstation-class motherboards
The processor has the following security, data protection and/or software features: Secure Key, Identity Protection technology, OS Guard and Boot Guard.
The CPU is compatible with DirectX 12, OpenGL 4.4, OpenCL 2.0 and Vulkan1.0.31 APIs.
The graphics unit has the following software features enabled: Wireless Display, Quick Sync Video, Clear Video technology, Clear Video HD technology, InTru 3D technology and Insider.
