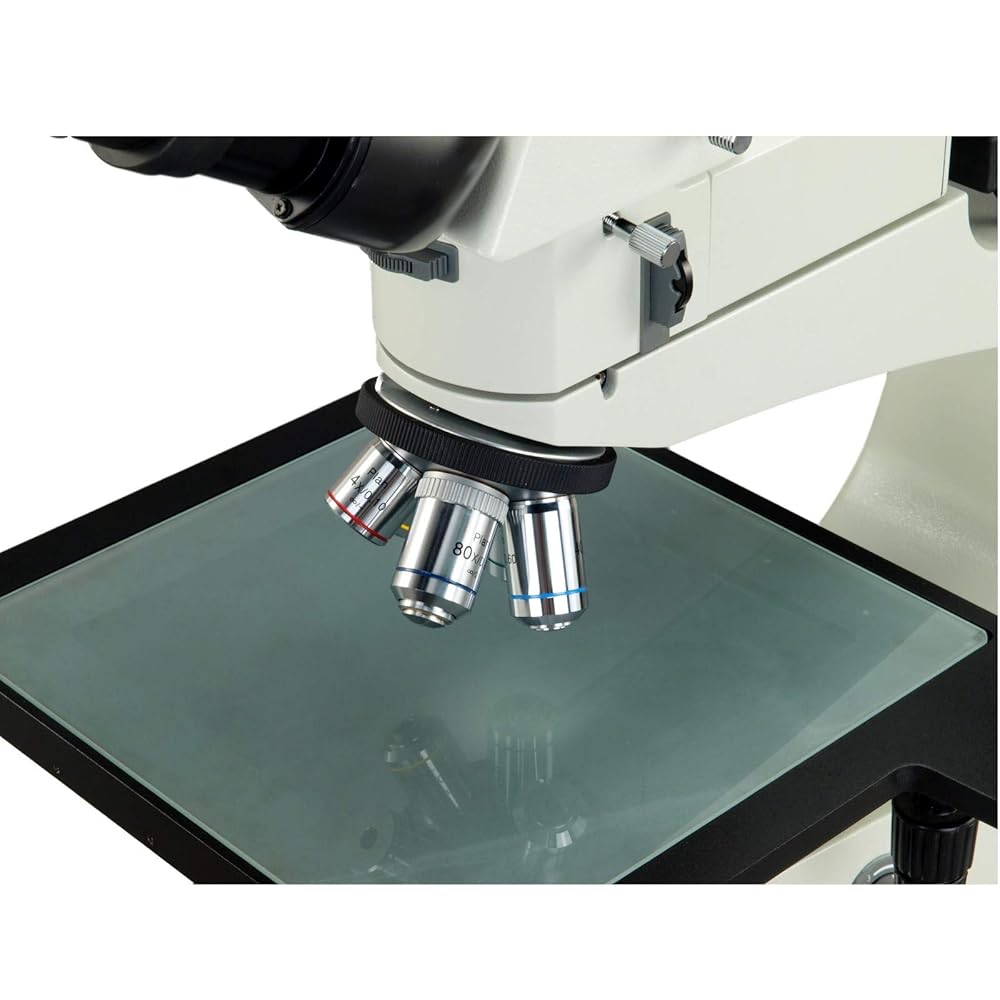

Objective: plan infinity field achromatic DIN 4X, 10X, 20X, 40X(S); Objective working distances: 4X-25.4mm, 10X-11mm, 20X-6mm, 40X-3.7mm, 80X-0.2mm; Objective field of view: 4X-6mm, 10X-2mm, 20X-1.06mm, 40X-0.53mm

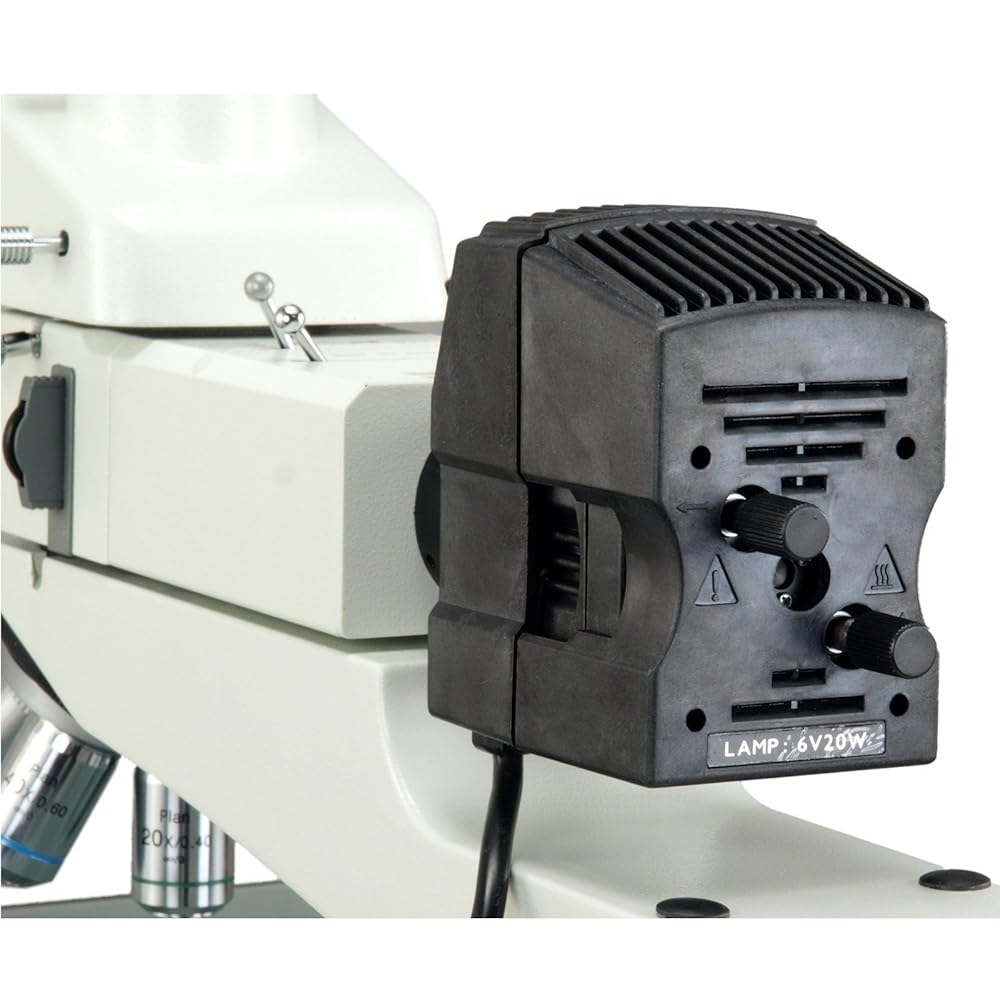

Total magnification: 40X-100X-200X-400X; Reflected illuminator: 6V/20W halogen; Large stage 11-3/4inch x 10-1/2inch(300mm x 268mm); Large stage moving range: 10inch x 10inch (254mm x 254mm); Stage vertical stroke (focusing travel distance): 1inch (25mm); Power supply: 110V/60Hz (US and Canada plug); Polarizing Elements: rotatable polarizer and analyzer

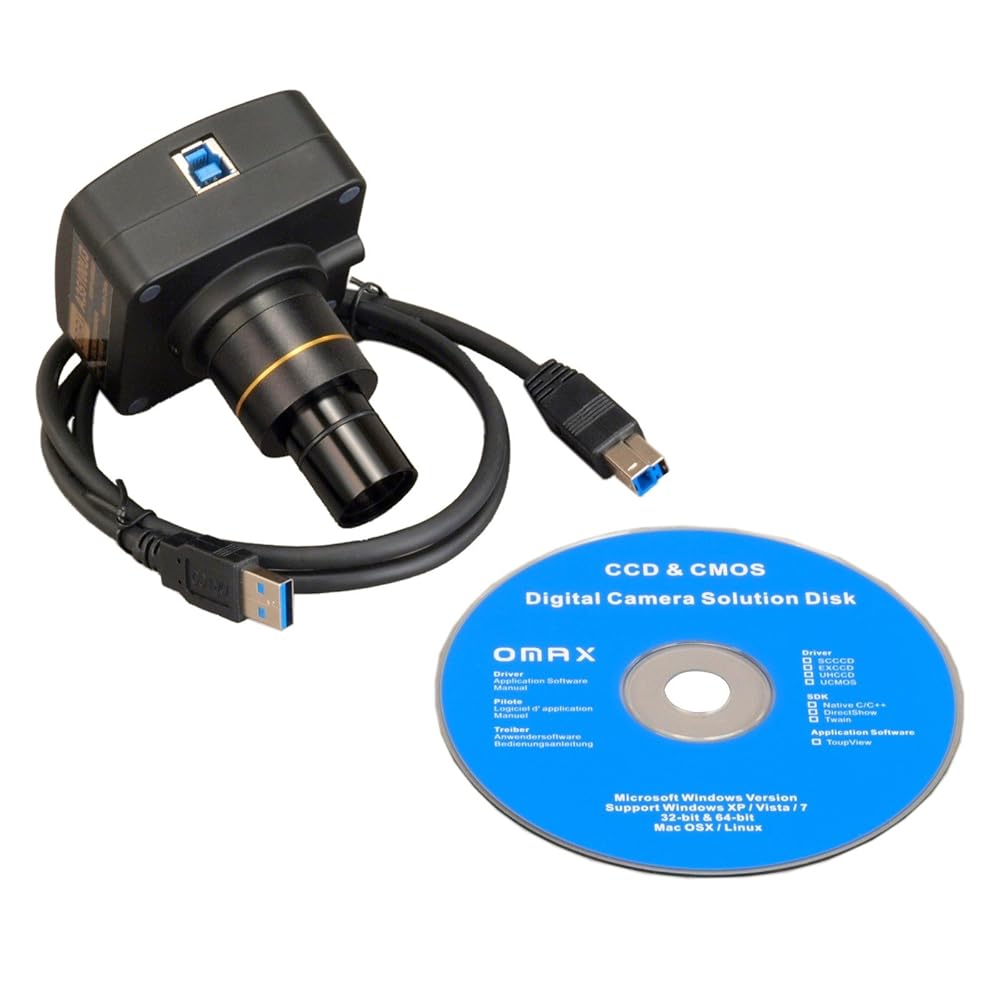

Digital camera: - true color 4912x3684 pixels (18M pixels) - Super speed USB 3.0 connection - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 5.6fps at 4912x3684, 18.1fps at 2456x1842, 32.2fps at 1228x922 - Software compatible with Windows, Mac OS X and Linux operating systems - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB3 cable included
5-year warranty against manufacturing defects
Description

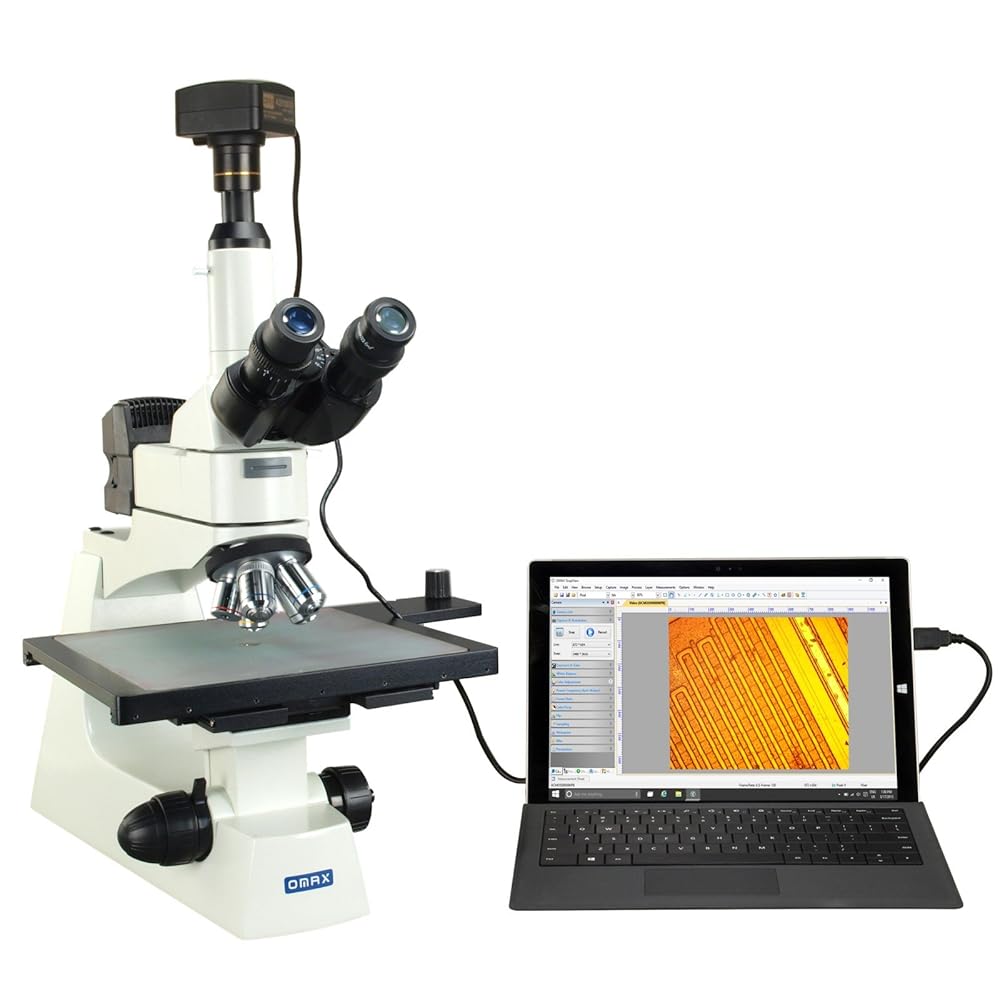

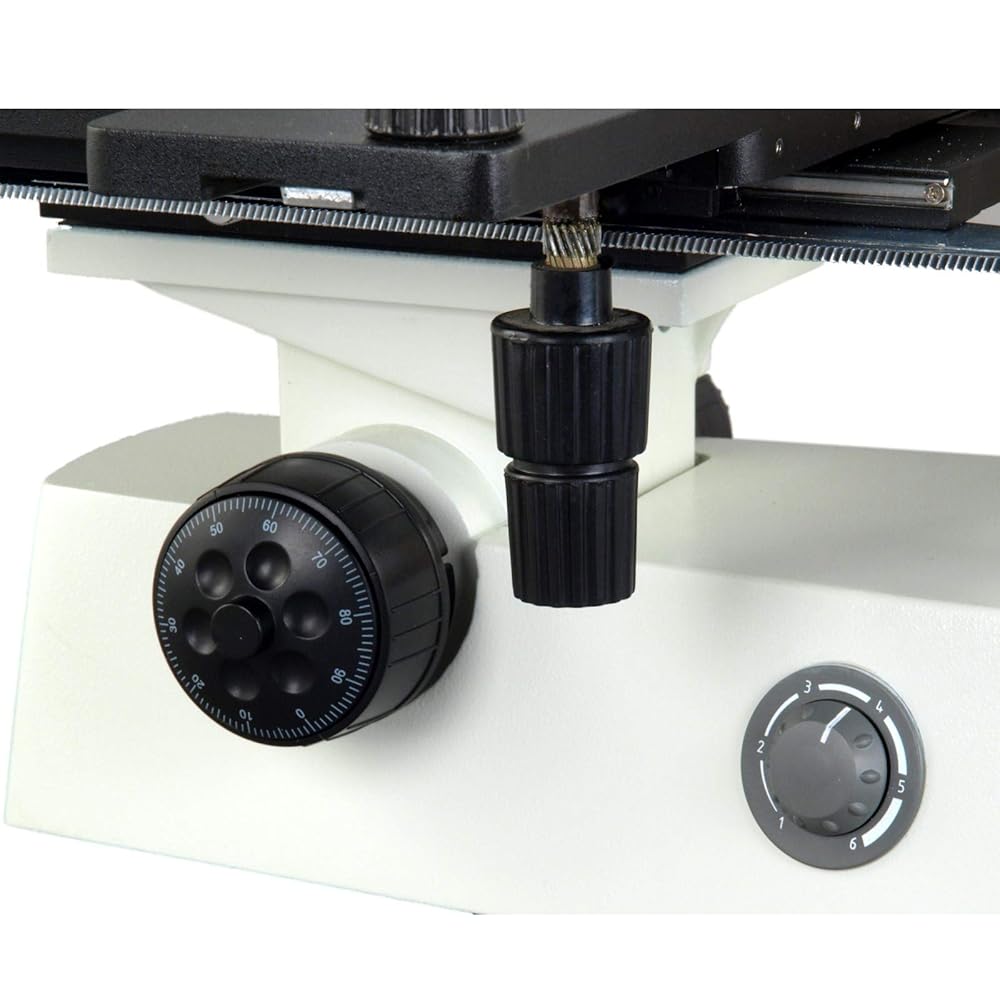

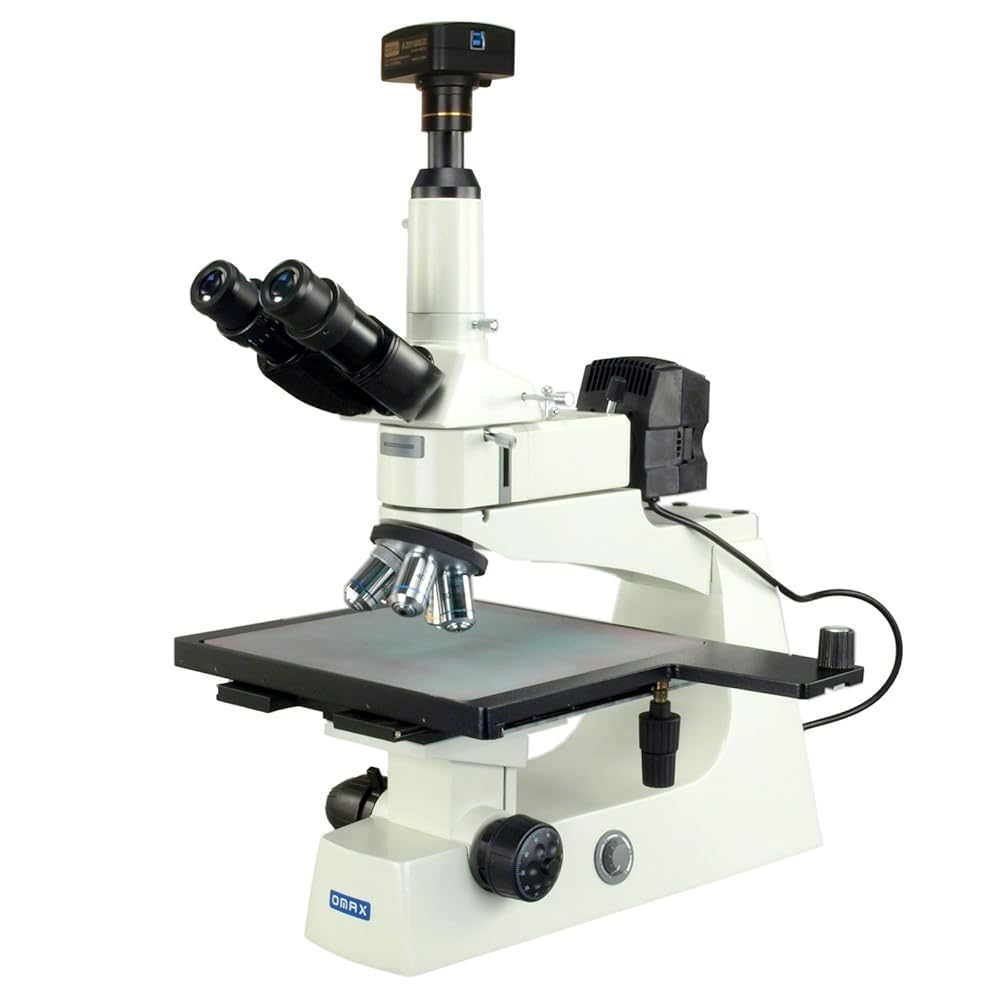

This microscope package is designed for large area inspection and comes with a super speed 18MP USB 3.0 digital microscope system. It has a reflected lighting system which is different from regular low power stereo microscopes. It also has large working distance objectives (3.7mm for 40X objective) which is absence in regular high power compound microscopes. The PLAN infinity achromatic objectives assure high image quality from center to edge. The stage has large translational range (10"x10") with coarse and fine coaxial knobs and a unique hand-push fast movement mechanism. It also can work as a polarizing microscope with the included polarizer/analyzer inserts. The super speed high resolution 18MP USB 3.0 digital camera included in the package allows for higher frame rate with less delay and helps you record your observation and share the images with your customers or managers.
