Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Objectives: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Objectives: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Objectives: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 3inch x 1-9/16inch (78mm x 40mm), dimension 5-1/2inch x 4-1/4inch (140mm x 110mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop

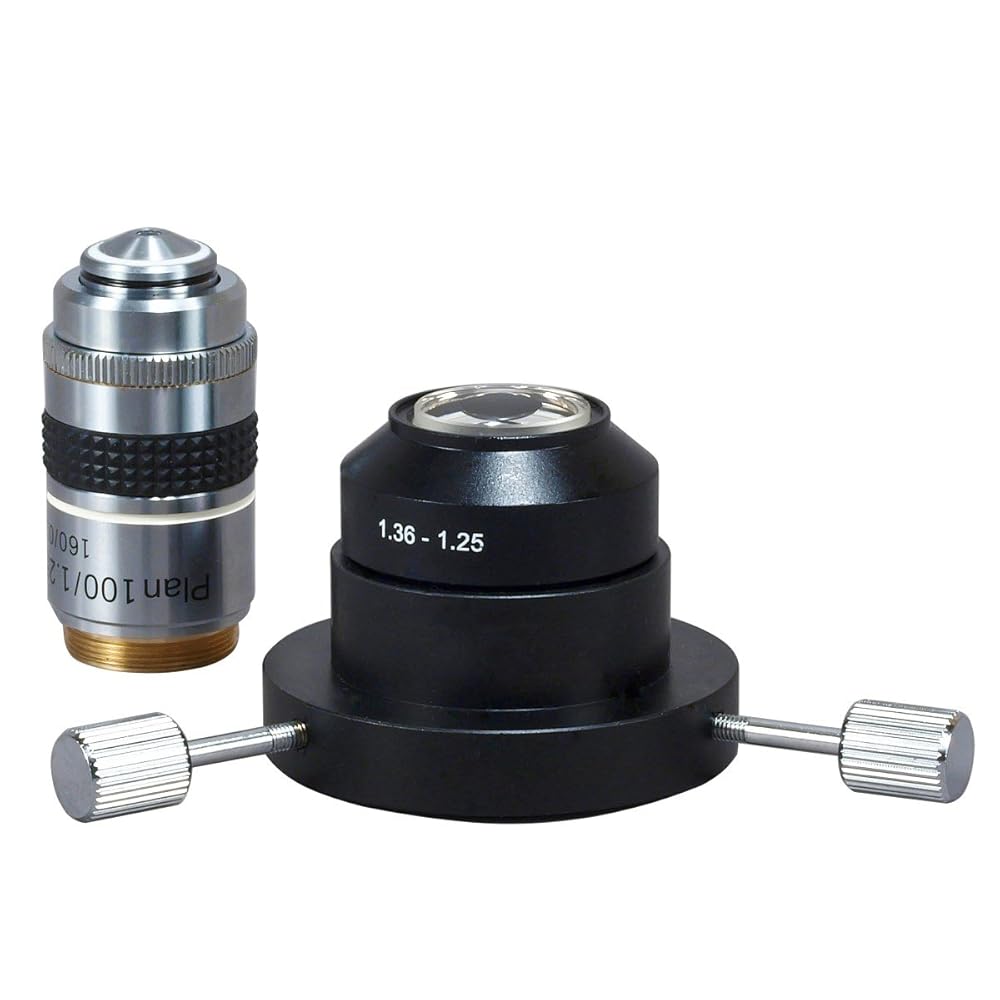

Illumination: transmitted replaceable 3W LED light, intensity adjustable; Brightfield condenser: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment; Oil darkfield condenser: NA1.36-1.25 condenser plus plan 100X/1.25-0.5 160/0.17 objective (oil, spring) with built-in iris diaphragm
Solid metal base and stand; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)
5-year warranty against manufacturing defects
Description

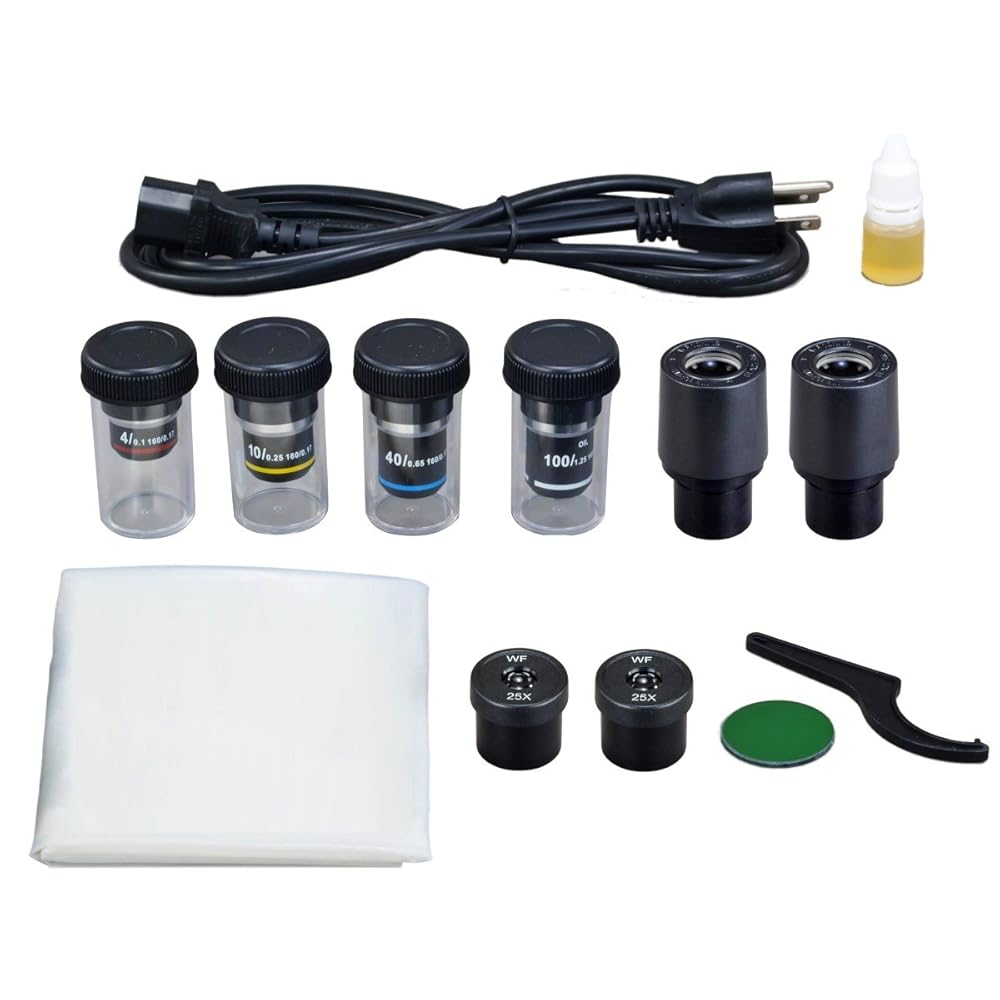

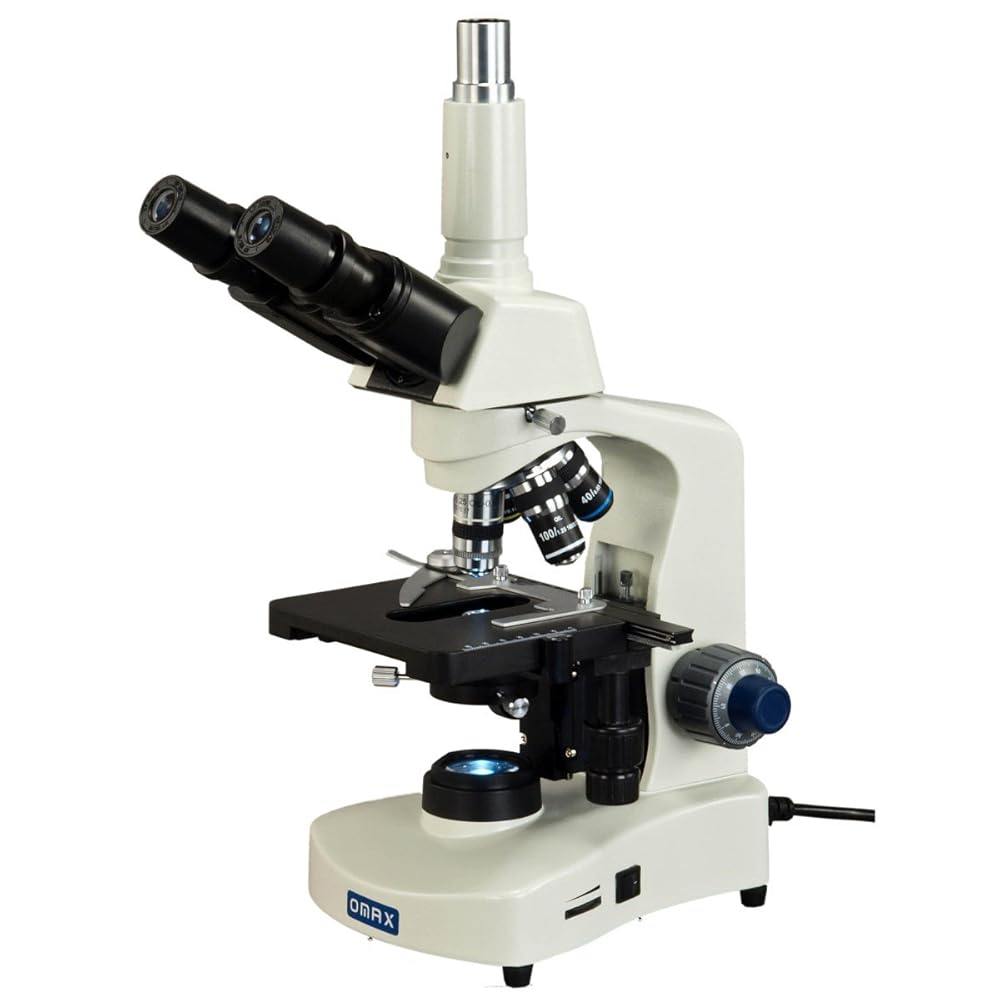

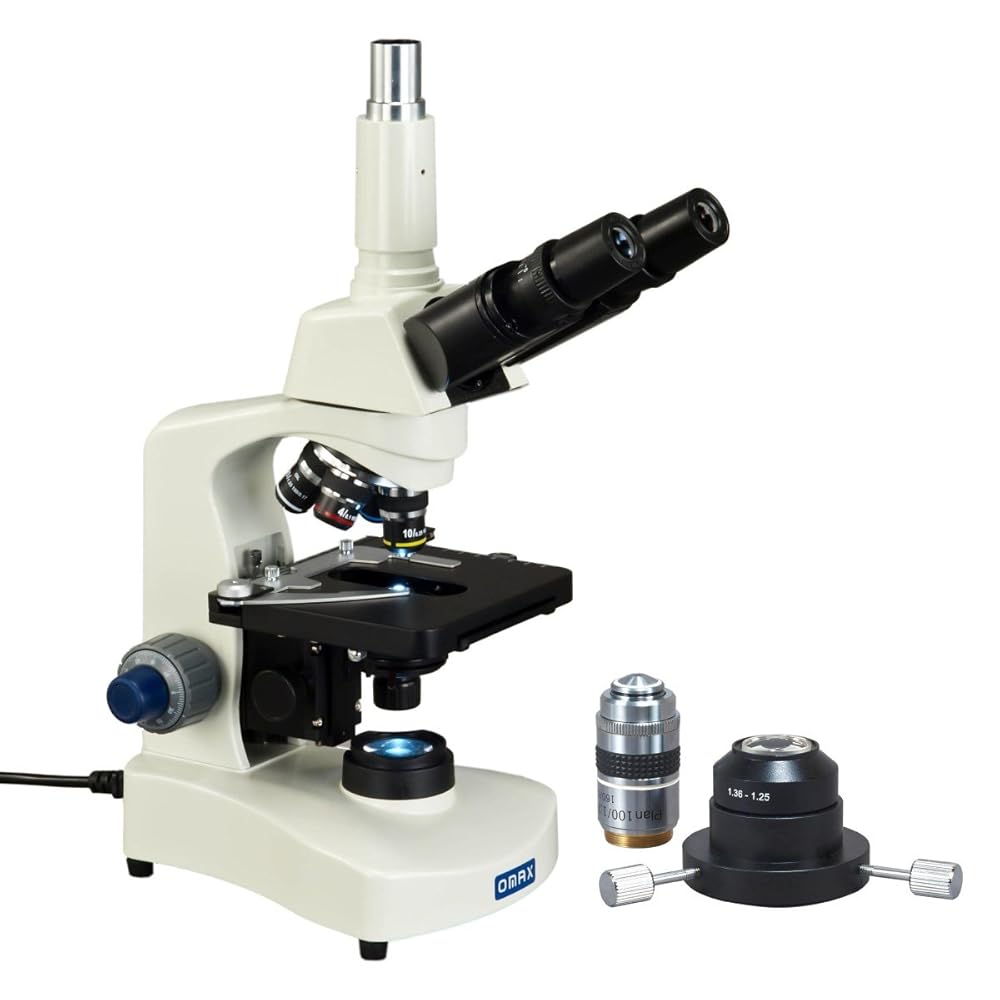

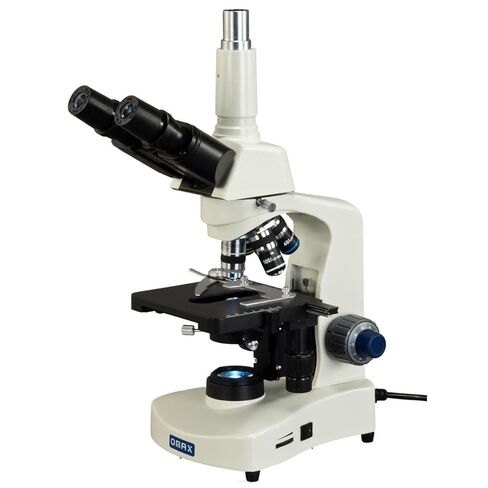

The 40X-2500X trinocular compound siedentopf LED microscope provides both brightfield and darkfield microscope system. The darkfield microscope features an optical system for observing images through eyepieces and an adjustable trinocular port. The biological microscopy comes with swiveling trinocular head, body frame, reversed quadruple nosepiece, two pairs of widefield eyepieces, four DIN achromatic objectives, large double layer mechanical stage, LED transmitted illumination system and brightfield Abbe NA1.25 condenser & an oil darkfield NA1.36-1.25 condenser plus 100X objective with iris diaphragm. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This darkfield compound microscopy is ideal for professionals and also affordable for students.
