Total magnification for brightfield: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-250X-400X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); View Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf;
Total magnification for brightfield: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-250X-400X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); View Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf;
Total magnification for brightfield: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-250X-400X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); View Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf;
Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 3inch x 1-9/16inch (78mm x 40mm), dimension 5-1/2inch x 4-1/4inch (140mm x 110mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop; Illumination: transmitted replaceable 3W LED light, intensity adjustable

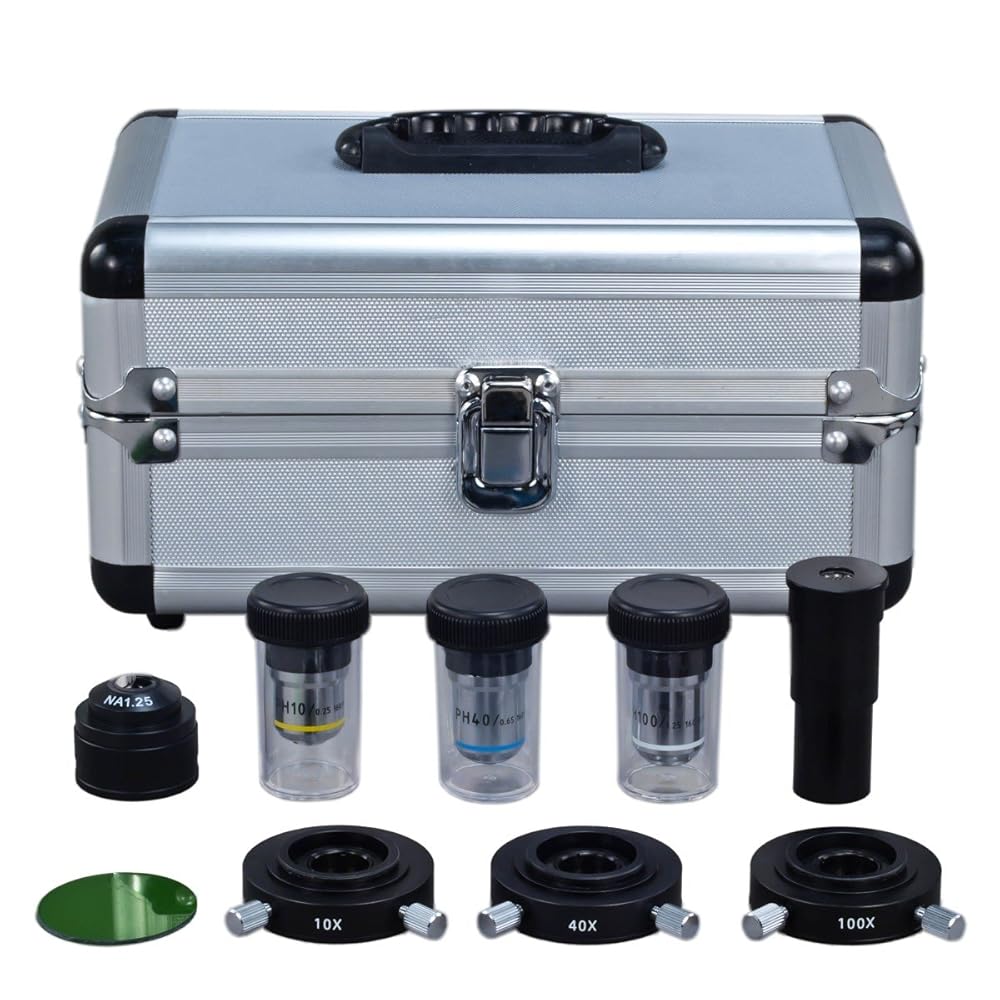

Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment; Phase contrast kit: - NA1.25 condenser - Three separated condenser annular plates: 10X, 40X, 100X - Three phase contrast objectives: 10X, 40X, 100X - Each phase contrast condenser can be centered individually - 37mm mounting size in diameter - Centering telescope: 23.2mm
Power supply: AC 100V ~240V 50/60Hz (US and Canada plug); Solid metal base and stand
5-year warranty against manufacturing defects
Description

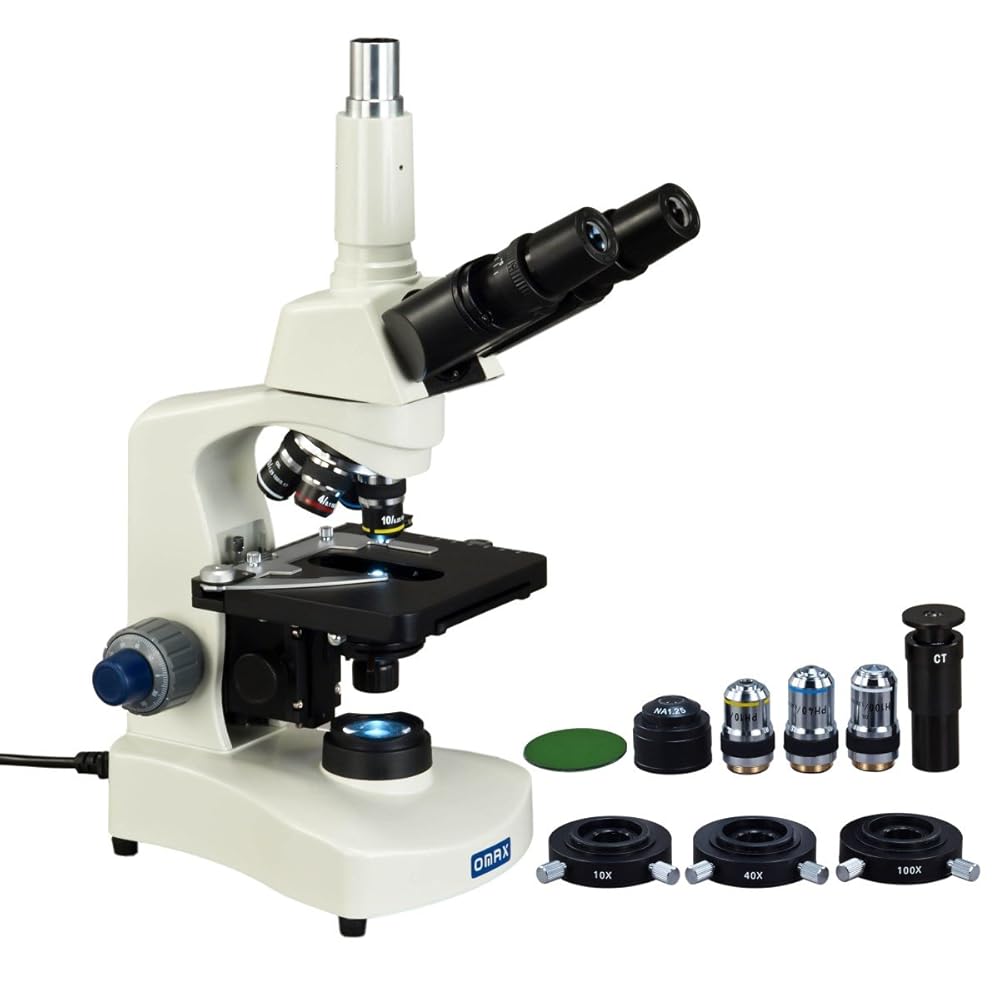

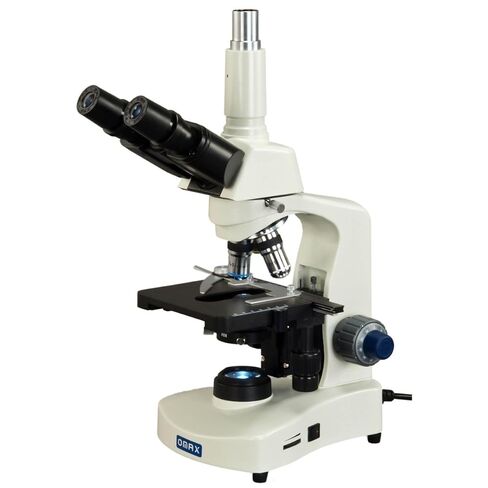

The trinocular compound siedentopf LED microscope provides phase contrast microscope system and brightfield microscope system. The phase contrast microscope comes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm and a complete set of phase contrast kit. The compound microscope features an optical system for observing images through eyepieces and an adjustable trinocular port. It offers six levels of brightfield magnification from 40X to 2500X. The phase contrast microscope can improve the images of transparent and colorless objects, which are hard to see or invisible in an ordinary microscope. This phase contrast compound microscopy is widely used clinical, biological, research and schools, specially for observing live cells.
