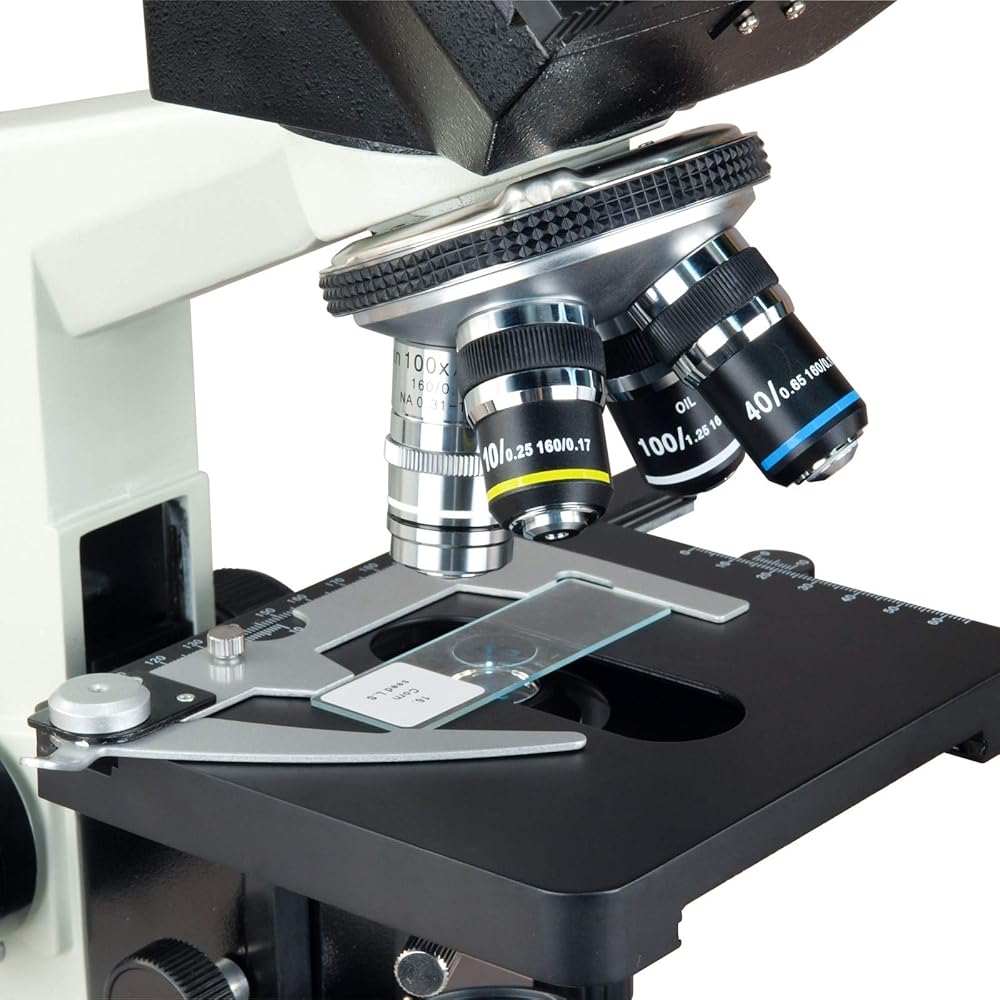

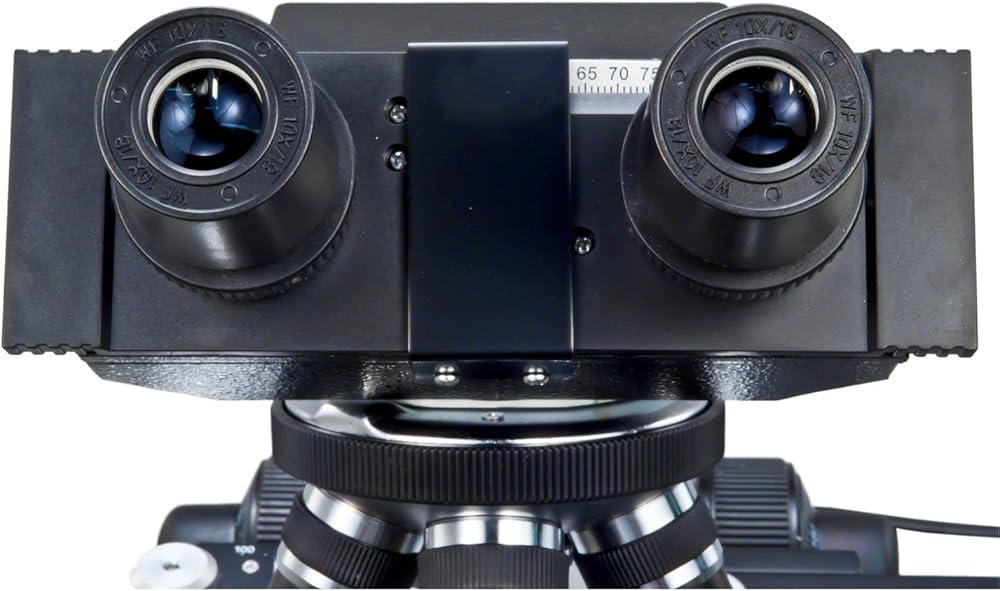

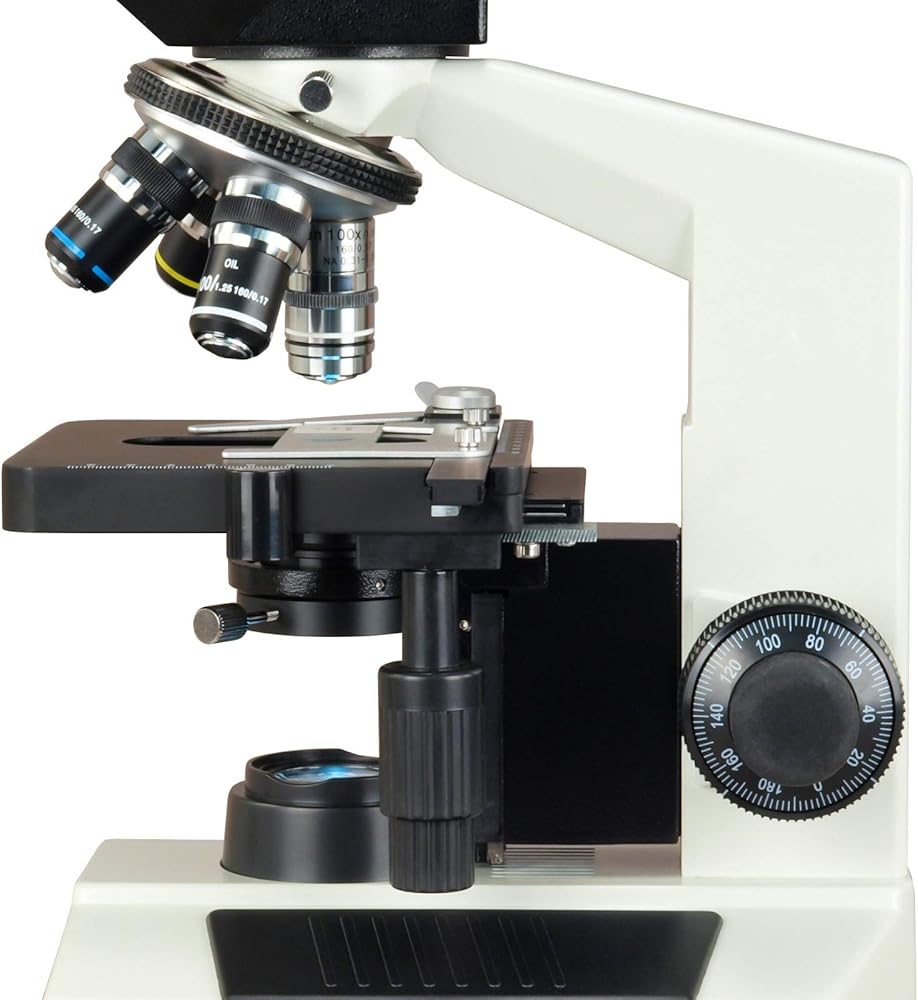

Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control

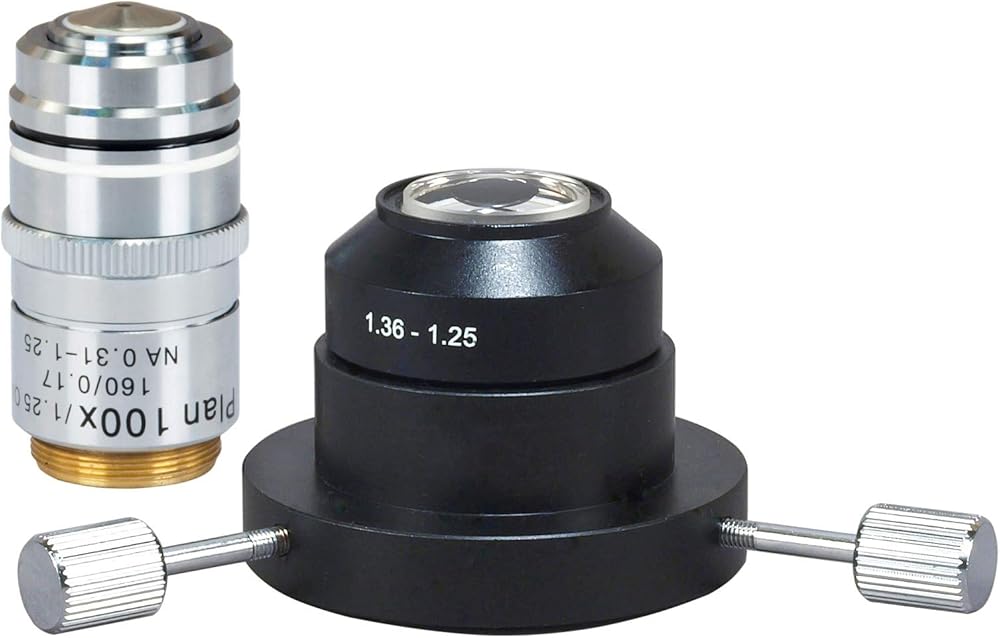

Focusing knob can be locked for observation and transportation; Brightfield condenser: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment; Oil darkfield condenser: NA 1.36-1.25 condenser plus plan 100X/1.25-0.5 160/0.17 objective (oil, spring) with built-in iris diaphragm
Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal mechanical components; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
5-year warranty against manufacturing defects
وصف

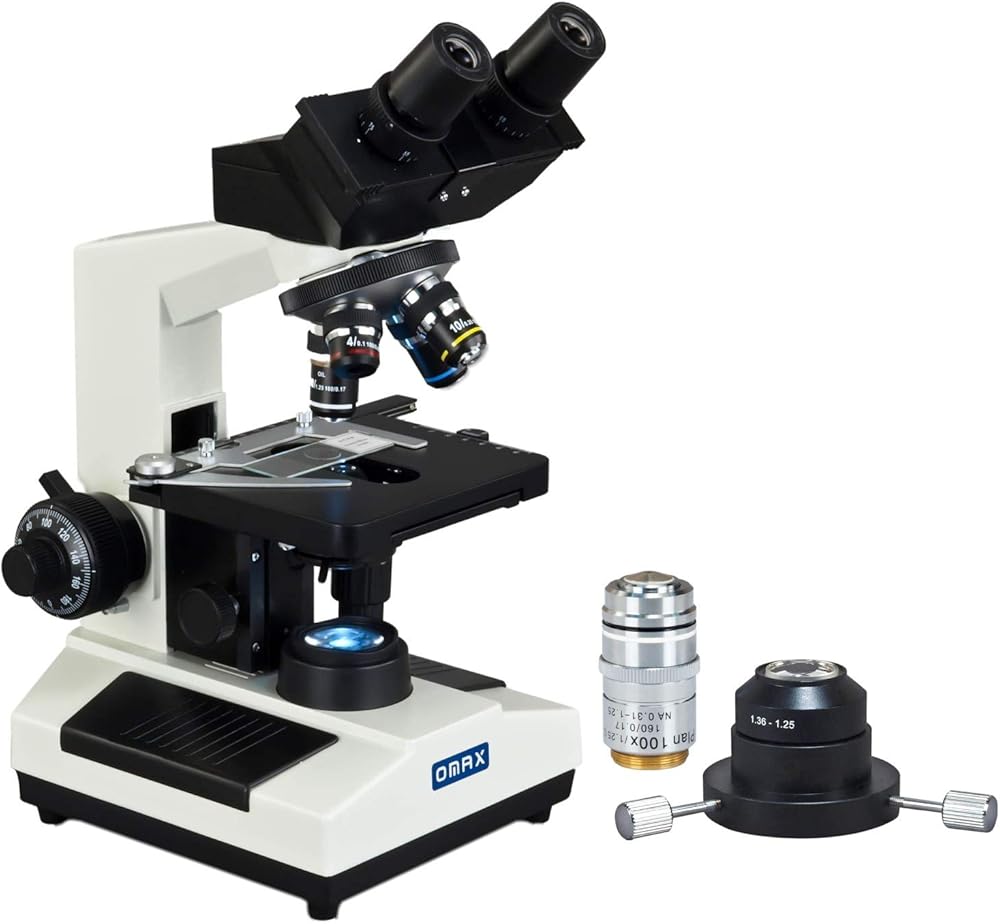

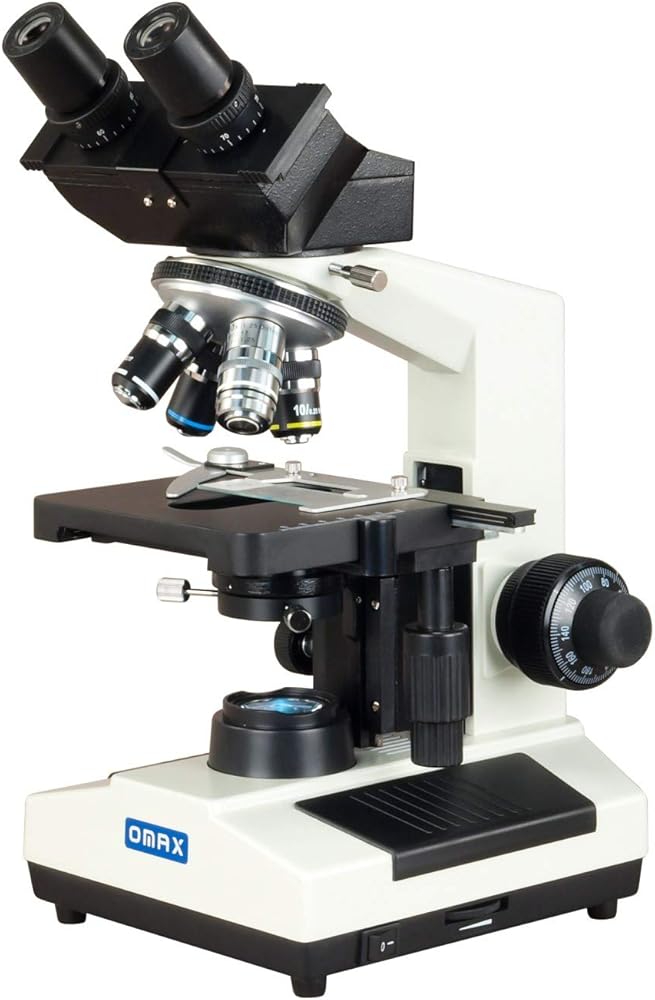

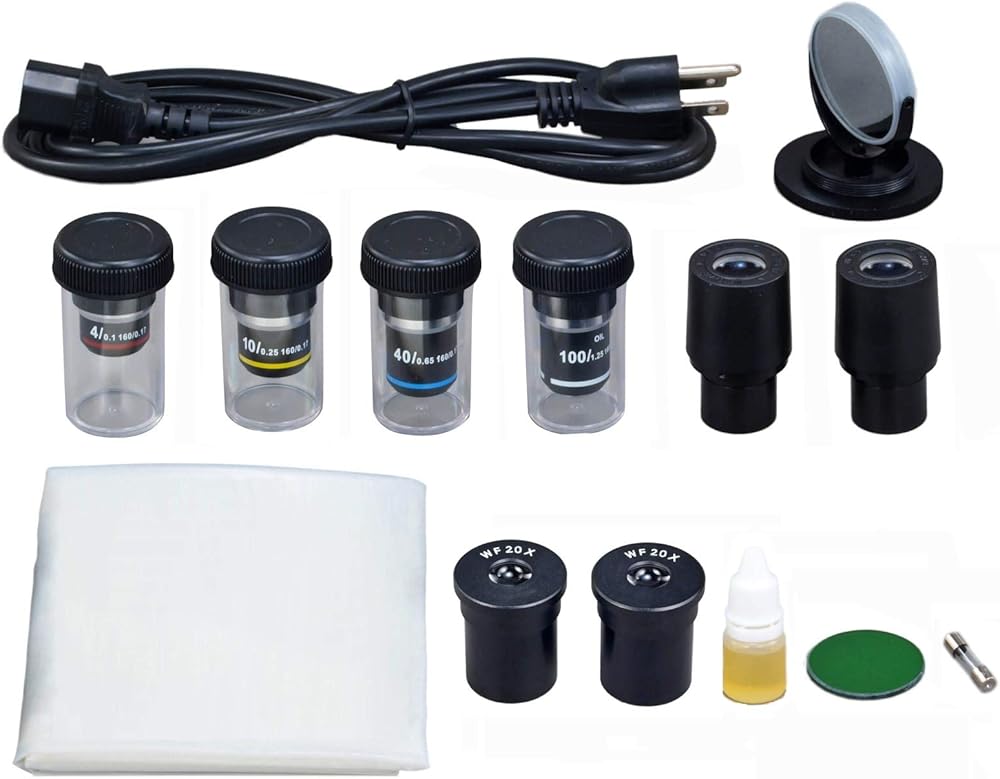

The 40X-2000X binocular compound LED microscope provides both brightfield and darkfield microscope system. The biological microscope comes with swiveling binocular head, body frame, revolving quadruple nosepiece, two pairs of widefield eyepieces, four DIN achromatic objectives, large double layer mechanical stage, LED transmitted illumination system and brightfield Abbe NA1.25 condenser & an oil darkfield NA1.36-1.25 condenser plus 100X objective with iris diaphragm. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This binocular microscope is good for teaching, demonstration, clinical examination and research purpose.
